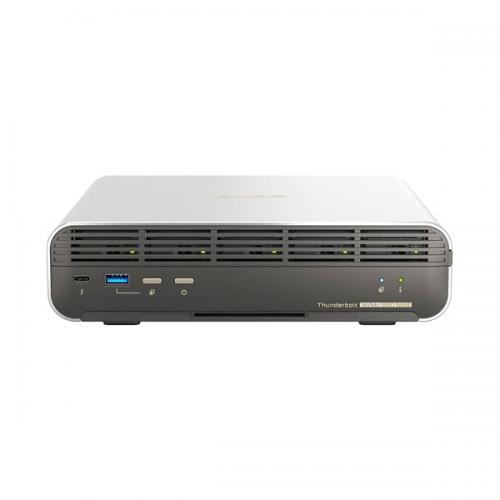

Qnap TBS h574TX Thunderbolt 4 All Flash NASbook
- Brand: Qnap
- Model No: Qnap TBS-h574TX-i5-16G Thunderbolt 4 NASbook
- CPU: Intel Core i5-1340PE 12C(4P+8E)/16T up to 4.50GHz
- CPU Architecture: 64-bit x86
- Graphic Processors: Intel Iris Xe Graphics eligible
- Floating Point Unit: Yes
- Encryption Engine: Yes
- Hardware-accelerated Transcoding: Yes
- System Memory: 16 GB on board (non-expandable)
- Maximum Memory: 16 GB on board (non-expandable)
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 5 x E1.S up to 15mm (5x PCIe Gen3 x2), Pre-install adapter to support M.2 2280 for each slots
- Drive Compatibility: E1.S or M.2 2280 PCIe NVMe
- Hot-swappable: Yes
- M.2 Slot: 5 x M.2 2280 PCIe Gen 3 slots (via pre-installed adapter)
- SSD Cache Acceleration Support: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1
- 10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- Thunderbolt Port: 2 (Thunderbolt 4)
- USB 2.0 port: 1
- USB 3.2 Gen 2 (10Gbps) Port: 2
- HDMI Output: 1, HDMI 1.4b
- Form Factor: Set-top design
- LED Indicators: Status, USB copy, SSD 1-5
- Buttons: Status, USB copy, Reset
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 120W Adapter (19VDC output, 100-240VAC input)
- Power Consumption: Operating Mode, Typical: 46 W
- Fan: System fan: 2 x 40mm, CPU fan: 1 x 75mm
- Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 1500
- Dimensions (HxWxD): 60 × 215 × 199 mm
- Weight (Net): 2.24 kg
- Warranty: 3 Years Onsite Warranty
