BEST SELLING MUTOH PLOTTER PRICELIST

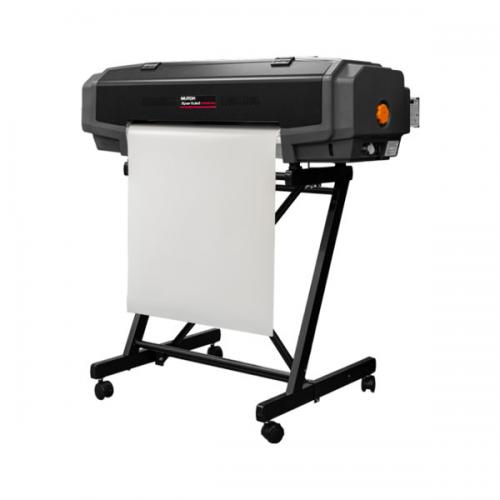

Mutoh XpertJet C641SR Pro Large Format Plotter
- Brand: Mutoh
- Model No: Xpertjet C641SR Pro Plotter
- Media Width/ Roll diameter/ Weight: Max. 630 mm - 24.8”/ Max. Ø 150 mm/ 8 kg
- Maximum print/ cut width: 600 mm – 23.62 inch
- Maximum media thickness: 0.4 (Low) 0.8 (High) mm/ 0.4 (liner) 0.22 (film) mm
- Print/ Cut Technology: Drop-on-demand micro piezo inkjet / Drag knife
- Print Head/ Resolution: AccuFine 1600 – max. 1200 x 1200 dpi
- Head Heights: Two level adjustment : low 1.5 mm/ high 2.8 mm
- Print Performance: Super Quality - 2.48 m²/h, High Quality - 4.94 m²/h, Production Quality - 6.5 m²/h, High Speed - 9.73 m²/h
- Cutting Speed: 20 – 150 mm/s
- Cutting Force: 30 – 300 gf
- Inks: MS31 – CMYK
- Interface: Network connection
- Power Supply: AC100V?120V ±10 % or 200V?240V ± 10 % Frequency: 50/60 Hz ± 1Hz
- Dimensions W x D x H: 1190 x 438 x 366 mm

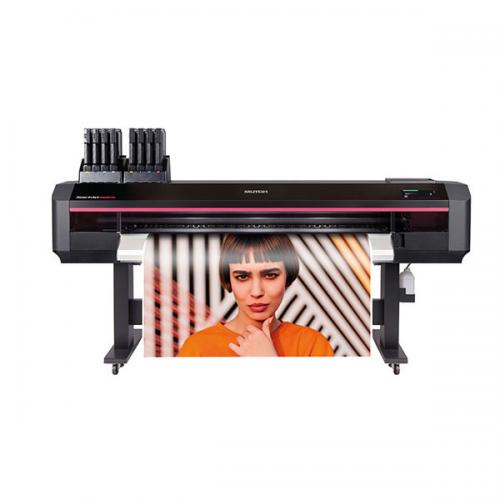

Mutoh XpertJet 1682SR Pro Large Format Plotter
- Brand: Mutoh
- Model No: Xpertjet 1682SR Pro Plotter
- Maximum Media Width: 1625 mm – 64 inch
- Maximum Print Width: 1615 mm – 63.58 inch
- Number of Print Heads: 2 AccuFine HD 3200 nozzle print heads
- Drop Mass Range: 2.5 pl - 17.5 pl
- Resolutions: 300 x 600 dpi until 1200 x 1200 dpi
- Variable Head Height: 4 levels: 1.5, 2.0, 2.5, 4.0 mm
- Media Thicknesses: 0.3, 0.8, 1.3, 2.8 mm
- Productivity: Typical production speeds between 3.0 m²/h (1200 x 1200 dpi) and 15,2 m²/h (600 x 1200 dpi)
- Top Speed: 37,1 m²/h (600 x 600 dpi)
- Inks: MS41: 8 colours C, M, Y, K, Lc, Lm, Lk, Or UV durability without lamination up to 3 years outdoor
- Ink Containers: 300 ml or 1 liter disposable ink packs
- Weight: Printer : 141 kg / Stand : 32 kg
- Dimensions (WxDxH) mm: 2770 x 895 x 1428 mm (cover closed), 2770 x 895 x 1527 mm (cover open), 2770 x 895 x 1611 mm (Ink Cases installed)

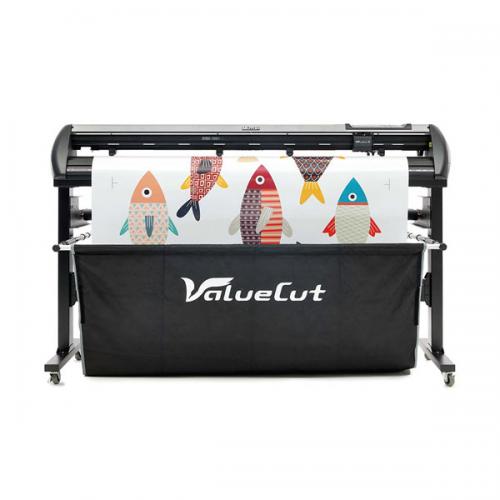

Mutoh ValueCut II 1800 Cutting Machine
- Brand: Mutoh
- Model No: ValueCut II 1800 cutting plotters
- Maximum Speed : 1530 mm/s
- Maximum Acceleration: 4.2 G
- Cutting Force Range: 5 - 600 g
- Media Drive Mechanism: Micro-grit friction feed / Digital control servo motor
- Cutting Principle: Drag knife
- Blade Types Top Angle / Offset: 25° / 0.25 mm, 42° / 0.175 mm, 45° / 0.25 mm, 60° / 0.25 mm, 60° / 0.50 mm
- Distance Accuracy: ± 0.254 mm or ± 0.1 % of moving distance, whichever is larger
- Repeatability: ± 0.1 mm or less
- Tracking Accuracy: ? 2 mm per 10 m
- Media Loading Width (roll & sheet): 300 - 1990 mm
- Max. Cutting Width: 1830 mm
- Max. Media Thickness: 0.8 mm
- Pinch Rollers: 6
- Power Supply: 100-240 V AC - 50/60 Hz Auto-switching / Max 110 W
- Interface / Input Buffer: Ethernet, USB 2.0, Serial / 32 MB
- Width x Depth x Height: 2170 x 756 x 1127 mm
- Weight: 63 kg

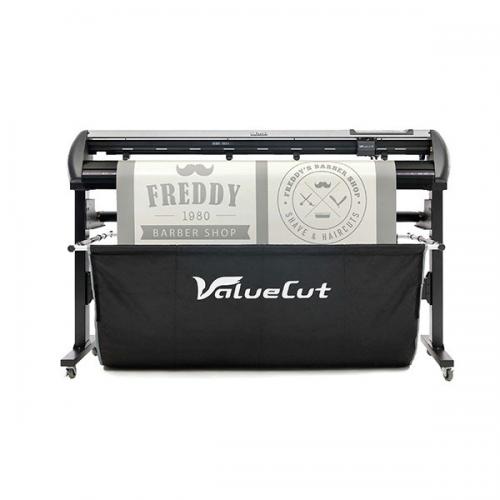

Mutoh ValueCut II 1300 Cutting Machine
- Brand: Mutoh
- Model No: ValueCut II 1300 cutting plotters
- Maximum Speed : 1530 mm/s
- Maximum Acceleration: 4.2 G
- Cutting Force Range: 5 - 600 g
- Media Drive Mechanism: Micro-grit friction feed / Digital control servo motor
- Cutting Principle: Drag knife
- Blade Types Top Angle / Offset: 25° / 0.25 mm, 42° / 0.175 mm, 45° / 0.25 mm, 60° / 0.25 mm, 60° / 0.50 mm
- Distance Accuracy: ± 0.254 mm or ± 0.1 % of moving distance, whichever is larger
- Repeatability: ± 0.1 mm or less
- Tracking Accuracy: ? 2 mm per 10 m
- Media Loading Width (roll & sheet): 50 - 1594 mm
- Max. Cutting Width: 1320 mm
- Max. Media Thickness: 0.8 mm
- Pinch Rollers: 4
- Power Supply: 100-240 V AC - 50/60 Hz Auto-switching / Max 110 W
- Interface / Input Buffer: Ethernet, USB 2.0, Serial / 32 MB
- Width x Depth x Height: 1774 x 651 x 1111 mm
- Weight: 50 kg

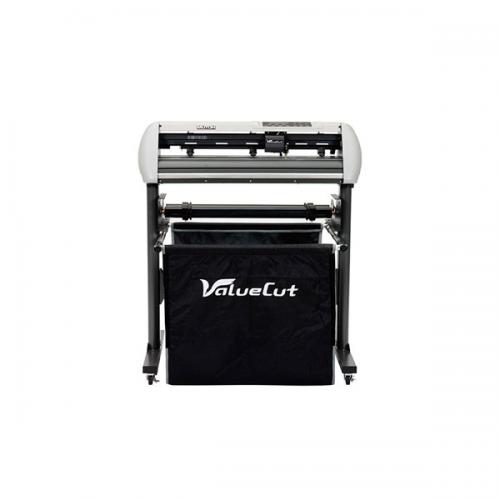

Mutoh ValueCut 600 Cutting Machine
- Brand: Mutoh
- Model No: ValueCut 600 Desktop Cutter
- Maximum Speed (axial): 1080 mm/s
- Maximum. Speed (diagonal): 1530 mm/s
- Acceleration (axial): 3.0 G
- Acceleration (diagonal): 4.2 G
- Max. Cutting Force: 600 g
- Media Drive Mechanism: Micro-grit friction feed / Digital control servo motor
- Cutting Principle: Drag knife
- Blade Types Top Angle / Offset: 25° / 0.25 mm, 42° / 0.175 mm, 45° / 0.25 mm, 60° / 0.25 mm, 60° / 0.50 mm
- Graphic Language: HP-GL, HP-GL/2
- Media Loading Width (roll & sheet): 50 - 770 mm
- Max. Cutting Width: 610 mm
- Max. Media Thickness: 0.8 mm
- Pinch Rollers: 3
- Power Supply: 100-240 V AC - 50/60 Hz Auto-switching / Max 110 W
- Width x Depth x Height: 930 x 490 x 414 mm
- Weight: 37.2 kg
-->
