BEST SELLING AADONA SWITCH PRICELIST
Aadona DSMS 48GPP 4XF PoE Network Switch
- Brand: Aadona
- Product: DIANA DSMS-48GPP-4XF 48 Port Web Smart POE Switch
- Model: DSMS-48GPP-4XF
- Product Family: Diana
- Port: 48G + 4* 10 G SFP Smart Managed L2 Switch
- 10M/100M/1G RJ45 Port: 48
- 100M/1G SFP Port: 4
- Total Ports: 52
- Switching Bandwidth: 256 Gbps (Nonblocking)
- Forwarding Performance: 131 Mpps
- MAC Address: 16K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: 10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~75?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 800W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- VLAN: 4k VLANs
- Link Aggregation: Max 8 aggregation groups, each supports 8 ports
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DSMS DSMS 24GPP 4XF PoE Network Switch
- Brand: Aadona
- Product: DIANA DSMS-24GPP-4XF 24 Port Web Smart POE Switch
- Model: DSMS-24GPP-4XF
- Product Family: Diana
- Port: 24G + 4* 10 G SFP Smart Managed L2 Switch
- 10M/100M/1G RJ45 Port: 24
- 100M/1G SFP Port: 4
- Total Ports: 28
- Switching Bandwidth: 256 Gbps (Nonblocking)
- Forwarding Performance: 92.32 Mpps
- MAC Address: 16K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: 10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~75?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 375W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- VLAN: 4k VLANs
- Link Aggregation: Max 8 aggregation groups, each supports 8 ports
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DSMS 24GP 2G 2F PoE Network Switch
- Brand: Aadona
- Product: DIANA DSMS-24GP-2G-2F 24 Port Web Smart POE Switch
- Model: DSMS-24GP-2G-2F
- Product Family: Diana
- Port: 24G + 2G Copper + 2 G SFP Smart Managed L2 Switch
- 10M/100M/1G RJ45 Port: 26
- 100M/1G SFP Port: 2
- Total Ports: 28
- Switching Bandwidth: 56 Gbps (Nonblocking)
- Forwarding Performance: 40.32 Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: 10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~75?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 400W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- VLAN: 4k VLANs
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DSMS 24GP 2F PoE Network Switch
- Brand: Aadona
- Product: DIANA DSMS-24GP-2F 24 Port Web Smart POE Switch
- Model: DSMS-24GP-2F
- Product Family: Diana
- Port: 24G + 2 G SFP Smart Managed L2 Switch
- 10M/100M/1G RJ45 Port: 24
- 100M/1G SFP Port: 2
- Total Ports: 26
- Switching Bandwidth: 52 Gbps (Nonblocking)
- Forwarding Performance: 38.6 Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: 10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~75?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 400W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- VLAN: 4k VLANs
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DSMS 24GP PoE Network Switch
- Brand: Aadona
- Product: DIANA DSMS-24GP 24 Port Web Smart POE Switch
- Model: DSMS-24GP
- Product Family: Diana
- Port: 24G Smart Managed L2 Switch
- 10M/100M/1G RJ45 Port: 24
- 100M/1G SFP Port: NA
- Total Ports: 24
- Switching Bandwidth: 48 Gbps (Nonblocking)
- Forwarding Performance: 35.7 Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: 10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~75?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 400W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- VLAN: 4k VLANs
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DSMS 16GP 2F PoE Switch
- Brand: Aadona
- Product: DIANA DSMS-16GP2F 8 Port Web Smart POE Switch
- Model Name: DSMS-16GP-2F
- Product Family: Diana
- Port: 16 Port 10/100M/1000M Ethernet + 2 Port 100/1000M SFP Uplink L2 Web Managed PoE Switch
- 10M/100M/1G RJ45 Port: 16
- 100M/1G SFP Port: 2
- Total Ports: 18
- Switching Bandwidth: 56 Gbps (Nonblocking)
- Forwarding Performance: 40.32 Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: -10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~70?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 300W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- VLAN: 4k VLANs
- Port-based VLANs: Yes
- Spanning Tree: Yes
- Link Aggregation: Max 8 aggregation groups, each supports 8 ports
- Static aggregation: Yes
- Dynamic aggregation: Yes
- Port Mirror: Yes (Many-to-one)
- Loop Guard: Yes
- Port flow control: Half-duplex-based back pressure control, Full-duplex based on PAUSE frames, Port-based input/output bandwidth management
- IGMP Snooping: Yes (IGMPv1/2/3 MLDv1/2 Snooping)
- DHCP Snooping: Yes
- Storm suppression: Yes (Unknown unicast, multicast, Unknown multicast, Storm suppression of broadcast type, Storm suppression based on bandwidth tuning, Storm filtering)
- Warranty: 3 Year Warranty
Aadona DSMS 16GP Smart Switch
- Brand: Aadona
- Product: DIANA DSMS-16GP 16 Port Web Smart POE Switch
- Port: 16 Port
- Model Name: DSMS-16GP
- Product Family: Diana
- 10M/100M/1G RJ45 Port: 16
- 100M/1G SFP Port: NA
- Total Ports: 16
- Switching Bandwidth: 32 Gbps (Nonblocking)
- Forwarding Performance: 23.8 Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: -10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~70?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 300W
- VLAN: 4k VLANs
- Port-based VLANs: Yes
- Spanning Tree: Yes
- Link Aggregation: Max 8 aggregation groups, each supports 8 ports
- Static aggregation: Yes
- Dynamic aggregation: Yes
- Port Mirror: Yes (Many-to-one)
- Loop Guard: Yes
- Port flow control: Half-duplex-based back pressure control, Full-duplex based on PAUSE frames, Port-based input/output bandwidth management
- IGMP Snooping: Yes (IGMPv1/2/3 MLDv1/2 Snooping)
- DHCP Snooping: Yes
- Storm suppression: Yes(Unknown unicast, multicast, Unknown multicast, Storm suppression of broadcast type, Storm suppression based on bandwidth tuning, Storm filtering)
- Warranty: 3 Year Warranty
Aadona DSMS 8XGP Gigabit Switch
- Brand: Aadona
- Product: DIANA DSMS-8XGP 8 Port Web Smart POE Switch
- Port: 8 Port
- Model Name: DSMS-8XGP
- Product Family: Diana
- 10M/100M/1G RJ45 Port: 8
- 100M/1G SFP Port: NA
- Total Ports: 8
- Switching Bandwidth: 160 Gbps (Nonblocking)
- Forwarding Performance: 115.8 Mpps
- MAC Address: 16K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: -10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~70?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 150W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- Link Aggregation: Max 8 aggregation groups, each supports 8 ports
- Port flow control: Half-duplex-based back pressure control, Full-duplex based on PAUSE frames, Port-based input/output bandwidth management
- IGMP Snooping: Yes (IGMPv1/2/3 MLDv1/2 Snooping)
- Storm suppression: Yes (Unknown unicast, multicast, Unknown multicast, Storm suppression of broadcast type, Storm suppression based on bandwidth tuning, Storm filtering)
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DSMS 8GP 2F Layer 2 Access Switch
- Brand: Aadona
- Product: DIANA DSMS-8GP-2F Web Smart POE Switch
- Port: 8G + 2G SFP Web Managed L2 Switch
- Model Name: DSMS-8GP-2F
- Product Family: Diana
- 10M/100M/1G RJ45 Port: 8
- 100M/1G SFP Port: 2
- Total Ports: 10
- Switching Bandwidth: 20Gbps
- Forwarding Performance: 14.44Mpps
- MAC Address: 8K
- Jumbo Frames: 9216 Bytes
- Operating Temperature: -10°C to 55°C
- Operating humidity: 10%~90% Non-condensation
- Storage Temperature: -40?~70?
- Storage humidity: 5%~95% Non-condensation
- AC Input: AC Input 100240V 5060Hz (Internal)
- Total PoE Budget: 150W
- Max PoE Power Per Port: 30W
- PoE Standard: 802.3af & 802.3at
- Link Aggregation: Max 8 aggregation groups, each supports 8 ports
- Port: Auto-MDIX; Auto-negotiation
- Warranty: 3 Year Warranty
Aadona DUS 24G 2G 2F Unmanaged Network Switch
- Brand: Aadona
- Product: DIANA DUS-24G-2G-2F 24 Port Unmanaged Non POE Switch
- Model Name: DUS-24G-2G-2F
- Product Family: Diana
- Port: 24 Port 10/100/1000 + 2G + 2SFP Uplink Ports Unmanaged Switch
- 10M/100M/1000M RJ45 Port: 24
- 10M/100M/1000M Uplink RJ45 Port: 2
- 10M/100M/1000M SFP Uplink Port: 2
- Total Ports: 28
- Switching Bandwidth: 56 Gbps
- Packet Forwarding: 40.32 Mpps
- Exchange Mechanism: Store & Forward
- MAC Address: 8K
- Environmental Specification:
- Operating Temperature: -10 to +55?
- Operating Humidity: 5%?90% RH Non-condensing
- Storage Temperature: -40? to +75?
- Storage Humidity: 5%?95% RH Non-condensing
- FAN Less: Yes
- AC Input: AC input 100240V 5060Hz 1A Internal Power Supply
- Power Consumption: <30W
- IEEE 802.3: Yes
- IEEE 802.3X: Yes
- IEEE 802.3i 10BASE-TX: Yes
- IEEE 802.3u 100BASE-TX: Yes
- IEEE 802.3ab 1000BASE-T: Yes
- IEEE 802.3z 1000BASE-X: Yes
- IEEE 802.3x Flow control: Yes
- Normal Mode: 100 meters
- Port-Based VLAN/Port Isolation: Yes
- Ethernet 10Mbps half-duplex: Yes
- Fast Ethernet 100Mbps half-duplex: Yes
- Gigabit Ethernet 1000Mbps half-duplex: Yes
- Gigabit Ethernet 2000Mbps full-duplex: Yes
- 10BASE-T: Cat3,4,5 UTP(?250 meters)
- 100BASE-TX: Cat5 or later UTP(150 meters)
- 1000BASE-TX: Cat6 or later UTP(150 meters)
- Lightning Protection Level: 3KV 8/20us; IP30
- Dimensions (H) x (W) x (D) mm: 440mm140mm45mm
Aadona DUS 16G Non PoE Network Switch
- Brand: Aadona
- Product: DIANA DUS-16G 16 Port Unmanaged Non POE Switch
- Model Name: DUS-16G
- Port: 16 Port 10/100/1000M Unmanaged Switch
- Product Family: Diana:
- 10M/100M/1000M RJ45 Port: 16
- 10M/100M/1000 Uplink RJ45 Port: NA
- 10M/100M/1000M SFP Uplink Port: NA
- Total Ports: 16
- Switching Bandwidth: 56 Gbps
- Packet Forwarding: 14.44 Mpps
- Exchange Mechanism: Store & Forward
- System Buffer: 2.5M
- MAC Address: 4K
- Jumbo Frames: 9K
- DIP Switch: N:(standard normal); V:(port isolation); C:(Flow Control mode)
- Port Based Isolation: Yes:
- Operating Temperature: -10-55?
- Operating Humidity: 10%?90% RH Non-condensing
- Storage Temperature: -40??75?
- Storage Humidity: 5%?90% RH Non-condensing
- FAN Less: Yes:
- AC Input: Internal Power Supply AC input 100240V 5060Hz 1A
- Power Consumption: ?15W
- IEEE 802.3X: Yes
- IEEE 802.3i 10BASE-TX: Yes
- IEEE 802.3u 100BASE-TX: Yes
- IEEE 802.3x Flow control: Yes:
- Normal Mode: Up to 100 meters
- Ethernet 10Mbps half-duplex: Yes
- Fast Ethernet 100Mbps half-duplex: Yes
- Gigabit Ethernet 1000Mbps half-duplex: Yes
- Gigabit Ethernet 2000Mbps full-duplex: Yes:
- 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
- 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
- 1000Base-TX: Pair 2 Category 6 and above UTP/STP(?150m)
- Lightning Protection: 3KV 8/20us; IP30
- Product Dimensions (H) x (W) x (D) mm: 210mm105mm45mm
- Weight: 0.6kg
- Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)
Aadona DUS 8G 2F Non PoE Network Switch
- Brand: Aadona
- Product: DIANA DUS-8G-2F Unmanaged Non POE Switch
- Model Name: DUS-8G-2F
- Port: 8 Port 10/100/1000M + 2G SFP Uplink Switch
- Product Family: Diana:
- 10M/100M/1000M RJ45 Port: 8
- 10M/100M/1000 Uplink RJ45 Port: NA
- 10M/100M/1000M SFP Uplink Port: 2
- Total Ports: 10
- Switching Bandwidth: 20 Gbps
- Packet Forwarding: 14.44 Mpps
- Exchange Mechanism: Store & Forward
- MAC Address: 54K
- System Buffer: 2.5M
- Jumbo Frames: 9K
- Operating Temperature: -10-55?
- Operating Humidity: 10%?90% RH Non-condensing
- Storage Temperature: -40??75?
- Storage Humidity: 5%?90% RH Non-condensing
- Product Dimensions: 220mm105mm32mm
- Weight: 1.1 kg
- FAN Less: Yes
- AC Input: AC input 100240V 5060Hz Internal Power Supply
- DC Input: DC Input 48~57V
- Power Consumption: ?6W
- IEEE 802.3X, IEEE 802.1q VLAN: Yes
- IEEE 802.3i 10BASE-TX: Yes
- IEEE 802.3u 100BASE-TX: Yes
- IEEE 802.3x Flow control: Yes
- Normal Mode: Up to 100 meters
- Port Based VLAN / Port Isolation: Yes
- Ethernet: 10Mbps half-duplex, 20Mbps full duplex
- Fast Ethernet: 100Mbps half-duplex, 200Mbps full duplex
- Gigabit Ethernet: 1000Mbps half-duplex, 2000Mbps full-duplex
- 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?100m)
- 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?100m)
- 1000Base-TX: Pair 2 Category 6 and above UTP/STP(?100m)
- Lightning Protection Level: 3KV 8/20us
- Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)
Aadona DUS 8G 25 Non PoE Network Switch
- Brand: Aadona
- Product: DIANA DUS-8G-25 8 Port Unmanaged Non POE Switch
- Model: DUS-8G-25
- Port: 8 Port Full 2.5G Switch
- Fixed Port: 8*10M/100M/1000M/2.5G RJ45 port
- Network Protocol: IEEE 802.3/U, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
- Port Specification: 10M/100M/1000M/2.5G Auto
- Packet Buffer: Up to 12Mbit
- Jumbo Frame: Up to 12KB
- Bandwidth: 40Gbps
- Packet Forwarding: 29.76Mpps
- MAC Address: 16K
- Transmission Distance: - 10BASE-T: Cat3,4,5 UTP (?250 meter): - 100BASE-TX: Cat5 or later UTP (150 meter): - 2500/1000BASE-TX: Cat6 or later UTP (150 meter)
- LED Indicator: - PWR: Power LED: - Port: 10M/100M LED, 1G LED, 2.5G LED
- Operating Temperature/Humidity: -10°C to +55°C; 5% to 90% RH Non-condensation
- Storage Temperature/Humidity: -40°C to +75°C; 5% to 95% RH Non-condensation
- Power: DC 12V
- Installation: Desktop (optional wall+ machine hanging kit)
- Lightning Protection Level: 6KV 8/20us; IP30
- Warranty: Whole device for 2+ years (Accessories not included)
- Weight(kg): 0.8kg/1.2kg
Aadona DUS 8G Non PoE Network Switch
- Brand: Aadona
- Product: DIANA DUS-8G 8 Port Unmanaged Non POE Switch
- Port:8 Port 10/100/1000M Unmanaged Switch
- Model Name:DUS-8G
- Product Family:Diana
- 10M/100M/1000M RJ45 Port:8
- 10M/100M/1000 Uplink RJ45 Port:—
- 10M/100M/1000M SFP Uplink Port:—
- Total Ports:8
- Switching Bandwidth:16 Gbps
- Packet Forwarding:11.52 Mpps
- Exchange Mechanism:Store & Forward
- MAC Address:2K
- System Buffer:2.5M
- Jumbo Frames:9K
- Operating Temperature:-10-55?
- Operating Humidity:10%?90% RH Non-condensing
- Storage Temperature:-40??75?
- Storage Humidity:5%?90% RH Non-condensing
- FAN Less:Yes
- Power Input:External Power Supply DC 12V, 0.5A
- Power Consumption:?6W
- Transmission Distance:IEEE 802.3X:Yes
- Transmission Distance:IEEE 802.3i 10BASE-TX:Yes
- Transmission Distance:IEEE 802.3u 100BASE-TX:Yes
- Transmission Distance:IEEE 802.3x Flow control:Yes
- Normal Mode:Up to 100 meters
- Ethernet 10Mbps half-duplex:Yes
- Fast Ethernet 100Mbps half-duplex:Yes
- Gigabit Ethernet 1000Mbps half-duplex:Yes
- Gigabit Ethernet 2000Mbps full-duplex:Yes
- NETWORK MEDIA:
- 10Base-T:Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
- 100Base-TX:Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
- 1000Base-TX:Pair 2 Category 6 and above UTP/STP(?150m)
- Lightning Protection Level:3KV 8/20us; IP30
- Product Dimensions (H x W x D):175 X 75 X 28mm
- Weight:0.4kg
- Warranty:2 Year + 1 Year Extended Warranty (Max 3 Year)

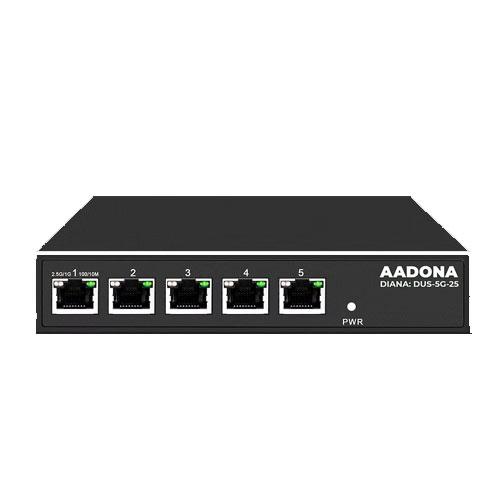

Aadona DUS 5GP 25 Non PoE Network Switch
- Brand: Aadona
- Product: DIANA DUS-5GP-25 Non Unmanaged POE Switch
- Model: DUS-5G-25
- Product: 5 Port Full 2.5G Switch
- Fixed Port: 5*10M/100M/1000M/2.5G RJ45 port
- Network protocol: IEEE 802.3/U?IEEE 802.3ab?IEEE 802.3bz?IEEE 802.3x
- Port Specification: 10M/100M/1000M/2.5G Auto
- Packet Buffer: Up to 12Mbit
- Jumbo frame: up to 12KB
- Bandwidth: 25 Gbps
- Packet Forwarding: 18.7 Mpps
- MAC Address: 16K
- Transmission Distance: 10BASE-T ? Cat3,4,5 UTP(?250 meter) 100BASE-TX ? Cat5 or later UTP(150 meter) 2500/1000BASE-TX ?Cat6 or later UTP(150 meter)
- LED Indicator: PWR:Power LED Port:10M//100 LED; 1G LED; 2.5G LED
- Operating Temperature/Humidity: -10?+55°C?5%?90% RH Non condensation
- Storage Temperature/Humidity: -40?+75°C?5%?95% RH Non condensation
- Power: DC 12V
- N.W/G.W?kg?: 0.57kg/0.92kg
- Installation: Desktop (optional wall+ machine hanging kit)
- Lightning protection level: 6KV 8/20us? IP30
- Certificate: CE mark, commercial?CE/LVD EN60950? RoHS?
- Warranty: Whole device for 2+ year(Accessories not included)
Aadona DUS 5G 25 Non PoE Layer 3 Switch
- Brand: Aadona
- Product: DIANA DUS-5G Unmanaged Non PoE Switch
- Model Name: DUS-5G
- Product Family: Diana
- Port: 5 Port 10/100/1000M Unmanaged Switch
- 10M/100M/1000M RJ45 Port: 5
- 10M/100M/1000 Uplink RJ45 Port: NA
- 10M/100M/1000M SFP Uplink Port: NA
- Total Ports: 5
- Switching Bandwidth: 10 Gbps
- Packet Forwarding: 7.4 Mpps
- Exchange Mechanism: Store & Forward
- MAC Address: 2K
- System Buffer: 2.5M
- Jumbo Frames: 9K
- Operating Temperature: -10-55?
- Operating Humidity: 10%?90% RH Non-condensing
- Storage Temperature: -40??75?
- Storage Humidity: 5%?90% RH Non-condensing
- Product Dimensions (H) x (W) x (D) mm: 160mm*112mm*31mm
- Weight: 0.4kg
- FAN Less: Yes
- Power Input: External Power Supply DC 12V, 0.5A
- Power Consumption: ?6W
- IEEE 802.3X: Yes
- IEEE 802.3i 10BASE-TX: Yes
- IEEE 802.3u 100BASE-TX: Yes
- IEEE 802.3x Flow control: Yes
- Normal Mode: Up to 100 meters
- Ethernet 10Mbps half-duplex: Yes
- Fast Ethernet 100Mbps half-duplex: Yes
- Gigabit Ethernet 1000Mbps half-duplex: Yes
- Gigabit Ethernet 2000Mbps full-duplex: Yes
- 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
- 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
- 1000Base-TX: Pair 2 Category 6 and above UTP/STP(?150m)
- Lightning Protection Level: 3KV 8/20us; IP30
- Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)

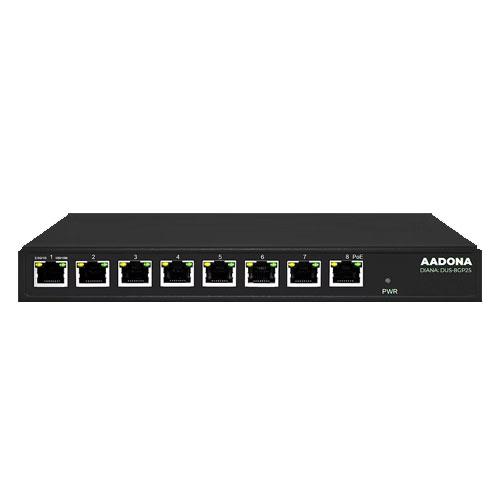

Aadona DUS 8GP 25 Ethernet Switch
- Brand: Aadona
- Product: DIANA DUS-8GP-25 8GP 25 Unmanaged POE Switch
- Model: DUS-8GP-25
- Port: 8 Port Full 2.5G POE Switch
- Fixed Port: 8*10M/100M/1000M/2.5G RJ45 POE port
- Network Protocol: IEEE 802.3/U, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
- Port Specification: 10M/100M/1000M/2.5G Auto
- Packet Buffer: Up to 12Mbit
- Jumbo Frame: Up to 12KB
- Bandwidth: 40Gbps
- Packet Forwarding: 29.76Mpps
- MAC Address: 16K
- 10BASE-T: Cat3,4,5 UTP (?250 meters)
- 100BASE-TX: Cat5 or later UTP (150 meters)
- 2500/1000BASE-TX: Cat6 or later UTP (150 meters)
- LED Indicator: PWR:Power LED Port:10M/100 LED; 1G LED; 2.5G LED
- Operating Temperature/Humidity: -10°C to +55°C; 5% to 90% RH Non-condensation
- Storage Temperature/Humidity: -40°C to +75°C; 5% to 95% RH Non-condensation
- Power: DC 48V input
- Maximum POE Budget: 120W
- PoE Standard: IEEE802.3 af/at
- N.W/G.W (kg): 0.8kg/1.2kg
- Installation: Desktop (optional wall+ machine hanging kit)
- Lightning Protection Level: 6KV 8/20us; IP30
- Certificate: CE mark, commercial; CE/LVD EN60950; RoHS
- Warranty: Whole device for 2+ years (Accessories not included)

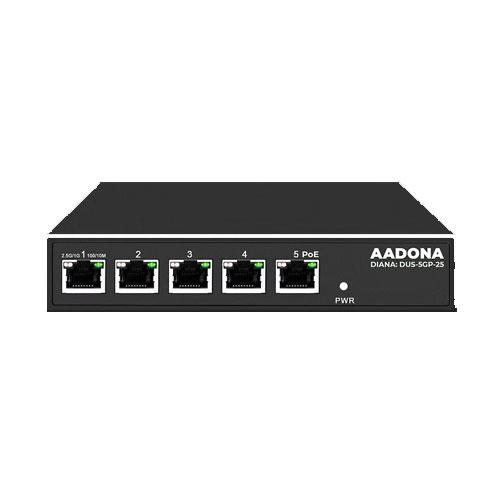

Aadona DUS 5GP 25 Network Switch
- Brand: Aadona
- Product: DIANA DUS-5GP-25 Unmanaged POE Switch
- Model: DUS-5GP-25
- Port: 5 Port Full 2.5G POE Switch
- Fixed Port: 5*10M/100M/1000M/2.5G RJ45 POE port
- Network Protocol: IEEE 802.3/U, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
- Port Specification: 10M/100M/1000M/2.5G Auto
- Packet Buffer: Up to 12Mbit
- Jumbo Frame: Up to 12KB
- Bandwidth: 25 Gbps
- Packet Forwarding: 18.7 Mpps
- MAC Address: 16K
- Transmission Distance:
- 10BASE-T: Cat3,4,5 UTP (?250 meters)
- 100BASE-TX: Cat5 or later UTP (150 meters)
- 2500/1000BASE-TX: Cat6 or later UTP (150 meters)
- LED Indicator: PWR:Power LED Port:10M/100 LED; 1G LED; 2.5G LED
- Operating Temperature/Humidity: -10°C to +55°C; 5% to 90% RH Non-condensation
- Storage Temperature/Humidity: -40°C to +75°C; 5% to 95% RH Non-condensation
- Power: DC 48V input
- Maximum PoE Budget: 60W
- PoE Standard: IEEE802.3 af/at
- N.W/G.W (kg): 0.57kg/0.92kg
- Installation: Desktop (optional wall+ machine hanging kit)
- Lightning Protection Level: 6KV 8/20us; IP30
- Certificate: CE mark, commercial; CE/LVD EN60950; RoHS
- Warranty: Whole device for 2+ years (Accessories not included)
-->
CLICK TO CALL
