BEST SELLING AADONA WORKSTATION PRICELIST

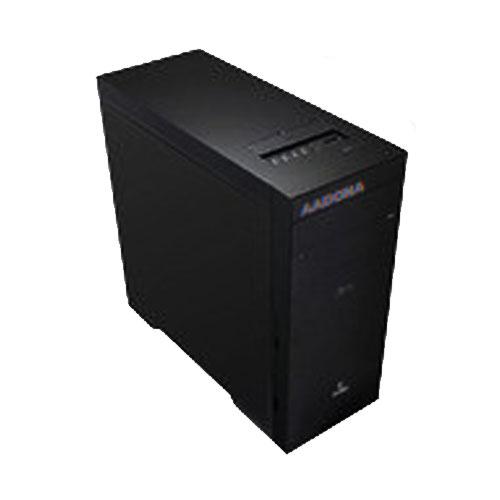

Aadona IWS IX64 P610 8GB RAM Tower Workstation
- Brand: Aadona
- Form Factor: ATX(Advanced Technology Extended)
- Model: IRIS IWS-IX64-P610
- Product: Aadona IWS-IX64-P610 ATX Workstation
- CPU: Intel Socket 2066 Processors - Supports Intel 14 nm CPU - Supports Intel Turbo Boost Max Technology 2.0
- Chipset: Build in Intel C422
- Memory: 8 x DIMM, Max. 1024GB, DDR4 2933/2666/2400/2133 MHz RDIMM, LR-DIMM Memory - Quad Channel Memory Architecture
- On Board Graphic: ASPEED AST2500 64MB - VGA output support : Header port
- Multi-GPU Support: Supports NVIDIA® 3-Way SLITM Technology - Supports AMD 3-Way CrossFireXTM Technology
- Expansion Slots : 2 x PCIe 3.0 x16 (x16 mode) - 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8) - 1 x PCIe 3.0 x4 (x4 mode)
- Storage : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) - 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) - 1 x U.2 connector - 6 x SATA 6Gb/s port(s) - Support Raid 0, 1, 5, 10 - Intel® Rapid Storage Technology Enterprise supports - Intel® Virtual RAID (VROC) support for CPU RAID
- LAN: Intel® I210-AT, 2 x Gigabit LAN Controller(s)
- Audio: Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- USB Ports: Intel® C422 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) - Intel® C422 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) - ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) - ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s)
- Workstation Feature: Control Center (CC) - ASMB9-iKVM for KVM-over-Internet
- Special Features: 5X Protection III - AURA - Exclusive Features - DIGI + Power Control - Quiet Thermal Solution - EZ DIY - Q-Design - M.2 and U.2 Onboard - Control Center (ACC) IT management software supported - Intel® Virtual RAID on CPU (VROC) ready - Thunderbolt 3 support
- Back I/O Ports: 2 x LAN (RJ45) port(s) - 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM, - 4 x USB 3.1 Gen 1 (blue) - 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®) - 1 x Optical S/PDIF out - 1 x USB BIOS Flashback® Button(s) - 1 x 8-channel Audio I/O - 1 x Aura Addressable Strip Header(s)
- Internal I/O Ports: Refer to the provided list
- BIOS: EZ Flash3 - F11 EZ Tuning Wizard - UEFI BIOS EZ Mode - Multi-language BIOS
- Dimensions: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Weight: 8.9kg
- Operation temperature: 10°C ~ 35°C
- Non operation temperature: -40°C ~ 70°C
- Non operation humidity: 20% ~ 90% ( Non condensing)
- Warranty: 3 years Warranty
Aadona IWS IX64 P710 GC Intel 2066 Processor Tower Workstation
- Brand: Aadona
- Form Factor: ATX(Advanced Technology Extended)
- Model: IRIS IWS-IX64-P710-GC
- Product: Aadona IWS-IX64-P710-GC ATX Workstation
- CPU: Intel Socket 2066 Processors- Supports Intel 14 nm CPU - Supports Intel Turbo Boost Max Technology 2.0
- Chipset: Build in Intel C422
- Memory: 8 x DIMM, Max. 1024GB, DDR4 2933/2666/2400/2133 MHz RDIMM, LR-DIMM Memory - Quad Channel Memory Architecture
- On Board Graphic: ASPEED AST2500 64MB - VGA output support : Header port
- Multi-GPU Support: Supports NVIDIA 3-Way SLITM Technology - Supports AMD 3-Way CrossFireXTM Technology
- Expansion Slots: 2 x PCIe 3.0 x16 (x16 mode) - 2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8) - 1 x PCIe 3.0 x4 (x4 mode)
- Storage : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) - 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) - 1 x U.2 connector - 6 x SATA 6Gb/s port(s) - Support Raid 0, 1, 5, 10 - Intel® Rapid Storage Technology Enterprise supports - Intel® Virtual RAID (VROC) support for CPU RAID
- LAN: Intel® I210-AT, 2 x Gigabit LAN Controller(s)
- Audio: Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- USB Ports: Intel® C422 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , 2 at mid-board) - Intel® C422 Chipset : 6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) - ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) - ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s)
- Workstation Feature: Control Center (CC) - ASMB9-iKVM for KVM-over-Internet
- Special Features: 5X Protection III - AURA - Exclusive Features - DIGI + Power Control - Quiet Thermal Solution - EZ DIY - Q-Design - M.2 and U.2 Onboard - Control Center (ACC) IT management software supported - Intel® Virtual RAID on CPU (VROC) ready - Thunderbolt 3 support
- Back I/O Ports: 2 x LAN (RJ45) port(s) - 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM, - 4 x USB 3.1 Gen 1 (blue) - 4 x USB 2.0 (one port can be switched to USB BIOS Flashback®) - 1 x Optical S/PDIF out - 1 x USB BIOS Flashback® Button(s) - 1 x 8-channel Audio I/O - 1 x Aura Addressable Strip Header(s)
- Internal I/O Ports: Refer to the provided list
- BIOS: CrashFree BIOS 3 - EZ Flash3 - F11 EZ Tuning Wizard - UEFI BIOS EZ Mode - Multi-language BIOS
- Dimensions: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
- Weight: 8.9kg
- Operation temperature: 10°C ~ 35°C
- Nonoperation temperature: -40°C ~ 70°C
- No operation humidity: 20% ~ 90% (Non-condensing)
- Warranty: 3 years Warranty
Aadona IWS IX64 610MH I5G C12 8GB RAM Tower Workstation
- Brand: Aadona
- Form Factor: Tower chassis
- Model: IWS-IX64-610MH-I5-GC12
- Product: Aadona IWS-IX64-610MH-I5-GC12 8GB RAM Tower Workstation
- CPU: Intel Core i5-12600 Processor
- Memory: 8GB DDR4 SDRAM * 1
- On Board Graphic: RTX4070Ti 12GB Graphic card * 1
- Display Output: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Storage: 500GB SSD * 1
- LAN: Intel® GbE LAN chip (1 Gbps/100 Mbps)
- USB Ports: 4 x USB 3.2 Gen 1 ports (2 on back panel, 2 through internal USB header)
- Power Supply: 650W single SMPS
- Warranty: 3 years Warranty
Aadona IWS Q670M GC I7 Processor Tower Workstation
- Brand: Aadona
- Form Factor: Compact Tower chassis
- Model: IWS-Q670M-GC-32GB
- Product: Aadona IWS-Q670M-GC-32GB RAM Tower Workstation
- CPU: Intel® Core i7-13700 (Clock 2.10 GHz, 24 MB Cache)
- Operating System: Preloaded OS (As per requirement)
- Memory: 16GB DDR4 UDIMM x 2 = 32GB RAM
- Storage: M.2 1TB SSD * 1
- LAN: 2 x 1Gb/s LAN ports
- On Board Graphic: NVidia T400 4GB Graphic card * 1
- Rear I/O: 4 x USB 3.0; 1 x HDMI; 2 x Display Port; 1 x D-Sub port
- Optical Drive: DVDRW x 1
- Power Supply: 250W single SMPS
- Warranty: 3 years Warranty
Aadona IWS MU710 SU HWR 32GB RAM Tower Workstation
- Brand: Aadona
- Form Factor: Tower chassis with 4 x hot swap bays
- Model: IWS-MU710-SU-HWR
- Product: Aadona IWS-MU710-SU-HWR Tower Workstation
- CPU: Intel Xeon, 8-core processor with heat sink x 1
- Operating System: Windows 11 Professional
- Memory: 32GB ECC RAM
- Storage: M.2 256GB SSD * 1 and 18TB * 4 HDD (36TB after RAID 6)
- RAID Controller: HW RAID card with RAID 6 + SAS cable
- LAN: 2 x 1Gb/s LAN ports
- Rear I/O: 4 x USB 3.0; 1 x VGA; 1 x RJ45 COM; 1 x ID button with LED
- Power Supply: 500W single SMPS
- Warranty: 3 years Warranty
Aadona IWS I58 PS 8GB RAM Tower Workstation
- Brand: Aadona
- Form Factor: Tower
- Model: IRIS-IWS-I58-PS
- Product: Aadona IWS-I58-PS Tower Workstation
- CPU: 2nd Generation Intel Xeon Scalable Processors - Intel Xeon W3200 Processor Family - Single processor, TDP up to 205W
- Chipset: Intel C621 Chipset
- Memory: 8 x DIMM slots - DDR4 memory supported only - 6-channel memory architecture - RDIMM modules up to 128GB supported - LRDIMM modules up to 128GB supported - Supports Intel® Optane™ DC Persistent Memory (DCPMM) - 1.2V modules: 2933/2666/2400/2133 MHz
- LAN: 2 x 1Gb/s LAN ports (Intel® I210-AT) - 1 x 10/100/1000 management LAN
- Storage: 2 x SlimSAS for 8 x SATA III 6Gb/s ports
- Video: Integrated in Aspeed AST2500 - 2D Video Graphic Adapter with PCIe bus interface - 1920x1200@60Hz 32bpp, DDR4 SDRAM
- RAID: Intel SATA RAID 0/1/10/5
- Expansion Slots: Slot_7: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot - Slot_6: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_7 - Slot_5: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot - Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_5 - Slot_3: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot - Slot_2: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_3 - Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot - 1 x M.2 slot: - M-key - PCIe Gen3 x4 per slot - Supports NGFF-2280 cards
- Internal I/O: 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x 6-pin ATX 12V power connector (for PCIe slot) - 2 x SlimSAS connectors - 1 x M.2 slot - 1 x CPU fan header - 6 x System fan headers - 1 x USB 3.0 header - 1 x TPM header - 1 x VROC connector - 1 x Front panel header - 1 x Buzzer
- Rear I/O: 4 x USB 3.0 - 1 x VGA - 1 x COM - 2 x RJ45 - 1 x MLAN - 1 x ID button with LED
- OS Supported: Refer to the list provided
- Board Management: Aspeed AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface - Dashboard - JAVA-Based Serial Over LAN - HTML5 KVM - Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) - Sensor Reading History Data - FRU Information - SEL Log in Linear Storage / Circular Storage Policy - Hardware Inventory - Fan Profile - System Firewall - Power Consumption - Power Control - LDAP / AD / RADIUS Support - Backup & Restore Configuration - Remote BIOS/BMC/CPLD Update - Event Log Filter - User Management - Media Redirection Settings - PAM Order Settings - SSL Settings - SMTP Settings
- PSU Connectors: 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x 6-pin ATX 12V power connector (for PCIe slot)
- Operating temperature: 10°C to 40°C
- Operating humidity: 8-80% (non-condensing)
- Non-operating temperature: -40°C to 60°C
- Non-operating humidity: 20%-95% (non-condensing)
- Retail Packaging Content: 1 x MU71-SU0 - 1 x I/O shield - 1 x Quick Start guide - 2 x SlimSAS for 8 x SATAIII 6Gb/s cables - 1 x Non-Fabric CPU carrier - Single Box dimensions: 360 x 330 x 80 mm - Carton dimensions: 674 x 424 x 385 mm - Quantity: 10 x single boxes in one carton

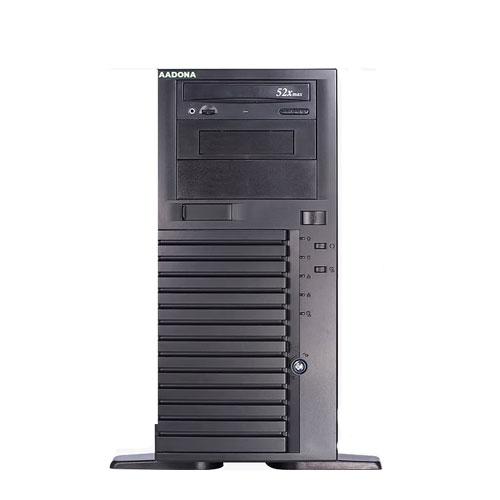

Aadona IWS Q670 GC4 I3 16GB RAM Tower Workstation
- Brand: Aadona
- Form Factor: Tower
- Model: IRIS IWS-Q670-GC4-I3-16GB
- Product: Aadona IWS-Q670-GC4 Intel i3 14100 16GB RAM Tower Workstation
- CPU: Intel Core i3-14100 (4 cores, 3.5 GHz, 12 MB Cache)
- Memory: 16GB DDR4 UDIMM X 1
- Storage: 500GB M.2 SSD X 1
- LAN: 2 x 10Gb/s LAN ports
- On Board Graphic: 4GB GTX Graphics card X 1
- Rear I/O: 2 x USB 3.0; 1 x HDMI; 2 x RJ-45 ports; 1 x D-Sub port
- Optical Drive: DVDRW X 1
- Power Supply: 300W single SMPS
- Operating System: Preloaded OS (As per requirement)
- Warranty: 3 years Warranty
-->
