BEST SELLING IXSYSTEMS STORAGE PRICELIST
iXsystems TrueNAS M60 Network Attached Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS M60 Storage
- Form Factor: 4U-52U
- Max Read Cache: 4x 3.2 TB NVMe
- Max Capacity: 30 PB
- Max Effective Capacity: 50 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 32 Cores (64 Threads)
- RAM (Max): 768 GB
- Write Cache: 2x 16 GB TrueCache NVDIMM
- Networking: 2x 10/25/40/100GbE, 2x 10GBase-T
- Fibre Channel (option): 4x 32 GB
- Max Expansion Shelves: 12
- Max Drives Supported: 1248
- Max Throughput: 23 GB/s
- Warranty: 1 Year Warranty
iXsystems TrueNAS M50 Network Attached Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS M50 Storage
- Form Factor: 4U-36U
- Max Read Cache: 4x 1.6 TB NVMe
- Max Capacity: 10 PB
- Max Effective Capacity: 20 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 20 Cores (40 Threads)
- RAM (Max): 384 GB
- Write Cache: 16 GB TrueCache® NVDIMM
- Networking: 2x 10/25/40/100GbE, 2x 10GBase-T
- Fibre Channel (option): 4x 16 GB or 2x 32 GB
- Max Expansion Shelves: 8
- Max Drives Supported: 504
- Max Throughput: 11 GB/s
- Warranty: 1 Year Warranty
iXsystems TrueNAS M40 Network Attached Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS M40 Storage
- Form Factor: 4U-12U
- Max Read Cache: 3x 800 GB SAS SSD or 2 x 1.6TB NVMe (optional)
- Max Capacity: 3 PB
- Max Effective Capacity: 6 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 10 Cores (20 Threads)
- RAM (Max): 192 GB
- Write Cache: 16 GB TrueCache® NVDIMM
- Networking: 2x 10/25/40/100GbE, 2x 10GBase-T
- Fibre Channel (option): 4x 16 GB
- Max Expansion Shelves: 2
- Max Drives Supported: 144
- Max Throughput: 7 GB/s
- Warranty: 1 Year Warranty
iXsystems TrueNAS M30 Network Attached Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS M30 Storage
- Form Factor: 4U
- Max Read Cache: 800 GB SAS
- Max Capacity: 500 TB
- Max Effective Capacity: 1 PB
- Chassis Depth: 27”, 686mm
- Dual Controllers (HA): Optional
- Controller: 8 Cores (8 Threads)
- RAM (Max): 96 GB
- Write Cache: Optional 16 GB SAS SSD(s)
- Networking: 2x 10/25/40 GbE, 2x 10GBase-T
- Fibre Channel (option): 2x 16 GB
- Max Expansion Shelves: 2 (ES24),1 (ES60)
- Max Drives Supported: 24
- Max Throughput: 3 GB/s
- Warranty: 1 Year Warranty
iXsystems TrueNAS H30 Storage Appliance
- Brand: iXsystems
- Model No: iXsystems TrueNAS H30 Storage
- Max Capacity: 2.5 PB
- Max Effective Capacity: 5 PB
- Write Cache: 2x NVMe SSD
- Max Read Cache: 2x 6.4 TB NVMe SSD
- Dual Controllers: Optional
- DRAM Per Controller: 256 GB
- Onboard Networking: 4x 1G Base-T, 2x 10G Base-T
- Additional Networking (Optional): Up to 4x 10/25 GbE or 2x 10/25 GbE + 2x 40/100 GbE
- Fiber Channel: 2 x 32 Gb
- Max Drives Supported: 114
- Max Expansion Shelves: 1x ES24, ES60, or ES102
- Max Throughput: 8 GByte/s
- Dimensions: 26.8” x 19” x 3.5” | 681 x 483 x 89 mm
- Warranty: 1 Year Warranty
iXsystems TrueNAS H20 Storage Appliance
- Brand: iXsystems
- Model No: iXsystems TrueNAS H20 Storage
- Max Capacity: 2.5 PB
- Max Effective Capacity: 5 PB
- Write Cache: NVMe SSD
- Max Read Cache: 2x 3.2 TB NVMe SSD
- Dual Controllers: Optional
- DRAM Per Controller: 128 GB - 256 GB
- Onboard Networking: 4x 1G Base-T
- Additional Networking (Optional): Up to 4x 10/25 GbE (SFP28) or 2x 10/25 GbE (SFP28) and 2x 40/100 GbE (QSFP28)
- Fiber Channel: 2 x 16 Gb
- Max Drives Supported: 114
- Max Expansion Shelves: 1x ES24, ES60, or ES102
- Max Throughput: 4 GByte/s
- Dimensions: 26.8” x 19” x 3.5” | 681 x 483 x 89 mm
- Warranty: 1 Year Warranty
iXsystems TrueNAS H10 Storage Appliance
- Brand: iXsystems
- Model No: iXsystems TrueNAS H10 Storage
- Max Capacity: 1.5 PB
- Max Effective Capacity: 3 PB
- Write Cache: NVMe SSD
- Max Read Cache: 3.2 TB NVMe SSD
- Dual Controllers: Optional
- DRAM Per Controller: 64 GB - 128 GB
- Onboard Networking: 4x 1G Base-T
- Additional Networking (Optional): Up to 4x 10/25 GbE (SFP28)
- Fiber Channel: 2 x 16 Gb
- Max Drives Supported: 72
- Max Expansion Shelves: 1x ES24 or ES60
- Max Throughput: 2 GByte/s
- Dimensions: 26.8” x 19” x 3.5” | 681 x 483 x 89 mm
- Warranty: 1 Year Warranty
iXsystems TrueNAS R50 4U Rackmount Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS R50 Storage
- Controller Form factor: 2U–10U
- Chassis Depth: 39”, 990 mm
- Controllers: Single
- Drive Bays: 48 × 3.5", 4 × 2.5" (NVMe)
- CPU per Controller: 6–16 Cores
- DRAM per Controller: 64 GB–192 GB
- Read & Write Cache: 4 × 3.2 TB NVMe SSD
- Networking: 2 × 10/25/40/100 GbE, 2 or 6 × 10GBase-T or SR
- Fibre Channel (option): 2 × 32 Gb
- Max Expansion Shelves: 2
- Max Drives Supported: 252
- Max Throughput: 10 GB/s
- Storage Type: Hybrid
- Max Raw Capacity: 5 PB
- Max Effective Capacity: 10 PB
- Warranty: 1 Year Warranty
iXsystems TrueNAS R30 1U Rackmount Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS R30 Storage
- Controller Form factor: 1U
- Chassis Depth: 33”, 840 mm
- Controllers: Single
- Drive Bays: 16 × NVMe
- CPU per Controller: 16–64 Cores
- DRAM per Controller: Up to 1024 GB
- Read & Write Cache: 2 × 960 GB SATA SSDs
- Networking: 2 or 4 × 10/25/40/100 GbE, 2 × 10GBase-T
- Fibre Channel (option): Up to 4 x 32Gb
- Max Expansion Shelves: 0
- Max Drives Supported: 16
- Max Throughput: 20 GB/s
- Storage Type: All-NVMe
- Max Raw Capacity: 240 TB
- Max Effective Capacity: 480 TB
- Warranty: 1 Year Warranty
iXsystems TrueNAS R20 2U Rackmount Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS R20 Storage
- Controller Form factor: 2U–10U
- Chassis Depth: 26”, 660 mm
- Controllers: Single
- Drive Bays: 12 × 3.5", 2 × 2.5"
- CPU per Controller: 6–16 Cores
- DRAM per Controller: 32 GB–192 GB
- Read & Write Cache: 2 × 960 GB SATA SSDs
- Networking: 2 × 10/25/40/100 GbE, 2 or 6 × 10GBase-T or SR
- Fibre Channel (option): 2 × 32 Gb
- Max Expansion Shelves: 2
- Max Drives Supported: 132
- Max Throughput: 8 GB/s
- Storage Type: Hybrid
- Max Raw Capacity: 2.9 PB
- Max Effective Capacity: 6 PB
- Warranty: 1 Year Warranty
iXsystems TrueNAS F100 All Flash NAS Storage
- Brand: NetApp
- Model No: iXsystems TrueNAS F100 storage
- Form Factor: 2U
- Features: NVMe Storage/All-Flash
- DRAM Per Controller: 512 GB
- Networking: Up to 6x 40/100 GbE (optical), 2x 10G Base-T
- Fiber Channel: 4 x 32 Gb
- Max Capacity: 10 PB
- Max Effective Capacity: 20 PB
- Max Throughput: 30 GByte/s
- Max Drives Supported: 24
- Max NVMe Expansion Shelves: 6
- Chassis Depth: 27”, 686mm
- Dual Controllers: Yes
- Warranty: 1 Year Warranty
iXsystems TrueNAS F60 All Flash NAS Storage
- Brand: NetApp
- Model No: iXsystems TrueNAS F60 storage
- Form Factor: 2U
- Features: NVMe Storage/All-Flash
- DRAM Per Controller: 512 GB
- Networking: Up to 4x 40/100 GbE (optical), 2x 10G Base-T
- Fiber Channel: 4 x 32 Gb
- Max Capacity: 4 PB
- Max Effective Capacity: 8 PB
- Max Throughput: 20 GByte/s
- Max Drives Supported: 24
- Max NVMe Expansion Shelves: 2
- Chassis Depth: 27”, 686mm
- Dual Controllers: Yes
- Warranty: 1 Year Warranty
iXsystems TrueNAS Mini R Appliance
- Brand: iXsystems
- Model No: iXsystems TrueNAS Mini R Storage
- Chassis: 12 Bay Enclosure – Super Quiet Design
- Drive Bays: 12 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5? to 2.5? adaptors available)
- Maximum Raw Capacity: Up to 216 TB
- CPU: Octa-core C3758 Intel CPU
- Memory: 32 GB DDR4 with ECC (Upgradeable to 64GB)
- RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
- Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
- Network: Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports, Dedicated RJ45 IPMI Port (Remote Hardware Management), 2 x SFP+ 10G Add On Card (Optional)
- USB Ports: 1 x USB 3.0 Port (Rear), 2 x USB 2.0 Ports (Rear)
- Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
- PCIe Expansion: 1 x PCI Express 3.0 x 4
- Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
- Power Consumption (Maximum): Diskless: 63W With drives & 10G Add-on-card: 167W
- Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
- User Control Interface: Web Browser and Remote Hardware Management (IPMI)
- Accessories: Basic Setup Guide, 2 x bezel keys, bag of HDD screws, 2 x 7 ft cat6 copper cable, Bezel, 4 x Adhesive Rubber Feet, Short Rail Kit – 19? to 26.6? rackmount depth, Optional Long Rail Kit available – 26.5? to 36.4? rackmount depth
- Dimensions(W x D x H): 17.2? x 21? x 3.5? / 437 × 533 × 89mm
- Weight: 18.7lbs / 8.5Kg
- Warranty: 1 Year Warranty

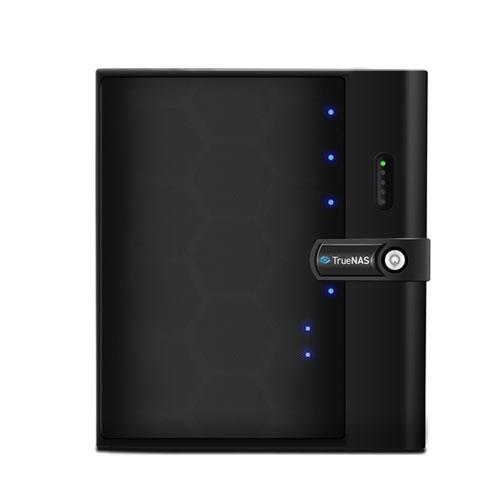

iXsystems TrueNAS Mini X Plus Appliance
- Brand: iXsystems
- Model No: iXsystems TrueNAS Mini X Plus Storage
- Chassis: 5+2 Bay Enclosure – Super Quiet Design
- Drive Bays: 5 x SATA 3.5” Hot-Swappable Drive Bays(Optional 3.5? to 2.5? adaptors available), 2 x SATA 2.5” Hot-Swappable SSD Bays
- Maximum Raw Capacity: Up to 105 TB
- CPU: Octa-core C3758 Intel CPU
- Memory: 32 GB DDR4 with ECC (Upgradeable to 64GB)
- RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
- Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
- Network: Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports, Dedicated RJ45 IPMI Port (Remote Hardware Management), 2 x SFP+ 10G Add On Card (Optional)
- USB Ports: 1 x USB 3.0 Port (Front), 1 x USB 2.0 Port (Front), 2 x USB 2.0 Ports (Rear)
- Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
- PCIe Expansion: 1 x PCI Express 3.0 x 4
- Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
- Power Consumption (Maximum): Diskless: 40W With drives & 10G Add-on-card: 111W
- Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
- User Control Interface: Web Browser and Remote Hardware Management (IPMI)
- Accessories: Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable
- Dimensions(W x D x H): 8.25? x 10.5? x 9.5? / 210 x 267 x 241mm
- Weight: 13lbs / 5.9Kg
- Warranty: 1 Year Warranty

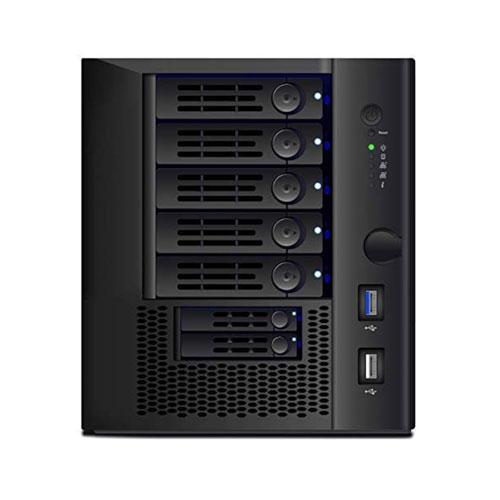

iXsystems TrueNAS Mini X Compact NAS Storage
- Brand: iXsystems
- Model No: iXsystems TrueNAS Mini X Storage
- Chassis: 5+2 Bay Enclosure – Super Quiet Design
- Drive Bays: 5 x SATA 3.5” Hot-Swappable Drive Bays(Optional 3.5? to 2.5? adaptors available), 2 x SATA 2.5” Hot-Swappable SSD Bays
- Maximum Raw Capacity: Up to 90 TB
- CPU: Quad-core C3558 Intel CPU
- Memory: 16 GB DDR4 with ECC (Upgradeable to 32GB)
- RAID: OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe)
- Disk Management: Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T, ISO Mounting Support, Hardware-Accelerated Disk Encryption
- Network: Standard: 4 x 1 Gigabit Ethernet LAN ports (10/100/1000), Dedicated RJ45 IPMI Port (Remote Hardware Management)
- USB Ports: 2 x USB 2.0 Ports (Front), 1 x USB 3.0 Port (Rear)
- Read/Write Cache: (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG)
- PCIe Expansion: N/A
- Power Supply: 100V to 240V AC, 50/60 HZ, Single Phase
- Power Consumption (Maximum): Diskless-24W With drives: 84W
- Power Management: Remote Power-On/Off (IPMI), UPS Signal Response and Alerts
- User Control Interface: Web Browser and Remote Hardware Management (IPMI)
- Accessories: Basic Setup Guide, 2 x Case Door Keys, bag of HDD screws, 2 x 7 ft cat6 copper cable
- Dimensions(W x D x H): 8.25? x 10.5? x 9.5? / 210 x 267 x 241mm
- Weight: 13lbs / 5.9Kg
- Warranty: 1 Year Warranty
-->
