BEST SELLING CAMERA PRICELIST

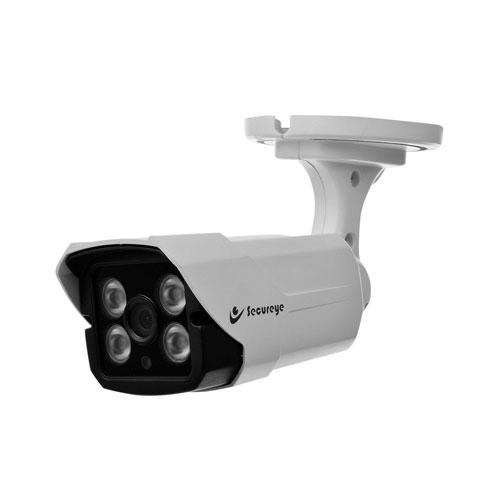

Secureye SP C2QN 15W 2MP 50Metre IR IP Bullet Camera
- Brand: Secureye
- Part No: SP C2QN 15W
- Product: SP C2QN 15W 2MP 50M IR IP Bullet CCTV Camera
- Image Sensor: 1/2.8 CMOS
- Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- Shutter Time: 1s-1/100000s
- Day&Night: IR-cut ?lter with auto switch (ICR)
- WDR: DWDR
- S/N: >39dB
- Angle Adjustment: 0-360o; 0-80o; 0-360o
- Lens Type: Fixed
- Focal Length: 4mm
- Lens Mount: M12
- Aperture Range: F1.6, Fixed
- Field of View: 87.7o(H); 45o(V); 98.6o(D)
- DORI DistanceDetect: 55.1m
- DORI DistanceObserve: 21.8m
- DORI DistanceRecognize: 11.0m
- DORI DistanceIdentify: 5.5m
- DORI DistanceIlluminator: IR LEDs: 2
- DORI DistanceIR Distance: 30m
- DORI Distance Wavelength: 850nm
- DORI Distance White LEDs: 2
- DORI Distance Whitelight Distance: 15m
- Compression Standard: Video Compression S+265/H.265/H.264B/H.264M/H.264H
- Video Bit Rate: 32k-6Mbps
- Audio Compression: G.711A/G.711U/ADPCM_D
- Audio Sampling Rate: 8kHz/32kHz/48kHz
- Image Max. Resolution: 1920×1080@30fps
- Main StreamPAL: 25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps(1920×1080,1280×720, 640×480, 704×480)
- Sub Stream PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
- White Balance: Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/ Incandescent lamp/Locked white balance
- ROI: 8 regions
- OSD: regions;16*16/32*32/48*48
- Privacy Mask: 4 regions
- Defog: Yes
- Alarm Trigger: Motion Detection;Mask Alarm:IP Address Con?ict
- Linkage Method: Trigger Warmlight;Trigger Capture
- Video Analytics: Tripwire;Perimeter
- Network Protocols: HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP
- System Compatibility: P2P(Mutually exclusive with Pro?le G); Onvif Pro?le S/T;CGI;MIL STONE
- Remote Connection: <2
- PC CMS Software: Secureye Smart Client
- Mobile APP: Phoenix Pro
- Web: IE10+:Firefox52+;Edge89+;Safari11+;Chrome57+
- Communication Interface: 1RJ45 10M/ 100M self adaptive Ethernet port
- Power Supply: DC12V+25%, MAX 6.5W; POE 802.3af, MAX 7W
- Protection: Surge Protection 2000V; Lightning Proof 6000V
- Boundary Dimensions: 117(L)117(W)96(H)mm
- Package Dimensions: 140(L)140(W)120(H)mm
- Gross Weight: 0.35Kg
- Net Weight: 0.25Kg

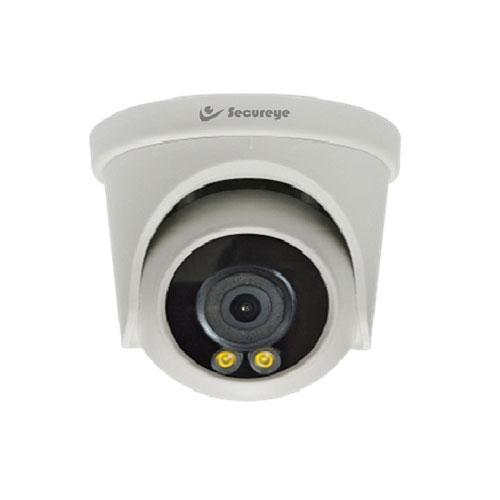

Secureye SP C2XN 13W 2MP 30M IP Dome Camera
- Brand: Secureye
- Part No: SP-C2XN-13W
- Product: 2MP IP, Dome Camera, 30M IR, White Light, PoE, Audio, 2.8mm, SP-C2XN-I3W, Color Master Series
- Image Sensor: 1/2.8 CMOS
- Min. Illumination: Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
- Shutter Time: 1s-1/100000s
- Day&Night: IR-cut ?lter with auto switch (ICR)
- WDR: DWDR
- S/N: >39dB
- Angle Adjustment: 0-340o; 0-75o; 0-360o
- Lens Type: Fixed
- Focal Length: 2.8mm
- Lens Mount: M12
- Aperture Range: F1.6, Fixed
- Field of View: 104.9o(H); 56.6o(V); 119.2o(D)
- DORI DistanceDetect: 38.6m
- DORI DistanceObserve: 15.3m
- DORI DistanceRecognize: 7.7m
- DORI DistanceIdentify: 3.8m
- DORI DistanceIlluminator: IR LEDs: 2
- DORI DistanceIR Distance: 30m
- DORI Distance Wavelength: 850nm
- DORI Distance White LEDs: 2
- DORI Distance Whitelight Distance: 15m
- Compression Standard: Video Compression S+265/H.265/H.264B/H.264M/H.264H
- Video Bit Rate: 32k-6Mbps
- Audio Compression: G.711A/G.711U/ADPCM_D
- Audio Sampling Rate: 8kHz/32kHz/48kHz
- Image Max. Resolution: 1920×1080@30fps
- Main StreamPAL: 25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC: 30fps(1920×1080,1280×720, 640×480, 704×480)
- Sub Stream PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240)
- White Balance: Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/ Incandescent lamp/Locked white balance
- ROI: 8 regions
- OSD: regions;16*16/32*32/48*48
- Privacy Mask: 4 regions
- Defog: Yes
- Alarm Trigger: Motion Detection;Mask Alarm:IP Address Con?ict
- Linkage Method: Trigger Warmlight;Trigger Capture
- Video Analytics: Tripwire;Perimeter
- Network Protocols: HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;DHCP;DNS;DDNS;Easy DDNS;NTP;QoS;IPv4;SSH;Unicast;RTSP;FTP
- System Compatibility: P2P(Mutually exclusive with Pro?le G); Onvif Pro?le S/T;CGI;MIL STONE
- Remote Connection: <2
- PC CMS Software: Secureye Smart Client
- Mobile APP: Phoenix Pro
- Web: IE10+:Firefox52+;Edge89+;Safari11+;Chrome57+
- Communication Interface: 1RJ45 10M/ 100M self adaptive Ethernet port
- Power Supply: DC12V+25%, MAX 6.5W; POE 802.3af, MAX 7W
- Protection: Surge Protection 2000V; Lightning Proof 6000V
- Boundary Dimensions: 117(L)117(W)96(H)mm
- Package Dimensions: 140(L)140(W)120(H)mm
- Gross Weight: 0.35Kg
- Net Weight: 0.25Kg

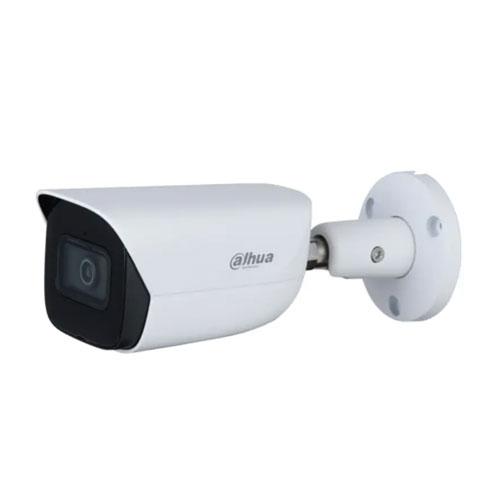

Dahua IPC HFW2541E S 5MP IR Bullet WizSense Network CCTV Camera
Brand: Dahua
Product: IPC HFW2541E S 5MP IR Fixed Focal Bullet WizSense Network Camera
Image Sensor: 1/2.7 5 Mega Pixel progresive CMOS
Effective Pixels: 1920(H) x1080(V)
RAM/ROM: 128MB /512MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
Minimum Illumination: 0.005 lux@F2.0 (Color, 30 IRE); 0.0005 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio :More than 56dB
IR Distance: Distance up to 30m(98.4ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 1
Lens Type: Fixed
Mount Type: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F2.0/F2.0
Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Network Port: RJ-45 (10/100 Base-T)
SDK and API: Yes
Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host: 20 (Total bandwidth: 64 M)
Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Web Viewer: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Smart Phone: IOS, Android
Dimensions: 192.7 mm × 70.5 mm × 66.4 mm(7.59 × 2.78 × 2.61)
Weight: 780 g (1.72 lb)

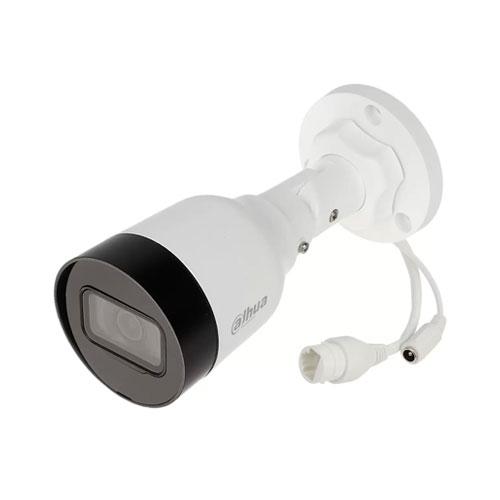

Dahua IPC HFW1230S1PA S4 2MP Entry IR Bullet Network CCTV Camera
- Brand: Dahua
- Product: IPC-HFW1230S1P-A-S4 2MP Entry IR Fixed Focal Bullet Network Camera
- Image Sensor: 1/2.8 2 Mega Pixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 64MB/16MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE);0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: More than 56dB
- IR Distance: Distance up to 30m(98ft)
- IR On/Off Control: Auto/ Manual
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
- Interoperability: ONVIF (Profile S); CGI; P2P; Genetec
- Streaming Method: Unicast / Multicast
- User/Host: 6 (Total bandwidth: 36 M)
- Edge Storage: FTP
- Web Viewer: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Smart Phone: IOS, Android
- Dimensions: 162.6 mm × 70 mm× 70 mm (6.4 × 2.8 × 2.8)
- Weight: 0.34 kg (0.7 lb)

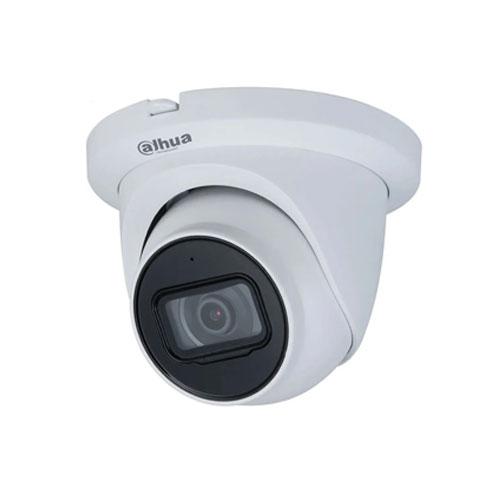

Dahua IPC HDW1230T1PA S4 2MP Entry IR Eyeball Network Camera
- Brand: Dahua
- Product: IPC HDW1230T1PA S4 2MP Entry IR Fixed Focal Eyeball Network Camera
- Image Sensor: 1/2.8 2Megapixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 64MB/16MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 56dB
- IR Distance: Distance up to 30m(98.4ft)
- IR On/Off Control: Auto/ Manual
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~78° ;Rotation:0° ~360°
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
- Interoperability: ONVIF (Profile S); CGI; P2P; Genetec
- Streaming Method: Unicast / Multicast
- User/Host: 6 (Total bandwidth: 36 M)
- Edge Storage: FTP
- Web Viewer: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Smart Phone: IOS, Android
- Dimensions: 85.5 mm × 109 mm (3.4 × 4.3)
- Weight: 0.24Kg(0.5lb)

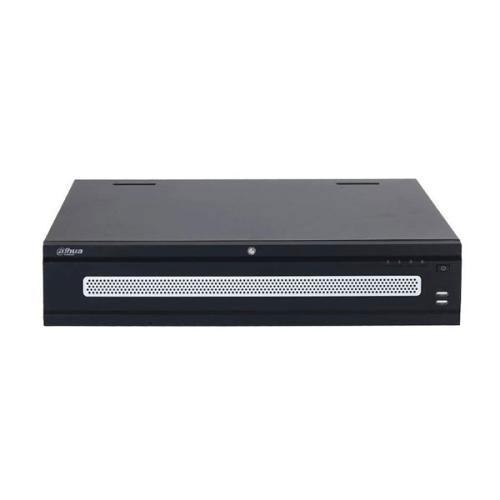

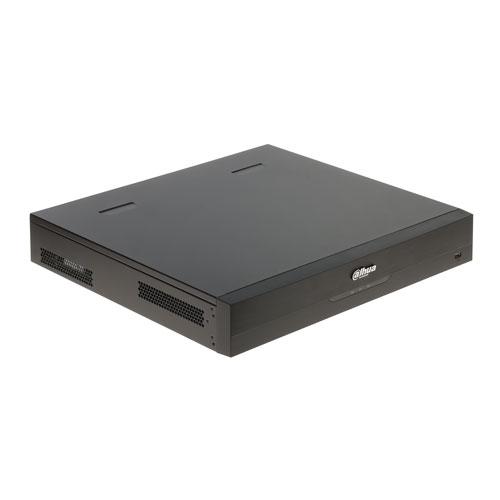

Dahua NVR5464 EI 64CH 4HDD 1U NVR
- Brand: Dahua
- Product: NVR5464-EI 64CH 4HDD 1.5U Network Video Recorder
- Access Channel: 64 Channels
- Network Bandwidth: AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
- Resolution: 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
- Decoding Capability: AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Alarm Input: 16 channels
- Alarm Output: 6 channels (1-channel 12 V 1 A output?
- Disk Interface: 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
- eSATA: 1
- RS-232: 1
- RS-485: 1 (half-duplex serial communication)
- USB: 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
- HDMI: 2
- VGA: 2
- Network Port: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Dimensions: 440.0 mm × 415.1 mm x 70.0 mm
- weight: 6.11 kg (13.47 lb)

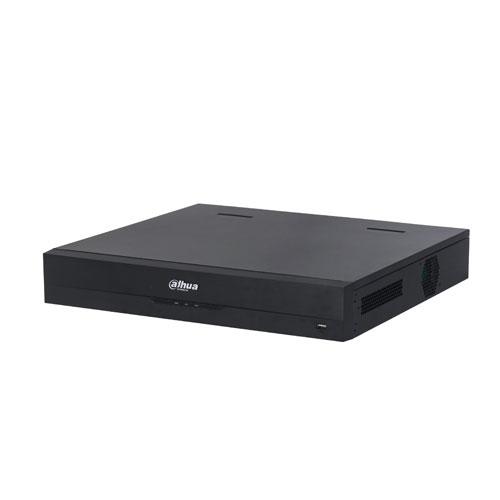

Dahua NVR4432 EI 32 Channel 1U 4HDDs WizSense Network Video Recorder
- Brand: Dahua
- Product: NVR4432-EI 32CH 1.5U 4HDDs WizSense Network Video Recorder
- Access Channel: 32 Channels
- Network Bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
- Resolution: 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
- Decoding Capability: AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024.
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Video recording, snapshot, log, preset, tour
- HDD: 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- Network: 1 × RJ-45 (10 or 100 Mbps)
- RCA Input: 1
- RCA Output: 1
- Dimensions: 260 mm × 225 mm × 47.6 mm
- weight: 1.38 kg (3.04 lb)

Dahua NVR4216 4KS3 16 Channel 1U 2HDDs Lite Network Video Recorder

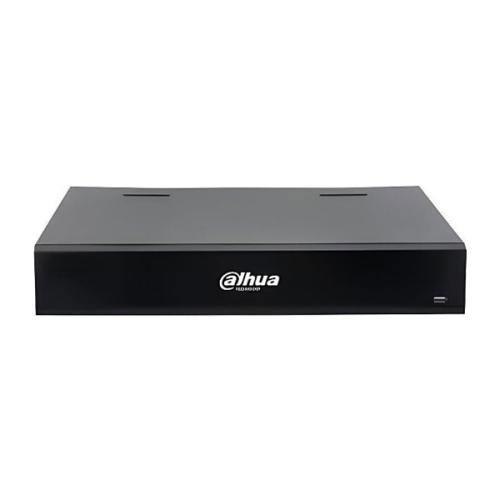

- Brand: Dahua
- Product: NVR4216-4KS3 16CH 1U 2HDDs Lite Network Video Recorder
- Access Channel: 16 channels
- Network Bandwidth: AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
- Resolution: 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
- Decoding Capability: AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps.
- Video Output: 1 HDMI, 1 VGA Simultaneous? HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous? HDMI: 1920× 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024
- Multi-screen Display: Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Video recording, snapshot, log, preset, tour
- HDD: 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- Network: 1 × RJ-45 (10 or 100 Mbps)
- RCA Input: 1
- RCA Output: 1
- Dimensions: 260 mm × 225 mm × 47.6 mm
- weight: 1.38 kg (3.04 lb)

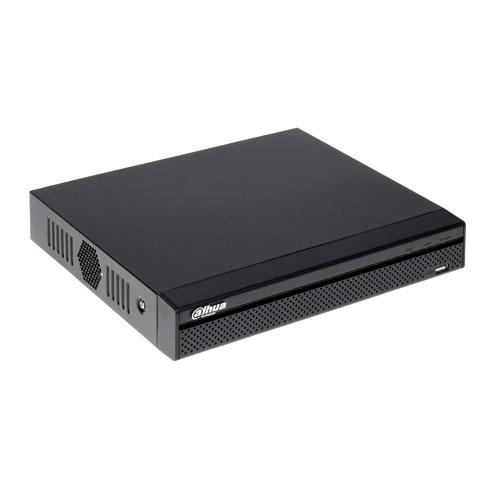

Dahua DHI NVR1108HS S3 H 8 Channel Compact 1U 1HDD Lite NVR
- Brand: Dahua
- Product: DHI NVR1108HS S3 H 8 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder
- Access Channel: 8 channels
- Network Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
- Resolution: 8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; CIF
- Decoding Capability: 1–ch@8MP (30 fps) or 1–ch@5MP (30 fps) or; 2–ch@4MP (30 fps) or 2–ch@3MP (30 fps) or; 4–ch@1080p (30 fps)
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080p
- Multi-screen Display: 1/4/8/9
- Third Party Camera Access: Onvif; RTSP;
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P
- Mobile Phone Access: iDMSS (iOS); gDMSS (Android)
- Interoperability: ONVIF (profile T/profile S/profile G); CGI; SDK
- Browser: Chrome; IE9 or above; Firefox
- Multi-channel Playback: Up to 8 channels
- Record Mode: Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
- Storage: Local HDD and network
- Backup: USB device
- Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame; 2. Full screen, backup (cut/file), partially enlarge, audio on/off
- General Alarm: Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
- Anomaly Alarm: Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
- Intelligent Alarm: N/A
- Alarm Linkage: Video recording, snapshot, log, preset, tour
- HDD: 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- HDMI: 1
- VGA: 1
- Network: 1 × RJ-45 (10 or 100 Mbps)
- RCA Input: 1
- RCA Output: 1
- Dimensions: 260 mm × 225 mm × 47.6 mm
- weight: 1.38 kg (3.04 lb)

Dahua DH XVR4B16HI 16 Channel Penta brid 1080P Compact 1U 1HDD WizSense Digital Video Recorder
- Brand: Dahua
- Product: DH-XVR4B16H-I 16 Channel Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder
- Analog Camera Input: 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
- HDCVI Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
- AHD Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
- TVI Camera: 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 16+8 channels, each channel up to 6MP
- Audio In/Out: 1/1, RCA
- Two-way Talk: Reuse audio in/out, RCA
- Interface: 1 RJ-45 Port (100M)
- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access: 128 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 16.12, CGI Conformant
- Record Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Playback: 1/4/9/16
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network
- Playback Mode: Instant playback, general playback, event playback, tag playback, smart playback
- Internal HDD: 1 SATA Port, up to 6TB capacity
- eSATA: N/A
- Dimension: Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (W × D × H) (10.24 × 9.11 × 1.87)
- Net Weight: 0.57kg (1.25lb)

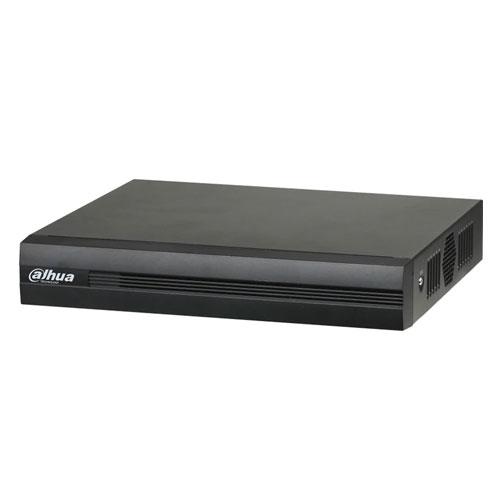

Dahua DH XVR4B08HI 8 Ch Penta brid 1080p Cooper 1U 1HDD WizSense Digital Video Recorder
- Brand: Dahua
- Product: DH-XVR4B08H-I 8 Channel Penta-brid 5MN/1080p Cooper 1U 1HDD WizSense Digital Video Recorder
- Analog Camera Input: 8 channels, BNC
- HDCVI Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps
- AHD Camera: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps
- TVI Camera: 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 8+4 channel, each channel up to 6MP
- Audio In/Out: 1/1, RCA
- Two-way Talk: Reuse audio in/out, RCA
- Interface: 1 RJ-45 Port (100M)
- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access: 128 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 16.12, CGI Conformant
- Playback: 1/4/9
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network
- Internal HDD: 1 SATA Port, up to 6TB capacity
- eSATA: N/A
- Dimensions: Cooper 1U, 198 × 202.9 × 41.5 mm (7.81 × 7.99 × 1.63)
- Net Weight: 0.57kg (1.25lb)

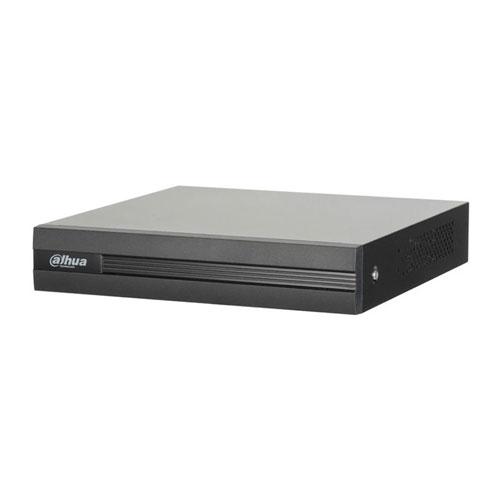

Dahua DH XVR4B04 V2 4 Ch Penta brid 720p Cooper 1U 1HDD DVR
- Brand: Dahua
- Product: DH-XVR4B04-V2 4 Channel Penta brid 1080N/720p Cooper 1U 1HDD Digital Video Recorder
- Analog Camera Input: 4 channels, BNC
- HDCVI Camera: 1080p@ 25/30 fps, 720p@ 25/30/50/60 fps
- AHD Camera: 1080P@25/30, 720P@25/30fps
- TVI Camera: 1080P@25/30, 720P@25/30fps
- CVBS Camera: PAL/NTSC
- IP Camera Input: 4CH: 4+1, each channel up to 2MP
- Audio In/Out: 1/1, RCA
- Two-way Talk: Reuse audio in/out, RCA
- Interface: 1 RJ-45 Port (100M)
- Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access: 128 users
- Smart Phone: iPhone, iPad, Android
- Interoperability: ONVIF 16.12, CGI Conformant
- Playback: 4CH: 1/4
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode: USB Device/Network
- Internal HDD: 1 SATA Port, up to 6TB capacity
- eSATA: N/A
- Dimensions: Cooper 1U, 197mm×192mm×41mm (7.8×7.6×1.6)
- Net Weight: 0.54kg (1.19lb)

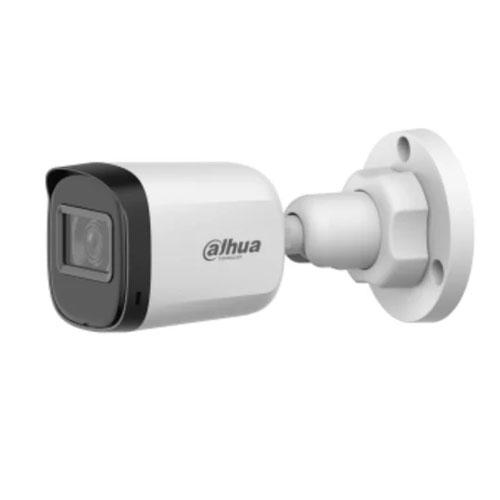

Dahua HAC B1A51U ILA 5MP Fixed Focal Bullet Camera
- Brand: Dahua
- Product: HAC-B1A51-U-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Bullet Camera
- Image Sensor: 1/2.8 5 Mega Pixel CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s;; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: >65 dB
- Illumination Distance: IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 2 (Warm light);2 (IR light)
- Angle Adjustment Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
- Resolution: 5M (2880 × 1620);; 4M (2560 × 1440);; 1080p (1920 × 1080);; 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; HLC; DWDR;
- WDR: DWDR
- White Balance: Auto;Area white balance
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR&WL; WL Mode; IR Mode
- Mirror: Yes
- Privacy Masking: Off/On (8 areas, rectangle)
- Dimensions: 146.1 mm × 70.0 mm × 69.8 mm (5.75 × 2.76 × 2.75)
- Weight: 0.23 kg (0.51 lb)

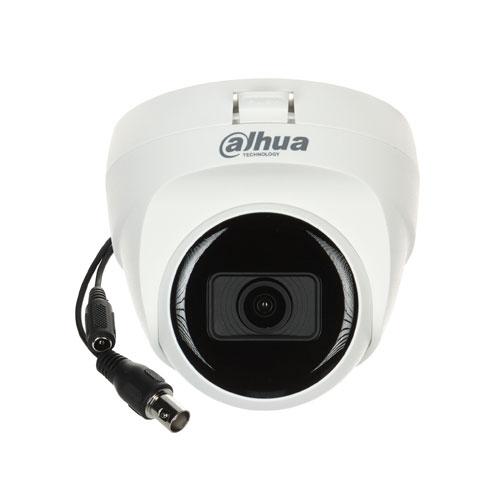

Dahua HAC T1A51U ILA 5MP Smart Dual Light HDCVI Eyeball CCTV Camera
- Brand: Dahua
- Product: HAC-T1A51-U-IL-A 5MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera
- Image Sensor: 1/2.8 5 Mega Pixel CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s;; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio: >65 dB
- Illumination Distance: IR: 25 m (82.02 ft);; Warm Light: 20 m (65.62 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 2 (Warm light);2 (IR light)
- Angle Adjustment Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
- Resolution: 5M (2880 × 1620);; 4M (2560 × 1440);; 1080p (1920 × 1080);; 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; HLC; DWDR;
- WDR: DWDR
- White Balance: Auto;Area white balance
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR&WL; WL Mode; IR Mode
- Mirror: Yes
- Privacy Masking: Off/On (8 areas, rectangle)
- Product Dimensions: 85.0 mm × 77.1 mm (3.35 × 3.04)
- Weight: 0.12 kg (0.26 lb)

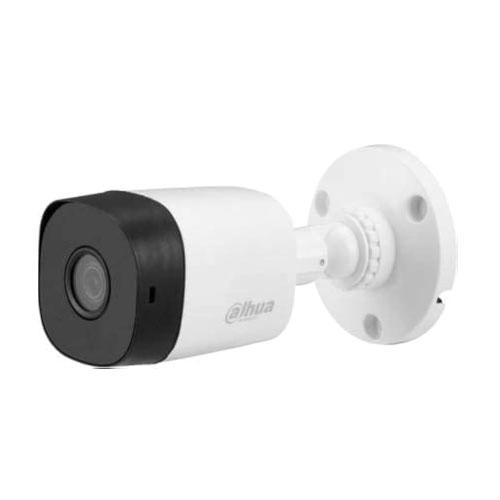

Dahua DH HAC B1A21U A 2MP IR HDCVI Fixed Focal Bullet CCTV Camera
- Brand: Dahua
- Product: DH-HAC-B1A21-U-A 2MP IR HDCVI Fixed-focal Bullet Camera
- Image Sensor: 1/2.8 2 Mega Pixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 128MB /512MB
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 65dB
- Illumination Distance: 30 m (98.43 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 1 (IR light)
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; DWDR
- WDR: DWDR
- White Balance: Auto
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR
- Product Dimensions: 146.1mm × 70.0 mm × 69.8mm (5.75 × 2.76 × 2.75)
- Weight: 0.23 kg (0.51 lb)

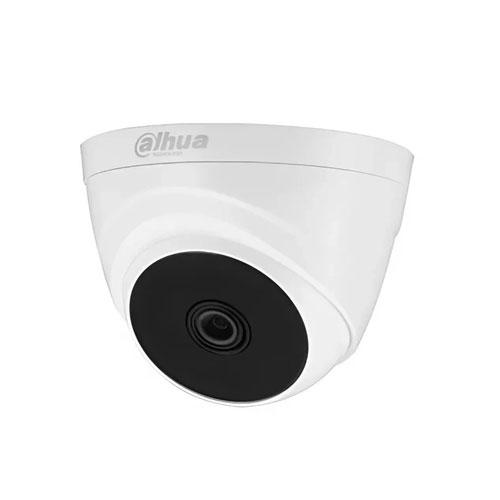

Dahua DH HAC T1A21 UA 2MP IR HDCVI Eyeball Camera
- Brand: Dahua
- Product: DH-HAC-T1A21-U-A 2MP IR HDCVI Fixed-focal Eyeball Camera
- Image Sensor: 1/2.8 2 Megapixel progresive CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 128MB /512MB
- Scanning System: Progressive
- Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
- S/N Ratio :More than 65dB
- Illumination Distance: 25 m (82.02 ft)
- Illuminator On/Off Control: Auto/Manual
- Illuminator Number: 1 (IR light)
- IR LEDs: 1
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0/F2.0
- Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night: Auto(ICR)/Color/B/W
- BLC: BLC; DWDR
- WDR: DWDR
- White Balance: Auto
- Gain Control: Auto
- Noise Reduction: 2D NR
- Illumination Mode: Smart IR
- Product Dimensions: 85.0 mm × 77.1 mm (3.35 × 3.04)
- Weight: 0.12 kg (0.26 lb)

Secureye S SSD PTZ5 Defender Duo 4G Smart Dual Lens PT CCTV Camera
- Brand: Secureye
- Product: S SSD PTZ5 Defender Duo 4G/5G Smart Dual Lens Linkage Outdoor PT Camera
- Dual vision: 2MP+2MP, enjoy HD image quality
- Power Consumption: ?15W
- Power Supply: DC12V
- Fill Light Distance: IR 20 ~ 30M, Spotlight 15 ~ 20M
- Min. Illumination: Color: 0.1Lux, B/W: 0.01 Lux
- LED: IR+ White Light Multi-LED (6pcs for PT Dome, 4pcs for Bullet)
- RJ45 Port: 10-100M
- NI Protocol: Support
- Vertical View: Max. 150°
- Horizontal View: Max. 350°
- 4G Band: FDD-LTE: B1/B3/B5/B8; TDD-LTE: B34/B38/B39/B40/B41
- Audio Function: 2-way Audio
- Audio Compression: AAC, G711
- Storage: Support TF Card Storage (Up to 256G)
- DNR: 3D DNR
- Video Compression: H.264/H.265, Support 2 Streams
- Resolution: Mainstream: 1920*2160, Substream: 800×896
- Lens: 4mm Fixed Lens / 8mm Rotational Lens
- Sensor: 1/2.9 CMOS Sensor
- Pixel: 2MP+2MP

Secureye S PTZ2 W Lensguard 3MP HD Wireless PT Camera
- Brand: Secureye
- Product: S-PTZ2-W – Lensguard WiFi PT Camera with Auto Human Tracking & 3MP HD
- Resolution: 3MP
- Sensor: 1/3 CMOS Sensor
- Shutter: Shutter Adaptation
- Lens: 4mm
- Rotation Angle: Pan: 0°~260° 20°/S; Tilt: 90° 10°/S
- Day-Night Mode: Infrared Filter
- DNR: 3D Digital Noise Reduction
- Dynamic Range:Digital WDR
- IR Distance: IR 20-30m, Spotlight 15-20m (Depends on Environment)
- Video Compression: H.265/H.264 HD/SD, Rate Adaptation
- Audio Coding Format: AAC/G711A
- Resolution: Main Stream: 2304 *1296, Sub Stream: 640×360
- Frame Rate: Max 15fps, Frame Rate Self-adaption
- Image reversal : Support Horizontal and Vertical Reversal
- Privacy Masking: Support MAX 4 Zone
- Back Light Compensation: Support
- 4G Standard: DC 12V1A
- 4G Frequency Band: LTE-FDD:B1/B3/B5/B8;LTE-TDD:B34/B38/B39/B40/B41; WCDMA:B1/B5/B8
- Ethernet: 1*RJ 45 Port 10/100 (Auto Adept)
- Intelligent Alarm: LTE-TDD/LTE-FDD/TD-SCDMA/WCDM
- Alarm Notification: Motion Detection
- Interface: Push Alarm Notification
- Cloud Storage: Micro SD Card (Max 256G)
- Onvif: Support
- Weather Proof: Support LAN Only
- Working Temperature: IP66
- Power Adapter: -200C ~ 500C, Working Humidity:<95%(no condensation)

Ezviz CS H9c R100 8G55WKFL 3K Dual Lens Wireless Camera
- Brand: Ezviz
- Model No: CS-H9c-R100-8G55WKFL
- Product: CS-H9c-R100-8G55WKFL Dual 2K Lens Pan Tilt WiFi Camera
- Image Sensor: 1/2.7 Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal: 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal: 62°, Horizontal 55°, Vertical 28°
- PT Angle: Pan: 350°, Tilt: 80°
- Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR: Digital WDR
- Black & White Night: 30m / 98ft
- Max Resolution: 2880 × 1620
- Frame Rate: Max:15fps; Self-Adaptive during network transmission
- Video Compression: H.265 / H.264
- H.265 Type: Main Profile
- Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
- Audio Bit Rate: Self-Adaptive
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz - 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
- Wi-Fi Pairing: AP paring
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
- Security: WPA-PSK/WPA2-PSK
- Local Storage: Supports microSD Card (Up to 512 GB)
- Cloud Storage: Supports EZVIZ CloudPlay storage
- Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
- Supports: Auto Tracking
- Supports: Customized Alert Area
- Supports: Two-way Talk
- Supports: Preset Locations
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- IP Grade: Weatherproof Design
- Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
- Weight: 668 g

Ezviz CS H9c R100 8H33WKFL 2K Wireless CCTV Camera
- Brand: Ezviz
- Model No: CS-H9c-R100-8H33WKFL
- Product: CS H9c R100-8H33WKFL Dual 2K Lens Pan Tilt WiFi Camera
- Image Sensor: 1/2.7 Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal: 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal: 62°, Horizontal 55°, Vertical 28°
- PT Angle: Pan: 350°, Tilt: 80°
- Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR: Digital WDR
- Black & White Night: 30m / 98ft
- Max Resolution: 2304 × 1296
- Frame Rate: Max:15fps; Self-Adaptive during network transmission
- Video Compression: H.265 / H.264
- H.265 Type: Main Profile
- Video Bit Rate: Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
- Audio Bit Rate: Self-Adaptive
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz - 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
- Wi-Fi Pairing: AP paring
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
- Security: WPA-PSK/WPA2-PSK
- Local Storage: Supports microSD Card (Up to 512 GB)
- Cloud Storage: Supports EZVIZ CloudPlay storage
- Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
- Supports: Auto Tracking
- Supports: Customized Alert Area
- Supports: Two-way Talk
- Supports: Preset Locations
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- IP Grade: Weatherproof Design
- Dimensions: 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
- Weight: Net Weight: 668 g

Ezviz CS HB8 Battery Pan and Tilt Wireless 4MP Camera
- Brand: Ezviz
- Model No: CS HB8
- Product: CS HB8 Battery Powered Pan and Tilt WiFi 4 Mega pixel Camera
- Image Sensor: 1/3 4 Megapixel Progressive Scan CMOS Sensor
- Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
- Shutter Speed: Self-adaptive shutter
- Lens: 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)
- PT Angle: Pan: 340°, Tilt: 65°
- Day & Night: IR-Cut filter with auto-switching
- DNR: 3D DNR
- Night Vision: Up to 49 ft / 15 m
- Max. Resolution: 2560 × 1440
- Frame Rate: 15fps. Self-Adaptive during Network Transmission
- Video Compression: H.265 / H.264
- Video Bit Rate: Quad HD; HD; Standard. Adaptive Bit Rate.
- Audio Bit Rate: Self-Adaptive
- Max. Bitrate: 2 Mbps
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz - 2.4835 GHz
- Channel Bandwidth: Supports 20 MHz
- Security: 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Minimum Network Requirement: 4Mbps
- Battery Capacity: 10400 mAh
- Power Supply: DC 5V / 2A
- Local Storage: Build-In 32GB eMMC Storage
- Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
- IP Grade: Weatherproof Design
- Detection: Smart Human Motion Detection
- Supports: Two-way Talk
- General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
- Product Dimensions: 183 × 116 × 166 mm
- Weight: 803g(28.32 oz)

CP Plus CP URC TC51PL3CL 5 Mexa Pixel 30Mtr Dual Light Bullet Camera
- Brand: Cp Plus
- Product: CP URC TC51PL3C L 5MP 30Mtr Dual Light Bullet Camera
- Image Sensor: 1/2.7 5MP PS CMOS Image Sensor (0.9407 centimetres)
- Minimum Illumination: 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Max. Resolution: 2880 (H) × 1620 (V)
- Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30-1/100000s
- White Balance Auto, Area white balance
- Gain Control (AGC): Auto
- DORI Distance 3.6 mm: Detect: 76.0 Mtr., Observe-30.4 Mtr., Recognize: 15.2 Mtr., Identify: 7.6 Mtr. 2.8 mm: Detect: 66.0 Mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 6.6 Mtr. 6 mm: Detect: 120.0 Mtr. , Observe: 48.0 Mtr. , Recognize: 24.0 Mtr
- Identify : 12.0 Mtr.
- Lens Type: Fixed-focal
- Max. Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance 3.6mm: 1.3Mtr., 2.8mm: 1.0Mtr., 6mm: 2.8Mtr.
- Lens: 3.6mm, 6mm(2.8mm optional)
- Back Light Compensation: BLC/HLC/DWDR
- Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
- Angle of view 2.8 mm: H: 106°, V: 56°, D: 125° 3.6 mm: H: 92°, V: 48°, D: 109° 6 mm: H: 54°, V: 29°, D: 62°
- S/N Ratio: >65 dB
- Resolution: 5M (2880 × 1620), 4M (2560 × 1440), 2MP (1920 × 1080), 960H (960 × 576/960 × 480)
- Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Video Streaming CVI: PAL: 5M25 fps, 4M@25 fps, 2M@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: PAL: 960H, NTSC: 960H
- Noise Reduction: 2D NR
- Privacy Mask: Off/On (8 areas, rectangle)
- Day/Night: Auto(ICR)/Color/B/W
- Mirror Function: Support
- IR: IR Range of 30 Mtr.,
- IR Control: Auto, Manual
- Warm Light Range: Warm Light Range of 20 Mtr.
- IR Mode: Smart IR&WL, WL Mode, IR Mode
- Dual LED Number: 2 (Warm light) + 2 (IR light)
- Iris Control: Fixed
- Anti-corrosion Level: Basic Protection
- Audio: Built-in Mic
- Weatherproof Standard: IP67
- Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity: <95% (RH), non-condensing
- Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity: <95% (RH), non-condensing
- Power Source: 12VDC ±30%
- Power Consumption: Max 4.0 W (12V DC, WLED on)
- Casing: Plastic
- Dimension: 146.1mm × 70.0mm × 69.8mm
- Weight: 0.17kg.

CP Plus CP USC DC51PL3C 5MP 30Metre IR Dome Camera
- Brand: Cp Plus
- Product: CP USC DC51PL3C 5MP 30Mtr IR Dome CCTV Camera
- Image Sensor: 1/2.7 5MP PS CMOS Image Sensor (0.9407 cm)
- Minimum Illumination: 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on
- Max. Resolution: 2880 (H) × 1620 (V)
- Shutter Speed PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s
- Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- White Balance: Auto, manual
- Lens Mount: M12
- Gain Control (AGC): Auto
- Max. Aperture: F2.0
- Lens: 3.6mm Fixed Lens (2.8mm Optional)
- Close Focus Distance: 3.6 mm: 1.2 m, 2.8 mm: 0.8 m
- DORI Distance Lens 3.6mm: 80.0m (Detect), 32.0m (Observe), 16.0m (Recognize), 8.0m (Identify) Lens 2.8mm: 56.0m (Detect), 22.4m (Observe), 11.2m (Recognize), 5.6m (Identify)
- Lens Type: Fixed
- Angle of View 3.6 mm: 104° × 88° × 46°, 2.8 mm: 125° × 106° × 56°
- Back Light Compensation: BLC, HLC, DWDR
- Resolution: 5M (2880×1620), 4M (2560×1440), 2M (1920×1080), 960H (960 × 576/960 × 480)
- Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Frame Rate CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps , NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: 960H
- Noise Reduction: 2D DNR
- Iris Control: Fixed
- Audio: Built-in Mic
- Privacy Mask: Off/On (8 areas, rectangle)
- Audio Interface: Audio Interface
- Day/Night: Auto (ICR)/ Manual
- Mirror Function: Support
- IR Control: Auto, Manual
- IR: IR Range of 30 Mtr
- Smart IR: Support
- Operating Humidity: <95% (RH), non-condensing
- Operating Temperature: –40°C to +55°C (–40°F to +131°F)
- Power Source: 12 VDC ± 30%
- Power Consumption: Max. 2.7W (12 VDC, IR on)
- Dimension: 85.4mm × 68.8mm
- Casing: Plastic
- Weight: 0.09 kg

CP Plus CP USC DC51PL2C 5MP 20 Metre IR Dome Camera
- Brand: Cp Plus
- Product: CP USC DC51PL2C 5MP 20Mtr IR Dome CCTV Camera
- Image Sensor: 1/2.7 5MP PS CMOS (0.9407cm)
- Minimum Illumination: 0.02 Lux/F2.0, 30IRE, 0 Lux IR on
- Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- White Balance: Auto / Manual
- Gain Control (AGC): Auto / Manual
- ICR: Auto (ICR)/Manual
- Max. Aperture: F2.0
- Lens: 3.6mm (2.8mm optional)
- Max Aperture: F2.0
- Iris: Fixed
- Lens Type: Fixed lens/ Fixed Iris
- Close Focus Distance 2.8 mm: 0.8 m ; 3.6 mm: 1.2 m
- Mount Type: M12
- S/N Ratio: More than 65dB
- Privacy Mask: Off / On (8 area, rectangle)
- Audio: Built-in Mic
- DORI Distance 2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)
- Back Light Compensation BLC / HLC / DWDR
- Video Streaming CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H
- Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Angle of View 3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)
- IR: IR Range of 20 Mtr., Smart IR
- OSD: Multi-language
- Casing: Plastic
- Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH
- Power Source: 12V DC ±30%
- Power Consumption: Max 2.7W (12V DC, IR on)
- Weatherproof Standard: N/A
- Dimension: 85.4 mm × 68.8 mm
- Weight: 0.09Kg.

CP Plus CPUVR3201K2I3 32 Channel 5MN DVR
- Brand: CP Plus
- Product: CP-UVR-3201K2-I3 32 Ch. 5M-N Digital Video Recorder
- Video Inputs: Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Video Compression: AI Instastream/ Instastream/ H.265 dual-stream video compression
- Incoming Bandwidth: Max 32 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
- Perimeter Protection: Up to 4 channels video stream (analog channel) Perimeter Protection.
- SMD Plus: Up to 16 channels video stream (analog channel) SMD Plus
- Human Face Recognition: Up to 2 channels video stream (analog channel) human face recognition
- USB Ports: Support 2 SATA HDDs up to 16TB Each, 2 USB Ports
- Video Outputs: 1 HDMI / 1 VGA / 1 TV simultaneous video output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- General Alarm: Motion detection, video loss, tampering
- Bit Rate: 32 Kbps–6144 Kbps Per Channel
- Smart Phone: iPhone, iPad, Android Phone
- Face Recognition Database Capacity: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries ions and state can be added to each face image
- Anomaly Alarm: No disk, storage error, low space, offline, IP conflict, MAC conflict
- Face Recognition Performance of AI by DVR : 2 Channels
- Hard Disk: 2 SATA ports, up to 16TB Each, the maximum HDD capacity varies with environment temperature
- Recording Mode: General, motion detection; intelligent; alarm; POS
- Disk Group: Yes
- Backup Mode: USB Device/Network
- Network Mode: Single-address mode
- Playback: Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
- Recording Playback: 1/4/9/16
- Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Interface Ports: 1 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485
- Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; ONVIF 21.06; CGI
- Power Supply: 12 VDC, 5 A
- Power Consumption: Lower than 17 W (without HDD)
- Working Temp: -10°C to +55°C (+14°F to +131°F), 0–90% RH
- Dimension(W × D × H):375.0 mm × 289.4 mm × 53.0 mm
- Weight: 1.98kg

CP Plus CPUVR0801F1HC 8Ch 1080P Cosmic HD DVR
- Brand: CP Plus
- Product: CPUVR0801F1HC 8Ch 1080P Cosmic HD Digital Video Recorder
- Video Inputs: Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- IP Camera: Support upto 6MP IP Camera
- Video Compression: H.265Plus/H.265 dual-stream video compression
- Incoming Bandwidth: Max 48Mbps Incoming Bandwidth
- Realtime Recording: All channel 1080P Non-Realtime Recording
- USB Ports: Support 1 SATA HDD up to 6TB, 2 USB Ports(2.0)
- Video Output: HDMI / VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA port, up to 6TB
- Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Recording Mode: Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Backup Mode: USB Device/Network
- Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Max User Account: 128 users
- Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Ethernet: RJ-45 port (100M)
- Interface Ports: 1 HDMI, 1 VGA, 2 USB2.0
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant
- Power Supply: DC12V/1.5A
- Power Consumption: <10W(without HDD)
- Working Temp: -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
- Dimension(W × D × H) : 197mm x 192mm x 41mm
- Weight: 0.54kg (without HDD)

CP Plus CPUVR0401F1IC 4Ch 5MN DVR
- Brand: CP Plus
- Prdouct: CP-UVR-0401F1-IC 4Ch. 5M-N Digital Video Recorder
- Video Inputs: Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Incoming Bandwidth: Max 6 channels IP camera inputs, each channel up to 8MP; Max 36Mbps Incoming Bandwidth
- AI Coding: Supports Full-channel AI-Coding
- Perimeter Protection: Up to 2 channels video stream (analog channel) Perimeter Protection.
- Video Compression: Instastream/H.265+ dual-stream video compression
- SMD Plus: Up to 4 channels video stream (analog channel) SMD Plus.
- USB Ports: Support 1 SATA HDD up to 6TB, 2 USB Ports
- Human Face Recognition: Up to 2 channels video stream (analog channel) human face recognition.
- Video output: 1 HDMI / 1 VGA simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Recording Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
- Backup Mode: USB Device/Network
- Playback: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
- Max User Account: 128 users
- Record Interval: 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Ethernet: 1 RJ-45 port (1000Mbps)
- Interface Ports: 2 USB Ports (USB 2.0)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12, CGI Conformant
- Power Supply: DC 12V/2A
- Power Consumption: <4W (without HDD)
- Working Temp: -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH
- Dimension(W × D × H): 198 mm × 203.0 mm × 41.5 mm
- Weight: 0.55kg (without HDD)

CP Plus CPUNR4K564R8FI 64Ch AI Network Video Recorder
- Brand: CP Plus
- Product:CP-UNR-4K564R8-FI 64Ch AI Network Video Recorder
- Processor: Industrial-grade processor
- IP Camera Input: 64 Channel
- Operating System: Embedded LINUX
- User Interface: Web, Local GUI
- Face Recognition Performance of AI by Camera (Number of Channels): 16 channels
- SMD Plus by NVR 8 Channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera: All Channels (32 targets/s)
- Metadata Performance of AI by Camera (Number of Channels): 8 channels
- Human Attributes: Top color, Top type, Bottom color, Bottom type, Hat, Bag, Age, Gender and Umbrella
- Motor Vehicle Attributes: License plate, Plate color, Vehicle body, Vehicle model, Vehicle logo, Calling, Seatbelt, Vehicle Interior, Vehicle registration location
- Non-motor Vehicle Attributes: Vehicle model, Vehicle color, Number of persons, Helmet
- ANPR by Camera (Number of Channels): All Channels (8 Targets/s)
- License Plate Database Capacity: 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist
- Abnormality Alarm: Camera offline, storage error, disk full, IP conflict, MAC conflict, login lock, abnormal behaviour of fan, cyber security exception
- Intelligent Alarm: Face detection, Perimeter protection, Face recognition, Video metadata (Human, Motor vehicles, non-motor vehicles), SMD Plus, Stereo analysis, Crowd distribution, People counting, ANPR, Vehicle density, Heat map
- General Alarm: Motion detection, local alarm, alarm box, camera external alarm, network alarm, scene changing, PIR alarm, thermal
- Alarm Linkage: Record, snapshot (panoramic), local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Audio Compression: G.711a, G.711u, PCM, G726, AAC
- Disk Group: Support
- Alarm Input: 16 Channel
- Alarm Output: 8 Channels (1-channel 12 V 1 A output)
- Hard Disk: 8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature
- Multi-channel Playback: Up to 16 channels
- Record Mode: General, Motion detection, Intelligent, Alarm, POS
- Backup Method: USB device and network
- Playback Mode: Instant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)
- Smart Phone: iPhone, iPad, Android Phone
- RAID: RAID 0/1/5/6/10
- Interface Ports: 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports), 1 eSATA Port, 1 RS232, 2 RS485 (1 port for halfduplex serial communication, 1 port for full-duplex serial communicat
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, Multicast, InstaOn, Auto Registration, iSCSI, ONVIF 22.06 (Profile T, Profile S, Profile G), CGI, SDK
- Network Mode: Multi-address mode, load balance, fault tolerance and other network port binding modes
- Ethernet: 2 (10/100/1000 Mbps Ethernet port, RJ-45)
- Browser: Chrome, IE, Safari, Edge, Firefox
- Power Supply: 100–240 VAC, 50-60 Hz
- Power Consumption: Total output of NVR is ? 13 W (without HDD)
- Operating Temperature: -10 °C to +55 °C
- Operating Humidity: 10%–93% (RH), non-condensing
- Storage Temperature: -20 °C to +60 °C
- Dimensions(W × L × H):439.9 mm × 457.9 mm x 89.0 mm
- Weight: 6.40 kg

CP Plus CPUNR4K4324I 32Ch 4K Network Video Recorder
- Brand: CP Plus
- Product: CP-UNR-4K4324-I 32Ch 4K Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- IP Camera Input: 32 channel
- User Interface: Web; local GUI
- Alarm Input: 16 Channel
- Alarm Output: 6 Channel
- Camera Blank: Supports
- Motion Detection: Supports
- Video Loss: Supports
- Alarm Linkage: Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
- AI by Camera: Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
- General Alarm: Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
- AI by Device: Face detection; face recognition; perimeter protection; SMD Plus
- Smart Phone: iPhone, iPad, Android Phone
- Anomaly Alarm: Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
- Face 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
- Hard Disk: 4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature
- Recording Mode : Manual; schedule (general; MD; alarm; MD & alarm; intelligent)
- Backup Mode: USB device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
- Interface Ports: 1 front USB 2.0 port, 1 rear USB 3.0 port , 1 RS485, 1 RS232
- Protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; InstaOn; auto register; ONVIF (profile T/S/G); CGI; SDK
- Power Supply: Single, 100 V–240 V AC, 50 Hz–60 Hz
- Power Consumption: Total output of NVR is ? 8 W (without HDD)
- Working Temp: -10 °C to +55 °C (+10 °F to +131 °F)
- Working Humidity: 10%–93%
- Storage Temperature: 0 °C to +40 °C (32 °F to 104 °F)
- Storage Humidity: 30%–85%
- Operating Altitude: 3000 m
- Dimension(W × L × H): 440.0 mm × 415.6 mm x 76.0 mm
- Weight: 4.25 kg

CP Plus CPUNR4K4322V4 32Ch 4K Network Video Recorder
- Brand: CP Plus
- Product: CP-UNR-4K4322-V4 32 Ch 4K Network Video Recorder
- Processor: Industrial-grade processor
- Operating System: Embedded LINUX
- IP Camera Input: 32 channel
- User Interface: Web, Local GUI
- AI by NVR: SMD Plus
- Perimeter Performance of AI by Camera: 6 Channels
- Video Output: 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Video OutputHeterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Face Attributes: Gender, Age group, Glasses, Expressions, Face mask, Beard
- Abnormality Alarm: Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exceptio
- SMD Plus by Camera: 6 Channels
- SMD Plus by NVR 2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- Face Recognition AI by NVR: 6 Channels
- Face Detection AI by Camera: 6 Channels
- Resolution: 5 MP, 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF, QCIF
- Video Compression: Instastream; H.265, H.264+, H.264
- Network Bandwidth: AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
- Alarm Input: 4 Channels
- Smart Phone: iPhone, iPad, Android Phone
- Disk Group: Support
- Video Display Split: AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16
- Audio Input: 1 Channel RCA
- Audio Output: 1 Channel RCA
- Audio Compression: G.711a, G.711u, PCM,
- Hard Disk: 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperatur
- Browser: Chrome, IE, Safari, Edge, Firefox
- Multi-channel Playback: Up to 16 Channels
- Playback: Instant playback, General playback, Event playback, Tag playback, Smart playback
- Backup Mode: USB device and Network
- Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA
- Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Protocols: HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK
- Power Supply: 12 VDC, 2 A
- Power Consumption: Total output of NVR is <10 W(without HDD)
- Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F)
- Storage Temperature: –10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity: 10%–93% (RH), non-condensing
- Dimensions(W × L × H): 375.0 mm × 282.9 mm × 53.0 mm
- Weight: 1.49 kg

CP Plus CPUNR4K2162V3 16Ch NVR
- Brand: CP Plus
- Product: CP-UNR-4K2162-V3 16 Ch Network Video Recorder
- Processor: Industrial-grade processor
- Operating System: Embedded LINUX
- Channel: 16
- User Interface: Web, Local GUI
- Video Output: 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Video Compression: H.265, H.264, MJPEG
- Encode Strategy: Instastream
- Decoding Capability AI disabled: 1-channel 12 MP@30 fps, 1-channel 8 MP@30 fps, 2-channel 5 MP@30 fps, 3-channel 4 MP@30 fps, 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps
- Video Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2MP, 960p, 1MP, D1
- Video Display Split Main screen: 1/4/8/9/16/25 Sub screen: 1/4/8/9/16
- SMD Plus by NVR: 4 channels
- SMD Plus by Camera: Perimeter protection, SMD Plus
- Network Bandwidth AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
- Smart Phone: iPhone, iPad, Android Phone
- Interface Ports: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search, Multicast, InstaOn cloud, Auto Registration, ONVIF 21.12(Profile T, Profile S, Profile G)
- Browser: Chrome, IE9 and later, Firefox, Edge
- Ethernet: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
- Intelligent Alarm: Perimeter protection, SMD Plus
- Alarm Linkage: Recording, snapshot, buzzer, log, preset, email, tour
- Alarm Input: NA (2 channels are optional)
- Alarm Output: NA (2 channels are optional, one of them is 1-channel 12 V 1 A output)
- Audio Input: 1-channel RCA
- Audio Output: 2-channel RCA
- Audio Compression: G.711a, G.711u, PCM, G726, AA
- Hard Disk: 2 SATA ports. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature
- Multi-channel Playback: Up to 16 channels
- Record Mode: General, motion detection, intelligent, alarm
- Backup Method: USB device and network
- Power Supply: 12 VDC, 2 A
- Power Consumption: ? 10 W (without HDD)
- Operating Temperature: Temperature -10 °C to +55 °C (14 °F to +131 °F)
- Operating Humidity: 10%–93% (RH)
- Storage Temperature: -20 °C to +60 °C (–4 °F to +140 °F)
- Dimensions(W × L × H):375.0mm × 282.9mm × 53.0mm
- Weight: 1490 g (without HDD)

CP Plus CPUNR108F1 8 Channel NVR
- Brand: CP Plus
- Product: CP-UNR-108F1 8Ch Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- User Interface: Web/operating in local GUI
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
- Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Video Recording: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
- Video Display Split: 1/4/8/9
- Bandwidth Incoming: 80 Mbps
- Channel: 8
- Motion Detection: Supports
- Video Loss: Supports
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA 2.0, up to 8TB Each
- Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
- Backup Mode: USB Device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
- Power Supply: DC12V, 1.5A
- Power Consumption: <10W (Without HDD)
- Working Temp: -10°C to 45°C (+34°F to +113°F)
- Dimension(W × L × H): 260 mm×225 mm×47.6 mm
- Weight: 0.81kg (without HDD)

Cp plus CPUNR104F1 4Ch NVR
- Brand: CP Plus
- Product: CPUNR104F1 4Ch Network Video Recorder
- Processor: Industrial-grade embedded processor
- Operating System: Embedded LINUX
- User Interface: Web/operating in local GUI
- Video Output: 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
- Video Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
- Video Recording: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
- Video Display Split: 1/4
- Bandwidth Incoming: 80 Mbps
- Channel: 4
- Motion Detection: Supports
- Video Loss: Supports
- Smart Phone: iPhone, iPad, Android Phone
- Hard Disk: 1 SATA 2.0, up to 8TB Each
- Recording Mode: Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
- Backup Mode: USB Device
- Playback: Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
- Ethernet: 1 RJ-45 port (10/100Mbps)
- Interface Ports: 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
- Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
- Power Supply: DC12V, 1.5A
- Power Consumption: <10W (Without HDD)
- Working Temp: -10°C to 45°C (+34°F to +113°F)
- Dimension(W × L × H): 260 mm×225 mm×47.6 mm
- Weight: 0.81kg (without HDD)

CP Plus CPURC TC24PL2C V3 2 Mexa Pixel IR Bullet CCTV Camera
- Brand: CP Plus
- Model No: CP URC TC24PL2C V3 2MP IR Bullet Camera
- Image Sensor: 1/2.7 inch 2MP CMOS Image Sensor (0.9407 cm)
- Minimum Illumination: 0.04Lux/F2.0, 30IRE, 0Lux IR on
- Shutter Speed: PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- Lens: 3.6mm (2.8mm optional)
- S/N Ratio: More than 65dB
- Lens Type: Fixed lens/ Fixed Iris
- Mount Type: Board-in
- Max Aperture: F2.0
- Angle of View: 2.8mm; D:120° H:100° V:53° ; 3.6mm: D:99° H:83° V:44
- Close Focus Distance: 3.6mm– 0.8m ; 2.8mm– 0.6m
- DORI Distance: 2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4m
- Back Light Compensation: BLC/HLC/DWDR
- White Balance: Auto/ Manual
- Video Streaming: 2.4MP@25/30fps, 25/30/50/60fps@720P
- Video Output: 1-channel BNC high definition video output/ CVBS video output (Can switch)
- ICR: Auto (ICR)/Manual
- Audio: Built-in Mic
- IR: IR Range of 20 Mtr., Smart IR
- IR Control: Auto/ Manual
- OSD Menu: Multi-language
- Casing: Plastic
- Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Storage Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Weatherproof Standard: IP67
- Power Source: 12V DC ±30%
- Power Consumption: Max 2.7W (12V DC, IR on)
- Dimension: 70mm x 70mm x 149mm (2.76
- Weight: 0.14Kg

CP Plus CPURC DC24PL2C V3 2 Mexa Pixel IR Dome CCTV Camera
- Brand: CP Plus
- Product: CP URC DC24PL2C V3 2MP IR Dome Camera
- Image Sensor: 1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm)
- Minimum Illumination: 0.04Lux/F2.0, 30IRE, 0Lux IR on
- Shutter Speed: PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s
- Lens: 3.6mm (2.8mm optional)
- S/N Ratio: More than 65dB
- Lens Type: Fixed lens/ Fixed Iris
- Mount Type: Board-in
- Max Aperture: F2.0
- Angle of View: 2.8mm; D:120° H:100° V:53° 3.6mm: D:99° H:83° V:44
- Close Focus Distance: 3.6mm– 0.8m ; 2.8mm– 0.6m
- DORI Distance: 2.8mm: D:46.9m; O:18.8m; R:9.4m; I:4.7m 3.6mm: D:53.7m; O:21.5m; R:10.7m; I:5.4
- Back Light Compensation: BLC/HLC/DWDR
- White Balance: Auto/ Manual
- Video Streaming: 2.4MP@25/30fps, 25/30/50/60fps@720P
- Video Output: 1-channel BNC high definition video output/ CVBS video output (Can switch)
- ICR: Auto (ICR)/Manual
- Audio: Built-in Mic
- IR: IR Range of 20 Mtr., Smart IR
- IR Control: Auto/ Manual
- OSD Menu: Multi-language
- Casing: Plastic
- Operating Temperature: 40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Storage Temperature: 40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Power Source: 12V DC ±30%
- Power Consumption: Max 2.3W (12V DC, IR on)
- Dimension: 85mm x 85mm x 69mm (3.35
- Weight: 0.09Kg

CP Plus CPUNC TA41L3CDLQ 4 Mexa Pixel 30Mtr Dual Light Bullet Camera
- Brand: CP Plus
- Product: CPUNC TA41L3CDLQ 4MP 30Mtr Dual Light Bullet Camera
- Image Sensor: 1/2.9 4MP PS CMOS Image Sensor (0.8758 centimeters)
- Effective Pixels: 2688 (H) × 1520 (V)
- Minimum Illumination: 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance: Lens 3.6 mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify)
- Gain Control (AGC): Auto/ Manual
- Lens Type: Fixed-focal
- Max. Aperture: F1.6
- Lens Mount: M12
- Close Focus Distance: 1.7 m
- Lens: 3.6mm fixed Lens
- IR Number: 1 (Multi-core (IR + warm) light)
- IR: IR Range of 30 Mtr.
- Warm Light: Warm Light Range of 30 Mtr.
- Smart Illumination: Support
- IR Control:Auto, Manual
- S/N Ratio: Greater 56 dB
- Angle of view 3.6 mm: H: 78°, V: 40°, D: 93°
- Back Light Compensation BLC/ HLC/ WDR(120dB)
- Resolution: 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
- Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream)
- Noise Reduction: 3D NR
- Motion Detection: OFF/ON (4 areas, rectangular)
- Video Format: PAL/NTSC
- Stream Capability: Triple stream
- Frame Rate: Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720P( 1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub
- Dimensions: 162.6 mm × 70 mm× 70 mm
- Casing: Metal + Plastic
- Weight: 220g

CP Plus CPUNC DA41L3CDLQ 4 Mexa Pixel 30Mtr Dome Camera
- Brand: CP Plus
- Product: CPUNC DA41L3CDLQ 4MP 30Mtr Dual Light Dome Camera
- Image Sensor: 1/2.9
- Effective Pixels: 2688 (H) × 1520 (V)
- Minimum Illumination: 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance: Lens 3.6mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify)
- Gain Control (AGC): Auto/Manual
- Lens Type: Fixed-focal
- Max. Aperture: F1.6
- Day/Night: Auto(ICR)/Color/B/W
- Lens Mount: M12
- Close Focus Distance 3.6 mm: 1.7 m
- Lens: 3.6mm fixed Lens
- S/N Ratio: Greater 56dB
- Dimensions: 85.5 mm × 109 mm
- Weight: 250 g

CP Plus CPUNC TA21L3CQ 2 Mexa Pixel 30Metre Network IR Bullet Camera
- Brand: CP Plus
- Product: CPUNC TA21L3CQ 2MP 30Mtr Network IR Bullet Camera
- Image Sensor: 1/2.8
- Effective Pixels: 1920 (H) × 1080 (V)
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance: Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify)
- Gain Control (AGC): Auto/Manual
- Lens Type: Fixed-focal
- Max. Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance: 0.9 m
- Lens: 3.6mm fixed Lens
- Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
- IR Number: 1 IR LED
- IR Control: Auto, Manual
- Smart IR: Support
- Angle of View 3.6 mm: H: 86°, V: 47°, D: 103°
- Back Light Compensation: BLC/ HLC/ DWDR
- Day/Night: Auto(ICR)/Color/B/W
- Iris Control: Fixed
- Resolution: 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Noise Reduction: 3D NR
- stream Capability: Triple stream
- Frame Rate: Main stream: 2MP (1920 × 1080)@1-25/30fps, 1.3MP, 720P@1-25/30fps Sub stream 1: 720p( 1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream
- Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Browser IE, Chrome, Firefox
- Weatherproof Standard IP6
- Dimension: 162.6 mm × 70 mm × 70 mm
- Weight: 220g

CP Plus CPUNC DA21L3CQ 2 Mexa Pixel 30Mtr Network IR Dome Camera
- Brand: CP Plus
- Product: CPUNCDA21L3CQ 2MP Network IR 30Mtr Dome Camera
- Image Sensor: 1/2.8 2MP PS CMOS Image Sensor (0.9071 centimeters)
- Effective Pixels: 1920 (H) × 1080 (V)
- Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
- Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
- RAM: 128 MB
- ROM: 128 MB
- DORI Distance Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify) Lens 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify)
- Gain Control (AGC): Auto/Manual
- Lens Type: Fixed-focal
- Max. Aperture: F2.0
- Lens Mount: M12
- Close Focus Distance: 3.6 mm: 0.9 m, 2.8 mm: 0.6 m
- Lens: 3.6mm (2.8mm optional)
- Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
- IR Number: 1 IR LED
- IR: IR Range of 30 Mtr.
- Smart IR: Support
- Day/Night: Auto(ICR)/Color/B/W
- S/N Ratio: Greater56dB
- Angle of view 3.6 mm: H: 86°, V: 47°, D: 103° 2.8 mm: H: 101°, V: 54°, D: 119°
- Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
- SDK and API: Support
- Iris Control: Fixed
- Ethernet: RJ-45 (10/100 Base-T)
- Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception
- Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
- Mirror Function: Support
- IR Control: Auto, Manual
- Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
- Certificates: ISO9001, CE, FCC and RoHS, BIS
- Power Source: 12 VDC/PoE (802.3af)
- Power Consumption Basic: 1.3 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE)
- User/Host: 6 (Total bandwidth: 36 M)
- Weatherproof Standard: IP67
- Browser: IE, Chrome, Firefox
- Weight: 250g

Dahua XVR5108HS I3 8 Channel Digital Video Recorder
- Brand: DAHUA
- Model no: XVR5108HS-I3
- Product: Dahua XVR5108HSI3 8 Channel 5MP Semi HD digital video recorder (DVR)
- Main Processor: Industrial-grade processor
- Operating System: Embedded Linux
- Operating Interface: Web; Local GUI
- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Audio Compression:G.711a; G.711u; PCM
- Face Attributes: 6 attributes
- Face Detection AI by Recorder: 2 channels (up to 8 face images/s each channel)
- Face Database Capacity: Up to 10 face databases with 10,000 images.
- Face Recognition AI by Recorder (Number of Channels): 2 channels
- Analog Camera Input: 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Dual-stream: Yes
- Video Bit Rate:32 kbps–6144 kbps
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
- Video Output: 1 HDMI, 1 VGA
- HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display: When IP extension mode not enabled: 1/4/8/9; When IP extension mode enabled: 1/4/8/9/16
- Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
- Audio Input: 1-channel RCA 8-channel BNC (Coaxial Audio)
- Audio Output:1-channel RCA
- Two-way Talk: Yes (share the same audio input with the first channel)
- Disk Interface: 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
- USB Port: 2 X (1 front USB 2.0 port, 1 rear USB 2.0 port); 1X HDMI; 1x VGA
- Network Port: 1 X (10/100 Mbps Ethernet port, RJ-45)
- Power Supply: 12 VDC, 2A
- Power Consumption Less than 7 W(without HDD)
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
- Operating Humidity: 10%–90% (RH), non-condensing
- Product Dimensions: 260.0 mm × 237.8 mm × 47.6 mm
- Weight: 0.97 kg (2.14 lb)

Dahua DH HAC T1A21P 2MP Indoor HDCVI IR Dome Camera
- Brand: Dahua
- Part Number: DH-HAC-T1A21P
- Model No: Dahua DH-HAC-T1A21P 2mp Indoor HDCVI IR Eyeball Dome Camera
- Mount Type : Board in
- Image Sensor : 1/2.7 CMOS
- Effective Pixels : 1920(H)×1080(V), 2MP
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25-1/100000s; NTSC: 1/30-1/100000s
- Minimum Illumination : 0.04Lux/F1.85, 30IRE, 0Lux IR on
- S/N Ratio : More than 65dB
- IR Distance : Up to 20m (66feet)
- IR On/Off Control : Auto / Manual
- Lens Type : Fixed lens / Fixed iris
- Focal Length : 3.6mm (2.8mm, 6mm Optional)
- Max Aperture : F1.85
- Angle of View : H: 93° (103°, 54.7°)
- Resolution : 1080P (1920×1080)
- Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
- Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
- Day/Night : Auto (ICR) / Manual
- OSD Menu : Multi-language
- BLC Mode : BLC / HLC / DWDR
- WDR : DWDR
- Gain Control : AGC
- Noise Reduction : 2D
- White Balance : Auto / Manual
- Smart IR : Auto / Manual
- Power Supply : 12V DC ±30%
- Power Consumption : Max. 2.3W (12V DC, IR on)
- Dimensions : 85mm×85mm×69mm
- Weight : 0.09kg (0.20lb)

Hikvision DS2CD1043G0I 4MP IP Bullet Network Camera
- Brand: Hikvision
- Part Number: DS-2CD1043G0-I
- Model No: Hikvision DS-2CD1043G0-I 4MP Fixed Bullet Network Camera
- Camera Type: IP Bullet Camera
- Technology: Efficient H.265+ compression technology
- Wide Dynamic Range (WDR):120 dB
- Camera Lens: 4mm
- EXIR 2.0: Advanced infrared technology with long IR range
- Image Sensor: 1/2.8Ã Progressive Scan CMOS
- Lens Type: Fixed focal length, 2.8 and 4 mm optional
- Image Sensor: 1/3 progressive scan CMOS
- Day & Night: IR cut filter
- Day/Night Switch: Auto, Schedule, Day, Night
- Viewing Angle: 83degree (Horizontal)
- Video format: H.264, MJEPG
- Resolution: 1920 x 1080
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS,DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6,Bonjour
- Dimensions: 147.5 x 78.2 x 92.9mm

Hikvision 32 Channel 4K Network Video Recoders
- Brand: Hikvision
- Part Number: DS-7632NXI-K2
- Model No: Pro DS-7632NXI-K2 32ch IP Network CCTV Camera
- IP Video Input: 32-ch
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 160 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA independent output
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two Way Audio: 1-ch, RCA (Linear, 1 K?)
- Decoding Format: H.265/H.265+/H.264+/H.264
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Stream Type: Video,Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
- Remote Connection: 128
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- SATA: 2 SATA interfaces
- Capacity: Up to 10 TB capacity for each HDD
- USB Interface(Front Panel): 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Power Supply: 12 VDC, 1.5 A
- Consumption: ? 10 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 320 × 240 × 48 mm
- Weight: Less 1 kg (without HDD, 2.2 lb.)

Hikvision 16 Channel 4K Network Video Recoders
- Brand: Hikvision
- Part Number: DS-7616NX1-K1
- Model No: Pro DS7616NXIK1 16Ch 4K NVR IP Network CCTV Camera
- IP Video Input: 16-ch
- Incoming Bandwidth: 160 Mbps
- Outgoing Bandwidth: 80 Mbps
- HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA independent output
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding Format: H.265/H.265+/H.264+/H.264
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC
- Remote Connection: 128
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- SATA: 1 SATA interface
- Capacity: Up to 10 TB capacity for each HDD
- USB Interface(Front Panel): 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Power Supply: 12 VDC, 1.5 A
- Consumption: ? 10 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 320 × 240 × 48 mm
- Weight: Less 1 kg (without HDD, 2.2 lb.)

Hikvision DS 2CD3047G2E LUF 4MP ColorVu Bullet Camera
- Brand: Hikvision
- Part No: DS-2CD3047G2E-LUF
- Model No: DS2CD3047G2ELUF 4MP ColorVu Fixed Bullet Network Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: 24/7 color imaging
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.0
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Product Dimension: 76.6 × 164.4 mm
- Product Weight (Approx): 420 g (0.9 lb.)

Dahua IPC HDBW5231E ZE HDMI 2MP IR Dome Camera
- Brand: Dahua
- Model No: Dahua IPC HDBW5231E ZE HDMI 2MP Dome Network Camera
- Image Sensor: 1/2.8 inch 2Megapixel progressive scan CMOS
- Resolution: 1920(H)x1080(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.6
- Lens Mount: Board-in
- Angle of view: H: 101° ~ 31°, V: 54° ~ 17°
- Power: DC12V, AC24V, PoE(802.3at)(Class 4)
- Dimension: 159.1mm*117.9mm
- Weight: 0.95Kg (2.09lb)

Dahua DH IPC HFW5442EP S 4MP Pro Bullet AI Network Camera
- Brand: Dahua
- Model No: Dahua DH IPC HFW5442EP S 4MP Pro AI Bullet Network Camera
- Image Sensor: 1/1.8 inch CMOS
- Resolution: 2688 (H) × 1520 (V)
- RAM: 512 MB
- ROM: 128 MB
- Shutter Time: Auto/Manual 1/3 s–1/100,000 s
- Lens Type: Fixed-focal
- Aperture: F1.6
- Lens Mount: Board-in
- Angle of view: H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°
- Power: 12 VDC/PoE (802.3af) (class 0)
- Dimension: 182.3 mm × 70.0 mm × 70.0 mm (7.18” × 2.76” × 2.76”)
- Weight: 470 g (1.04 lb)

Dahua IPC HDW4831EM ASE 8MP Eyeball Camera
- Brand: Dahua
- Model No: Dahua IPC HDW4831EM ASE Eyeball Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3(4)~1/100000s
- Lens Type: Fixed
- Aperture: F2.5 (F2.2)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 106mm×93.7mm (4.17”×3.69”)
- Weight: 0.47Kg (1.04lb)

Dahua IPC HDBW4831E ASE 8MP Mini Dome Camera
- Brand: Dahua
- Model No: Dahua IPC HDBW4831E ASE 8MP Mini Dome Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3(4)~1/100000s
- Lens Type: Fixed
- Aperture: F2.5 (F2.2)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 109.9mm×81mm (4.33”×3.19”)
- Weight: 0.41kg (0.91lb)

Dahua IPC HFW4831E SE 8MP Outdoor Bullet Camera
- Brand: Dahua
- Model No: Dahua IPC HFW4831E SE 8MP Mini Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3(4)~1/100000s
- Lens Type: Fixed
- Aperture: F1.6 (F1.6)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 180mm×70mm×70mm (7.09”×2.76”×2.76”)
- Weight: 0.41kg (0.91lb)

Dahua IPC HDW5831R ZE 8MP WDR IR Eyeball Camera
- Brand: Dahua
- Model No: Dahua IPC HDW5831R ZE 8MP Eyeball Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.8
- Lens Mount: Board-in
- Angle of view: H:110°~40° , V:58°~23°
- Power: DC12V, PoE(802.3af)(Class 0)
- Dimension: 122mm×104mm( 4.8”×4.09”)
- Weight: 0.6Kg (1.32lb)

Dahua IPC HDBW5831R ZE 8MP WDR IR Dome Camera
- Brand: Dahua
- Model No: Dahua IPC HDBW5831R ZE IR Dome Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:110°~40° , V:58°~23°
- Power: DC12V, PoE(802.3af)(Class 0)
- Dimension: 122mm×88.9mm (4.8”×3.5”)
- Weight: 0.5kg (1.1lb)

Dahua IPC HDBW5831E ZE 8MP Fixed Dome Network Camera
- Brand: Dahua
- Model No: Dahua IPC HDBW5831E ZE 8MP Dome Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:110°~40° , V:58°~23°
- Power: DC12V, AC24V, PoE+(802.3at)(Class 4)
- Dimension: 159.1mm×117.9mm (6.26”×4.64”)
- Weight: 0.95kg (2.09lb)

Dahua IPC HDBW5831E Z5E 8MP Dome Network Camera
- Brand: Dahua
- Model No: Dahua IPC HDBW5831E Z5E 8MP Dome Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(HALL)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:38°~14° , V:22°~8°
- Power: DC12V, AC24V, PoE+(802.3at)(Class 4)
- Dimension: 159.1mm×117.9mm (6.26”×4.64”)
- Weight: 0.95kg (2.09lb)

Dahua IPC HFW5831E Z5E 8MP IR Bullet Network Camera
- Brand: Dahua
- Model No: Dahua IPC HFW5831E Z5E 8MP Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(HALL)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:38°~14° , V:22°~8°
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
- Weight: 1.11Kg (2.44lb)

Dahua IPC HFW4831T ASE Mini Bullet IP Camera
- Brand: Dahua
- Model No: Dahua IPC HFW4831T ASE Mini Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Fixed
- Aperture: F1.6 (F1.6)
- Lens Mount: Board-in
- Angle of view: H:112° (88°), V:69° (48°)
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 244.1mm×79mm×75.9mm (9.61”×3.11”×2.99”)
- Weight: 0.815kg (1.80lb)

Dahua IPC HFW5831E ZE 8MP Bullet Camera
- Brand: Dahua
- Model No: Dahua IPC HFW5831E ZE IR Bullet Network Camera
- Image Sensor: 1/2.5 inch 8Megapixel progressive scan CMOS
- Resolution: 3840(H)x2160(V)
- RAM: 512MB
- ROM: 32MB
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized/ Auto Iris(DC)
- Aperture: F1.4
- Lens Mount: Board-in
- Angle of view: H:110°~40°, V:58°~23°
- Power: DC12V, PoE (802.3af)(Class 0)
- Dimension: 273.2mm×95.0mm×95.0mm (10.76”×3.74”×3.74”)
- Weight: 1.11Kg (2.44lb)

CP Plus CP UNC TC81ZL6 VMDS 8MP WDR IR Bullet Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC TC81ZL6 VMDS 8MP Network Bullet Camera
- Image Sensor: 1/2.8” 8MP PS CMOS Image Sensor (7.112cm)
- Resolution: 3840 (H) × 2160 (V)
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.5
- Angle of view: Horizontal: 113°–31° Vertical: 58°–17° Diagonal:138°–36°
- Power: Basic power consumption: 3.0W (12V DC); 3.5W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 9.2W (12V DC); 10.7W (PoE)
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
- Dimension: 244.1 mm × 79.0 mm × 75.9 mm (L × W × H)
- Weight: 820 g

CP Plus CP UNC VC81ZL4 VMDS 8MP WDR IR Vandal Dome Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC VC81ZL4 VMDS 8MP WDR IR Network Dome Camera
- Image Sensor: 1/2.8” 8Megapixel progressive CMOS (0.9071 centimeters)
- Resolution: 3840 (H) × 2160 (V)
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.5
- Lens Mount: ?14
- Angle of view: Horizontal: 113°–31° Vertical: 58°–17° Diagonal: 138°–36°
- Power: Basic: Basic power consumption: 2.7W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6.8W (12V DC); 8.2W (PoE)
- Operating Temperature: -30°C to +60°C (–22°F to +140°F)/Less than 95% RH
- Dimension: 88.9 mm × ?122 mm
- Weight: 492g

CP Plus CP UNC TG81ZL12 VMD 8MP AI Network Bullet Outdoor Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC TG81ZL12 VMD 8MP AI Network Bullet Camera
- Image Sensor: 1/1.8” 8Megapixel Progressive CMOS (1.411 cm)
- Resolution: 3840 (H) × 2160 (V)
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Aperture: F1.6
- Angle of view: Horizontal: 40° (W)–15° (T) ; Vertical: 23° (W)–9° (T) ; Diagonal: 45° (W)–17° (T)
- Power: 3.7W (12V DC); 5.7W(24V AC); 5.5W (PoE) Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE)
- Operating Temperature: -40°C to +60°C (-40°F to +140°F), /Less than 95% RH
- Storage Temperature: -40°C to +65°C (-40°F to +149°F)
- Dimension: -40°C to +65°C (-40°F to +149°F)
- Weight: 1600g

CP Plus CP UNC TE81ZL6P VMDS 8MP AI WDR IR Network Bullet Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC TE81ZL6P VMDS 8MP AI WDR Network Bullet Camera
- Image Sensor: 1/1.8” 8MP Progressive scan CMOS (1.411 cm)
- Resolution: 3840 × 2160
- Shutter Time: Auto/Manual, 1/3~1/100000s
- Lens Type: Motorized
- Angle of view: Horizontal: 112.1°–47.5° Vertical: 58.0°–26.6° Diagonal: 137.5°–54.6°
- Power: Basic: 5.5W (12 VDC); 6.0 W (24 VAC); 6.2 W (PoE) Max. (H.265 + 3 streams + Intelligence + IR on + heating): 15.9 W (12 VDC); 18.1 W (24 VAC); 18.7 W (PoE) Heating: 3.3 W ( 12 VDC); 4.4 W (24 VAC); 3.9 W (PoE)
- Operating Temperature: -40 °C to +60 °C (-40 °F to +140 °F)/Less than 95% RH
- Storage Temperature: 40 °C to +60 °C (-40 °F to +140 °F)
- Dimension: 340.1 mm × 138.3 mm × 134.0 mm (L × W × H)
- Weight: 1.6 kg

CP Plus CP UNC VB81ZL4C VMDS 8MP Dome IP Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC VB81ZL4C VMDS 8MP Network Dome Camera
- Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimetres)
- Resolution: 3840 (H) × 2160 (V)
- RAM: 256 MB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized lens
- Iris Type: Fixed
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: H: 113°–31°, V: 58°–18°, D: 138°–36
- Power: Basic: 2.7 W (12 VDC), 3.4 W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC), 7.3 W (PoE)
- Operating Temperature: –30°C to +60°C (–22°F to +140°F)
- Operating Humidity: ?95%(RH), non-condensing
- Storage Temperature: –40°C to +60°C (–40°F to +140°F)
- Dimension: 93.4 mm × 122 mm
- Weight: 0.51 kg

CP Plus CP UNC TC81ZL6C VMDS V2 8MP Bullet Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC TC81ZL6C VMDS V2 8MP Network Bullet Camera
- Image Sensor: 1/2.8” 8MP PS CMOS Image Sensor (0.9071 centimeter)
- Resolution: 3840 (H) × 2160 (V)
- RAM: 1 GB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized Lens
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: Horizontal: 109°–30°, Vertical: 56° –17°, Diagonal: 131° –35°
- Power: Basic: 4 W (12 VDC), 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC), 10.5 W (PoE)
- Operating Temperature: –30 °C to +60 °C
- Operating Humidity: ?95%(RH), non-condensing
- Storage Temperature: –30°C to +60°C
- Dimension: 244.1mm × 79.0mm × 75.9mm
- Weight: 0.820 g

CP Plus CP UNC VE81ZL4T VMDS 8MP Network Dome Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC VE81ZL4T VMDS 8MP WDR IR Network Dome Camera
- Image Sensor: 1/1.8
- Resolution: 3840 (H) × 2160 (V)
- RAM: 4 GB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized
- Aperture: F1.8
- Lens Mount: M14
- Angle of view: H: 113°–47°, V: 60°–26°, D: 133°–53°
- Power: Basic: Basic: 4.1 W (12 VDC), 4.9 W (24 VAC), 5.9 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.0 W (12 VDC), 11.7 W (24 VAC), 12.2 W (PoE)
- Dimension: 159.1mm × 118.1mm
- Weight: 0.91kg

CP Plus CP UNC TB81ZL6C VMDS V2 8MP Bullet Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC TB81ZL6C VMDS V2 8MP Bullet Camera
- Image Sensor: 1/2.7
- Resolution: 3840 (H) × 2160 (V)
- RAM: 256 MB
- Shutter Time: Auto/Manual 1/3 s–1/100000 s
- Lens Type: Motorized vari-focal
- Iris Type: Fixed
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: H: 113°–31°, V: 58°–18°, D: 138°–36°
- Power: Basic: 2.7 W (12 VDC), 3.6 W (PoE), Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 8.4 W (12 VDC); 9.7 W (PoE)
- Dimension: 238.5 mm × 90.7 mm × 90.7
- Weight: 0.77kg

CP Plus CP UNC VC81ZL4C VMDS V2 8MP Full HD Dome Camera
- Brand: CP Plus
- Model No: CP Plus CP UNC VC81ZL4C VMDS V2 8MP Network Dome Camera
- Image Sensor: 1/2.8
- Resolution: 3840 (H) × 2160 (V)
- RAM: 1 GB
- Shutter Time: Auto/Manual 1/3 s–1/100,000 s
- Lens Type: Motorized Lens
- Iris Type: Fixed
- Aperture: F1.5
- Lens Mount: M14
- Angle of view: Horizontal: 109°–30°, Vertical: 56° –17°, Diagonal: 131° –35°
- Power: Basic: 4 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC), 10.5 W (Po
- Dimension: 94 mm × 122 mm
- Weight: 0.713 g

Hikvision DS 2CD2066G2 IU 6MP Mini Bullet Network Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2066G2 IU 6MP Fixed Bullet Camera
- Image Sensor: 1/2.4 inch Progressive Scan CMOS
- Resolution: 3200 × 1800 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.6
- Lens Mount: M12
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.2 W
- Dimension: 70 mm × 161.7 mm (2.8" × 6.4")
- Weight: Approx. 490 g (1.1 lb.)

Hikvision DS 2CD2046G2H IU 4MP Bullet Network Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2046G2H IU 4MP Fixed Bullet Network Camera
- Image Sensor: 1/3 inch Progressive Scan CMOS
- Resolution: 2688 × 1520 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Iris Type: Fixed
- Aperture: F1.0
- Lens Mount: F1.0
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: mono sound
- Power: 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
- Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
- Weight: Approx. 525 g (1.2 lb.)

Hikvision DS 2CD2046G2 IU SL 4MP IP Bullet Network Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2046G2 IU SL 4MP Bullet Network Camera
- Image Sensor: 1/3 inch Progressive Scan CMOS
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Lens Mount: M12
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection ,PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
- Dimension: 72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5")
- Weight: Approx. 590 g (1.3 lb.)

Hikvision DS 2CD2046G2 IU 4MP Mini Bullet Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2046G2 IU 4MP Bullet Network Camera
- Image Sensor: 1/3 inch Progressive Scan CMOS
- Resolution: 2688 × 1520 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: mono sound
- Power: 12 VDC ± 25%, 0.5 A, max. 6.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.0 W
- Dimension: 70 mm × 161.7 mm (2.8" × 6.4")
- Weight: Approx. 485 g (1.1 lb.)

Hikvision DS 2CD2026G2 IU SL 2MP IP Bullet Network Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2026G2 IU SL 2MP Fixed Bullet Network Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 1920 × 1080 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Video Bit Rate: 32 Kbps to 8 Mbps
- Audio Type: Mono Sound
- Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W
- Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
- Weight: Approx. 510 g (1.1 lb.)

Hikvision DS 2CD2026G2 IU 2MP IP Bullet Network Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2026G2 IU 2MP Mini Bullet Network Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 1920 × 1080 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Iris Type: Fixed
- Aperture: F1.4
- Video Bit Rate: 32 Kbps to 8 Mbps
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W
- Dimension: 74.4 mm × 179.2 mm (2.9" × 7.1")
- Weight: 74.4 mm × 179.2 mm (Ø2.9" × 7.1")

Hikvision DS 2CD2H23G2 IZS 2MP IP Dome Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2H23G2 IZS 2MP Dome Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 1920 × 1080 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 8 Mbps
- Power: 12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Dimension: 138.3 mm × 126 mm (5.5" × 5.0")
- Weight: Approx. 830 g (1.8 lb.)

Hikvision DS 2CD2783G2 IZS 8MP Outdoor Dome Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2783G2 IZS 8MP Dome Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 3840 × 2160 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: 1/3 s to 1/100,000 s
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- Dimension: 153.3 mm × 111.6 mm (6.0" × 4.4")
- Weight: Approx. 855 g (1.9 lb.)

Hikvision DS 2CD2683G2 IZS 8MP 4K Bullet IP Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2683G2 IZS 8MP Bullet IP Camera
- Image Sensor: 1/2.8 inch Progressive Scan CMOS
- Resolution: 3840 × 2160 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: Mono sound
- Power: 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
- Dimension: 97.9 mm × 93 mm × 308.5 mm (3.9" × 3.7" × 12.1")
- Weight: Approx. 1385 g (3.1 lb.)

Hikvision DS 2CD2166G2 ISU 6MP Dome IP Camera
- Brand: Hikvision
- Model No: Hikvision DS 2CD2166G2 ISU 6MP Dome Network Camera
- Image Sensor: 1/2.4 inch Progressive Scan CMOS
- Resolution: 3200 × 1800 pixel
- Shutter Time: 1/3 s to 1/100,000 s
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Iris Type: Fixed
- Aperture: F1.6
- Video Bit Rate: 32 Kbps to 16 Mbps
- Audio Type: -U: Mono sound
- Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Dimension: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
- Weight: Approx. 440 g (1.0 lb.)

Hikvision DS 2CD1023G0E I 2MP Full HD Bullet Camera
- Brand: Hikvision
- Model No: Hikvision DS-2CD1023G0E-I 2MP Network Bullet Camera
- Image Sensor: 2.7 Progressive Scan CMOS
- Maximum Resolution: 1920 × 1080
- Mininum Illumination: Color: 0.01 Lux (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100, 000 s
- Day And Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Focal Length FOV: 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2° 4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.0
- Supplement Light Type: infrared radiation(IR)
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
- Host: Up to 32 users. 3 levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect
- Web Browser: Plug-in required live view: IE 10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
- Power: 12 VDC ± 25%, 0.4 A, max. 5 W, 5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Language: English
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Product Dimension: 177.6 mm × 66.2 mm × 67.8 mm
- Product Weight: 270 g (0.6 lb)
