BEST SELLING QSAN STORAGE PRICELIST
QSAN XS5312 12 Bay SAN Storage
- Brand: QSAN
- Model No: QSAN XS5312 Hybrid SAN Storage
- Architecture: XS5312D: Dual-active controller, XS5312S: Single-upgradeable controller
- Storage OS: XEVO 2
- Processor: Intel Xeon 64-bit 4-core (8-core processor models are also available)
- Memory Module Pre-installed: 16 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: 256 GB (per controller)
- Drive Bays: 3.5" Slot x 24
- Maximum Drive Bays with Expansion Unit: 492
- Compatible Drive Type: 3.5" & 2.5" SAS, NL-SAS, SED HDD, 3.5" & 2.5" SATA(*) HDD, 2.5" SAS, SATA(*), SED SSD
- Drive Interface: SAS 12 Gb/s, SATA 6 Gb/s(*)
- Maximum Internal Raw Capacity: 264 TB (calculate 22 TB HDD)
- Maximum Raw Capacity with Expansion Units: 10,824 TB (calculate 22 TB HDD)
- Hot Swappable Drive: Yes
- PCIe Expansion: (Gen 3x8 Slot) x 2
- 1 GbE RJ45 LAN Port: 1 (onboard management port per controller)
- 10 GbE SFP+ LAN Port: 4 (onboard per controller) / 4 (option)
- 10 GbE RJ45 LAN Port: 2 (option) / 4 (option)
- 25 GbE SFP28 LAN Port: 2 (option) / 4 (option)
- 16 Gb SFP+ Fibre Channel: 2 (option) / 4 (option)
- 32 Gb SFP28 Fibre Channel: 2 (option)
- 12 Gb/s SAS Wide Port: 2 (onboard per controller)
- USB Port: 1 (front) / 2 (rear)
- Others: Console Port x 1, Service Port (UPS) x 1
- Memory Protection: Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
- System Fan: 4 pcs
- Power Supply Unit: 850 W x 2 (80 PLUS Platinum)
- Power Consumption: 534 W
- Dimension (H x W x D) (mm): 88 x 438 x 515 mm
- Weight: 16.4 kg
- Warranty: 3 Years Warranty
QSAN XS5316 3U Hybrid Storage
- Brand: QSAN
- Model No: QSAN XS5316 SAN Storage
- Architecture: XS5316D: Dual-active controller, XS5316S: Single-upgradeable controller
- Storage OS: XEVO 2
- Processor: Intel Xeon 64-bit 4-core (8-core processor models are also available)
- Memory Module Pre-installed: 16 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: 256 GB (per controller)
- Drive Bays: 3.5" Slot x 24
- Maximum Drive Bays with Expansion Unit: 496
- Compatible Drive Type: 3.5" & 2.5" SAS, NL-SAS, SED HDD, 3.5" & 2.5" SATA(*) HDD, 2.5" SAS, SATA(*), SED SSD
- Drive Interface: SAS 12 Gb/s, SATA 6 Gb/s(*)
- Maximum Internal Raw Capacity: 352 TB (calculate 22 TB HDD)
- Maximum Raw Capacity with Expansion Units: 10,912 TB (calculate 22 TB HDD)
- Hot Swappable Drive: Yes
- PCIe Expansion: (Gen 3x8 Slot) x 2
- 1 GbE RJ45 LAN Port: 1 (onboard management port per controller)
- 10 GbE SFP+ LAN Port: 4 (onboard per controller) / 4 (option)
- 10 GbE RJ45 LAN Port: 2 (option) / 4 (option)
- 25 GbE SFP28 LAN Port: 2 (option) / 4 (option)
- 16 Gb SFP+ Fibre Channel: 2 (option) / 4 (option)
- 32 Gb SFP28 Fibre Channel: 2 (option)
- 12 Gb/s SAS Wide Port: 2 (onboard per controller)
- USB Port: 1 (front) / 2 (rear)
- Others: Console Port x 1, Service Port (UPS) x 1
- Memory Protection: Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
- System Fan: 4 pcs
- Power Supply Unit: 850 W x 2 (80 PLUS Platinum)
- Power Consumption: 534 W
- Dimension (H x W x D) (mm): 130.4 x 438 x 515 mm
- Weight: 21.7 kg
- Warranty: 3 Years Warranty

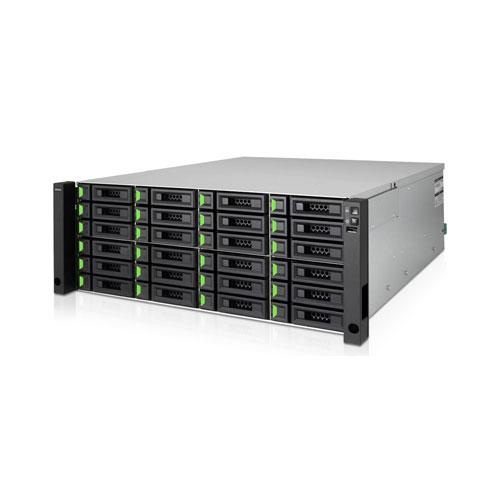

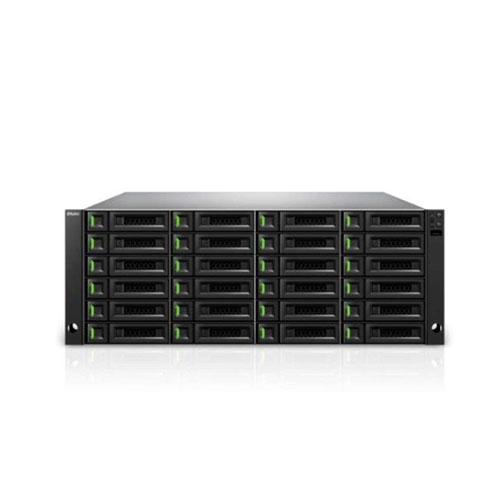

QSAN XS5324 4U Hybrid Storage
- Brand: QSAN
- Model No: QSAN XS5324 High Density Storage
- Architecture: XS5324D: Dual-active controller, XS5324S: Single-upgradeable controller
- Storage OS: XEVO 2
- Processor: Intel Xeon 64-bit 4-core (8-core processor models are also available)
- Memory Module Pre-installed: 16 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: 256 GB (per controller)
- Drive Bays: 3.5" Slot x 24
- Maximum Drive Bays with Expansion Unit: 504
- Compatible Drive Type: 3.5" & 2.5" SAS, NL-SAS, SED HDD, 3.5" & 2.5" SATA(*) HDD, 2.5" SAS, SATA(*), SED SSD
- Drive Interface: SAS 12 Gb/s, SATA 6 Gb/s(*)
- Maximum Internal Raw Capacity: 528 TB (calculate 22 TB HDD)
- Maximum Raw Capacity with Expansion Units: 11,088 TB (calculate 22 TB HDD)
- Hot Swappable Drive: Yes
- PCIe Expansion: (Gen 3x8 Slot) x 2
- 1 GbE RJ45 LAN Port: 1 (onboard management port per controller)
- 10 GbE SFP+ LAN Port: 4 (onboard per controller) / 4 (option)
- 10 GbE RJ45 LAN Port: 2 (option) / 4 (option)
- 25 GbE SFP28 LAN Port: 2 (option) / 4 (option)
- 16 Gb SFP+ Fibre Channel: 2 (option) / 4 (option)
- 32 Gb SFP28 Fibre Channel: 2 (option)
- 12 Gb/s SAS Wide Port: 2 (onboard per controller)
- USB Port: 1 (front) / 2 (rear)
- Others: Console Port x 1, Service Port (UPS) x 1
- Memory Protection: Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
- System Fan: 4 pcs
- Power Supply Unit: 850 W x 2 (80 PLUS Platinum)
- Power Consumption: 648 W
- Dimension (H x W x D) (mm): 170.3 x 438 x 515 mm
- Weight: 25.9 kg
- Warranty: 3 Years Warranty

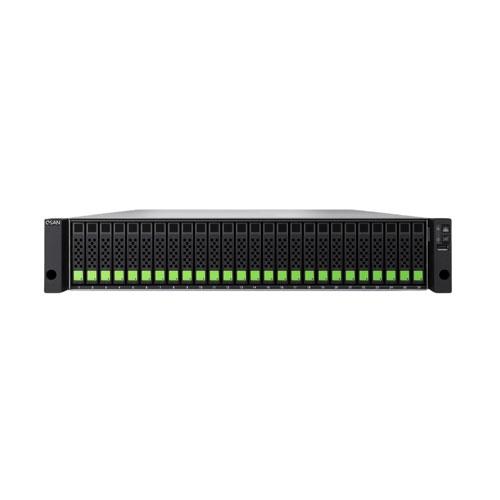

QSAN XS5326 2U Hybrid Storage
- Brand: QSAN
- Model No: QSAN XS5326 Network Attached Storage
- Architecture: XS5326D: Dual-active controller, XS5326S: Single-upgradeable controller
- Storage OS: XEVO 2
- Processor: Intel Xeon 64-bit 4-core (8-core processor models are also available)
- Memory Module Pre-installed: 16 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: up to 256 GB (per controller)
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Compatible Drive Type: 2.5" SAS, NL-SAS, SED HDD, 2.5" SATA(*) HDD, 2.5" SAS, SATA(*), SED SSD
- Drive Interface: SAS 12 Gb/s, SATA 6 Gb/s(*)
- Maximum Internal Raw Capacity: 798 TB (calculate 30.72 TB SSD)
- Maximum Raw Capacity with Expansion Units: 16,773 TB (calculate 30.72 TB SSD)
- Hot Swappable Drive: Yes
- PCIe Expansion: (Gen 3x8 Slot) x 2
- 1 GbE RJ45 LAN Port: 1 (onboard management port per controller)
- 10 GbE SFP+ LAN Port: 4 (onboard per controller) / 4 (option)
- 10 GbE RJ45 LAN Port: 2 (option) / 4 (option)
- 25 GbE SFP28 LAN Port: 2 (option) / 4 (option)
- 16 Gb SFP+ Fibre Channel: 2 (option) / 4 (option)
- 32 Gb SFP28 Fibre Channel: 2 (option)
- 12 Gb/s SAS Wide Port: 2 (onboard per controller)
- USB Port: 1 (front) / 2 (rear)
- Others: Console Port x 1, Service Port (UPS) x 1
- Memory Protection: Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
- System Fan: 4 pcs
- Power Supply Unit: 850 W x 2 (80 PLUS Platinum)
- Power Consumption: 429 W
- Dimension (H x W x D) (mm): 88 x 438 x 491 mm
- Weight: 16.3 kg
- Warranty: 3 Years Warranty
Qsan XF3212S NVMe SSD Block Storage
- Brand: QSAN
- Part No: XF3212S
- Model No: Qsan XF3212S All Flash Storage
- Architecture: Single-active controller
- Processor: Intel Xeon 4-core
- Memory: 8 GB DDR4 RDIMM
- Total Memory Slots: 4
- Total Expandable: 256 GB
- Drive Bays: 3.5" Slot x 12
- Drive Type: 2.5" single-port U.2 NVMe SSD
- Drive Interface: U.2 NVMe (PCIe Gen 4)
- Maximum Internal Capacity: 368 TB
- PCIe Expansion: (Gen 3x8 Slot) x 2
- USB Port: 1 (front) / 1 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: SSL/SSH/iSCSI CHAP/ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 850 W x 2 (80 Plus Platinum)
- System fan: 4 pcs
- Dimensions: 88 x 438 x 515 mm
- Weight: 16.3 kg
- Warranty: 3 years Warranty
Qsan XF3212D NVMe SSD Block Storage
- Brand: QSAN
- Part No: XF3212D
- Model No: Qsan XF3212D All Flash Storage
- Architecture: Dual-active controller
- Processor: Intel Xeon 4-core x 2
- Memory: 16 GB DDR4 RDIMM
- Total Memory Slots: 8
- Total Expandable: 512 GB
- Drive Bays: 3.5" Slot x 12
- Drive Type: 2.5" dual-port U.2 NVMe SSD
- Drive Interface: U.2 NVMe (PCIe Gen 4)
- Maximum Internal Capacity: 368 TB
- PCIe Expansion: (Gen 3x8 Slot) x 4
- USB Port: 1 (front) / 2 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: SSL/SSH/iSCSI CHAP/ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 850 W x 2 (80 Plus Platinum)
- System fan: 4 pcs
- Dimensions: 88 x 438 x 515 mm
- Weight: 16.3 kg
- Warranty: 3 years Warranty
Qsan XF4226S High Density Storage
- Brand: QSAN
- Part No: XF4226S
- Model No: Qsan XF4226S Rackmount Storage
- Architecture: Single-upgradable controller
- Processor: Intel Xeon 8-core
- Memory: 16 GB DDR4 RDIMM
- Total Memory Slots: 8
- Total Expandable: 1,024 GB
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Drive Type: 2.5" single-port U.2 / U.3 NVMe SSD, 2.5" SAS SSD, 3.5" SAS HDD
- Drive Interface: U.2 NVMe (PCIe Gen 4), SAS 12 Gb/s
- Maximum Internal Capacity: 798 TB
- Maximum Capacity with Expansion: 16,773 TB
- PCIe Expansion: (Gen 4x8 Slot) x 2
- 12 Gb/s SAS Wide Port: 2 (onboard)
- USB Port: 1 (front) / 1 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: SSL/SSH/iSCSI CHAP/ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 850 W x 2 (80 Plus Platinum)
- System fan: 4 pcs
- Dimensions: 88 x 438 x 573 mm
- Weight: 16.5 kg
- Warranty: 3 years Warranty
Qsan XF4226D High Density Storage
- Brand: QSAN
- Part No: XF4226D
- Model No: Qsan XF4226D Rackmount Storage
- Architecture: Dual-active controller
- Processor: Intel Xeon 8-core x 2
- Memory: 32 GB DDR4 RDIMM
- Total Memory Slots: 16
- Total Expandable: 2,048 GB
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Drive Type: 2.5" dual-port U.2 / U.3 NVMe SSD, 2.5" SAS SSD, 3.5" SAS HDD
- Drive Interface: U.2 NVMe (PCIe Gen 4), SAS 12 Gb/s
- Maximum Internal Capacity: 798 TB
- Maximum Capacity with Expansion: 16,773 TB
- PCIe Expansion: (Gen 4x8 Slot) x 4
- 12 Gb/s SAS Wide Port: 4 (onboard)
- USB Port: 1 (front) / 2 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: SSL/SSH/iSCSI CHAP/ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 850 W x 2 (80 Plus Platinum)
- System fan: 8 pcs
- Dimensions: 88 x 438 x 573 mm
- Weight: 19.6 kg
- Warranty: 3 years Warranty
Qsan XF5226S NVMe Flash Storage
- Brand: QSAN
- Part No: XF5226S
- Model No: Qsan XF5226S All Flash Storage
- Architecture: Single-upgradable controller
- Processor: Intel Xeon 12-core processor
- Memory: 16 GB DDR4 RDIMM (per controller)
- Total Memory Slots: 8 (per controller)
- Total Expandable: Upto 1,024 GB (per controller)
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Drive Type: 2.5" single-port U.2 NVMe SSD, 2.5" SAS/SED SSD, 3.5" SAS HDD
- Drive Interface: U.2 NVMe (PCIe Gen 4), SAS 12 Gb/s
- Maximum Internal Capacity: 798 TB
- Maximum Capacity with Expansion: 16,773 TB
- 12 Gb/s SAS Wide Port: 2 (onboard)
- USB Port: 1 (front) / 1 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: HTTPS, SSH, iSCSI CHAP, ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 650W x 2 (80 Plus Platinum)
- Dimensions: 88 x 438 x 573 mm
- Weight: 16.5 kg
- Warranty: 3 years Warranty
QSAN XCubeSAN XS3324D Hybrid Flash Storage
- Brand: QSAN
- Part No: XS3324D
- Model No: QSAN XCubeSAN XS3324D 24 Bay Hybrid Flash Storage
- Form Factor: 4U Rackmount
- Architecture: Dual-active controller
- Processor: Intel Xeon 4-core Processor
- Memory: 8 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: Upto 256 GB total (per controller)
- Drive Bays: 24 (3.5" slot)
- Maximum Drive Bays with Expansion Unit: 504
- RAID Levels: Supports RAID 10
- Maximum Internal Raw Capacity: 528 TB (assuming 22 TB HDDs)
- Maximum Raw Capacity with Expansion Units: 11,088 TB
- Redundancy: Fully redundant, with dual-active controllers and cache-to-flash protection
- Connectivity: 10 GbE SFP+ ports: 4 on each controller, 12 Gb/s SAS Wide Port: 2 on each controller, Other ports: Management, expansion, and optional Fibre Channel and 10/25 GbE ports
- Power: 850W x 2 (80 PLUS Platinum)
- Dimension (H x W x D): 170.3 x 438 x 515
- Weight: 25.9 Kg
- Warranty: 3 years Warranty
QSAN XCubeNXT XN5124D 24 Bay NAS Storage
- Brand: QSAN
- Part No: XN5124D
- Model No: QSAN XCubeNXT XN5124D Network Attached Storage
- Architecture: Dual-active, hot-swappable controllers.
- Processor: Intel Xeon 64-bit 4-core processor per controller.
- Memory: 8 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: Upto 256 GB (per controller)
- Drive Bays: 24 x 3.5" SAS/NL-SAS/SED HDD or 2.5" SAS/SED SSD bays.
- Drive Interface: SAS 12 Gb/s, optionally SATA 6 Gb/s.
- Maximum Raw Capacity: 528 TB internal, expandable to 11,088 TB with expansion units.
- RAID Type: 0 / 1 / 3 / 5 / 6 / 10 / 30 / 50 / 60 / 5EE / 6EE / 50EE / 60EE
- Connectivity: 1 GbE RJ45 LAN Port per controller, 4 x 10 GbE SFP+ LAN Ports (onboard per controller) and optional 4 x 10 GbE RJ45 LAN ports, Optionally 2 or 4 x 25 GbE SFP28 LAN Ports, 16 Gb SFP+ Fibre Channel, or 32 Gb SFP28 Fibre Channel, 2 x 12 Gb/s SAS Wide Ports and PCIe Expansion slots.
- Protocols: CIFS / NFS / FTP* / AFP* / iSCSI / FCP*
- Power Supply: 850 W x 2 (80 PLUS Platinum)
- Dimension (H x W x D): 170.3 x 438 x 515
- Weight: 25.9 Kg
- Warranty: 3 years Warranty
QSAN XF5226D NVMe SSD Flash Storage
- Brand: QSAN
- Part No: XF5226D
- Model No: QSAN XF5226S All Flash Array Storage
- Architecture: Dual-active controller
- Processor: Intel Xeon 12-core x 2 processor
- Memory: 32 GB DDR4 RDIMM
- Total Memory Slots: 16
- Total Expandable: 2,048 GB
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Drive Type: 2.5" dual-port U.2 NVMe SSD, 2.5" SAS/SED SSD, 3.5" SAS HDD
- Drive Interface: U.2 NVMe (PCIe Gen 4), SAS 12 Gb/s
- Maximum Internal Capacity: 798 TB
- Maximum Capacity with Expansion: 16,773 TB
- 12 Gb/s SAS Wide Port: 4 (onboard)
- USB Port: 1 (front)/ 2 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: HTTPS, SSH, iSCSI CHAP, ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 650W x 2 (80 Plus Platinum)
- Dimensions: 88 x 438 x 573 mm
- Weight: 19.6 kg
- Warranty: 3 years Warranty
-->
CLICK TO CALL
