BEST SELLING AADONA ACCESS POINT PRICELIST
Aadona AOXE 1800 WiFi Access Point
- Brand: Aadona
- Product: Aadona AOXE-1800 Access Point
- Model Name: AOXE-1800
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac/ax
- Maximum Data Rate: 2.4G: 575Mbps; 5G: 1200Mbps
- Physical Port: 1 * 10/100/1000Base-T PoE port for uplink; 1 * 1000M SFP fiber port(Combo); 1 * 10/100/1000Base-T downlink port ; 1 build-in M.2 port for IoT and LTE expansion
- PoE: 802.3at
- Maximum power consumption: < 18W
- Antenna: External
- Working frequency band: 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150~5.350GHz 5.47~5.725GHz 5.725~5.850GHz
- Modulation technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps; 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps; 11n: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM; 11ac:MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM; 11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP68
- Product positioning: Outdoor dual frequency
- Maximum Concurrent Clients: 254
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2
- 802.11ax: 80 MHz bundling; 1200Mbps (PHY); Frame aggregation (A-MPDU); Maximum likelihood demodulation (MLD); Transmit beamforming (TxBF); Maximum ratio combining (MRC); Space-time block coding (STBC); Low-density parity-check code (LDPC)
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AOXI 1800 Wireless Access Point
- Brand: Aadona
- Product: Aadona AOXI-1800 Access Point
- Model Name: AOXI-1800
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac/ax
- Maximum Data Rate: 2.4G: 575Mbps; 5G: 1200Mbps
- Physical Port: 1x 10/100/1000Base-T PoE; 1x 1000M SFP fiber
- PoE: 802.3at
- Maximum power consumption: < 23.4W
- Antenna: Internal antenna, 2.4G 10dBi, 5G 10dBi
- Working frequency band: 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150~5.350GHz 5.47~5.725GHz 5.725~5.850GHz
- Modulation technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps; 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps; 11n: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM; 11ac:MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM; 11ax: MIMO-OFDM: BPSK, QPSK,16QAM,64QAM,256QAM,1024QAM
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP68
- Product positioning: Outdoor dual frequency
- Maximum Concurrent Clients: 254
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AOE 1700 T Outdoor Access Point
- Brand: Aadona
- Product: Aadona AOE-1700-T Access Point
- Model Name: AOE-1700-T
- Product Series: APOLLO
- Working Frequency: 2.4G: 802.11b/g/n; 5G: 802.11a/n/ac Wave2: 2.4G/5G: 802.11a/b/g/n/ac
- Maximum Data Rate: 2.4G: 400Mbps; 5G: 867Mbps; 2.4/5G: 200/433Mbps
- Physical Port: 1x 10/100/1000Base-T PoE (uplink); 1x 10/100/1000Base-T (downlink); 1x 1000M SFP fiber; PoE 802.3at
- Maximum power consumption: < 20W
- Antenna: External, 4 N-type female connectors
- Working frequency band: 2.4 GHz and 5 GHz
- Modulation technology: OFDM, DSSS, MIMO-OFDM, MCS
- Transmit power: Max 27 dBm
- Power adjustment granularity: 1 dBm
- Working/Storage temperature: -40°C to +65°C -45°C to +80°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection level: IP67
- Product positioning: Outdoor tri-band 11ac wave2 AP
- Maximum Concurrent Clients: 256
- Virtual AP (BSSID): 32
- Number of spatial streams: 2.4GHz: 2; 5GHz: 2; 2.4/5GHz: 1
- 11n Enhancements: 40 MHz bundling; 400Mbps (PHY); Frame aggregation (A-MPDU); Maximum likelihood demodulation (MLD); Transmit beamforming (TxBF); Maximum ratio combining (MRC); Space-time block coding (STBC); Low-density parity-check code (LDPC)
- Encryption: 64/128 WEP, dynamic WEP, TKIP, and CCMP
- Protection against DoS attacks: Anti-DoS for wireless management packets
- Forwarding security: Frame filtering, white list, static blacklist, and dynamic blacklist
- User isolation: AP L2 forwarding suppression
- Isolation between Virtual APs (multiple SSIDs)
- Periodic SSID enabling and disabling: Yes
- Access control of free resources: Yes
- Secure admission control of wireless terminals: Yes
- Wireless SAVI: Yes
- ACL: Access control of various data packets such as MAC, IPv4, and IPv6 packets
- Secure access control of APs: Secure access control of APs, such as MAC authentication, password authentication, or digital certificate authentication between an AP and an AC
- IP address setting: Static IP or dynamic DHCP allocation
- IPv6 forwarding: Yes
- IPv6 portal: Yes
- Local forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP switching reference: Signal strength, bit error rate, RSSI, S/N, whether neighboring APs are normally operating, etc.
- Priority mapping: Ethernet port 802.1P identification and marking; Mapping from wireless priorities to wired priorities
- QoS policy mapping: Mapping of different SSIDs/VLANs to different QoS policies
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AXO 3000 AOM WiFi Access Point
- Brand: Aadona
- Product: Aadona AXO-3000-AOM Access Point
- Model Name: AXO-3000-AOM
- Product Series: APOLLO
- Standard 802.11ax: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 3000 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n (max rate: 574 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 2402 Mbps)
- MIMO 2x2: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 128
- Housing Type: IP67
- Power Budget: 1000 mW, 30 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: NA
- Reset button: 1
- Internal Antenna 2*2.4G: 5dBi and 2*5.8G: 7dBi
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- EVM: 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- EVM: 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 304mm × 181mm × 88mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <16W
- Warranty: 3 Year Warranty
Aadona AXO 3600 Wireless Access Point
- Brand: Aadona
- Product: Aadona AXO-3600 Access Point
- Model Name: AXO-3600
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 3600 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 1182 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 2475 Mbps)
- MIMO 4x4: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 512
- Housing Type: IP67
- Power Budget: 1000 mW, 20 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna Connector: 6 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID: SSID for 2.4GHz: 4, SSID for 5GHz: 8
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
Aadona AXO 1800L Outdoor Access Point
- Brand: Aadona
- Product: Aadona AXO-1800L Access Point
- Model Name: AXO-1800L
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 1800 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n (max rate: 600 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 1200 Mbps)
- MIMO 2x2: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 128
- Housing Type: IP65
- Power Budget: 1000 mW, 30 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: NA
- Reset button: 1
- Antenna Connector: 4 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
Aadona AOS 1200 WiFi Access Point
- Brand: Aadona
- Product: Aadona AOS-1200 Access Point
- Model Name: AOS-1200
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wave 1: Yes
- Standard MIMO technology: Yes
- Throughput: 1200 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n (max rate: 300 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac (max rate: 900 Mbps):
- MIMO 2x2: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 128
- Housing Type: IP65
- Power Budget: 1000 mW, 30 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna Connector: 4 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
Aadona AIX 1800 WiFi Access Point
- Brand: Aadona
- Product: Aadona AIX-1800 Access Point
- Model Name: AIX-1800
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000Base-T
- Console Port: NA
- USB 2.0: NA
- PoE: 802.3at
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <13W
- RF Port: Built-in 2.4 GHz 3 dBi antenna and 5 GHz 3 dBi antenna
- Working Frequency Band: 802.11b/g/n: 2.4 GHz to 2.483 GHz; 802.11a/n/ac/ax : 5.150GHz to 5.250GHz 5.250GHz to 5.350GHz 5.725GHz to 5.850GHz
- Modulation Technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 22dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 8
- Number of Spatial Streams: 2.4GHz:2, 5GHz:2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 180 x 180 x 28.5mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AIX 6820 T Wireless Access Point
- Brand: Aadona
- Product: Aadona AIX-6820-T Access Point
- Model Name: AIX-6820-T
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000/2500Mbps Base-T, 1 x BLE module
- Console Port: 1
- USB 2.0: 1
- PoE: 802.3bt
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <30W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11b/g/n: 2.4GHz-2.483GHz ; 802.11a/n/ac/ax : 5.725~5.850GHz ; 5.150~5.350GHz ;5.47~5.725GHz
- Modulation Technology: 11b:DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor tri-band Wi-Fi6
- Working Frequency Band: 3
- Virtual AP (BSSID): 48
- Number of Spatial Streams: 3
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 215 x 215 x 45mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AIX 3000 Indoor Access Point
- Brand: Aadona
- Product: Aadona AIX-3000 Access Point
- Model Name: AIX-3000
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000/2500Mbps Base-T, 1 x BLE module
- Console Port: 1
- USB 2.0: 2
- PoE: 802.3at
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <20W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11a/n: 5.150 GHz to 5.850 GHz : 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11ac 5.150GHz to 5.250GHz : 5.250GHz to 5.350GHz : 5.725GHz to 5.850GHz
- Modulation Technology: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac BPSK, QPSK, 16-QAM, 64QAM, 256-QAM
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 32
- Number of Spatial Streams: 2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 201 x 195 x 41mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AIX 1700 WiFi Access Point
- Brand: Aadona
- Product: Aadona AIX-1700 Access Point
- Model Name: AIX-1700
- Product Series: APOLLO
- Ethernet Ports: 2 x 10/100/1000Base-T
- Console Port: 1
- USB 2.0: 1
- PoE: 802.3at
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <13W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11a/n: 5.150 GHz to 5.850 GHz : 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11ac 5.150GHz to 5.250GHz : 5.250GHz to 5.350GHz : 5.725GHz to 5.850GHz
- Modulation Technology: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac BPSK, QPSK, 16-QAM, 64QAM, 256-QAM
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –10°C to +55°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 32
- Number of Spatial Streams: 2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 247 x 153 x 30mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AIC 1200 Indoor Wireless Access Point
- Brand: Aadona
- Product: AIC-1200 Access Point
- Model Name: AIC-1200
- Product Series: APOLLO
- Ethernet Ports: 1 x 10/100/1000Base-T
- Console Port: N/A
- USB 2.0: 1
- PoE: 802.3af
- Local Power Input: 100 ~ 240V AC
- Maximum Power Consumption: <15W
- RF Port: Built-in 2.4 GHz 4 dBi antenna and 5 GHz 5 dBi antenna
- Working Frequency Band: 802.11a/n: 5.150 GHz to 5.850 GHz : 802.11b/g/n: 2.4 GHz to 2.483 GHz 802.11ac 5.150GHz to 5.250GHz : 5.250GHz to 5.350GHz : 5.725GHz to 5.850GHz
- Modulation Technology: 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac BPSK, QPSK, 16-QAM, 64QAM, 256-QAM
- Transmit Power: 2.4G: 23dBM (Per Chain), 5G: 23dBM (Per Chain)
- Power Adjustment Granularity: 1 dBm
- Working/Storage Temperature: –0°C to +50°C / –40°C to +70°C
- Working/Storage RH: 5% to 95% (non-condensing)
- Protection Level: IP41
- Product Positioning: Indoor dual-frequency
- Working Frequency Band: 2.4 GHz and 5 GHz
- Virtual AP (BSSID): 32
- Number of Spatial Streams: 2
- Encryption: 64/128 WEP, TKIP, CCMP
- DoS Attack Protection: Anti-DoS for Wireless Management Packets
- IP Address Setting: Static IP or Dynamic DHCP
- IPv6 Forwarding: Yes
- IPv6 Portal: Yes
- Local Forwarding: Yes
- Multicast: IGMP Snooping
- Roaming: Yes
- AP Switching Reference: Signal Strength, Bit Error Rate, RSSI, S/N, Neighboring AP Status
- Forwarding Security: Frame Filtering, White List, Static/Dynamic Blacklist
- Priority Mapping: Ethernet Port 802.1P Identification and Marking
- Multicast Enhancement: Multicast to Unicast
- Network Management: Centralized Management, Thin/Fat Mode
- Maintenance Mode: Local and Remote
- Log Function: Local Logs, Syslog, Export
- Dimensions : 247 x 153 x 30mm
- Warranty: 3 Year Default + 2 Year Extended, Total 5 Year
Aadona AXC 7800 Indoor Wireless Access Point
- Brand: Aadona
- Product: AXC-7800 Access Point
- Model Name:AXC-7800
- Product Series:APOLLO
- WiFi 6:Yes
- 802.11ax:Yes
- MU-MIMO technology:Yes
- Throughput:7800 Mbps
- Frequency Radio: 2.4GHz:802.11 b/g/n/ac (max rate: 574 Mbps)
- Frequency Radio: 5GHz:802.11 a/n/ac/ax (max rate: 5.1G : 4804Mbps, 5.8G : 2402Mbps)
- MIMO: 2x2, 4x4:Yes
- MU-MIMO:Yes
- Transmit Power:22±2dBm
- Spatial streams:4
- Concurrent Users 320+
- Physical Interfacem 10/100/1000/ 2.5G RJ45 WAN Port:1
- Physical Interface 10/100 / 1000Mbps RJ45 LAN Port:1
- Physical Interface Reset button:1
- Physical Interface Antenna gain:4dBi
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Standard:
- IPv4:Yes
- Watchdog:Yes
- IP Address Setting:Static or DHCP allocation
- Configuration:Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF Modulation DSSS = DBPSK, DQPSK, CCK
- PPM ±20ppm:
- EVM 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- EVM 802.11b: -10 dB ?; 802. 11g: ?-25 dB; 802.11n: -28 dB ?; 802.11ax: -35 dB
- Channel Bandwidth:Up to 160M
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting:Ceiling mount preferred
- Device Dimensions:218mm × 54.6mm
- Power input:802.3at 48V PoE; <=15W DC 12V, 3A
- Warranty: 3 Year Warranty
Aadona AXC 3600 Indoor Wireless Access Point
- Brand: Aadona
- Product: AXC-3600 Access Point
- Model Name: AXC-3600
- Product Series: APOLLO
- Standard: WiFi 6; 802.11ax; MU-MIMO technology
- Throughput: 3657 Mbps
- Frequency Radio 2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio 5GHz: 5.150GHz – 5.850GHz
- MIMO: 4x4; MU-MIMO
- Transmit Power 2.4G: ? 20dBm; 5.8G: ? 19dBm
- Spatial streams 8
- Concurrent Users: 1024
- Physical Interface 10/100/1000/2500Mbps RJ45 WAN Port: 1
- Physical Interface 10/100/1000/2500Mbps RJ45 LAN Port: 1
- Physical Interface Reset button: 1
- Physical Interface Antenna gain 4dBi
- Deployment Options: Standalone Mode; Hardware Controller; Cloud Controller
- Operation Modes - Wireless AP; Gateway; WISP; Repeater (not supported)
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard: IPv4; Watchdog; IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM; DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- EVM: 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB; 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Channel Bandwidth: Up to 160M
- WAN options: Static IP; Dynamic IP; PPPoE; L2TP(Dual Access); PPTP(Dual Access)
- Security: 64/128-bit WEP; EAP; WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES); DoS attack prevention; MAC and IP Address Binding; Stateful Packet Inspection Firewall; MAC Address Filtering; IP Address Filtering; Domain Filtering;White list, static and dynamic blacklist;Secure admission control of wireless terminals;Dynamic CCA-SD (Clear Channel Assessment Signal Detection) for interference;L2-L4 packet filtering and flow classification
- Monitoring: Dashboard(Overview); Real-time Throughput Monitoring; Client List; Local logs; Syslog; Logfile export
- Network and Wireless Seamless client roaming (with controller); Transmit Power configuration; Auto Channel; Hidden SSID; Wireless Client Monitoring; Channel Scanning; AP Management VLAN; SSID VLAN Mapping; Blind area detection and repair; High density application optimization:
- RF Optimization: Beamforming, Band Steering
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 186mm × 186mm ×37mm
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
Aadona AXC 3000L Indoor Wireless Access Point
- Brand: Aadona
- Product: AXC-3000L Access Point
- Model Name: AXC-3000L
- Product Series: APOLLO
- WiFi 6: Yes
- 802.11ax: Yes
- MU-MIMO technology: Yes
- Throughput: 3000 Mbps
- Frequency Radio: 2.4GHz: 802.11 b/g/n/ac (max rate: 574 Mbps)
- Frequency Radio: 5GHz: 802.11 a/n/ac/ax (max rate: 2402 Mbps)
- 2x2: Yes
- MU-MIMO: Yes
- Transmit Power: 23dBm
- Spatial streams: 4
- Concurrent Users: 256:
- Physical Interface 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna gain: 4.6dBi:
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA:
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF Modulation DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB ; 80 2 . 1 1 a x : ? -3 5 dB
- Channel Bandwidth: Up to 160M
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 186mm × 186mm ×37mm
- Power input: 802.3at 48V PoE; <=15W DC 12V, 1.5A
- Warranty: 3 Year Warranty
Aadona AXC 1800 Indoor Wireless Access Point
Brand: Aadona
Product: AXC-1800 Access Point
Model Name: AXC-1800
Product Series: APOLLO
WiFi 6: Yes
802.11ax: Yes
MU-MIMO technology: Yes
Throughput: 1800 Mbps
Frequency Radio 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 600 Mbps)
Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 1200 Mbps)
2x2: Yes
MU-MIMO: Yes
Transmit Power: 23dBm
Spatial streams: 4
Concurrent Users: 512
Physical Interface:
10/100 /1000Mbps RJ45 WAN Port: 1
10/100 / 1000Mbps RJ45 LAN Port: 1
Reset button: 1
Antenna gain: 3dBi
Deployment Options:
Standalone Mode: Yes
Hardware Controller: Yes
Cloud Controller: Yes
Operation Modes:
Wireless AP: Yes
Gateway: Yes
WISP: Yes
Repeater: NA
SSID for 2.4GHz: 4
SSID for 5GHz: 4
IPv4: Yes
Watchdog: Yes
IP Address Setting: Static or DHCP allocation
Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
RF Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
RF Modulation DSSS = DBPSK, DQPSK, CCK
PPM: ±20ppm:
2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
Channel Bandwidth: Up to 160M
Operating Temperature: -2045 °C
Storage Temperature: -3070 °C
Humidity: 5%~95% non-condensing
Mounting: Ceiling mount preferred
Device Dimensions: 198mm X 198mm X 41mm
Power input: 802.3at 48V PoE; <30W DC 12V, 2A
Warranty: 3 Year Warranty
Aadona AXC 1800L Wireless Access Point
- Brand: Aadona
- Product: AXC-1800L Access Point
- Model Name: AXC-1800L
- Product Series: APOLLO
- WiFi 6: Yes
- 802.11ax: Yes
- MU-MIMO technology: Yes
- Throughput: 1800 Mbps
- Frequency Radio: 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 600 Mbps)
- Frequency Radio: 5GHz: 802.11 a/n/ac/ax (max rate: 1200 Mbps):
- 2x2: Yes
- MU-MIMO: Yes
- Transmit Power: 23dBm
- Spatial streams: 4
- Concurrent Users: 200:
- Physical Interface 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface 10/100 / 1000Mbps RJ45 LAN Port: 1
- Physical Interface Reset button: 1
- Physical Interface Antenna gain: 4dBi
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA:
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard:
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through the controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux:
- RF specificationsOFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM, 1024-QAM
- RF specifications DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Channel Bandwidth: Up to 160M
- Operating Temperature: -20-45 °C
- Storage Temperature: -30-70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 168mm X 168mm X 32mm
- Power input:802.3at 48V PoE; <=15W DC 12V, 1.5A
- Warranty: 3 Year Warranty
Aadona ASC 1200 Wireless Access Point
- Brand: Aadona
- Product: ASC-1200 Access Point
- Model Name: ASC-1200
- Product Series: APOLLO
- Standard: 802.11ac; Wave 2; MU-MIMO technology
- Throughput: 1200 Mbps
- Frequency Radio 2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio 5GHz: 5.150GHz – 5.850GHz
- 2.4GHz: 802.11 b/g/n (max rate: 300 Mbps)
- 5GHz: 802.11 a/n/ac (max rate: 900 Mbps)
- MIMO: - 2x2 MU-MIMO
- Spatial streams: 4
- Concurrent Users: 256
- Transmit Power: 28dBm
- Physical Interface 10/100/1000Mbps RJ45 WAN Port: 1
- Physical Interface 10/100/1000Mbps RJ45 LAN Port: 1
- Physical Interface Reset button: 1
- Physical Interface Antenna gain: 5dBi
- Deployment Options: - Standalone Mode Hardware Controller; Cloud Controller (Note: Currently hosted internationally, India hosting planned for 2021)
- Operation Modes: - Wireless AP; Gateway; WISP; Repeater (not supported)
- SSID for 2.4GHz: 4
- SSID for 5GHz: 4
- IP Standard: IPv4; Watchdog; IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM; DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- EVM: 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB; 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- WAN options: - Static IP; Dynamic IP; PPPoE; L2TP(Dual Access); PPTP(Dual Access)
- Security 64/128-bit WEP ;EAP WPA, WPA2, WPA PSK, WPA2 PSK (TKIP/AES) ;DoS attack prevention : ;MAC and IP Address Binding ;Stateful Packet Inspection Firewall ;MAC Address Filtering ;IP Address Filtering ;Domain Filtering ;White list, static and dynamic blacklist ;Secure admission control of wireless terminals ;L2-L4 packet filtering and flow classification
- Monitoring: - Dashboard(Overview); Real-time Throughput Monitoring; Client List; Local logs; Syslog; Logfile export
- Network and Wireless Seamless client roaming (with controller); Transmit Power configuration; Auto Channel; Hidden SSID; Wireless Client Monitoring; Channel Scanning; AP Management VLAN; SSID VLAN Mapping; Blind area detection and repair; High density application optimization:
- RF Optimization Band Steering;Airtime Fairness ;WMM Optimization ;Client Limiting ;RSSI Threshold ;Maximum ratio combining (MRC) ;Space-time block coding (STBC) ;Low-density parity-check code (LDPC)
- Operating Temperature: -30~55 °C
- Storage Temperature: -40~70 °C
- Humidity: 5%~95% non-condensing
- Mounting: Ceiling mount preferred
- Device Dimensions: 198mm X 198mm X 28mm
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
Aadona ASC 1200L Wireless Access Point
- Brand: Aadona
- Product: ASC-1200L Access Point
- Product Model:ASC-1200L
- Product Series:APOLLO
- Standard 802.11ac:Yes
- Wave 2:Yes
- MU-MIMO technology:Yes
- Throughput:1200 Mbps
- Frequency Radio:2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio:5GHz: 5.150GHz – 5.850GHz
- MIMO 2x2:Yes
- MU-MIMO:Yes
- Spatial streams:4
- Concurrent Users:128
- Transmit Power:20dBm
- 10/100 Mbps RJ45 WAN Port:1
- 10/100 Mbps RJ45 LAN Port:1:
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Address Setting:Static or DHCP allocation
- Local management and Firmware upgrade
- Remote Management through controller:
- Supported Operating Systems:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux:
- Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
- Modulation DSSS = DBPSK, DQPSK, CCK
- PPM:±20ppm:
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2045 °C
- Storage Temperature: -4070 °C
- Humidity: 5%~95% non-condensing
- Mounting:Ceiling mount preferred
- Device Dimensions:168mm X 168mm X 32mm
- Power input:802.3af 48V PoE; <10W
- Warranty: 3 Year Warranty
Aadona ASC 1200L V2 Wireless Access Point
- Brand: Aadona
- Product: ASC-1200L V2 Access Point
- Product Model:ASC-1200L V2
- Product Series:APOLLO
- 802.11ac:Yes
- Wave 2:Yes
- MU-MIMO technology:Yes
- Throughput:1200 Mbps
- Frequency Radio:2.4GHz: 2.400GHz – 2.484GHz
- Frequency Radio:5GHz: 5.150GHz – 5.850GHz
- MIMO 2x2:Yes
- MU-MIMO:Yes
- Spatial streams:4
- Concurrent Users:128
- Transmit Power:20dBm
- Physical Interface:
- 10/100/1000 Mbps RJ45 WAN Port:1
- 10/100/1000 Mbps RJ45 LAN Port:1
- Reset button:1
- Antenna gain:4.6 dBi
- Deployment Options:
- Standalone Mode:Yes
- Hardware Controller:Yes
- Cloud Controller:Yes:
- Wireless AP:Yes
- Gateway:Yes
- WISP:Yes
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Standard:
- IPv4:Yes
- Watchdog:Yes
- IP Address Setting:Static or DHCP allocation
- Web Interface (HTTP):
- Local management and Firmware upgrade
- Remote Management through controller
- System RequirementsSupported Operating Systems:Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux:
- Modulation OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
- Modulation DSSS = DBPSK, DQPSK, CCK
- PPM:±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB :
- Operating Temperature: -20 - +45 °C
- Storage Temperature: -40 - +70 °C
- Humidity: 5%~95% non-condensing
- Mounting:Ceiling mount preferred
- Device Dimensions:168mm X 168mm X 32mm
- Power input:802.3af 48V PoE; <10W
- Warranty: 3 Year Warranty

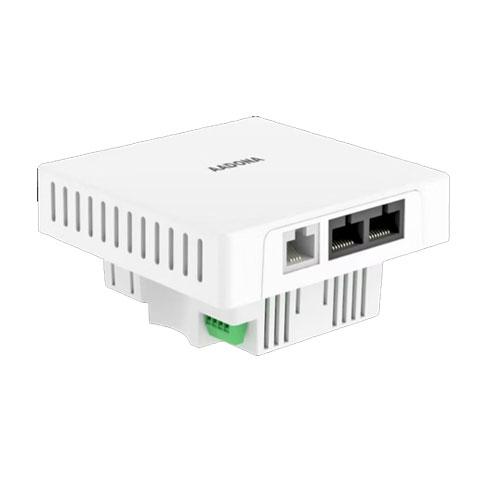

Aadona ASW 1200 Wireless Access Point
- Brand: Aadona
- Product: ASW-1200 Access Point
- Model Name:ASW-1200
- Product Series:APOLLO
- Standard:802.11ac
- Throughput:1200 Mbps
- 2.4GHz:802.11 b/g/n (max rate: 300 Mbps)
- 5GHz:802.11 a/n/ac (max rate: 900 Mbps)
- MIMO:Yes
- Transmit Power:19dBm
- Spatial Streams:4
- Concurrent Users:128:
- 10/100Mbps RJ45 WAN Port:1
- 10/100Mbps RJ45 LAN Port:2
- RJ11 Passthrough Port:1
- Antenna Gain:2dBi
- SSID for 2.4GHz:4
- SSID for 5GHz:4
- IP Address Setting:
- Configuration:Static or DHCP allocation
- System Requirements:
- Frequency Range:2.400GHz – 2.484GHz (2.4GHz)
5.150GHz – 5.850GHz (5GHz) - Button:Wi-Fi On/Off + Reset
- Web Interface (HTTP):
- Management:Local management and Firmware upgrade
- Remote Management:Yes, through controller
- System Requirements:
- OS Compatibility:Microsoft Windows 98SE, NT, 2000, XP, VistaTM, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
- Specifications:
- RF Specifications:
- Modulation:PPM ±20ppm
- EVM:OFDM: BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM
DSSS: DBPSK, DQPSK, CCK - WAN Options:Static IP, Dynamic IP, PPPoE, L2TP(Dual Access), PPTP(Dual Access)
- Security:
- Encryption:64/128-bit WEP, EAP, WPA, WPA2, WPA-PSK, WPA2-PSK (TKIP/AES)
- DoS Attack Prevention:Yes
- MAC and IP Binding:Yes
- Firewall:Stateful Packet Inspection, MAC Address Filtering, IP Address Filtering, Domain Filtering
- Temperature and Humidity:Operating: -3055 °C, Storage: -4070 °C, Humidity: 5%~95% non-condensing
- Mounting:InWall or Wall Mount preferred
- Dimensions:86mm X 86mm X 35mm
- Power Input:802.3af 48V PoE
- Warranty: 3 Year Warranty
-->
CLICK TO CALL
