BEST SELLING GCC PLOTTER PRICELIST

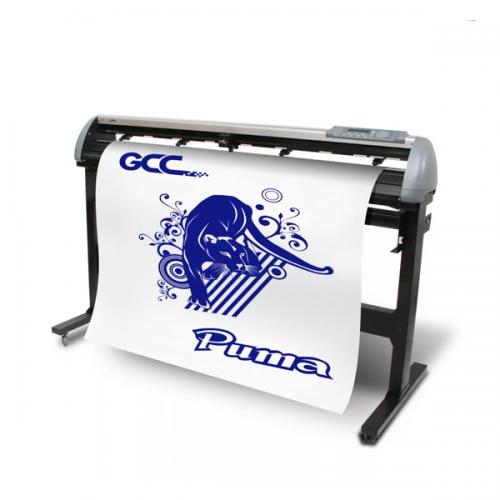

GCC Puma P4 132 52 Inch Cutter Plotter
Brand: GCC
Model No: Puma P4 132 Vinyl Cutter Plotter
Operational Method: Roller-Type
Max. Cutting Width: 1300 mm(51.18 in.)
Max. Media Loading Width: 1470 mm(57.87 in.)
Min. Media Loading Width: 50 mm(1.97 in.)
Acceptable Material Thickness: 0.8 mm (0.03 in.)
Number of Pinch Rollers: 4
Drive: DC Servo Control
Max. Cutting Force; 500g
Max. Cutting Speed(Diagonal): 1,020 mm/s(40.2 ips) (at 45° direction)
Offset: 0-1.0 mm (with an increase of 0.025 mm)
Mechanical Resolution: 0.009 mm (0.00035")
Software Resolution: 0.025 mm (0.00098")
Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterr
Repeatability: ±0.1mm
Memory Size: 32 MB /16 MB (when using AAS)
Interfaces: USB 2.0 (High speed), Serial (RS-232C), Ethernet
Control Panel: LCM (20 digits X 2 lines), 14 Keys , 1 power LED
Diameter of Blade: 2.5 mm
Dimension(H x W x D) mm: 1065 x 1632 x 620 mm (Stand Including ) 41.93 x 64.25 x 24.41 in.
Net Weight: 53 kg / 116.4 lb
Power Supply: AC 100-240V, 50~60 Hz (auto switching)
Power Consumption: Max. 170 W
Environment Humidity: 25%~ 75% relative humidity (operating)
Environment Temperature: 15°-30°C (60°-86°F)
GCC Puma P4 60 24 Inch Cutter Plotter
- Brand: GCC
- Model No: Puma P4 60 Vinyl Cutter Plotter
- Operational Method: Roller-Type
- Max. Cutting Width: 600mm(23.6 in.)
- Max. Media Loading Width: 719 mm(28.3 in.)
- Min. Media Loading Width: 50 mm(1.97 in.)
- Acceptable Material Thickness: 0.8 mm (0.03 in.)
- Number of Pinch Rollers: 2
- Drive: DC Servo Control
- Max. Cutting Force; 500g
- Max. Cutting Speed(Diagonal): 1,020 mm/s(40.2 ips) (at 45° direction)
- Offset: 0-1.0 mm (with an increase of 0.025 mm)
- Mechanical Resolution: 0.009 mm (0.00035")
- Software Resolution: 0.025 mm (0.00098")
- Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greaterr
- Repeatability: ±0.1mm
- Memory Size: 32 MB /16 MB (when using AAS)
- Interfaces: USB 2.0 (High speed), Serial (RS-232C), Ethernet
- Control Panel: LCM (20 digits X 2 lines), 14 Keys , 1 power LED
- Diameter of Blade: 2.5 mm
- Dimension(H x W x D) mm: 220 x 879 x 258 mm 8.76 x 34.61 x 10.16 in.
- Net Weight: 13 kg / 28.6 lb
- Power Supply: AC 100-240V, 50~60 Hz (auto switching)
- Power Consumption: Max. 170 W
- Environment Humidity: 25%~ 75% relative humidity (operating)
- Environment Temperature: 15°-30°C (60°-86°F)
GCC EX II 52LX 52 Inch Cutter Plotter
- Brand: GCC
- Model No: EX II 52LX Vinyl Cutter Plotter
- Max. Cutting Width: 1320 mm (51.96 in)
- Max. Media Width: 1470 mm (57.87 in.)
- Acceptable Material Thickness: 0.8 mm
- Max. Cutting Force: 350 g
- Max. Cutting Speed: 635 mm/sec (25 ips) (at 45 degree direction)
- Mechanical Resolution: 0.012 mm (0.00047 in.)
- Software Resolution: 0.025 mm (0.00098 in.)
- Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
- Repeatability: ±0.1
- Tracking: 3M
- Memory Buffer: 32MB / 16MB (when using AAS)
- Control Panel: 6 LEDs / 10 Keys
- Diameter of Blade: 2.5 mm
- Dimension: 1633*1069*650
- Net Weight: 41KG (90.2lb)
- Stand: Standard
- Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
- Power Consumption: Max. 65 W
- Temperature: 15° C~30° C / 60°F~86° F

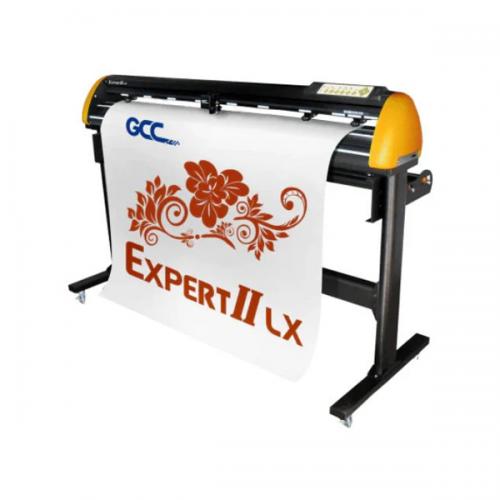

GCC EX II 52 Inch Cutter Plotter
- Brand: GCC
- Model No: EX II 52 Vinyl Cutter Plotter
- Max. Cutting Width: 1320 mm (51.96 in)
- Max. Media Width: 1470 mm (57.87 in.)
- Acceptable Material Thickness: 0.8 mm
- Max. Cutting Force: 350 g
- Max. Cutting Speed: 635 mm/sec (25 ips) (at 45 degree direction)
- Mechanical Resolution: 0.012 mm (0.00047 in.)
- Software Resolution: 0.025 mm (0.00098 in.)
- Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
- Repeatability: ±0.1
- Tracking: 3M
- Memory Buffer: 32MB / 16MB (when using AAS)
- Control Panel: 6 LEDs / 10 Keys
- Diameter of Blade: 2.5 mm
- Dimension: 1633*1069*650
- Net Weight: 41KG (90.2lb)
- Stand: Standard
- Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
- Power Consumption: Max. 65 W
- Temperature: 15° C~30° C / 60°F~86° F

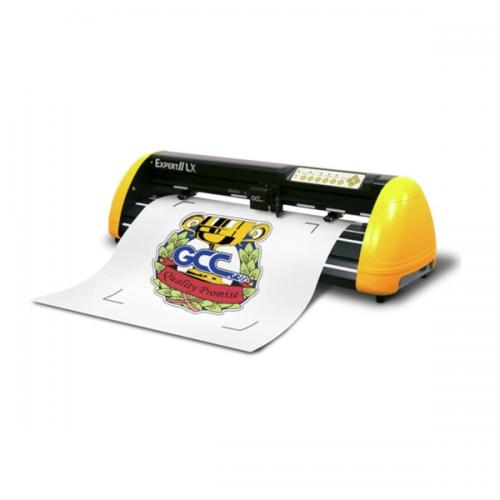

GCC EX II 24LX 24 Inch Cutter Plotter
- Brand: GCC
- Model No: EX II 24LX Vinyl Cutter Plotter
- Max. Cutting Width: 600 mm (23.6 in.)
- Max. Media Width: 719 mm (28.3 in.)
- Acceptable Material Thickness: 0.8 mm
- Max. Cutting Force: 350 g
- Max. Cutting Speed: 705 mm/sec (27.8 ips) (at 45 degree direction)
- Mechanical Resolution: 0.012 mm (0.00047 in.)
- Software Resolution: 0.025 mm (0.00098 in.)
- Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
- Repeatability: ±0.1
- Tracking: 3M
- Memory Buffer: 32MB / 16MB (when using AAS)
- Control Panel: 6 LEDs / 10 Keys
- Diameter of Blade: 2.5 mm
- Dimension: 233*880*255
- Net Weight: 11KG (24.3lb)
- Stand: Optional
- Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
- Power Consumption: Max. 65 W
- Temperature: 15° C~30° C / 60°F~86° F
GCC EX II 24 Inch Cutter Plotter
- Brand: GCC
- Model No: EX II 24 Vinyl Cutter Plotter
- Max. Cutting Width: 600 mm (23.6 in.)
- Max. Media Width: 719 mm (28.3 in.)
- Acceptable Material Thickness: 0.8 mm
- Max. Cutting Force: 350 g
- Max. Cutting Speed: 705 mm/sec (27.8 ips) (at 45 degree direction)
- Mechanical Resolution: 0.012 mm (0.00047 in.)
- Software Resolution: 0.025 mm (0.00098 in.)
- Distance Accuracy: ±0.254 mm or ±0.1% of move, whichever is greater
- Repeatability: ±0.1
- Tracking: 3M
- Memory Buffer: 32MB / 16MB (when using AAS)
- Control Panel: 6 LEDs / 10 Keys
- Diameter of Blade: 2.5 mm
- Dimension: 233*880*255
- Net Weight: 11KG (24.3lb)
- Stand: Optional
- Power Supply: 100-240 VAC, 50 / 60 Hz (auto switching)
- Power Consumption: Max. 65 W
- Temperature: 15° C~30° C / 60°F~86° F
-->
