BEST SELLING PLOTTER PRICELIST
Graphtec FC9000 160 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 160 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1626mm × 50m
- Cutting area of guaranteed accuracy (*1): 1607mm × 10m 894mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 24kg
- Maximum cross cut width : 1626mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 4 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 2224?1151?1232 mm
- Weight: 70 kg
Graphtec FC9000 140 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 140 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1372mm × 50m
- Cutting area of guaranteed accuracy (*1): 1352mm × 10m 894mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 20kg
- Maximum cross cut width: 1372mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 4 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 1970?1151?1232 mm
- Weight: 64 kg
Graphtec FC9000 100 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 100 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1067mm × 50m
- Cutting area of guaranteed accuracy (*1): 1047mm × 10m 762mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 16kg
- Maximum cross cut width: 1067mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 3 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 1665?1151?1232 mm
- Weight: 56 kg
Graphtec FC9000 75 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 75 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 762mm × 50m
- Cutting area of guaranteed accuracy (*1): 742mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 12kg
- Maximum cross cut width: 762mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 2 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 1360?1151?1232 mm
- Weight: 49 kg

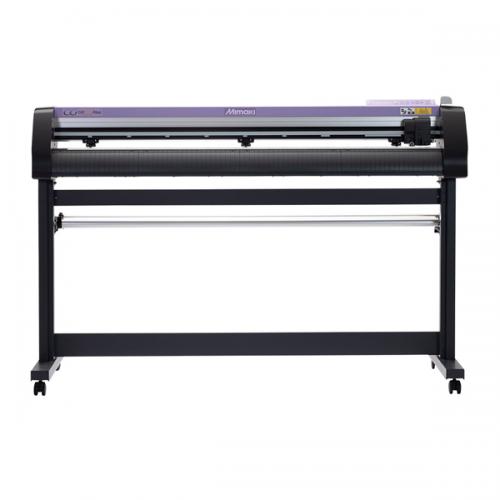

Mimaki CG 130FXII Plus Professional Cutting Plotter
- Brand: Mimaki
- Model No: CG 130FXII Plus Cutting Plotter
- Acceptable sheet width: 90mm~1,580mm (3.54"~62.0")
- Rolled media weight: 18kg (40 lb) or less
- Roll outsied diameter: ?200mm (7.87") or less
- Effective cutting area *1: 1,300mm x 51m (51.2" x 167')
- Maximum auto cutting width *2: 1,425mm (56.1")
- Maximum cutting speed: 100cm/s (39.3"/s)
- Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
- Mechanical resolution: 5µm (0.0002")
- Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
- Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
- Accuracy assurance range (Repeatability): 1,300mm x 10m (51.2" x 32.8')
- Max. pressure: 500g
- Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
- Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
- Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
- Type of command: MGL-II c / I c1
- Interface: RS-232C, USB
- Receiver buffer size: 30MB Standard (20MB when in sorting)
- Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
- Power requirement: AC100V~240V?1A 50/60Hz
- Power consumption: 100W or less
- Dimensions (WxDxH): 1,825mm(71.8")x 700mm(27.5")x 1,217mm(47.9")
- Weight: 62kg (137 lb)
Mimaki CG 75FXII Plus Professional Cutting Plotter
- Brand: Mimaki
- Model No: CG 75FXII Plus Cutting Plotter
- Acceptable sheet width: 90mm~1,040mm (3.54"~40.9")
- Rolled media weight: 18kg (40 lb) or less
- Roll outsied diameter: ?200mm (7.87") or less
- Effective cutting area *1: 760mm x 51m (29.9" x 167')
- Maximum auto cutting width *2: 870mm (34.2")
- Maximum cutting speed: 100cm/s (39.3"/s)
- Maximum moving speed: 140cm/s (55"/s) (In a 45° direction and in a pen-up state)
- Mechanical resolution: 5µm (0.0002")
- Command resolution: 25?m, 10?m(MGL-IIc), 100?m, 50?m(MGL-Ic1)
- Repeatability: ±0.2mm (Excluding shrinkage / expansion caused by the film temperature)
- Accuracy assurance range (Repeatability): 760mm x 10m (29.9" x 32.8')
- Max. pressure: 500g
- Acceptable sheet *4: Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet
- Acceptable sheet for pouncing *5: Paper thickness: 0.06~0.13mm (0.0024"~0.005")
- Applicable tools *6: Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool
- Type of command: MGL-II c / I c1
- Interface: RS-232C, USB
- Receiver buffer size: 30MB Standard (20MB when in sorting)
- Operational environment: Temperature: 5~35°C (41~95°F), 35%–75% RH (Non-condensing)
- Power requirement: AC100V~240V?1A 50/60Hz
- Power consumption: 100W or less
- Dimensions (WxDxH): 1,285mm(50.5")x 700mm(27.5")x 1,217mm(47.9")
- Weight: 47kg (104 lb)

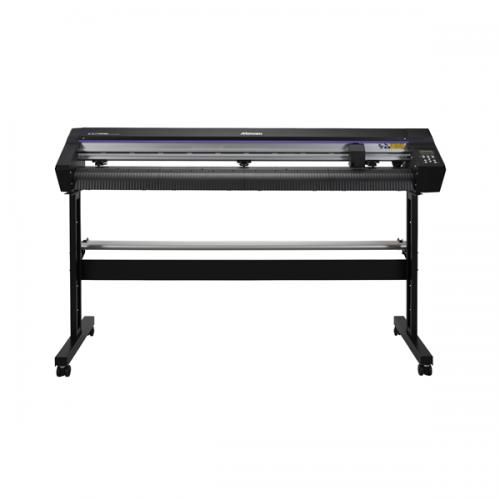

Mimaki CG 130AR 54 Inch Cutting Plotter
Brand: Mimaki
Model No: CG 130AR Cutting Plotter
Acceptable sheet width: 90 - 1,550 mm (3.5 - 61.0")
Effective cutting area *1: 1,370 mm × 51 M (53.9" x 167.3')
Maximum speed: Cutting: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
Adjustable speed range: 1-10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment) 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1)
Repeatability *2: ± 0.2 mm / 2 M
Effective Repeatability: 1,350 mm × 2 M
Maximum pressure: 550g
Type of command: MGL-IIc / MGL-Ic1
Interface: USB, RS-232C, Ethernet
Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
Power supply: AC 100 V - 240 V 1A 50/60Hz
Power consumption: 228W or less
Dimensions: 1,810 × 580 × 1,160 mm (71.3 × 22.8 × 45.7")
Weight: 43kg (94.8 lb)

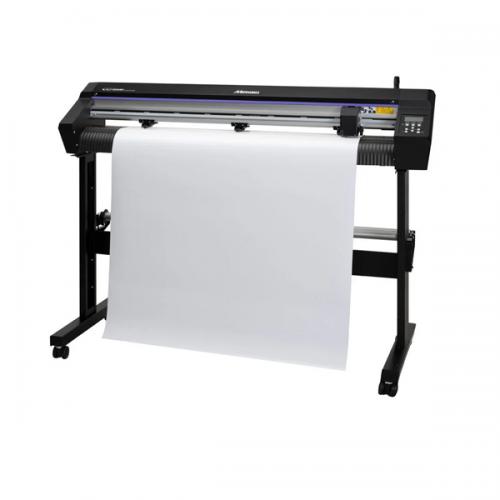

Mimaki CG 100AR 42 Inch Cutting Plotter
- Brand: Mimaki
- Model No: CG 100AR Cutting Plotter
- Acceptable sheet width: 90 - 1,250 mm (3.5 - 49.2 inch)
- Effective cutting area *1: 1,070 mm × 51 M (42.1" x 167.3')
- Maximum speed: Cutting: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
- Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
- Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
- Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1
- Repeatability *2: ± 0.2 mm / 2 M
- Effective Repeatability: 1,050 mm × 2 M
- Maximum pressure: 550g
- Type of command: MGL-IIc / MGL-Ic1
- Interface: USB, RS-232C, Ethernet
- Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
- Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
- Power supply: AC 100 V - 240 V 1A 50/60Hz
- Power consumption: 228W or less
- Dimensions: 1,510 × 580 × 1,160 mm (59.4 × 22.8 × 45.7")
- Weight: 35kg (77.2 lb)

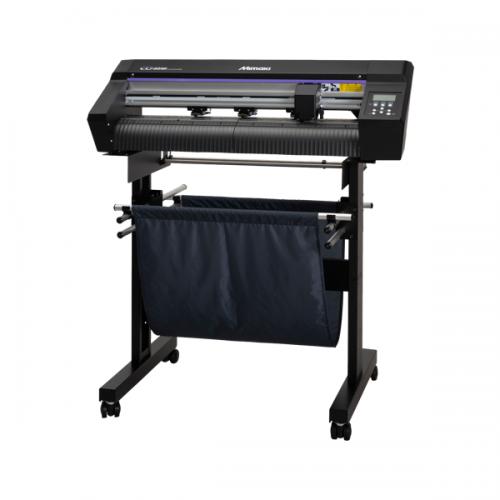

Mimaki CG 60AR 24 Inch Cutting Plotter
- Brand: Mimaki
- Model No: CG 60AR Cutting Plotter
- Acceptable sheet width: 90 - 740 mm (3.5 - 29.1 inch)
- Effective cutting area *1: 606 mm × 51 M (23.9 inch x 167.3 inch)
- Maximum speed: Cutting: 73 cm/s (28.7"/s), Moving at 45° direction: 103 cm/s (40.5"/s)
- Adjustable speed range: 1 - 10 cm/s (1 cm/s step adjustment): 0.4 - 3.9"/s (0.4"/s step adjustment), 10 - 73 cm/s (5 cm/s step adjustment): 4.0 - 28.7"/s (2.0"/s step adjustment)
- Mechanical resolution: X direction: 2.5 ?m, Y direction: 5 ?m
- Command resolution: 25 ?m, 10?m?MGL-IIc? / 100 ?m, 50 ?m?MGL-Ic1)
- Repeatability *2: ± 0.2 mm / 2 M
- Effective Repeatability: 586 mm × 2 M
- Maximum pressure: 550g
- Type of command: MGL-IIc / MGL-Ic1
- Interface: USB, RS-232C, Ethernet
- Receiver buffer size: About 27 MB as standard (17 MB when sorting is effective)
- Operational environment: Temperature: 5 - 35 degC (41 - 95 degF), Humidity: 35 - 75 ? Rh (Non-condensing)
- Power supply: AC 100 V - 240 V 1A 50/60Hz
- Power consumption: 168W or less
- Dimensions: 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0") 1,010 × 580 × 1,160 mm *6 (39.8 × 22.8 × 45.7") *6
- Weight: 17kg (37.5 lb) 27kg (59.5 lb) *6
-->
