Dell PowerEdge C6620 Multi Node 2U Rack Server
- Brand: Dell
- Product Name: Dell PowerEdge C6620 Two Socket 2U Rack Server
- Form Factor: 2U Rack Server
- Processor: 2 x 5th Generation Intel Xeon Scalable processors
- Memory: 16 x 256 GB DDR5 (4 TB) Ram
- Storage: Front: 8 x E3.S (288 TB) HDD
- GPU: 2 x 75W
Specifications:
Processor
Up to two 4th and 5th Generation Intel Xeon Scalable processors with up to 64 cores
Note: EMR CPU support up to 64 cores and SPR CPU support up to 56 cores.
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®/vSAN
Chipset
Intel® C741 chipset
Accelerators
One 75 W (low-profile, Half-height) GPUs
Memory
DIMM Speed
Up to 5600 MT/s
Memory Type
RDIMM
Memory Module Slots
16 DDR5 DIMM slots
Maximum RAM
RDIMM 4 TB
Storage
Front Bays
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB
Diskless with no backplane
Storage Controllers
Internal Controllers
PERC H965i, PERC H755, H355
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs 480 GB or 960 GB
uSD card
Internal 12 Gbps SAS HBAs (non-RAID)
Internal HBA355i
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
3200W 277 VAC or 336 VDC redundant, hot swap
2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap
1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Up to 4 cold swap fans
Ports
Network Options
1 x OCP 3.0 (optional)
1 x 1GbE LOM
Rear Ports
1 x USB 3.0
1 x iDRAC or NIC port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
2 x PCIe Gen5 slots:
1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 1 optional)
1 x16 Gen5 (x8 + x8 PCIe) Low-profile, Half-length for SNAP I/O module (slot 1 optional)
1 x16 Gen5 (x16 PCIe) Low-profile, Half-length (slot 2 optional)
1 x16 Gen4 (x8 PCIe) Low-profile, Half-length (slot 2 optional)
Form Factor
Up to 4 independent hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis
Dimensions & Weight
Height
40.0 mm (1.57 inches)
Width
174.4 mm (6.86 inches)
Depth
549.7 mm (21.64 inches)
Weight
5.1 kg (11.2 lbs)
Dell PowerEdge MX760c Two Socket 1U Rack Server
- Brand: Dell
- Product Name: Dell PowerEdge MX760c Two Socket Rack Server
- Form Factor: 1U Rack Server
- Processor: 2 x 5th Generation Intel Xeon Scalable processors
- Memory: 32 x 256 GB DDR5 (8 TB) Ram
- Storage: 6 x 2.5 inch NVMe/SAS/SATA (92 TB) HDD
Specifications:
Processor
Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware vSAN/ESXi®
Chipset
Intel® C741 chipset with optional Intel® QuickAssist Technology
Memory
DIMM Speed
Up to 5600 MT/s
Memory Type
RDIMM
Memory Module Slots
32 DDR5 DIMM slots
Maximum RAM
RDIMM 8 TB max
Storage
Front Bays
Up to 4 x 2.5-inch NVMe/SAS/SATA (HDD/SSD)
Up to 6 x 2.5-inch SAS /SATA (HDD/SSD)
Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD)
Storage Controllers
Internal Controllers
PERC H755 MX, PERC H965i MX, HBA350i MX
Software RAID
S160
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs 480 GB or 960 GB
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
Ports
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.0
Internal Ports
1 x USB 3.0 (optional)
Network Options
MX7000 chassis Fabric options: up to 2 pairs redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C
Slots
PCIe
One x16 PCIe Gen4 slot for PERC - connected to processor 1
One x16 PCIe Gen4 slot for Mezz A - connected to processor 1
One x16 PCIe Gen5 slot for Mezz B - connected to processor 2
One x16 PCIe Gen4 slot for Mini Mezz - connected to processor 1
Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive – connected to processor 1
Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive – connected to processor 2
One x4 PCIe Gen4 for BOSS-N1 HWRAID card
Chassis
MX7000
Form Factor
Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Dimensions & Weight
Height
51.0 mm (2 inches)
Width
257.0 mm (10 inches)
Depth
622.35 mm (25.5 inches) for 4 x 2.5-inch or 6 x 2.5-inch configuration
Weight
8.27 kg (18.23 lbs) for 4 x 2.5-inch configuration
8.38 kg (18.47 lbs) for 6 x 2.5-inch configuration

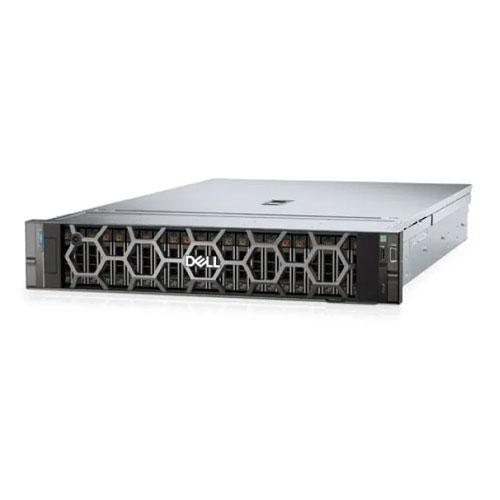

Dell PowerEdge R7725 2U Rack Server
- Brand: Dell
- Product Name: Dell PowerEdge R6725 Two Socket Rack Server
- Form Factor: 2U Rack Server
- Processor: 2 x 5th Generation AMD EPYC™ 9005 series processor
- Memory: 24 x 96 GB DDR5 (2.3 TB) Ram
- Storage: 16 x 2.5 inch + 8 x U.2 (184.24TB) or 16 x E3.S (245.76 TB) HDD
- GPU: 2 x SW (75W)
Specifications:
Processor
Two 5th Generation AMD EPYCTM 9005 Series processors with up to 192 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
Chipset
AMD chipset
Accelerators
Up to 2 x 400W DW
Up to 6 x 75W SW
Memory
DIMM Speed
Up to 6000 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 6 TB
Storage
Front Bays
12 x 3.5-inch SAS/SATA (HDD/SDD)
8 x 2.5-inch Universal U.2 NVMe (SSD)
16 x 2.5-inch SAS/SATA (HDD/SDD)
24 x 2.5-inch SAS/SATA (HDD/SDD)
16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch Universal U.2 NVMe (SSD)
16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch SAS/SATA (HDD/SDD) RAID
8 x EDSFF E3.S Gen5 NVMe
16 x EDSFF E3.S Gen5 NVMe
32 x EDSFF E3.S Gen5 NVMe
40 x EDSFF E3.S Gen5 NVMe
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H965i
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC 10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Power Supplies
3200 W Titanium 277 VAC or 100-240 VAC or 240 HVDC, hot swap redundant
2400 W Titanium 100-240 VAC, hot swap redundant
1800 W Titanium 100-240 VAC, hot swap redundant
1500 W Titanium 277 VAC or 100-240 VAC or 240 HVDC, hot swap redundant
1400 W Telco -48 VDC, hot swap redundant
1100 W Titanium 100-240 VAC, hot swap redundant
1100 W Platinum 100-240 VAC, hot swap redundant
800 W Titanium 100-240 VAC, hot swap redundant
800 W Platinum 100-240 VAC, hot swap redundant
Cooling
Air cooling
Direct Liquid Cooling (DLC)
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini Displayport (optional LCP KVM)
Rear Ports
1 x dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA
Internal Ports
1 x USB 3.1 Type-A
Slots
PCIe
Up to eight PCIe slots (x8 or x16 connector)
Slot 1: 1 x8 Gen5 Full Height
Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 3: 1 x16 Gen5 Full Height or Low Profile
Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 OCP3.0
Slot 5: 1 x8 Gen5 Full Height
Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
Slot 9: 1 x16 Gen5 Full Height or Low Profile
Gen5 PCIe slots up to:
8
OCP network options
2 x OCP NIC 3.0 card (optional) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE*
Slot 4: 1 x16 Gen5 second OCP 3.0
Slot 10: 1 x16 Gen5 OCP3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE; NDR VPI (400GbE); FC 32 / 64
BOSS
Slot 6: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional metal bezel
Form Factor
2U rack server
Dimensions & Weight
Height
86.80 mm (3.42 inch)
Width
482.00 mm (18.98 inch)
Depth
802.40mm (31.59 inch) with bezel
801.71 mm (31.55 inch) without bezel
Weight
Max 28.74 kg (63.36 lb)
Dell PowerEdge R6725 AMD Two Socket Rack Server
- Brand: Dell
- Product Name: Dell PowerEdge R6725 Two Socket Rack Server
- Form Factor: 1U Rack Server
- Processor: 2 x 5th Generation AMD EPYC 9005 series processor
- Memory: 24 x 96 GB DDR5 (2.3 TB) Ram
- Storage: 8 x 2.5 inch or 8 x E3.S (122.88 TB) HDD
Specifications:
Processor
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores for Zen5 processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
Dell NativeEdge OS*
Chipset
AMD chipset
Accelerators
Up to 3 x 75 W SW*
Memory
DIMM Speed
Up to 6000 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 3 TB*
Storage
Front Bays
Up to 8 x 2.5-inch Universal Smart Flow max 30.72 TB
Up to 8 x EDSFF Gen5 E3.S NVMe (SSD) direct drives max 122.88 TB
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H965i, H365i*, H975i*
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
USB
Security
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
NativeEdge Endpoint
NativeEdge Endpoint Orchestrator
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OME Integration for VMware vCenter (with VMware Aria Operations)
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)
OpenManage Integrations
Red Hat Ansible Modules
Terraform Providers
Power Supplies
1800 W Titanium 100-240 VAC, hot swap redundant*
1500 W Titanium 277 VAC or 100-240 VAC or 240 HVDC*, hot swap redundant
1400 W Telco -48 VDC, hot swap redundant*
1100 W Titanium 240 HDVC, hot swap redundant*
1100 W Platinum 100-240 VAC, hot swap redundant*
800 W Titanium 240 HVDC, hot swap redundant*
800 W Platinum 100-240 VAC, hot swap redundant*
Cooling Options
Air cooling, Direct Liquid Cooling (DLC)*
Fans
Fans Up to four sets (dual fan module) hot plug fans
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x MiniDisplay port
Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA
Internal Ports
1 x USB 3.0 Type-A
Slots
PCIe
Up to two PCIe slots (x16 connector)
Slot1: 1 x16 Gen5 Low profile
Slot4: 1 x16 Gen5 Low profile
Gen5 PCIe slots up to:
2
OCP network options
2 x OCP NIC 3.0 card (optional)
Slot 2: 1 x16 Gen5 OCP 3.0
Slot 5: 1 x16 Gen5 OCP 3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
BOSS
Slot 3: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional metal bezel
Form Factor
1U rack server
Dimensions & Weight
Height
42.80 mm (1.68")
Width
482.00 mm (18.97")
Depth
817.89 mm (32.20") with bezel
815.10 mm (32.09") without bezel
Weight
21.2 Kg (46.73 lbs)
Dell PowerEdge C6615 2U Rack Server
- Brand: Dell
- Product Name: Dell PowerEdge C6615 One Socket Rack Server
- Form Factor: 2U
- Processor: 1 x 4th Generation AMD EPYC™ 8004 series processor
- Memory: 6 x 96 GB DDR5 (576 GB)
- Storage: Front: 16 x 2.5 inch SAS/SATA (61 TB)
Specifications:
Processor
One AMD EPYC processor with up to 64 cores.
Cooling options
Air cooling
Operating System
Canonical® Ubuntu® Server LTS
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®/vSAN
Chipset
AMD chipset
Memory
DIMM Speed
Up to 4800 MT/s
Memory Type
RDIMM
Memory Module Slots
6 DDR5 DIMM slots
Maximum RAM
RDIMM 384 GB (6 x 64 GB) max
Storage
Front Bay
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB
Up to 16 x 2.5-inch SATA/NVMe drives on the Universal Backplane configuration
Storage Controllers
Internal Controllers
PERC H755N, H355
Internal Boot
PERC H755N, H355
Software RAID
S160
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Internal 12 Gbps SAS HBAs (non-RAID)
Internal HBA355i
Security
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Consoles
CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware® vCenter™
OpenManage Integration for Microsoft® System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
Mobility
OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
Dell Repository Manager
Dell System Update
Enterprise Catalogs
IPMI
RACADM CLI
OpenManage Integrations
BMC Truesight
Microsoft® System Center
OpenManage Integration with ServiceNow
RedHat® Ansible® Modules
Terraform Providers
VMware® vCenter™ and vRealize Operations Manager
Power Supplies
3200W 277 VAC or 336 VDC redundant, hot swap
2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap
1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Up to 4 cold swap fans
Ports
Network Options
1 x OCP 3.0 Gen5
1 x 1GbE LOM
Rare Ports
1 x USB 3.0
1 x iDRAC ethernet port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort
Internal Ports
1 x USB 3.0 (optional)
Slots
PCIe
Up to 2 x16 Gen5 PCIe slots
Form Factor
Up to 4 independent hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis
Dimensions & Weight
Height
40.0 mm (1.57 inches)
Width
174.4 mm (6.86 inches)
Depth
549.7 mm (21.64 inches)
561.3 mm (22.10 inches) - SAS/SATA or NVMe or E3.S or Universal configuration
Weight
3.7 kg (8.15 pounds)

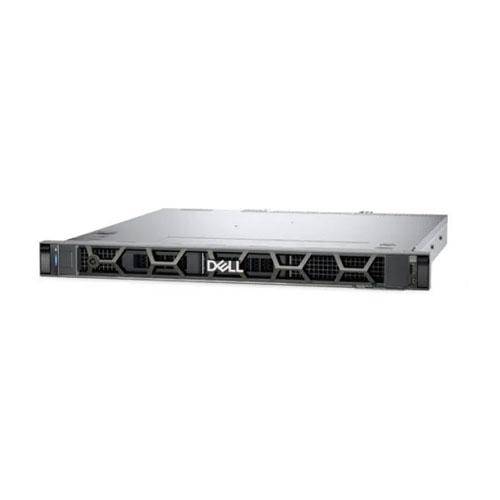

Dell PowerEdge R470 1U Rack Server
- Brand: Dell
- Model No: Dell New PowerEdge R470 One Socket Server
- Form Factor: 1U
- Processor: 1 x 6th Generation Intel Xeon Scalable processor
- Memory: 16 x 64 GB DDR5 (1TB) Ram
- Storage: 16 x 64 GB DDR5 (1TB) HDD
- GPU: 2 x 75W (SW)
Specifications:
Processor
One Intel Xeon 6 processor with up to 144 cores per processor
Operating System
Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
Accelerators
Up to 2 x 75 W SW
Memory
DIMM Speed
Up to 6400 MT/s
Note: The installed processor may reduce the operating speed of the DIMM
Memory Type
ECC RDIMM
Memory Module Slots
16 DDR5 DIMM slots
Maximum RAM
ECC RDIMM 1 TB
Storage
Front Bays
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (SSD) max 122.4 TB
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
H965i DC-MHS
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs
USB
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
Secure Erase
System Lockdown (requires iDRAC10 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Tools
Dell Repository Manager
Dell System Update
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Power Supplies
800W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
1500W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
Ports
Front Ports
1 x USB 2.0 Type - C port
1 x USB 2.0 Type A port (optional)
1 x Mini-DisplayPort (optional)
1 x DB9 Serial (with front I/O configuration)
1 x Dedicated BMC Ethernet port (with front I/O configuration)
Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA
Internal Ports
1 x USB 3.1 Type A port
Slots
PCIe
Slot 1: 1 x16 slot with x8 bandwidth, Half Length, Low Profile
Slot 2: 1 x16 slot with x8 bandwidth, Half Length, Low Profile
Video Card
1 x VGA
1 x Mini-DisplayPort (optional)
Bezel
Security Bezel (optional)
Form Factor
1U rack server
Dimensions & Weight
Height
42.8 mm (1.69 in.)
Width
482 mm (19.0 in.)
Depth
816.92 mm (32.16 in.) with bezel (Rear I/O)
815.14 mm (32.09 in.) without bezel (Rear I/O)
829.44 mm (32.09 in.) without bezel (Front I/O)
Note: Front I/O configuration will not have a bezel.
Weight
19.11 kg (42.13 lbs)

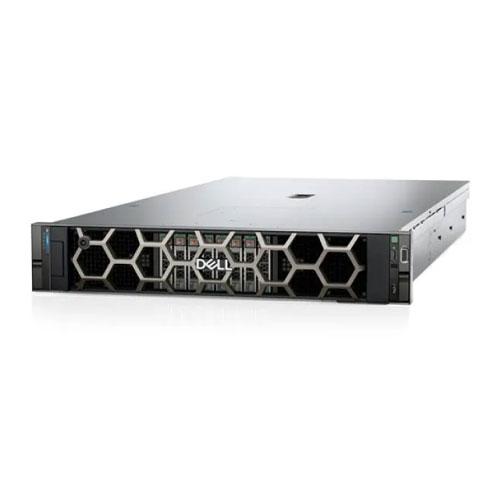

Dell PowerEdge R7715 One Socket Rack Server
- Brand: Dell
- Product Name: New PowerEdge R7715 One Socket Rack Server
- Form Factor: 2U Rack Server
- Processor: 1 x 5th Generation AMD EPYC™ 9005 series processor
- Memory: 24 x 96 GB DDR5 (2.3 TB) Ram
- Storage: 16 x 2.5 inch + 8 x U.2 (184.24TB) or 16 x E3.S (245.76 TB) HDD
Specifications:
Processor
One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
Chipset
AMD chipset
Accelerators
Up to 3x 400W DW; Up to 6x 75W SW
Memory
DIMM Speed
speeds up to 5200 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot
Maximum RAM
RDIMM 6 TB max*
Storage
Front Bays
Up to 2 x U.2 NVMe drives*
Up to 16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives
Up to 8 x EDSFF E3.S* / 16 x EDSFF E3.S / 32 x EDSFF E3.S* / 40 x EDSFF E3.S* Gen5 NVMe drives
Up to 8 x 2.5 Universal* / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA* drives
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H365i*, H965i, H975i*
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimised Storage Subsystem (BOSS-N1 DC-MHS)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC 10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME Integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)*
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Power Supplies
Platinum 800W*, 1100W*
Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W*, 3200W 277Vac & HVDC*
Telco: 1400W -48VDC*
Cooling Options
Air cooling, Direct Liquid Cooling (DLC)*
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini DisplayPort (optional LCP KVM)
Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
1 x VGA
Internal Ports
1 x USB 3.1 Type-A
Slots
PCIe
Up to eight PCIe slots* (x16 connectors)
Slot 1: 1 x16 Gen5 Full Height*
Slot 2: 1 x16 Gen5 Full Height* or 1 x16 Dual Width Full Length
Slot 3: 1 x16 Gen5 Full Height* or Low Profile*
Slot 4: 1 x16 Gen5 Full Height* or 1 x16 Dual Width Full Length* or 1 x16 OCP3.0
Slot 5: 1 x16 Gen5 Full Height*
Slot 7: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length*
Slot 8: 1 x16 Gen5 Full Height*
Slot 9: 1 x16 Gen5 Full Height or Low Profile*
Gen5 PCIe slots up to:
Up to 8*
OCP network options
2 x OCP NIC 3.0 card (optional) ) and 1GbE*, 10GbE*, 25GbE, 100GbE and 400GbE*
Slot 4: 1 x16 Gen5 second OCP3.0
Slot 10: 1 x16 Gen5 OCP3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE*; NDR VPI (400GbE)*; FC 32 / 64*
BOSS
Slot 6: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional Metal Bezel
Form Factor
2U rack server
Dimensions:
Height
86.8 mm (3.41 inch)
Width
482.0 mm (18.97 inch)
Depth
802.4 mm (31.59 inch) with bezel
801.51 mm (31.55 inch) without bezel
Weight
28.68 kg (63.22 lb)
Dell PowerEdge R6715 1U Rack Server
- Brand: Dell
- Model No: Dell PowerEdge R6715 One Socket Rack Server
- Form Factor: 1U Rack Server
- Processor: 1 x 5th Generation AMD EPYC 9005 series processor
- Memory: 24 x 64 GB DDR5 (1.5 TB) Ram
- Storage: 8 x 2.5 inch (122.88 TB) or 16 x E3.S (245.76 TB) HDD
Specifications:
Processor
One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
Operating System
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
Chipset
AMD chipset
Accelerators
N/A
Memory
DIMM Speed
Up to 5200 MT/s
Memory Type
RDIMM
Memory Module Slots
24 DDR5 DIMM slot, supports 3 TB max*
Maximum RAM
RDIMM 1.5 TB
Storage
Front Bays
Up to 2 x U.2*
Up to 4 x 3.5-inch SAS/SATA*
Up to 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA*
Up to 10 x 2.5-inch with 4 x Universal*
Up to 16 x EDSFF E3.S Gen5 NVMe
Up to 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S
Mid Bay
N/A
Rear Bay
N/A
Storage Controllers
Internal Controllers
PERC H365i*
PERC H965i
PERC H975i*
External Controllers
N/A
Software RAID
N/A
Internal Boot
Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
Security
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Management
Embedded / At-the-Server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
OpenManage Consoles
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability plugin
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
Mobility
N/A
Tools
IPMI
Change Management
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)*
OpenManage Integrations
Red Hat Ansible Collections
Terraform Providers
Power Supplies
Platinum 800W*, 1100W*
Titanium: 800W*, 1100W*, 1500W, 1500W 277Vac & HVDC*, 1800W*
Telco: 1400W -48VDC*
Cooling options :
Air cooling, Direct Liquid Cooling (DLC)*
Ports
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x MiniDisplay port (optional LCP KVM)
Rear Ports
1 x 1 Gb dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA
Internal Ports
1 x USB 3.0 Type-A
Slots
PCIe
Up to three PCIe slots* (x16 connector)
Slot1: 1 x16 Gen5 Full Height* or Low profile
Slot 2: 1 x16 Gen5 Low profile* or 1 x16 OCP 3.0
Slot4: 1 x16 Gen5 Full Height* or Low profile
Gen5 PCIe slots up to:
3
OCP network options
2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE,100GbE and 400GbE
Slot 2: 1 x16 Gen5 OCP 3.0
Slot 5: 1 x16 Gen5 OCP 3.0
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe Add-in Card (AIC) NIC
100 GbE and 400GbE*; NDR VPI (400GbE)*; FC 32 / 64*
BOSS
Slot 3: 1 x4 Gen3 BOSS
Video Card
N/A
Bezel
Optional metal bezel
Form Factor:
1U rack server
Dimensions:
Height
42.80 mm (1.68 in.)
Width
482.00 mm (18.97 in.)
Depth
816.92 mm (32.16 in.) with bezel
815.14 mm (32.09 in.) without bezel
Weight:
Max 19.96 kg (44.00 lb)
Dell PowerEdge T360 E2434 5U Tower Server
Brand : Dell
Form Factor : 5U Tower Server
Model : PowerEdge T360 Tower Server
Processor : Intel Xeon E-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5
Operating System: Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
Memory: 32GB UDIMM, 4800MT/s ECC
Storage: 2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Hot-Plug
RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
Chassis: 3.5 Chassis with up to 8 Hot Plug Hard Drives and AIC PERC 11, hot-plug PSU
Front Bays: Up to 8 x 3.5-inch SAS/SATA HDD drives, max 128 TB. Up to 4 x 3.5-inch SAS/SATA HDD drives, max 64 TB, Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB
Rear Bays: N/A
Internal Controllers: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter
External Controllers: HBA355e Adapter
Network Options: 2 x 1 GbE LOM
Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.2 Gen1
Rear Ports: 1 x Dedicated iDRAC Ethernet port, 3 x USB 2.0, 3 x USB 3.2 Gen1, 1 x Serial port, 1 x VGA port, 2 x Ethernet ports
Internal Ports: 1 x USB 3.2 Gen1
PCIe: Up to four PCIe slots:- Slot 1: x8 Gen4 Full height, half length, Slot 2: x16 Gen5 Full height, half length, Slot 3: x1 Gen4 Full height, half length, Slot 4: x8 Gen4 Full height, half length
Bezel : Security bezel
Height 382.5 mm (15.06 inches) (with feet), 369.5 mm (14.55 inches) (without feet)
Width: 175.0 mm (6.89 inches)
Depth: 579.72 mm (22.82 inches) with bezel, 562.12 mm (22.13 inches) without bezel
Weight: 25.10 kg (55.34 lbs.)i maximum weight
Rack Support: Not Specified
Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T360 Intel Xeon E2414 Tower Server
- Brand : Dell
- Form Factor : 5U Tower Server
- Model : PowerEdge T360 Tower Server
- Processor : IntelXeonE-2414 2.6G, 4C/4T, 12M Cache, Turbo, HT (55W) DDR5
- Operating System: No Operating System
- Memory: 16GB UDIMM, 4800MT/s, ECC
- Storage: 2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Hot-Plug
- RAID: C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis: 3.5 Chassis with up to 8 Hot Plug Hard Drives and AIC PERC 11, hot-plug PSU
- Front Bays: Up to 8 x 3.5-inch SAS/SATA HDD drives, max 128 TB, Up to 4 x 3.5-inch SAS/SATA HDD drives, max 64 TB, Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB
- Rear Bays: N/A
- Internal Controllers: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter
- External Controllers: HBA355e Adapter
- Network Options: 2 x 1 GbE LOM
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.2 Gen1
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 3 x USB 2.0, 3 x USB 3.2 Gen1, 1 x Serial port, 1 x VGA port, 2 x Ethernet ports
- Internal Ports: 1 x USB 3.2 Gen1
- PCIe: Up to four PCIe slots:- Slot 1: x8 Gen4 Full height, half length, Slot 2: x16 Gen5 Full height, half length, Slot 3: x1 Gen4 Full height, half length, Slot 4: x8 Gen4 Full height, half length
- Bezel : Security bezel
- Height 382.5 mm (15.06 inches) (with feet), 369.5 mm (14.55 inches) (without feet)
- Width: 175.0 mm (6.89 inches)
- Depth: 579.72 mm (22.82 inches) with bezel, 562.12 mm (22.13 inches) without bezel
- Weight: 25.10 kg (55.34 lbs.)i maximum weight
- Rack Support: Not Specified
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T150 Intel Xeon E2324G 5U Tower Server
- Brand : Dell
- Form Factor : 5U Tower Server
- Model : PowerEdge T150 Tower Server
- Processor : IntelXeonE-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Operating System: Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
- Memory: 16GB UDIMM, 3200MT/s, ECC
- Storage: 2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 3.5 Chassis with up to 4 Hard Drives (SAS/SATA)
- Front Bays: Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
- Rear Bays: N/A
- Internal Controllers: PERC H345, PERC H755, HBA355i
- External Controllers: HBA355e, 12 Gbps SAS Ext. HBA
- Network Options: 2 x 1 GbE LOM
- Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 3.0
- Rear Ports: 5 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial Port, 1 x iDRAC dedicated NIC port, 2 x NIC port
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 2 x PCIe Gen4 slots and 2 x PCIe Gen3 slots
- Bezel : Security bezel
- Height: 360 mm (14.17 in.)
- Width: 175 mm (6.88 in.)
- Depth: 453.75 mm (33.48 in.) with bezel
- Weight: 11.68 kg (25.74 lbs.)i
- Rack Support: System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T150 E2314 5U Tower Server
- Brand : Dell
- Form Factor : 5U Tower Server
- Model : PowerEdge T150 Tower Server
- Processor : IntelXeonE-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Operating System: No Operating System
- Memory: 16GB UDIMM, 3200MT/s, ECC
- Storage: 2TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 3.5 Chassis with up to 4 Hard Drives (SAS/SATA)
- Front Bays: Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB
- Rear Bays: N/A
- Internal Controllers: PERC H345, PERC H755, HBA355i
- External Controllers: HBA355e, 12 Gbps SAS Ext. HBA
- Network Options: 2 x 1 GbE LOM
- Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 3.0
- Rear Ports: 5 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial Port, 1 x iDRAC dedicated NIC port, 2 x NIC port
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 2 x PCIe Gen4 slots and 2 x PCIe Gen3 slots
- Bezel : Security bezel
- Height: 360 mm (14.17 in.)
- Width: 175 mm (6.88 in.)
- Depth: 453.75 mm (33.48 in.) with bezel
- Weight: 11.68 kg (25.74 lbs.)i
- Rack Support: System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

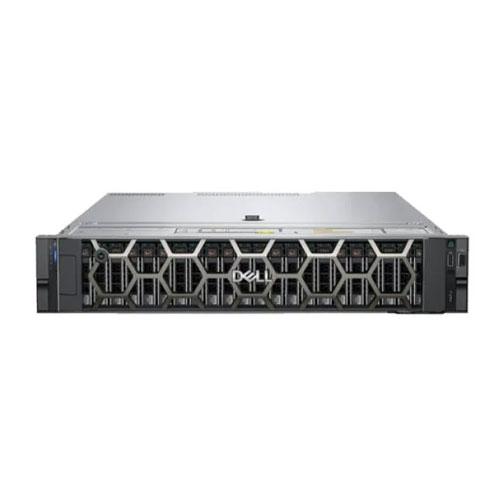

Dell PowerEdge R7615 AMD 9124 Rack Server
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R7615 Rack Server
- Processor : AMD EPYC 9124 3.0GHz, 16C/32T, 64M Cache (200W) DDR5-4800
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD
- RAID: 3.5 Chassis with up to 8 SAS3/SATA Drives, Front PERC 11
- Chassis: 3.5 Chassis with up to 8 SAS3/SATA Drives, Front PERC 11
- Front Bays: Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB, Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB, Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB, Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB, Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 245.76 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB, Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61.44 TB, Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional), Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 8 PCIe slots:, Slot 1: 1 x8 Gen5 Full height, Half length, Slot 2: 1 x8/1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length Slot 3: 1 x16 Gen5 or 1 x8/1 x16 Gen4 Low profile, Half length, Slot 4: 1 x8 Gen4 Full height, Half length, Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length, Slot 6: 1 x8/1 x16 Gen4 Low Profile, Half length, Slot 7: 1 x8/1 x16 Gen5 or 1 x16 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length, Slot 8: 1 x8/1 x16 Gen5 Full height, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 86.8 mm (3.41 inches)
- Width: 482 mm (18.97 inches)
- Depth: 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
- Weight: 35.41 kg (Max 78.06 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks ReadyRails static rails for 4-post and 2-post racks Note: CMA is not supported in Direct Liquid Cooling configuration
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R750 Intel Xeon 4310 2U Rack Server
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R750 Rack Server
- Processor : IntelXeonSilver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Universal Drives (SAS/SATA or NVMe Direct), 2 CPU
- Front Bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB, Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
- Internal Controllers: PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Height: 86.8 mm (3.41 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 685.78 mm (27 inches) – without bezel, 721.69 mm (28.72 inches) – with bezel
- Weight: 24.8 kg (54.67 lbs.)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
- Bezel : Optional LCD bezel or security bezel
- Height: 86.8 mm (3.41 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 758.29 mm (29.85 inches) – without bezel, 772.13 mm (30.39 inches) – with bezel
- Weight: 24.8 kg (54.67 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R6625 AMD EPYC 9124 16 Core 1U Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R6625 Rack Server
- Processor : AMD EPYC 9124 3.0GHz, 16C/32T, 64M Cache (200W) DDR5-4800
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 10 SAS4/SATA Drives, Front PERC 11
- Front Bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SDD) max 80 TB, Up to 8 x 2.5-inch NVMe SSD max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 14 x E3.S NVMe direct drives max 107.52 TB, Up to 16 x E3.S NVMe direct drives max 122.88 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB, Up to 2 x E3.S NVMe direct drives max 15.36 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 1 x OCP 3.0 card (optional), 2 x 1GbE LOM card (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 3 PCIe slots:-Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length, Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length, Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 1.68 inches (42.8 mm)
- Width: 18.97 inches (482.0 mm)
- Depth: 32.4 inches (822.89 mm) with bezel, 31.85 inches (809.05 mm) without bezel
- Weight: Max 44.97 lbs. (20.4 kg)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.Note: CMA is not supported in Direct Liquid Cooling configuration
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R6615 AMD 9124 1U Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R6615 Rack Server
- Processor : AMD EPYC 9124 3.0GHz, 16C/32T, 64M Cache (200W) DDR5-4800
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5 Chassis with up to 10 SAS4/SATA Drives, Front PERC 11
- Front Bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SDD) max 80 TB, Up to 8 x 2.5-inch NVMe SSD max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 14 x E3.S NVMe direct drives max 107.52 TB, Up to 16 x E3.S NVMe direct drives max 122.88 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB, Up to 2 x E3.S NVMe direct drives max 15.36 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 2 x 1 GbE LOM card (optional), 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
- Front Ports: 1 x USB 2.0, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0 1 x USB 2.0, 1 x VGA 1 x USB 3.0, 1 x Serial (optional), Internal Port 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: Up to three PCIe slots (x16 connector)-Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length, Slot 2: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 2 x8 Gen4 Low profile, Half length, Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 1.68 inches (42.8 mm)
- Width: 18.97 inches (482.0 mm)
- Depth: 30.39 inches (772.11 mm) with bezel, 29.85 inches (758.27 mm) without bezel
- Weight: Max 44.97 lbs. (20.4 kg)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.Note: CMA is not supported in Direct Liquid Cooling configuration
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R660xs 4410Y 64GB RAM 1U Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R660xs Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Operating System: No Operating System
- Memory: 4x 16GB RDIMM, 4800MT/s Single Rank
- Storage: 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU, PERC 11
- Front Bays: Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e
- Network Options: 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)Note: The system allows either LOM card or an OCP card can be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x Video
- Rear Ports: 1 x Dedicated iDRAC Ethernet port , 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5), 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
- Bezel : Optional LCD bezel or security bezel
Dell PowerEdge R6515 AMD EPYC 7313P Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R6515 Rack Server
- Processor : AMD EPYC 7313P 3.0GHz, 16C/32T, 128M Cache (155W) DDR4-3200
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Hot Plug Hard Drives
- Front Bays: Up to 4 x 3.5 hot plug SAS/SATA (HDD), Up to 10 x 2.5 hot plug SAS/SATA/NVMe, Up to 8 x 2.5 hot plug SAS/SATA
- Rear Bays: N/A
- Internal Controllers: PERC HBA330, H330, H730P, H740P
- External Controllers: H840, 12Gbps SAS HBA
- Network Options: 2 x 1GbE, 2 x 10GbE BT, 2 x 10GbE SFP+,2 x 25GbE SFP28
- Front Ports: 1 x Dedicated iDRAC direct micro-USB, 1 x USB 2.0, 1 x Video
- Rear Ports: 2 x 1GbE, 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
- Internal Ports: N/A
- PCIe: Up to 2: 1 x Gen3 slot (1 x16), 1 x Gen4 slot (1 x16)
- Bezel : Optional LCD bezel or security bezel
- Height: 42.8mm (1.68)
- Width: 434.0mm (17.09)
- Depth: 657.25mm (25.88)
- Weight: 16.75 kg (36.93lb)
- Rack Support: ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R650 Intel Xeon 4314 1U Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R650 Rack Server
- Processor : Intel Xeon Silver 4314 2.4G, 16C/32T, 10.4GT/s, 24M Cache, Turbo, HT (135W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5 Chassis with up to 8 Hard Drives (SAS/SATA), 3 PCIe Slots, 2 CPU
- Front Bays: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB, Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
- Internal Controllers: PERC H745, H345, HBA355I, H755, H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
- Bezel : Optional LCD bezel or security bezel
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R360 Intel E2434 1U Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R360 Rack Server
- Processor : IntelXeonE-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5
- Operating System: Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
- Memory: 32GB UDIMM, 4800MT/s ECC
- Storage: 1.2TB Hard Drive ISE SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 8 Hot Plug Hard Drives, Adapter PERC 11, No BOSS Support
- Front Bays: Up to 4 x 3.5-inch SAS/SATA max 64 TB, Up to 8 x 2.5-inch SAS/SATA max 61.44 TB
- Rear Bays: N/A
- Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
- External Controllers: HBA355e Adpt
- Network Options: 2 x 1 GbE LOM
- Front Ports: 2 x 1GbE LOM, 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.2 Gen1, 1 x VGA, 1 x Serial
- Internal Ports: 1 x USB 3.2 Gen1
- PCIe: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile, Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile One dedicated PCIe x8 slot on the system board for internal PERC
- Bezel : security bezel
- Height : 42.8 mm (1.68 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 598.9 mm (23.57 inches) with bezel, 585.3 mm (23.04 inches) without bezel
- Weight: 13.23 kg (29.17 lbs)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R360 E2414 1U Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R360 Rack Server
- Processor : IntelXeonE-2414 2.6G, 4C/4T, 12M Cache, Turbo, HT (55W) DDR5
- Operating System: No Operating System
- Memory: 16GB UDIMM, 4800MT/s ECC
- Storage: 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot Plug
- RAID: C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5 Chassis with up to 8 Hot Plug Hard Drives, Adapter PERC 11, No BOSS Support
- Front Bays: Up to 4 x 3.5-inch SAS/SATA max 64 TB, Up to 8 x 2.5-inch SAS/SATA max 61.44 TB
- Rear Bays: N/A
- Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front
- External Controllers: HBA355e Adpt
- Network Options: 2 x 1 GbE LOM
- Front Ports: 2 x 1GbE LOM, 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
- Rear Ports: 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.2 Gen1, 1 x VGA, 1 x Serial
- Internal Ports: 1 x USB 3.2 Gen1
- PCIe: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile, Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile One dedicated PCIe x8 slot on the system board for internal PERC
- Bezel : security bezel
- Height : 42.8 mm (1.68 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 598.9 mm (23.57 inches) with bezel, 585.3 mm (23.04 inches) without bezel
- Weight: 13.23 kg (29.17 lbs.)
- Rack Support: Stab-in sliding rails with optional cable management arm (CMA) for 4-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R750 Rack Server
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R750 Intel Xeon Silver 4309Y Rack Server
- Processor : IntelXeonSilver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5 Chassis with up to 16 SAS/SATA Drives, 2 CPU
- Front Bays: Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB, Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB, Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
- Internal Controllers: PERC H745, HBA355I, PERC H345, PERC H755, PERC H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
- Bezel : Optional LCD bezel or security bezel
- Height: 86.8 mm (3.41 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 758.29 mm (29.85 inches) – without bezel, 772.13 mm (30.39 inches) – with bezel
- Weight: 24.8 kg (54.67 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R740xd2 Rack Server
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge R740xd2 Rack Server
- Socket : Two Socket Server
- Processor : Up to two 2nd Generation Intel Xeon Scalable processors with up to 22 cores per processor
- Operating System :
Canonical Ubuntu LTS
Citrix Hypervisor
Microsoft Windows Server LTSC with Hyper-V
Oracle Linux
Red Hat Enterprise Linux - Bezel : Optional security bezel
- Dimensions & Weight :
Height : 86.8mm (3.4”)
Width : 448.0mm (17.6”)
Depth : 810.0mm (31.9")
Weight : 40.0kg (88.2lbs) - Memory:
DIMM Speed : Up to 2666MT/s
Memory Type :RDIMM
Memory Module Slots : 16 DDR4 RDIMM slots, Supports registered ECC DDR4 DIMMs only
Maximum RAM : RDIMM 1TB - Storage Controllers:
Internal Controllers : PERC H730P, H330, HBA330
External Controllers : 12 Gbps SAS HBA
Software RAID : S140 - Internal Boot:
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB or 480GB - Internal Dual SD Module:
- Storage:
Front Bays:
Up to 24 x 3.5” SAS/ SATA (HDD) max 384TB
Up to 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS/SATA (SSD) max 317.44TB* - Rear Bays:
Up to 2 x 3.5” SAS/ SATA (HDD) max 32TB
Up to 2 x 2.5” SAS/SATA (SSD) drives max 15.36TB* - Power Supplies:
750W Platinum
750W 240VDC Platinum
1100W Platinum
1100W 380VDC Platinum
Hot plug power supplies with full redundancy option
Up to 6 hot plugs fans with N +1 redundancy - Ports:
Network Options:
2 x 1GbE BaseT LOM
2 x 1Gb BaseT
2 x 10GbE SFP+
2 x 10GbE BaseT
2 x 25GbE SFP+
2 x 16Gb Fibre Channel - Front Ports:
1 x Dedicated iDRAC direct micro-USB
1 x USB 3.0 - Rear Ports:
1 x iDRAC dedicated LAN
1 x Serial
2 x USB 3.0
1 x VGA - Internal Ports : 1 x USB 3.0
- Slots:
PCIe : Up 5 PCIe slots (3 x16 + 2 x4) - Video Card : 1 x VGA
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Dell PowerEdge R940 Rack Server
- Brand : Dell
- Form Factor : 3U Rack Server
- Model : PowerEdge R940 Rack Server
- Socket : Four Socket Server
- Processor : Up to four 2nd Generation Intel® Xeon® Scalable processors with up to 28 cores per processor
- Memory : 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max, Up to 12 NVDIMM, 384GB Max
- Operating System : Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux , SUSE Linux Enterprise Server, VMware ESXi
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
- Front Bay : Up to 24 x 2.5 inch drives with up to 12NVMe PCie SSDs max 184.32TB
- Internal Controllers : PERC H730P, H740P, H330, HBA330
- External Controllers : 12Gbps SAS HBA
- Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB
- Mobility : OpenManage Mobile
- Power Supplies : 1100W -48VDC Gold, 1100W Platinum, 1100W 380VDC Platinum, 1600W Platinum, 2000W Platinum, 2400W Platinum, Hot plug power supplies with full redundancy option, Up to 8 hot plugs fans with full redundancy
- Network Options : 4 x 1GbE, 4 x 10GbE, 2 x 10GbE + 2x 1GbE, 2 x 25GbE
- Front Ports : 1 x Dedicated iDRAC Direct USB, 2 x USB 3.0, 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 13 x Gen3 slots (3 x 8 slots + 10x 16 slots)
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
- Video Card : 2 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 130.3mm (5.13 inches)
- Width : 434.mm (17.08 inches)
- Depth : 784.2mm (30.8 inches)
- Weight : 49.9kg (110lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R640 Rack Server
- Brand : Dell
- Form Factor : 1U rack server
- Model : PowerEdge R640 Rack Server
- Socket : Two Socket Server
- Processor : Up to two Intel Xeon Scalable processors, up to 28 cores per processor
- Operating System : Canonical Ubuntu LTS, Citrix XenServer, SUSE Linux Enterprise Server, VMware ESXi, 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max, Up to 12 NVDIMM, 192 GB Max, Supports registered ECC DDR4 DIMMs only
- Storage Controllers : Internal controllers: IPERC H330, H730p, H740p, Software RAID (SWRAID) S140
- Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
- External PERC (RAID): H840
- 12Gbps SAS HBAs (non-RAID): Internal- HBA330 (non-RAID)
- Drive Bays Front drive bays: Up to 10 x 2.5” with up to 8 NVMe, SAS/SATA/SSD/NVMe, max 58TB, Up to 4 x 3.5” SAS/SATA, max 48TB
- Rear drive bays: Up to 2 x 2.5” SAS/SATA/SSD/NVMe, max 12TB
- Dimensions : Rack (1U)
- Chassis depth : 705.05 mm
- Data Protection : TPM 1.2/2.0 optional Cryptographically signed firmware, Hot-plug hard drives, Secure Boot, System Lockdown, Internal Dual SD Module, Secure erase
- Ports Network daughter card options: 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
- Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB
- Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
- Video card: VGA, NVIDIA NVS310 available as PCIe card Up to 3 x Gen3 slots, all x16
- Chassis : Optional LCD or Security bezel
- Power : Titanium 750W, Platinum 495W, 750W, 1100W, and 1600W, 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W, Hot plug power supplies with full redundancy option Up to 8 hot plugs fans with full redundancy
- Management : Embedded / At-the-Server, iDRAC9 with Lifecycle Controller (Express, Enterprise), iDRAC Direct, iDRAC REST API with Redfish, Quick Sync 2 BLE/wireless module
- Consoles : OpenManage Enterprise, OpenManage Essentials, OpenManage Power Center
- Mobility : OpenManage Mobile
Dell PowerEdge R740xd Rack Server
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge R740xd Rack Server
- Socket : Two Socket Server
- Processor : Up to two Intel Xeon Scalable processors, up to 28 cores per processor
- Operating System: Canonical Ubuntu LTS Citrix XenServer, SUSE Linux Enterprise Server VMware ESXi
- Memory : 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max, Up to 12 NVDIMM, 192 GB Max, Supports registered ECC DDR4 DIMMs only
- Storage Controllers : Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140
- Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
- External PERC (RAID): H840
- 12Gbps SAS HBAs (non-RAID): External- 12Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)
- Drive Bays:
- Front bays: Up to 24 x 2.5” SAS/SSD/NVMe, max 153TB Up to 12 x 3.5” SAS, max 120TB
- Mid bay: Up to 4 x 3.5” drives , max 40TB Up to 4 x 2.5” SAS/SSD/NVMe, max 25TB
- Rear bays: Up to 4 x 2.5” max 25TB, Up to 2 x 3.5” max 20TB
- Dimensions : Form factor: Rack (2U)
- Max depth: 715.5 mm
- Data Protection : TPM 1.2/2.0 optional Cryptographically signed firmware, Secure Boot, System Lockdown, Secure erase
- Ports: Network daughter card options: 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
- Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB
- Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
- Video card: VGA, Up to 8 x Gen3 slots, Up to 4 x16
- Chassis : Optional LCD or Security bezel
- Power : Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W, 48VDC 1100W, 380HVDC 1100W, 240HVDC 750W, Hot plug power, supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available
- Management : Embedded / At-the-Server: iDRAC9 with Lifecycle Controller (Express, Enterprise), iDRAC Direct, iDRAC REST API with Redfish, Quick Sync 2 BLE/wireless module
- Consoles : OpenManage Enterprise, OpenManage Essentials, OpenManage Power Center
- Mobility : OpenManage Mobile
- Tools : iDRAC Service Module, OpenManage Server Administrator, OpenManage Storage Services, Dell EMC Repository Manager, Dell EMC System Update, Dell EMC Server Update Utility, Dell EMC Update Catalogs
Dell PowerEdge MX7000 Modular Chassis
- Brand : Dell
- Model : PowerEdge MX7000 Modular Chassis
- Form Factor : 7U modular enclosure with 8 full width slots for combination of compute and storage sleds
- Processors : Up to 6 3000W; PSU and grid redundancy support
- Front Ports : 2 USB 2.0 Type A or KVM control (keyboard and mouse only), 1 USB 2.0 Type Micro-AB direct management port, 1 Mini Display Port connector for video, Front buttons/indicators: Power button, System status LED, Health icon, Ambient temperature icon, IOM icon, Fan icon, Stack/group icon, ID button
- Fans : 5 rear and 4 front-accessible hot-swap fans
- Dimensions (LxWxD) : 816.8mm (32.16 inches) x 482mm (18.98 inches) x 307.4mm (12.10 inches)
- Power Supplies : Up to 6 x 3000W; PSU and grid redundancy support
- GPU Core Expansion Module: The optional Amulet Hotkey CoreModule delivers 16x NVIDIA T4 GPUs in a fully populated MX7000 Modular Chassis. See the Amulet Hotkey website for more information on the module.
- Network Options : Fabric options: Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C), Up to 25GbE, 32Gbps Fibre Channel, 12Gbps SAS
- Integrations : Microsoft System Center, VMware vCenter, BMC Truesight (available from BMC), Red Hat Ansible
- Connections : Nagios Core & Nagios XI, Oracle Enterprise Manager, Microfocus Operations Manager (OM), Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool/OMNIbus
- Embedded management : MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular); running on up to 2 redundant MX9002m management modules Unified control: single management point for server, storage and networking Intelligent automation: Operational template methodology and comprehensive RESTful API Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module option
- On compute sled : As every other PowerEdge server, the integrated Dell Remote Access Controller (iDRAC)9 with Lifecycle Controller (LC)
Dell PowerEdge MX740c Compute Sled
- Brand : Dell
- Model : PowerEdge MX740c Compute Sled
- Form Factor : 7U Chassis, single-width compute sled
- Chassis : MX7000
- Processor : Up to two 2nd Generation Intel Xeon(R) Scalable processors, with up to 28 cores per processor, TDP: 70-205W
- Memory : 24 DIMM slots in total; supports DDR4 RDIMMs, LRDIMMs; up to 2933 MT/s speed, 1.5TB maximum (RDIMM), 3TB maximum (LRDIMM)
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Chipset : Intel C628 Chipset with optional Intel QuickAssist Technology
- Front Bay : Up to 6 x 2.5 inch SAS/SATA (HDD/SSD) or NVMe PCIe SSD
- Internal Controllers : PERC HBA330, H730P, H745P, HBA330 mini-mezz
- Internal Boot : Choice HWRAID 2 x M.2 SSDs or Internal Dual SD Module (IDSDM)
- Mobility : OpenManage Mobile
- Power Supplies : Up to 6 x 3000W; PSU and grid redundancy support (MX7000 chassis), 5 rear- and 4 front-accessible hot-swap fans with full redundancy (MX7000 chassis)
- Network Options : Up to 2 pair redundant general-purpose switch or pass-through module bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C), Up to 25GbE, 32Gbps Fibre Channel, 12Gbps SAS
- Front Ports : 1 x USB 3.0
- Rear Ports : 1xUSB 2.0 management port to iDRAC, 1xUSB 3.0 + USB 2.0 for IDSDM
- Internal Ports : 1 x USB 3.0
- PCIe : 2 x PCIe 3.0 x16 mezzanine slots (Fabric A and B), 1 x PCIe 3.0 x16 mini-mezzanine slot (Fabric C)
- Video Card : Integrated VGA controller in iDRAC, VGA over LAN
- Fans : MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans
- Height : 42.14mm (1.65 inches)
- Width : 250.20mm (9.85 inches)
- Depth : 620.35mm (24.42 inches) (handle closed)
- Weight : 9.5kg (20.94lbs.)
Dell PowerEdge MX750c Compute Sled
- Brand : Dell
- Model : PowerEdge MX750c Compute Sled
- Form Factor : Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
- Chassis : MX7000
- Processor : Up to two 3rd Generation Intel Xeon Scalable processors with up to 40 cores per processor
- Memory : 32 DDR4 DIMM slots, supports RDIMM max 2 TB or LRDIMM max 4 TB, speeds up to 3200 MT/s
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi/vSAN
- Chipset : Intel C620 series chipset with optional Intel QuickAssist Technology
- Front Bay : Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 7.6 TB per drive, Up to 6 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 7.6 TB per drive
- Internal Controllers : PERC H755 MX, PERC H745P MX, HBA350i MX
- External Controllers : PERC H745P MX, HBA330 MMZ
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
- Mobility : OpenManage Mobile
- Power Supplies : MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support
- Network Options : MX7000 chassis Fabric options: up to 2 pairs redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C), Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C
- Front Ports : 1 x iDRAC Direct port (Micro-AB USB), 1 x USB 3.0
- Rear Ports : 1xUSB 2.0 management port to iDRAC, 1xUSB 3.0 + USB 2.0 for IDSDM
- Internal Ports : 1 x USB 3.0
- PCIe : One x16 PCIe Gen4 slot for Mezz A – connected to processor 1, One x16 PCIe Gen4 slot for Mezz B – connected to processor 2, One x16 PCIe Gen4 slot for Mini Mezz card – connected to processor 2, One x16 PCIe Gen4 slot for PERC – connected to processor 1, Two x8 PCIe Gen4 connectors for NVMe drive – connected to processor 1, One x8 PCIe Gen4 connectors for NVMe drive – connected to processor 2, Two x4 PCIe Gen3 slot for BOSS M.2 HW RAID card – connected to Platform Controller Hub (PCH)
- Fans : MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy
- Height : 42.15 mm (1.65 inches)
- Width : 250.2 mm (9.85 inches)
- Depth : 594.99 mm (23.42 inches)
- Weight : 8.3 kg (18.29 lb)
Dell PowerEdge FX2 Chassis
- Brand : Dell
- Model : PowerEdge FX2 Chassis
- Form Factor : 2U chassis in height
- Power Supplies : Hot-plug PSUs: Platinum rated – 2400W or 2000W, or 1600WAC in 1+1 redundant, redundancy alerting only, 2+0 non-redundant configurations.
- Server Sled Options :-
- PowerEdge FC830: 4-socket, full-width 1U server sled, up to 2 FC830 per FX2 chassis
- PowerEdge FC640: 2-socket, half-width 1U server sled, up to 4 FC640 per FX2 chassis
- PowerEdge FD332 storage block: Half-width: up to 3 FD332 per FX2 chassis for support of up to 16 x SFF 2.5" storage devices, up to 48 SFF devices in an FX2 chassis
- PowerEdge FC430: 2-socket, quarter-with 1U server sled, up to 8 FC430 per FX2 chassis
- Cooling : 8 hot-swappable fans provide cooling to the I/O components in the system
- I/O slots : FX2s configuration: Up to 8 x PCIe 3.0 I/O expansion slots (low profile/half-length)
- Height: 8.68 cm (3.41 in)
- Width: 43.35 cm (17.06 in) without rack ears; 48.19 cm (18.97 in) with rack ears
- Depth: 85.16 cm (33.52 in)
Dell PowerEdge FC430 Server Sled
- Brand : Dell
- Model : PowerEdge FC430 Server Sled
- Form Factor : 1U quarter-width Modular Compute Sled, up to 8 FC430 per FX2 chassis
- Chassis : FX2
- Processor : Up to two Intel Xeon processor E5-2600 v4 product family processor with up to 18 cores per processor
- Memory : Up to 256GB (8 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2400MT/s
- Operating System : Canonical Ubuntu LTS, Citrix Hypervisor, Microsoft Windows Server LTSC with Hyper-V, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
- Front Bay : Up to 2 x 1.8” uSATA (HDD/SSD), 1.6TB max capacity
- Internal Controllers : PERC H330, H730, H730p, HBA330
- Mobility : OpenManage Mobile
- I/O mezzanine cards : Access to 1 x PCIe 3.0 (x8) expansion slots
- Power Supplies : (FX2 Chassis) 1600W Platinum, 2000W Platinum, 2400W Platinum, 1+1 redundant, redundancy alerting only (RAO), & 2+0 non-redundant configurations, Up to 8 hot plugs fans with full redundancy
- Network Options : Dual-port 10GbE LOM
- PCIe : See PowerEdge FX2 chassis specification
- Video Card : 1 x VGA controller integrated with iDRAC
- Height : 102.7mm (4.0)
- Width : 40.3mm (1.6)
- Depth : 535.8mm (21.1)
- Weight : 3.0kg (6.61lbs)
Dell PowerEdge FC640 Server Sled
- Brand : Dell
- Model : PowerEdge FC640 Server Sled
- Form Factor : 1U half-width Modular Compute Sled, up to 4 FC640 per FX2 chassis
- Chassis : FX2
- Processor : Up to two 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
- Memory : 16 DDR4 DIMM slots, supports RDIMM / LRDIMM / AEP, up to 2933MT/s speeds, 2TB max mem ECC Registered DDR4
- Operating System : Canonical Ubuntu LTS, Citrix Hypervisor, Microsoft Windows Server LTSC with Hyper-V, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server[SK1], VMware vSphere
- Front Bay : Up to 2 x 2.5” SAS/SATA/NVMe (HDD/SSD), max 12.8TB
- Internal Controllers : PERC H330, H730p, HBA330
- Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB, Internal Dual SD Module, ESXi (only OS supported)
- Mobility : OpenManage Mobile
- Connections : Nagios Core and Nagios XI, MicroFocus
- I/O mezzanine cards : Access to 1 x PCIe 3.0 (x8) expansion slots
- Power Supplies : (FX2 chassis), 1600W Platinum, 2000W Platinum, 2400W Platinum, 1+1 redundant, redundancy alerting only (RAO), & 2+0 non-redundant configurations, Up to 8 hot plugs fans with full redundancy
- Network Options : 2 x 10GbE + 4 x 10GbE, 4 x 1GbE
- PCIe : See PowerEdge FX2 chassis specification
- Video Card : 1 x VGA controller integrated with iDRAC
- Height : 211.0mm (8.3)
- Width : 40.3mm (1.6)
- Depth : 535.8mm (21.1)
- Weight : 5.8kg (12.79lbs.)
Dell PowerEdge VRTX Tower Chassis
- Brand : Dell
- Model : PowerEdge VRTX Chassis
- Form Factor : Tower or 5U rack enclosure
- Tower configuration : 48.4cm (19.1) H with system feet x 31.0cm (12.2) W with system feet opened x 73.0cm (28.7) D
- Weight (empty) = 31.7kg (69.7lb)
- Weight (maximum) = 74.8kg (164.9lb)
- Rack configuration : 21.9cm (8.6) H x 48.2cm (19.0) W x 73.0cm (28.7) D
- Weight (empty) = 24.7kg (54.5lb)
- Weight (maximum) = 68.7kg (151.5lb)
- Server node options : PowerEdge M520, M620, M630, M820 and M830 server nodes
- Drive bays and hard drives : Up to 12 x 3.5” NLSAS, SAS or SAS SSD hot-plug drives or up to 25 x 2.5” NLSAS, SAS or SAS SSD hot-plug drives, Optional FIPS 140-2 certified self-encrypting drives (SED), up to 25 x 2.5 NLSAS, SAS or SAS SSD
- Power supplies : Redundant power supply units support 2+2 (AC redundancy) and 3+1 (power supply redundancy) modes, US/Canada: 110/220V (typical), EU/China: 220-240V, Japan: 100V/220V, Other: Up to 240V
- Cooling : PowerEdge VRTX comes standard with 6 hot-pluggable, redundant fan modules and 4 blower modules based on Dell Energy Smart Technologies. The fans and blowers deliver low-power consumption, but also use next-generation fan technologies to ensure the lowest possible amount of fresh air is consumed to cool the enclosure.
- RAID controller : Single shared PERC8 with optional second redundant shared PERC8 available
- Integrated networking – ethernet : Internal 1GbE 8-port pass-through module, Internal 1GbE 24-port switch, Internal 10GbE switch
- I/O slots : 8 flexible PCIe slots: 3 full-height/full-length slots (150W) with double-wide card support (225W), 5 low-profile/half-length slots (25W)
- Rack Support : ReadyRails II sliding rails for 4-post racks with square, round, or threaded holes
Dell PowerEdge C6420 Server Node
- Brand : Dell
- Form Factor : Up to 4 independent hot-swappable, 2-socket C6420 sleds in a 2U C6400 chassis
- Model : PowerEdge C6420 Server
- Processor : Up to two Intel Xeon Scalable processors including integrated Omni-Path fabric processors with up to 28 cores per processor and up to 205W processors.
- Memory : 8 DIMM slots per socket with max of 1024GB with options for 16GB/32GB/64GB RDIMMS @ 2933MT/s, 8GB RDIMMs @2666MT/s, and 128 LRDIMMs @2666MT/s
- Operating System : Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Chipset : Intel C620 Chipset SATA controller
- Front Bay : Up to 24 x 2.5" Direct Backplane configuration with up to 6 SAS/SATA drives per node, Up to 24 x 2.5" Expander Backplane configuration with up to 12 SAS/SATA drives per node and two nodes per chassis, Up to 24 x 2.5" NVMe Backplane configuration with up to 6 drives per node out of which two drives can be NVMe drive, Up to 12 x 3.5" Direct Backplane configuration with up to 3 SAS/SATA drives per node
- Internal Controllers : PERC H330, H730p, HBA330
- Internal Boot : Boot Optimized Storage Subsystem (BOSS), HW RAID 2 x M.2 SSDs 240GB or 480GB
- Mobility : OpenManage Mobile
- Power Supplies : 1600W AC Platinum, 2000W AC Platinum, 2400W AC Platinum, Hot plug power supplies with full redundancy and non-redundancy option, Cooling options: Air Cooling, Direct Liquid Cooling (DLC)
- Network Options : 1 x 1Gb Ethernet, 1 x 10Gb Ethernet, 1 x 25Gb Ethernet, 1 x 40Gb Ethernet, 1 x 100Gb Ethernet
- Rear Ports : 1 x Dedicated iDRAC micro-USB port, 2 x USB 3.0
- Integrations : OpenManage integrations: Microsoft System Center, VMware vCenter, BMC Software (available from BMC)
- Connections : Nagios Core and Nagios XI, Oracle Enterprise Manager, HPE Operations Manager i (OMi)
- PCIe : 1 x 16 PCIe Gen3 riser, 1 x 8 PCIe Gen3 Mezzanine, 1 x 16 PCIe Gen3 OCP Mezzanine, 1 x 16 PCIe Gen3 riser, 1 x Display port on the rear of the sled
- Video Card : 1 x VGA
- Height : 86.80mm (3.4 inches)
- Width : 448.00mm (17.6 inches)
- Depth : 790.00mm (31.1 inches)
- Weight : 43.60kg (96.2lbs.) 3.5” direct backplane chassis, 41.50kg (91.4lbs) 2.5” direct/expander/NVMe backplane chassis, 34.56xkg (76.2lbs) no backplane chassis, Dimensions do not include bezel
Dell PowerEdge C6520 Server Node
- Brand : Dell
- Form Factor : Up to 4 independent hot-swappable, 2-socket C6520 sleds in a 2U C6400 chassis
- Model : PowerEdge C6520 Server
- Processor : Up to two 3rd Generation Intel Xeon Scalable processors per node, with up to 40 cores per processor, Direct Contact Liquid Cooling (DCLC) option: Yes
- Memory : 16 DDR4 DIMM slots, supports RDIMM of 1 TB max or LRDIMM of 2 TB max, speeds up to 3200 MT/s, Supports registered ECC DDR4 DIMMs only
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi/vSAN CentOS, Windows Preinstallation Environment (WinPE) 64-bit drivers
- Chipset : Intel C620 series chipset
- Front Bay : Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) drives max 92.16 TB, Up to 24 x 2.5-inch SAS/SATA (HDD/SSD)/NVMe drives max 368.64 TB
- Internal Controllers : PERC H745, HBA345, S150, H345
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, uSD card
- Mobility : OpenManage Mobile
- Accelerators : Low-profile (Half-height) 75 W GPU
- Fans : Non-Hot plug fans
- Power Supplies : Dual hot-plug redundant 100 - 240 V AC Platinum (2600 W, 2400 W, 2000 W, 1600 W) Power supply units
- Network Options : 1 x 1 GbE LOM riser, 1 x OCP 3.0
- Rear Ports : 1 x iDRAC Direct port (Micro-AB USB), 1 x Mini-DisplayPort, 1 x iDRAC or NIC or RJ45 port, 1 x USB 3.0
- PCIe : 2 x PCIe x16 Gen4 Risers with support for SNAP I/O modules (Low-profile, Half-height, and Half-length), 1 x OCP 3.0 x16 Gen4 (for network controller), 1 x PCIe x8 Gen4 M.2 Riser (for M.2 Boot Device)
- Video Card : 1 x VGA
- Height : 40.1 mm (1.58 inches)
- Width : 174.4 mm (6.86 inches)
- Depth : 570.34 mm (22.45 inches)
- Weight : Max 45.6 kg (100.53 lbs.) for 12 x 3.5-inch drive
Dell PowerEdge C6525 Server Node
- Brand : Dell
- Form Factor : Up to 4 independent hot-swappable, 2-socket C6525 sleds in a 2U C6400 chassis
- Model : PowerEdge C6525 Server
- Processor : Up to two 3rd Gen AMD EPYC™ Processors per node configurations with up to 64 cores per processor and up to 280W (cTDP)
- Memory : Up to 16 x DDR4, RDIMM 2TB Max, LRDIMM 2TB Max, Bandwidth up to 3200 MT/S
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi/vSAN CentOS, Windows Preinstallation Environment (WinPE) 64-bit drivers
- Drive bays : 2.5” Direct Backplane configuration with up to 6 SAS/SATA drives per node, up to 24 per chassis, 2.5” NVMe Backplane configuration with up to 2 NVMe drives and 4 SAS/SATA drives per node, Up to 24 drives total per chassis, 3.5” Direct Backplane configuration with up to 3 SAS/SATA drives per node, up to 12 per chassis, Internal: uSD card | M.2 SATA BOSS 1.0
- Internal Controllers : PERC H745, HBA345, S150, H345
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, uSD card
- Mobility : OpenManage Mobile
- Embedded NIC : Single port 1GbE LOM
- Networking Options (NDC) : 1x OCP 3.0
- GPU options : 1x Single-Wide GPU
- Availability : Hot plug redundant Hard drives, Fans, PSUs
- Power Supplies : Dual Hot-plug redundant 1600W and 2400W AC Power Supply, Dual Hot-plug redundant 2000W AC/DC Mixmode Power
- Supply, Cooling options : Air Cooling, Direct Liquid Cooling (DLC)
- Network Options : Single port 1GbE LOM
- Rear Ports : 1 x iDRAC Direct micro-USB port, 1 x Mini-display port, 1 x iDRAC or NIC port, 1 x USB 3.0 port
- PCIe : 2 x PCIe x16 Gen4 Risers, 1 x OCP 3.0 x16 Gen4, 1 x PCIe x8 Gen3 M.2 Riser
- Height : 86.8mm (3.4 inches)
- Width : 448.0mm (17.6 inches)
- Depth : 790.0mm (31.1 inches)
- Weight : 45.53kg (100.3lbs) 3.5” direct backplane chassis, 41.5kg (91.4lbs) 2.5” direct/NVMe backplane chassis, 35.15kg (77.4lbs) no backplane chassis
Dell PowerEdge XR12 Rack Server
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge XR12 Rack Server
- Processor : One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
- Memory : Eight DDR4 DIMM slots, supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s, Up to four Intel Optane PMem 200 Series slots, 512 GB max, Supports registered ECC DDR4 DIMMs only
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, RedHat Enterprise Linux, RHEL Realtime, SUSE Linux Enterprise Server, VMware ESXi
- Chipset : Intel C620 series chipset
- Front Bay : Up to 6 x 2.5-inch SAS/SATA/NVMe SSDs max 92 TB
- Rear Bay : N/A
- Internal Controllers : PERC H755, PERC H345, HBA355i
- External Controllers : PERC H840, HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB 3.0
- Mobility : OpenManage Mobile
- Accelerators : Up to 2 double-width 300 W, or up to two single-width 70 W or 150 W
- Network Ports : 4 x 25 GbE SFP+ LOM
- Front Ports : 2 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC Direct (Micro-AB USB) port, Rear ports-N/A
- Rear Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, Rear ports-1 x USB 2.0, 1 x USB 3.0, 1 x iDRAC dedicated port, 1 x Serial, 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : 1 x PCIe LP Slot Gen4 (x8), up to 4 x PCIe FH Slots Gen 4 (x16/x16)
- Video Card : 1 x VGA
- Bezel : Optional bezel or security bezel
- Rear Accessed configuration : Height: 86.8 mm (3.41 inches), Width: 482.6 mm (19 inches), Depth: 400 mm (15.74 inches) Ear to rear wall, 477 mm (18.77 inches) with bezel, 463 mm (18.22 inches) without bezel
- Front Accessed configuration : Height: 86.8 mm (3.41 inches), Width: 482.6 mm (19 inches), Depth: 400 mm (15.74 inches) Ear to rear wall, 553 mm (21.76 inches) with bezel, 463 mm (18.22 inches) without bezel
Dell PowerEdge XR11 Rack Server
- Brand : Dell
- Form Factor : 1U rack server
- Model : PowerEdge XR11 Rack Server
- Processor : One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
- Memory : Eight DDR4 DIMM slots, supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s, Up to four Intel Optane PMem 200 Series slots, 512 GB max, Supports registered ECC DDR4 DIMMs only
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, RedHat Enterprise Linux, RHEL Realtime, SUSE Linux Enterprise Server, VMware ESXi
- Chipset : Intel C620 series chipset
- Front Bay : Up to 4 x 2.5-inch SAS/SATA/NVMe (SSDs) max 61.44 TB
- Rear Bay : N/A
- Internal Controllers : PERC H755, PERC H345, HBA355i
- External Controllers : PERC H840, HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB 3.0
- Mobility : OpenManage Mobile
- Accelerators : Up to two single-width 70 W
- Power Supplies : 1400 W Platinum AC/240 HVDC, 1100 W DC/ -48-(-60) V, 1100 W Titanium Mixed Mode AC/100-240 V, DC/240 V, 800 W Platinum AC/240 HVDC, 800 W DC/-48 V, DC/(-40-(-72)), 700 W Titanium Mixed Mode HLAC AC/200-240 V, DC/240 V, Hot plug power supplies with full redundancy option, Six cold swap fans
- Network Ports : 4 x 25 GbE SFP+ LOM
- Front Ports : Rear Accessed Configuration-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, Front Accessed Configuration-1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC Direct (Micro-AB USB) port
- Rear Ports : Rear Accessed Configuration-1 x USB 2.0, 1 x USB 3.0, 1 x iDRAC dedicated port, 1 x Serial, 1 x VGA, Front Accessed Configuration-N/A
- Internal Ports : 1 x USB 3.0
- PCIe : 3 x PCIe Gen4 slots
- Video Card : 1 x VGA
- Bezel : Optional bezel or security bezel
- Height : Rear accessed configuration-42.8 mm (1.68 inches), Front accessed configuration-42.8 mm (1.68 inches)
- Width : Rear accessed configuration-482.6 mm (19 inches), Front accessed configuration-482.6 mm (19 inches)
- Depth : Rear accessed configuration-400 mm (15.74 inches) ear to rear wall, 477 mm (18.77 inches) with bezel, 463 mm (18.22 inches) without bezel, Front accessed configuration (no bezel support), 400 mm (15.74 inches) ear to rear wall-463 mm (18.22 inches) without bezel
- Weight : Rear accessed configuration-Max 10.7 kg (23.58 lbs.), Front accessed configuration-Max 10.7 kg (23.58 lbs.)
- Rack Support : Sliding, stab-in rails with optional CMA and SRB for 4-post racks with rack post distance of 470 - 750 mm. These rails also support optional CMA and SRB for 2-post racks, Sliding, stab-in rails for rugged transit case (MIL 901E certified in (Pelican Custom Rack 25-036329-01) with rack post distance of 425 - 558 mm.
Dell PowerEdge XR2 Rack Server
- Brand : Dell
- Form Factor : 1U rack server
- Model : PowerEdge XR2 Rack Server
- Processor: Intel Up to 2x150W Intel Xeon Scalable processors or one 150W Intel Xeon Scalable processor
- Dimensions & Weight:
- Chassis width:434.00mm (17.08)
- Chassis depth:545.65mm (21.48) (2.5" HHD config)
- Chassis weight:7.8 kg (17.2)
- Form factor: Rack (1U)
- Memory: DIMM Speed:Up to 2667MT/s DDR4 DIMMs, Memory Type:RDIMMs/LRDIMMs, Memory Module Slots:16, Maximum RAM:Up to 2TB
- Hard Drive:Up to 8 x 2.5 hot-plug SAS, SATA SSD in classic chassis,Up to 4 x 2.5" hot-plug SAS, SATA SSD and up to 4 x 2.5" hot-plug NVMe drives in new High Performance Chassis
- Bezel:Optional OEM debranded or rebranded bezel to showcase your logo
- Power Supplies:Redundant hot swap 550W power supplies
- Storage Controllers:Internal controllers: PERC H330, PERC H730P, HBA330
- Network Controller:Integrated Broadcom 5720 2 x 1Gb LOM plus optional LOM Riser
- LOM Riser Options:Broadcom 5720 2x 1Gb,Broadcom57416 2 x 10Gb Base-T,Broadcom 57416 2 x 10Gb SFP+,Broadcom 2 x 25Gb SFP+
- I/O Expansion Slots:Up to 2 PCIe Gen3 x16 slots
- Front ports:1 Video , 1 eSATA, 1 USB 2.0,dedicated iDRAC Direct Micro-USB
- Rear ports:1 Video , 1 serial , 2 USB 3.0, dedicated iDRAC network port
- Video card:1 VGA
- Rack Support:Static Rails, optional Rugged Sliding Rails
- Accelerators:1 x NVIDIA T4 GPU Supported in High Performance Chassis
Dell PowerEdge XE8545 Server
- Brand : Dell
- Model : PowerEdge XE8545 Server
- Processor : Two 3rd Generation AMD EPYC processors (280 W) with up to 64 cores per processor
- Memory : 32 x DDR4, Bandwidth up to 3200 MT/s
- Accelerators : 4 x NVIDIA A100 GPUs with NVIDIA NVLink, Options: 40 GB/400 W or 80 GB/500 W
- Front Storage : 10 x 2.5” Hot Plug SAS/SATA, Up to 8 x 2.5” NVMe
- Controllers : BOSS S1.5, H745
- I/O ports : 1 x PCIe Gen4 LP (x16), 1 x PCIe Gen4 FH (x16), 1 x PCIe Gen4 FH (x16) or 2 x PCIe Gen4 FH (x8)
- Thermal : Air Cooled Up to 35C for 400 W GPUs or 25C for 500 W GPUs
- Fans : 12 x Front Hot Plug Fans, 6 x Internal Fans (CPU)
- Embedded Management : iDRAC9, iDRAC Direct, Quick Sync 2.0
- Power Supplies : 4 x Hot-plug redundant 2400 W AC Power Supply
- Rack Height : 4U
- Front ports : 1 x USB 2.0 – iDRAC dedicated
- Rear ports : 1 x USB 3.0, 1 x USB 2.0
- Dimensions : Depth: 810 mm Width: 447 mm Height: 86.8 mm
- Rack Unit : 4U Rack Server
- Embedded NIC : 2x 1GbE LOM
- Networking Options : OCP x16 mezz 3.0
Dell PowerEdge XE2420 Server
- Brand : Dell
- Model : PowerEdge XE2420 Server
- Processor : Two 2nd Generation Intel® Xeon® Scalable processors (max 150W Gold)
- Storage : Up to 2x 2.5” SATA/NVMe (no PERC/HBA) with Config 1A, Max 15.36TB or, Up to 4x 2.5” universal SAS/SATA/NVME with PERC/HBA with Config 2C, Max 61.44 TB or UP to 6x EDSFF E1.L SSD with Config 3A, Max 92.16TB
- Chipset : Intel C620 Series chipset
- Memory : 16x DDR4 RDIMM/LR-DIMM (12 DIMMs are balanced) up to 2993 MT/s
- Boot OS Drive : HW RAID BOSS w/ 2x M.2 drives, 240GB and 480GB
- Embedded / At-Server : iDRAC9; iDRAC Direct; iDRAC REST API with Redfish
- GPU/Flash PCI Cards : Up to 2x PCIe x16, Up to 300W passive FHFL cards (e.g. NVIDIA V100/s or NVIDIA RTX6000), or UP to 4x PCIe x8; 75W passive (e.g. NVIDIA T4), or Up to 2x FE1 storage expansion cards (up to 20x M.2 drives on each)
- Ports : 2 x 1GE LOM + OCP 2.0 Mezz (2 x 1GE or 2x 10GE SFP+ or 2 x 10GE BaseT), Video, 2 x USB 3.0, iDRAC Direct USB, serial, dedicated iDRAC network port
- Other IO Expansion : 1xOCP2 Type 1 x8 mezzanine card slot, 1x LP PCIe x8, Up to 2x PCIe x16 FHFL* or up to 4xPCIe x8 FHFL
- Security : TPM 1.2/2.0, TCM 2.0 (optional), Cryptographically signed firmware, Silicon Root of Trust, Secure Boot, System Erase
- Dimensions : 483.95mm x 444mm x 86.92mm (DxWxH)
- Mounting : Static rails
- Operating Temp : 5C to 40C
- Chassis : Cold aisle service. All cables and connectors are accessible from the cold aisle, Optional bezel with filtration and cable management
- Power : N or N+1 2000W AC reverse flow power supply, N or N+1 1100W DC reverse flow power supply
Dell PowerEdge R940XA Rack Server
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge R940XA Rack Server
- Socket : Four Socket Server
- Processor : Up to four 2nd Generation Intel Xeon Scalable processors, up to 28 cores each
- Memory : 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max, Up to 12 NVDIMM, 384GB Max
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Front Bay : Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB, or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
- Internal Controllers : PERC H330, H730P, H740P, HBA330
- External Controllers : H840, 12 Gbps SAS HBA
- Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
- Mobility : OpenManage Mobile
- Power Supplies : Gold 1100W -48VDC, Platinum: 1100W, 1100W 240VDC2, 1600W, 2000W, 2400W, Hot plug power supplies with full redundancy option, 6 hot plugs fans with N +1 redundancy
- Network Options : 1x OCP x16 mezz 3.0
- Front Ports : 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only offered on the 8-drive configuration)
- Rear Ports : 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0, 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : Up to 12 x Gen3 slots, (6x16 slots or 2x16 + 10x8 slots)
- Video Card : 2 x VGA
- Accelerator : Up to 4 doublewidth GPUs or up to 4 double-width or 8 single-width full-height FPGAs
- Bezel : Optional LCD bezel or security bezel
- Height : 174.3 mm (6.87 inches)
- Width : 441.16 mm (17.37 inches)
- Depth : 835.9mm (32.9 inches)
- Weight : 56.0kg (123.5lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R840 Rack Server
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R840 Rack Server
- Socket : Four Socket Server
- Processor : Up to four 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
- Memory : 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max, Up to 12 NVDIMM, 384GB Max
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
- Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
- Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
- External Controllers : PERC H840, HBA355e
- Internal Boot : Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
- Mobility : OpenManage Mobile
- Power Supplies : Single, Hot-plug, Power Supply Non-Redundant (1+0), 800W, Mixed Mode, NAF
- Network Options : 1x OCP x16 mezz 3.0
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Fans : Standard Fan x5
- Accelerator : Up to 2 doublewidth GPUs or up to 2 full-height FPGAs3
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8mm (3.4 inches)
- Width : 434.0mm (17.8 inches)
- Depth : 835.9mm (32.9 inches)
- Weight : 36.6kg (80.7lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R750XS Rack Server
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R750XS Rack Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
- Memory : 16GB RDIMM, 3200MT/s, Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
- Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
- Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
- External Controllers : PERC H840, HBA355e
- Internal Boot : Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
- Mobility : OpenManage Mobile
- Power Supplies : Single, Hot-plug, Power Supply Non-Redundant (1+0), 800W, Mixed Mode, NAF
- Network Options : 1x OCP x16 mezz 3.0
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Fans : Standard Fan x5
- Bezel : PowerEdge 2U Standard Bezel
- Height : 86.8 mm (3.41 inches)
- Width : 482 mm (18.97 inches)
- Depth : 707.78 mm (27.85 inches)- without bezel, 721.62 mm (28.4 inches)- with bezel
- Weight : 24.8 kg
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R650XS Rack Server
- Brand : Dell
- Form Factor : 1U rack server
- Model : PowerEdge R650XS Rack Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4314 2.4G, 16C/32T, 10.4GT/s, 24M Cache, Turbo, HT (135W) DDR4-2666
- Memory : 16GB RDIMM, 3200MT/s, Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5 Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU
- Front Bay : 0 drive bay, Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB
- Internal Controllers : PERC H355, H345, PERC H745, PERC H755, PERC H755N, HBA355I
- External Controllers : PERC H840, HBA355E
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or Internal USB
- Mobility : OpenManage Mobile
- Power Supplies : 600W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant, 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1100W DC/-48–(-60) V, 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant, 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
- PCIe : Up to 3 x PCIe Gen4 slots
- Internal Ports : 1 x USB 3.0 (optional)
- Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks), ReadyRails static rails for 4-post and 2-post racks, Sliding rails with optional strain relief bar (SRB)
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8 mm (3.41 inches)
- Width : 482.0 mm (18.97 inches)
- Depth : 734.95 mm (28.92 inches) – without bezel, 748.79 mm (29.47 inches) – with bezel
- Weight : Max 18.62 kg (41.05 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R550 Rack Server
- Brand : Dell
- Form Factor : 2U rack server
- Model : PowerEdge R550 Rack Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
- Memory : 16GB RDIMM, 3200MT/s, Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU
- Front Bay : Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68.8 TB
- Internal Controllers : PERC H745, HBA355I, H345, H755
- External Controllers : PERC H840, HBA355E
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 1100 W DC/-48 - (60) V, 1100W Titanium 100–240 VAC/ 240 VDC, 800W Platinum 100–240 VAC/ 240 VDC, 700W Titanium 200–240 VAC/240 VDC, 600W Platinum 100–240 VAC/ 240 VDC , Hot plug power supplies with full redundancy option
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet (RJ-45), 1 x VGA, 1 x USB 3.0
- PCIe : Up to 4: 2 x Gen3 slots (1 x8; 1 x16), 2 x Gen4 slots (2 x16)
- Internal Ports : 1 x USB 3.0
- Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
- Video Card : 1 x VGA
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks), ReadyRails static rails for 4-post and 2-post racks, Sliding rails with optional strain relief bar (SRB)
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8 mm (3.41 inches)
- Width : 482.0 mm (18.97 inches)
- Depth : 685.78 mm (27 inches) – without bezel, 721.69 mm (28.72 inches) – with bezel
- Weight : 24.8 kg (54.67 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R7515 Rack Server
- Brand : Dell
- Form Factor : 2U Rack Server
- Model : PowerEdge R7515 Rack Server
- Socket : One Socket Server
- Processor : One 2nd or 3rd Generation AMD EPYC Processor with up to 64 cores
- Memory : Up to 3200MT/s
- Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware® ESXi
- Storage : SSD 480 GB (hot-swap) - SATA 6Gb/s - 2.5
- Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Front Bay : Up to 8 x 3.5” hot plug SATA/SAS (HDD), Up to 12 x 3.5” hot plug SAS/SATA (HDD), Up to 24 x 2.5” hot plug SATA/SAS/NVMe
- Rear Bay : Up to 2 x 3.5” hot plug SAS/SATA (HDD)
- Internal Controllers : PERC HBA330, H330, H730P, H740P
- External Controllers : H840, 12Gbps SAS HBA
- Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SATA SSDs
- Mobility : OpenManage Mobile
- Power Supplies : 1600W Platinum
- Network Options : 2 x 1GbE, 2 x 10GbE BT, 2 x 10GbE SFP+, 2 x 25GbE SFP28
- Front Ports : 1 x Dedicated iDRAC direct micro-USB, 2 x USB 2.0, 1 x Video
- Rear Ports : 2 x 1GbE, 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
- PCIe : Up to 4: 2 x Gen3 slots (1 x8; 1 x16), 2 x Gen4 slots (2 x16)
- Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
- Bezel : Optional LCD bezel or security bezel
- Height : 86.8mm (3.42)
- Width : 434.0mm (17.09)
- Depth : 647.1mm (25.48)
- Weight : 27.3 kg (60.19lb)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R450 4310 Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R450 Rack Server
- Socket : Two Socket Servers
- Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
- Memory : 16GB RDIMM, 3200MT/s, Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 2 CPU
- Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
- Rear Bay : N/A
- Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, HBA355i
- External Controllers : PERC H840, HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 1100 W DC/-48 - (60) V, 1100W Titanium 100–240 VAC/ 240 VDC, 800W Platinum 100–240 VAC/ 240 VDC, 700W Titanium 200–240 VAC/240 VDC, 600W Platinum 100–240 VAC/ 240 VDC, Hot plug power supplies with full redundancy option
- Fans : Up to seven cold swap fans
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
- Front Ports : 1 x dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x Serial (optional), 1 x USB 3.0, 2 x Ethernet, 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks., ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.68 inches)
- Width : 482 mm (18.97 inches)
- Depth : For 4 x 3.5-inch configuration, 748.79 mm (29.48 inches) with bezel, 734.95 mm (28.93 inches) without bezel and For 8 x 2.5-inch configuration, 698.03 mm (27.48 inches) with bezel, 684.19 mm (26.93 inches) without bezel
- Weight : For 4 x 3.5-inch system - 18.62 kg (41.05 Pound.), For 8 x 2.5-inch system - 16.58 kg (36.55 Pound.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R450 Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R450 Rack Server
- Socket : Two Socket Servers
- Processor : Intel Xeon Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
- Memory : 16GB RDIMM, 3200MT/s, Dual Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 1 CPU
- Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
- Rear Bay : N/A
- Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, HBA355i
- External Controllers : PERC H840, HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 1100 W DC/-48 - (60) V, 1100W Titanium 100–240 VAC/ 240 VDC, 800W Platinum 100–240 VAC/ 240 VDC, 700W Titanium 200–240 VAC/240 VDC, 600W Platinum 100–240 VAC/ 240 VDC, Hot plug power supplies with full redundancy option
- Fans : Up to seven cold swap fans
- Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
- Front Ports : 1 x dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x USB 2.0, 1 x Serial (optional), 1 x USB 3.0, 2 x Ethernet, 1 x VGA
- Internal Ports : 1 x USB 3.0
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks., ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.68 inches)
- Width : 482 mm (18.97 inches)
- Depth : For 4 x 3.5-inch configuration, 748.79 mm (29.48 inches) with bezel, 734.95 mm (28.93 inches) without bezel and For 8 x 2.5-inch configuration, 698.03 mm (27.48 inches) with bezel, 684.19 mm (26.93 inches) without bezel
- Weight : For 4 x 3.5-inch system - 18.62 kg (41.05 Pound.), For 8 x 2.5-inch system - 16.58 kg (36.55 Pound.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R760XS 2CPU Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R760xs Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Memory : 16GB RDIMM, 4800MT/s Single Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 2.5" Chassis with up to 16 Hard Drives (SAS/SATA) 2 CPU, PERC11
- Acccelerators : 2 x 75 W SW, LP
- Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
- Internal Controllers : PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers : HBA355e
- Software RAID : S160
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs, USB
- Mobility : OpenManage Mobile
- Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W LVDC -48 — (-60) VDC, hot swap redundant, 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
- Fans : Standard (STD) fans, High performance SLVR fans or High performance GOLD fans, Up to 6 hot swappable fans, Network Options : 2 x 1 GbE LOM
- Network Options : 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4), 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)
- Rack Support : ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks, ReadyRails static rails for 4-post and 2-post racks
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 86.80 mm (3.41 in.)
- Width : 482 mm (18.97 in)
- Depth : 707.78 mm (27.85 in) – without bezel, 721.62 mm (28.4 in) – with bezel
- Weight : Max 28.6 kg (63.0 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R760XS Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R760xs Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Memory : 16GB RDIMM, 4800MT/s Single Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 2.5" Chassis with up to 16 Hard Drives (SAS/SATA) 1 CPU, PERC11
- Acccelerators : 2 x 75 W SW, LP
- Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
- Internal Controllers : PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers : HBA355e
- Software RAID : S160
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs, USB
- Mobility : OpenManage Mobile
- Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W LVDC -48 — (-60) VDC, hot swap redundant, 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
- Fans : Standard (STD) fans, High performance SLVR fans or High performance GOLD fans, Up to 6 hot swappable fans, Network Options : 2 x 1 GbE LOM
- Network Options : 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4), 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)
- Rack Support : ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks, ReadyRails static rails for 4-post and 2-post racks
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 86.80 mm (3.41 in.)
- Width : 482 mm (18.97 in)
- Depth : 707.78 mm (27.85 in) – without bezel, 721.62 mm (28.4 in) – with bezel
- Weight : Max 28.6 kg (63.0 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R250 Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R250 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Memory : 16GB UDIMM, 3200MT/s, ECC
- Operating System : No Operating System
- Storage : 1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
- Raid : C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed)
- Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
- Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD), Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD), Max 80TB for 4HDD configuration, Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H345, PERC H755, HBA355i
- External Controllers : HBA355e, 12 Gbps SAS Ext. HBA
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze 100-240 VAC, cabled, 450 W Platinum 100-240 VAC, cabled, 700 W Titanium 100-240 V AC, cabled, 700 W
- 240 V DC, cabled, Cabled power supplies
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel
- Height : 42.8 mm (1.68 inch)
- Width : 482 mm (18.97 inch)
- Depth : 598.64 mm (23.56 inch) with bezel, 585 mm (23.02 inch) without bezel
- Weight : 12.48 kg (27.51 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)
Dell PowerEdge R250 G6405T 1TB Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R250 Rack Server
- Socket : One Socket Server
- Processor : Intel Pentium G6405T 3.5GHz, 4M Cache, 2C/4T, No Turbo (35W), 2666 MT/s
- Memory : 8GB UDIMM, 3200MT/s, ECC
- Operating System : No Operating System
- Storage : 1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
- Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
- Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD), Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD), Max 80TB for 4HDD configuration, Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H345, PERC H755, HBA355i
- External Controllers : HBA355e, 12 Gbps SAS Ext. HBA
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze 100-240 VAC, cabled, 450 W Platinum 100-240 VAC, cabled, 700 W Titanium 100-240 V AC, cabled, 700 W 240 V DC, cabled, Cabled power supplies
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel
- Height : 42.8 mm (1.68 inch)
- Width : 482 mm (18.97 inch)
- Depth : 598.64 mm (23.56 inch) with bezel, 585 mm (23.02 inch) without bezel
- Weight : 12.48 kg (27.51 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)
Dell PowerEdge R250 E2324G 2TB Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R250 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Memory : 16GB UDIMM, 3200MT/s, ECC
- Operating System : Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
- Storage : 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hard Drive
- Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
- Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD), Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD), Max 80TB for 4HDD configuration, Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H345, PERC H755, HBA355i
- External Controllers : HBA355e, 12 Gbps SAS Ext. HBA
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze 100-240 VAC, cabled, 450 W Platinum 100-240 VAC, cabled, 700 W Titanium 100-240 V AC, cabled, 700 W 240 V DC, cabled, Cabled power supplies
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 2 x PCIe Gen4 slots
- Rack Support : ReadyRails static rails for 4-post and 2-post racks.
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel
- Height : 42.8 mm (1.68 inch)
- Width : 482 mm (18.97 inch)
- Depth : 598.64 mm (23.56 inch) with bezel, 585 mm (23.02 inch) without bezel
- Weight : 12.48 kg (27.51 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R660XS Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R660XS Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Memory : 16GB RDIMM, 4800MT/s Single Rank
- Operating System : No Operating System
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU, PERC 11
- Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
- Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
- Internal Controllers : PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers : HBA355e
- Software RAID : S160
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap), USB
- Mobility : OpenManage Mobile
- Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant , 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W LVDC -48 — (-60) VDC, hot swap redundant, 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant , 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
- fans : Standard (STD) fans, High performance SLVR fans or High performance GOLD fans, Up to 7 hot swappable fans
- Network Options : 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5), 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.68 inches)
- Width : 19.45 Kg (55.33 pound)
- Depth : 712.95 mm (28.05 inches) without bezel, 748.79 mm (29.85 inches) with bezel
- Weight : Max 13.14 kg (28.96 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R350 480GB SSD Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R350 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Memory : 8GB UDIMM, 3200MT/s, ECC
- Operating System : No Operating System
- Storage : 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD
- Raid : C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), Up to 8 x 2.5-inch SAS/SATA (HDD/SSD), Max 80TB for 4 HDD configurations
- Internal Controllers : PERC H345, PERC H745, HBA355i, PERC H345f, PERC H745f, HBA355f
- External Controllers : HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, Internal Dual SD Module or Internal USB
- Mobility : OpenManage Mobile
- Power Supplies : 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
- Network Options : 2 x 1GbE LOM
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 2 x Ethernet, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 3 x PCIe Gen4 slots
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.7 inches)
- Width : 482.0 mm (18.98 inches)
- Depth : 598.94 mm (23.58 inches) with bezel, 585.3 mm (23.04 inches) without bezel
- Weight : Max 13.14 kg (28.96 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)
Dell PowerEdge R350 Rack Server
- Brand : Dell
- Form Factor : Rack
- Model : PowerEdge R350 Rack Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Memory : 8GB UDIMM, 3200MT/s, ECC
- Operating System : No Operating System
- Storage : 1.2TB Hard Drive ISE SAS 12Gbps 10k 512n 2.5in Hot-Plug
- Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), Up to 8 x 2.5-inch SAS/SATA (HDD/SSD), Max 80TB for 4 HDD configurations
- Internal Controllers : PERC H345, PERC H745, HBA355i, PERC H345f, PERC H745f, HBA355f
- External Controllers : HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, Internal Dual SD Module or Internal USB
- Mobility : OpenManage Mobile
- Power Supplies : 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
- Network Options : 2 x 1GbE LOM
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
- Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 2 x Ethernet, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- PCIe : 3 x PCIe Gen4 slots
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 42.8 mm (1.7 inches)
- Width : 482.0 mm (18.98 inches)
- Depth : 598.94 mm (23.58 inches) with bezel, 585.3 mm (23.04 inches) without bezel
- Weight : Max 13.14 kg (28.96 lbs.)
- Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)
Dell PowerEdge R660 Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R660 Rack Server
- Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
- Operating System: No Operating System
- Memory: 16GB RDIMM, 4800MT/s Single Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
- RAID: C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis: 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU, PERC 11
- Front Bays: Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 179.2 TB, Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 204.8 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB, Up to 2 x EEDSFF E3.S Gen5 NVMe (SSD) max 25.6 TB
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- External Controllers: HBA355e, PERC H965e
- Network Options: 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)Note: The system allows either LOM card or an OCP card can be installed in the system.
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x Video
- Rear Ports: 1 x Dedicated iDRAC Ethernet port , 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA (optional for Direct Liquid Cooling configuration)
- Internal Ports: 1 x USB 3.0 (optional)
- PCIe: Up to three PCIe slots: Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length, Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length, Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
- Bezel : Optional LCD bezel or security bezel
- Height: 42.8 mm (1.68 inches)
- Width: 482.0 mm (18.97 inches)
- Depth: 822.88 mm (32.39 inches) with bezel, 809.04 mm (31.85 inches) without bezel
- Weight: Max 22.51 kg (49.62 lbs.)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks.
- Note: CMA is not supported in Direct Liquid Cooling configuration.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T150 G6505 8GB Tower Server
- Brand : Dell
- Form Factor : Tower
- Model : PowerEdge T150 8GB Tower Server
- Socket : One Socket Server
- Processor : Intel Pentium G6505 4.2GHz, 4M Cache, 2C/4T, No Turbo (58W), 2666 MT/s
- Memory : 8GB UDIMM, 3200MT/s, ECC
- Dimensions : Height: 360 mm (14.17 inches), Width: 175 mm (6.88 inches), Depth: 453.75 mm (17.86 inches) with bezel
- Storage controllers : Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150, Internal Boot: USB, Boot Optimized Storage
- Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, • External HBAs (non-RAID): HBA355e
- Drive bays : 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
- Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
- Internal Ports : 1 x USB 3.0
- Rear Ports : 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA
- Power supplies : 300W Bronze 100-240 VAC, cabled and 400W Platinum 100-240 VAC, cabled
- Fans : One cabled fan
- Operating System : No Operating System
- Embedded management : iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
- Bezel : Security bezel
- OpenManage Software : OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage SupportAssist plugin, OpenManage Update Manager plugin
- Mobility : OpenManage Mobile
- OpenManage Integrations : BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager
- OpenManage Connections : IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI
- Security : Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Embedded NIC : 2 x 1 GbE LOM
- PCIe : 4 PCIe slots: 1x16 Gen4 (x16 connector) full height, half length, 1x4 Gen4 (x8 connector) full height, half length, 1x4 Gen3 (x8 connector) full height, half length, 1x1 Gen3 (x1 connector) full height, half length
- Operating System and Hypervisors : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T150 E2324G 16GB Tower Server
- Brand : Dell
- Form Factor : Tower
- Model : PowerEdge T150 16GB Tower Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Memory : 16GB UDIMM, 3200MT/s, ECC
- Dimensions : Height: 360 mm (14.17 inches), Width: 175 mm (6.88 inches), Depth: 453.75 mm (17.86 inches) with bezel
- Storage controllers : Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150, Internal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, • External HBAs (non-RAID): HBA355e
- Drive bays : 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
- Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
- Internal Ports : 1 x USB 3.0
- Rear Ports : 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA
- Power supplies : 300W Bronze 100-240 VAC, cabled and 400W Platinum 100-240 VAC, cabled
- Fans : One cabled fan
- Operating System : Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
- Embedded management : iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
- Bezel : Security bezel
- OpenManage Software : OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage SupportAssist plugin, OpenManage Update Manager plugin
- Mobility : OpenManage Mobile
- OpenManage Integrations : BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager
- OpenManage Connections : IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI
- Security : Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Embedded NIC : 2 x 1 GbE LOM
- PCIe : 4 PCIe slots: 1x16 Gen4 (x16 connector) full height, half length, 1x4 Gen4 (x8 connector) full height, half length, 1x4 Gen3 (x8 connector) full height, half length, 1x1 Gen3 (x1 connector) full height, half length
- Operating System and Hypervisors : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T550 Tower Server
- Brand : Dell
- Form Factor : Tower
- Model : PowerEdge T550 Tower Server
- Socket : Two Socket Server
- Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
- Memory : 16GB RDIMM, 3200MT/s, Dual Rank
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU
- Accelerators : Up to two double wide 300W NVIDIA A40 or five single wide 70W NVIDIA T4 accelerators
- Front Bays : Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB, Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB, Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB, Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch, NVMe (SSD) max 240 TB
- Operating System : No Operating System
- Internal Controllers : PERC H345, PERC H355, PERC H755, PERC H755N, HBA355i
- External Controllers : PERC H840, HBA355e
- Software RAID : S150
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
- Mobility : OpenManage Mobile
- Power Suppliers : 600W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant, 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1100W DC/-48–(-60) V, 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant, 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant, 2400W Platinum 100–240 VAC or 240 VDC, hot swap redundant, Hot swap power supplies with full redundancy option
- Network Options : 2 x 1GbE LOM and OCP x16 3.0
- Front Ports : 1 x Dedicated iDRAC Direct micro-USB (optional), 1 x USB 2.0, 1 x USB 3.0
- Rear Ports : 1 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Rack support : System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
- Slots PCIe : 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot, 3 x16 Gen4 (x16 connector) full height, half length, 1 x4 Gen3 (x8 connector) full height, half length, 2 x16 Gen4 (x16 connector) full height, full length (optional)
- Video Card : 1 x VGA
- Bezel : Optional security bezel
- Height : 459.0 mm (18.07 inches)
- Width : 200.0 mm (7.87 inches)
- Depth : 680.5 mm (26.79 inches) with bezel, 663.5 mm (26.12 inches) without bezel
- Weight : Max 44.48 kg (98.06 lbs.)
- Dell Services: Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T350 480GB SSD Tower Server
- Brand : Dell
- Form Factor : Tower
- Model : PowerEdge T350 480GB Tower Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
- Memory : 8GB UDIMM, 3200MT/s, ECC, 32GB UDIMM, 3200MT/s, ECC
- Storage : 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD
- Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
- Chassis : 3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC, cable PSU
- Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
- Internal Controllers : PERC H755, PERC H345, HBA355i
- External Controllers : HBA355e
- Software RAID : S150
- Operating System : No Operating System
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or Internal USB 3.0
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze (cabled) AC/100 - 240 V, 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
- Rear Ports : 5 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x iDRAC dedicated port, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Rack support : System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
- Slots PCIe : 2 x Gen 4 PCIe slots, 2 x Gen3 PCIe slots
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 369.5 mm (14.54 inches)
- Width : 175 mm (6.88 inches)
- Depth : 581.12 mm (22.87 inches) with bezel
- Weight : 25.34 kg (55.86 lbs.)
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s), Basic Next Business Day, 13 Month(s), ProSupport and 4Hr Mission Critical, 12 Month(s), NO WARRANTY UPGRADE SELECTED, 12 Month(s), ProSupport Plus and Next Business Day Onsite Service, 12 Month(s), ProSupport Plus and 4Hr Mission Critical, 12 Month(s)
Dell PowerEdge T640 Tower Server
- Brand : Dell
- Form Factor : 5U Tower Server
- Model : PowerEdge T640 Tower Server
- Socket : Two Socket Server
- Processor : Up to two Intel Xeon Scalable processors, up to 28 cores per processor
- Memory : 24 DDR4 DIMM slots, supports RDIMMS/LRDIMMS, speeds up to 2666MT/s, 3TB2, Up to 12 NVDIMM, 192GB max, Supports registered ECC DDR4 DIMMs only
- Storage Controllers, Internal controllers: PERC H730P, H740P, HBA330, H330, Software RAID (SWRAID) S140
- External PERC (RAID): H840
- External HBAs (non-RAID): 12 Gbps SAS HBA
- Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240GB
- Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240GB
- Drive Bays : Up to 8 or 18 x 3.5 SAS/SATA (HDD/SSD) max 216TB or up to 16 x 2.5 SAS/SATA (HDD/SSD) max 61TB or up to 32 x 2.5 SAS/SATA (HDD/SSD) max 122TB or up to, 16 x 2.5 SAS/SATA (HDD/SSD) + 8x NVMe SSD max 112TB
- GPU: GPU options: 4 x 300W (DW) or 8 x 150W (SW), NVIDIA Tesla P100,P40, K80M, M60, M10, AMD S7150, S7150X2
- Power Supplies : Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W; 48VDC 1100W, 240HVDC 750W, Hot plug power supplies with full redundancy, Up to 8 fans with N-1 redundancy (6 hot-pluggable fans and 2 external fans)
- Max depth: 708.7 mm
- Bezel : Optional Security bezel
- I/O and Ports : 2 x 10GbE LOM, 8 x USB (1 x USB 2.0. 1 x USB 3.0, 6 x USB 2.0/3.0),, Dedicated iDRAC Direct Micro-USB
- Video card : VGA, Up to 8 PCIe Gen3 slots
- Supported Operating Systems: Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Management : Embedded / At-Server, iDRAC9 with Lifecycle Controller (Express, Enterprise), iDRAC Direct, iDRAC REST API with Redfish, Quick Sync 2 BLE/wireless module
- Consoles : OpenManage Enterprise, OpenManage Essentials, OpenManage Power Center
- Mobility : OpenManage Mobile
- Tools : iDRAC Service Module, OpenManage Server Administrator, OpenManage Storage Services, Dell Repository Manager, Dell System Update, Dell Server Update Utility, Dell Update Catalogs
- OpenManage Integrations : VMware vCenter, BMC software (available from BMC
- OpenManage Integrations : Nagios Core and Nagios XI, HPE Operations Manager i (OMi)
Dell PowerEdge T350 Tower Server
- Brand : Dell
- Form Factor : Tower
- Model : PowerEdge T350 Tower Server
- Socket : One Socket Server
- Processor : Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s, Intel® Xeon® E-2334 3.4GHz, 8M Cache, 4C/8T, Turbo (65W), 3200 MT/s, Intel® Xeon® E-2356G 3.2GHz, 12M Cache, 6C/12T, Turbo (80W), 3200 MT/s
- Memory : 8GB UDIMM, 3200MT/s, ECC, 32GB UDIMM, 3200MT/s, ECC
- Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
- Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis : 3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC, cable PSU
- Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
- Internal Controllers : PERC H755, PERC H345, HBA355i
- External Controllers : HBA355e
- Software RAID : S150
- Operating System : No Operating System
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or Internal USB 3.0
- Mobility : OpenManage Mobile
- Power Supplies : 450 W Bronze (cabled) AC/100 - 240 V, 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
- Network Options : 2 x 1 GbE LOM
- Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
- Rear Ports : 5 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x iDRAC dedicated port, 1 x VGA
- Internal Ports : 1 x USB 3.0 (optional)
- Rack support : System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
- Slots PCIe : 2 x Gen 4 PCIe slots, 2 x Gen3 PCIe slots
- Video Card : 1 x VGA
- Bezel : Optional LCD bezel or security bezel
- Height : 369.5 mm (14.54 inches)
- Width : 175 mm (6.88 inches)
- Depth : 581.12 mm (22.87 inches) with bezel
- Weight : 25.34 kg (55.86 lbs.)
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge T150 Tower Server
- Brand : Dell
- Form Factor : Tower
- Model : PowerEdge T150 Tower Server
- Socket : One Socket Server
- Processor : One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
- Memory : Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s, Supports unregistered ECC DDR4 DIMMs only
- Dimensions : Height: 360 mm (14.17 inches), Width: 175 mm (6.88 inches), Depth: 453.75 mm (17.86 inches) with bezel
- Storage controllers : Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150, Internal Boot: USB, Boot Optimized Storage
- Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, • External HBAs (non-RAID): HBA355e
- Drive bays : 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
- Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
- Internal Ports : 1 x USB 3.0
- Rear Ports : 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA
- Power supplies : 300W Bronze 100-240 VAC, cabled and 400W Platinum 100-240 VAC, cabled
- Fans : One cabled fan
- Operating System : No Operating System
- Embedded management : iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
- Bezel : Security bezel
- OpenManage Software : OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage SupportAssist plugin, OpenManage
- Update Manager plugin
- Mobility : OpenManage Mobile
- OpenManage Integrations : BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager
- OpenManage Connections : IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI
- Security : Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
- Embedded NIC : 2 x 1 GbE LOM
- PCIe : 4 PCIe slots: 1x16 Gen4 (x16 connector) full height, half length, 1x4 Gen4 (x8 connector) full height, half length, 1x4 Gen3 (x8 connector) full height, half length, 1x1 Gen3 (x1 connector) full height, half length
- Operating System and Hypervisors : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R740 Rack Server
- Form Factor: 2U Rack
- Processors: Up to 2x Intel Xeon Scalable Processor Family
- Processor Cache: Up to 38.5MB per core
- Processor Cores: Up to 28 cores per processor
- Memory: Fully expandable up to 3TB DDR4 2666 MT/s RDIMM and LRDIMM (24 DIMM Slots)
- Maximum Internal Storage: 8x 3.5" - Up to 128TB (NL-SAS/SATA) / 61.44TB (SAS) / 61.44TB (SSD), 8x 2.5" - Up to 16TB (NL-SAS/SATA) / 61.44TB (SAS) / 61.44TB (SSD), 16x 2.5" - Up to 32TB (NL-SAS/SATA) / 122.88TB (SAS) / 122.88TB (SSD)
- I/O Slots: 8 PCIe 3.0 slots
- Remote Management: iDRAC9 with Lifecycle Controller
- WARRANTY : 3 Years ProSupport Next Business Day Onsite
Dell PowerEdge R7525 24 Core Rack Server
- CPU : 2Nos AMD 7352 2.30GHz,24Core/48Threads,128MB Cache,155Watts,3200
- Max Memory : 32DIMMS
- Memory : 2 x 32GB RDIMM
- Max HDD Scalability : 16X 2.5 SAS/SATA with XGMI
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single, Hot-plug Power Supply Non Redundant(1+0), 1400W, Mixed Mode
- System Management : iDRAC9,Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R7525 16 Core Rack Server
- CPU : 2Nos AMD EPYC 7282 2.80GHz, 16Core/32Threads, 64MB Cache (120Watts) DDR4-3200
- Max Memory : 32DIMMS
- Memory : 2 x 32GB RDIMM
- Max HDD Scalability : 16X 2.5 SAS/SATA with XGMI
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single, Hot-plug Power Supply Non Redundant(1+0), 1400W, Mixed Mode
- System Management : iDRAC9,Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R7525 8 Core Rack Server
- CPU : 2Nos AMD EPYC 7252 3.10GHz, 8Core/16Threads, 64MB Cache (120Watts) DDR4-3200
- Max Memory : 32DIMMS
- Memory : 2 x 16GB RDIMM
- Max HDD Scalability : 8X 3.5 SAS/SATA with XGMI
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in with 3.5in HYB CARR
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0), 1400W, Mixed Mode
- System Management : iDRAC9,Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R6525 24 Core Rack Server
- CPU : 2Nos AMD 7352 2.30GHz,24Core/48Threads, 128MB Cache,155Watts,3200
- Max Memory : 32DIMMS
- Memory : 2 x 16GB RDIMM
- Max HDD Scalability : Chassis with up to 8 x 2.5" Hot Plug Hard Drives (2CPU & XGMI)
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in with 3.5in HYB CARR
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0), 1400W, Mixed Mode
- System Management : iDRAC9,Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R6525 8 Core Rack Server
- CPU : 2Nos AMD EPYC 7252 3.10GHz, 8Core/16Threads, 64MB Cache (120Watts) DDR4-3200
- Max Memory : 32DIMMS
- Memory : 2 x 16GB RDIMM
- Max HDD Scalability : Chassis with up to 8 x 2.5" Hot Plug Hard Drives (2CPU & XGMI)
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in with 3.5in HYB CARR
- RAID InBuilt : PERC H345 Controller
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0), 1400W, Mixed Mode
- System Management : iDRAC9,Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R6515 24 Core Rack Server
- CPU : AMD 7352 2.30GHz,24Core/48Threads,64MB Cache (120Watts) DDR4-3200
- Max Memory : 16DIMMS
- Memory : 1 x 32GB RDIMM
- Max HDD Scalability : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H330 RAID Controller
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0), 550W
- System Management : iDRAC9, Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R6515 8 Core Rack Server
- CPU : AMD EPYC 7252 3.10GHz, 8Core/16Threads, 64MB Cache (120Watts) DDR4-3200
- Max Memory : 16DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- HARD DISK : 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- RAID InBuilt : PERC H330 RAID Controller
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0), 550W
- System Management : iDRAC9,Enterprise
- WARRANTY : 5Years ProSupport Next Business Day Onsite
Dell PowerEdge R750XA Rack Server
- Part No : R750xa
- Rack Units : 2U
- CPU Socket(s) : Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
- Memory Slot(s) : Up to 8 channels of memory per processor, 32x DDR4 3200MHz DIMM Slots
- Memory Capacity : 8TB
- Drive Bays : Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 6 x 2.5-inch NVMe (SSD) direct-attach max 92.1 TB
- Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
- Internal SATA Controller : PERC H745, HBA355I, H345, H755, H755N
- External SATA Controllers : PERC H840, HBA355E
- Supported OS : Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
- USB Port(s) : Front: iDRAC dedicated micro-USB, 1x USB 2.0, Rear: 1 x USB 3.0, 1 x USB 2.0
- PCI Slot(s) : Up to 8 x PCIe Gen4 slots (up to 6 x16 + 2 x8)
- Serial Ports : 1x
- LAN Socket(s) : 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes), 2 x RJ-45
Dell PowerEdge R650 Rack Server
- Brand : Dell
- Form Factor : 1U Rack Server
- Model : PowerEdge R650 Intel Xeon Silver 4309Y Rack Server
- Processor : Intel Xeon Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
- Operating System: No Operating System
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
- RAID: C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
- Chassis: 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 1 PCIe Slot, 1 CPU
- Front Bays: Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB, Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
- Rear Bays: Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
- Internal Controllers: PERC H745, H345, HBA355I, H755, H755N
- External Controllers: PERC H840, HBA355E
- Network Options: 2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
- Front Ports: 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
- Rear Ports: 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x RJ-45, 1 x VGA (optional for liquid cooling configuration)
- Internal Ports: 1 x USB 3.0
- PCIe: Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
- Bezel : Optional LCD bezel or security bezel
- Height: 42.8 mm (1.68 inches)
- Width: 482 mm (18.97 inches)
- Depth: 809 mm (31.85 inches) – without bezel, 822.84 mm (32.39 inches) – with bezel
- Weight: 21.2 kg (46.7 lbs)
- Rack Support: ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
- Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
Dell PowerEdge R6515 Rack Server
- Front Storage : Chassis with up to 8x2.5" Drives
- Motherboard : PowerEdge R6515 Motherboard, with 2 x 1Gb Onboard LOM (BCM5720) V2
- Trusted Platform Module : Trusted Platform Module 2.0
- Chassis Configuration : 2.5" Chassis with up to 8 Hot Plug Hard Drives
- Processor : AMD EPYC 7282 2.80GHz, 16C/32T, 64M Cache (120W) DDR4-3200
- Processor Thermal Configuration : Heatsink for CPU less than 180W
- Fans : Standard Fan
- Memory DIMM Type and Speed : 3200MT/s RDIMMs
- Memory Configuration Type : Performance Optimized
- Memory Capacity : (2) 32GB RDIMM, 3200MT/s, Dual Rank, 8Gb BASE
- RAID Configuration : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
- RAID/Internal Storage Controllers : PERC H730P RAID Controller, 2GB NV Cache, Minicard
- Hard Drives : (2) 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug
- Ethernet Mezzanine Adapters : Broadcom 5720 Dual Port 1 GbE Network LOM Mezz Card
- PCIe Riser : Riser Config 2, 2x16 LP PCIe slot
- Additional Network Adapters : PCIe Blank Filler, R6515 / R7515
- Rack Rails : ReadyRails Sliding Rails With Cable Management Arm
- Bezel : LCD Bezel for x4 and x8 chassis
- Quick Sync : No Quick Sync
- Internal Optical Drive : DVD +/-RW, SATA, Internal
- Power Supply : Dual, Hot Plug, Redundant Power Supply (1+1), 550W
- Power Cords : (2) Jumper Cord - C13/C14, 4M, 250V, 10A (India BIS); (2) Power Cord - C13, 1.8M, 250V, 10A (India)
- Embedded Systems Management : iDRAC9, Enterprise 15G
- Group Manager : iDRAC Group Manager, Enabled
- Password : iDRAC,Factory Generated Password
- BIOS and Advanced System Configuration Settings : Performance BIOS Setting
- Advanced System Configurations : UEFI BIOS Boot Mode with GPT Partition
- Dell Services: Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
- Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)
- Deployment Services : Basic Deployment Dell Server R Series 1U/2U
- System Documentation : No Systems Documentation, No OpenManage DVD Kit
Dell PowerEdge R540 Gold Rack Server
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Gold 5218R 2.1GHz, 20Core/40T, 10.4GT/s, 27.5M Cache, Turbo, HT (125Watts) Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 32GB RDIMM
- Max HDD Scalability : Up to 12, 3.5in Hot Plug Hard Drives and 2 x 3.5in Rear Drives
- HARD DISK : 2 X 4TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Low Profile
- POWER SUPPLY : Dual, Hot-plug, Redundant Power Supply, 750Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport 4Hours and Mission Critical
Dell PowerEdge R540 Silver Rack Server
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Silver 4210R 2.4G, 10Core/20T, 9.6GT/s, 13.75M Cache, Turbo, HT (100Watts) DDR4-2400 Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : Up to 8, 3.5in Hot Plug Hard Drives
- HARD DISK : 1 x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Low Profile
- POWER SUPPLY : Dual, Hot-plug, Redundant Power Supply, 495Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport 4Hours and Mission Critical
Dell PowerEdge R540 Bronze Rack Server
- Form Factor : 2U Rack Model
- Model : PowerEdge R540
- CPU : Intel Xeon Bronze 3204 1.92GHz, 6Core/6T, 9.6GT/s, 8.25MB Cache, No Turbo, No HT (85Watts) Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 8GB RDIMM
- Max HDD Scalability : Up to 8, 3.5in Hot Plug Hard Drives and Software RAID
- HARD DISK : 1 x 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- RAID InBuilt : SW RAID
- POWER SUPPLY : Single, Hot-Plug Power Supply, 495Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport and Next Business Day Onsite
Dell PowerEdge R440 Rack Server
- Form Factor : 1U Rack Model
- Model : PowerEdge R440
- CPU : Intel Xeon Bronze 3206R 1.9GHz, 8Core/8T, 9.6GT/s, 11MB Cache, No Turbo, No HT (85W) DDR4-2400 Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : 3.5in Chassis with up to 4 Hot Plug Hard Drives
- HARD DISK : 1 x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Low Profile
- POWER SUPPLY : Single, Hot-plug Power Supply (1+0), 550Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport 4Hours Mission Critical
Dell PowerEdge R340 Rack Server
- Form Factor : Rack Model
- Model : PowerEdge R340 Server
- Processor : Intel Xeon E-2224 3.4GHz, 8M cache, 4C/4T, turbo (71W)
- Processor Thermal Configuration : Heatsink for 80W or less CPU
- Motherboard : PowerEdge R340 MLK Motherboard
- Trusted Platform Module (TPM) : No Trusted Platform Module
- Chassis Configuration : 3.5" Chassis with up to 4 Hot Plug Hard Drives and Software RAID
- Memory DIMM Type and Speed : 2666MT/s UDIMMs
- Memory Configuration Type : Performance Optimized
- Memory Capacity : 16GB 2666MT/s DDR4 ECC UDIMM
- RAID Configuration : C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed)
- RAID/Internal Storage Controllers : No Controller
- Hard Drives : 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- SATA HDD Info : SATA HDD purchased with Dell Basic HW support carries 1 yr limited HW wrty
- Embedded Systems Management : iDrac9, Express
- PCIe Riser : No PCIe Riser
- Additional Network Cards : On-Board Broadcom 5720 Dual Port 1Gb LOM
- Power Supply : Single, Hot-plug Power Supply (1+0), 550W
- Power Cords : Power Cord - C13, 1.8M, 250V, 10A (India)
- Bezel : No Bezel
- Group Manager : iDRAC Group Manager, Disabled
- Password : iDRAC,Factory Generated Password
- BIOS and Advanced System Configuration Settings : Performance BIOS Setting
- Advanced System Configurations : UEFI BIOS Boot Mode with GPT Partition
- Operating System : No Operating System
- Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
- Dell Services:Deployment Services : No Installation Services Selected
- Rack Rails : No Rack Rails or Cable Management Arm
- Internal Optical Drive : No Internal Optical Drive
Dell Poweredge T440 Silver Tower Server
- Form Factor : Tower Model
- Model : PowerEdge T440
- CPU : Intel Xeon Silver 4210R 2.4GHz, 10Core/20T, 9.6GT/s, 13.75M Cache, Turbo, HT (100W) DDR4-2400 Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 16GB RDIMM
- Max HDD Scalability : Up to 8, 3.5in Hot Plug Hard Drives, Tower Configuration
- HARD DISK : 1 x 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hot-Plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Full Height
- POWER SUPPLY : Dual, Hot-plug, Redundant Power Supply, 495Watts
- System Management : iDRAC9,Enterprise
- WARRANTY : 3Years ProSupport 4Hours Mission Critical
Dell Poweredge T440 Bronze Tower Server
- Form Factor : Tower Model
- Model : PowerEdge T440
- CPU : Intel Xeon Bronze 3204 1.92GHz, 6Core/6T, 9.6GT/s, 8.25M Cache, No Turbo, No HT (85Watts) Processor
- Max Memory : 16 DIMMS
- Memory : 1 x 8GB RDIMM
- Max HDD Scalability : Up to 8, 3.5in Hot Plug Hard Drives, Tower Configuration
- HARD DISK : 1 x 1TB 7.2K RPM SATA 6Gbps 512n 3.5in Hot-plug Hard Drive
- RAID InBuilt : PERC H330 RAID Controller, Adapter, Full Height
- POWER SUPPLY : Single,Hot-plug Power Supply,495Watts
- System Management : iDrac9, Express
- WARRANTY : 3Years Pro Support Next Business Day Onsite
Dell Poweredge T40 Tower Server
- Form Factor : Tower Model
- Model : PowerEdge T40
- CPU : Intel Xeon E-2224G 3.5GHz 8M Cache, 4Core/4T,Turbo,71W,TPM Processor
- Max Memory : 4 DIMMS
- Memory : 1 x 8GB UDIMM
- Max HDD Scalability : Upto 3, 3.5in SATA Drives
- HARD DISK : 1 x 1TB 7.2K RPM Entry SATA 3.5in Cabled Hard Drive
- RAID InBuilt : Onboard
- POWER SUPPLY : Single Power Supply, 300Watts
- System Management : Intel AMT 12.0
- WARRANTY : 3YR Pro Support Next Business Day Onsite Service
DELL POWEREDGE T140 TOWER SERVER
- Brand : Dell
- Form Factor : Tower server
- Model : PowerEdge T140 Tower Server
- Socket : One Socket Server
- Processor: Up to one Intel Xeon E-2200 product family processor with up to 6 cores per processor
- Storage:Up to 4 x 3.5" SAS/SATA (HDD), max 16TB
- Operating Systems : Canonical Ubuntu LTS
- Network Options : 2 X 1GbE
- Front Ports : 1 x Dedicated iDRAC micro-USB,1 x USB 3.0
- Chipset : Intel C246
- DIMM Speed : up to 2666MT/s
- Memory Type : UDIMM
- Memory Module Slots : 4
- Maximum RAM : UDIMM 64G
- Network Controller : 2 X 1GbE LOM
- Ports:Front panel : 1x USB 3.0, 1x iDRAC micro USB 2.0 management port,Back panel: 2x USB 3.0, 4x USB 2.0, VGA, serial connector ,Internal USB: 1x internal USB 3.0
- Power Supplies : 365W Gold
- Slots : 1 x Gen3 slot (x16),2 x Gen3 slots (x8),1 x Gen3 slot (x1)
- Video Card : 1 x VGA
- Height : 360 mm (14.17)
- Width : 175 mm (6.89)
- Depth : 454 mm (17.9)
- Weight : 11.84 kg (26.10 lbs.)
