BEST SELLING AADONA SERVER PRICELIST
Aadona IRIS IAS IX64 P70 VRM Intel Xeon Processor Server
- Brand: Aadona
- Form Factor: Rack
- Model: IRIS-IAS-IX64-P70-VRM
- Product: Aadona IRIS IAS IX64 P70 VRM Rack Server
- CPU: 2nd Gen. Intel Xeon Scalable and Intel Xeon Scalable Processors Dual processor, LGA 3647
- Chipset: Intel C622 Chipset
- Memory: 16 x DIMM slots - DDR4 memory supported only - 6-channel memory architecture - RDIMM modules up to 128GB supported - LRDIMM modules up to 128GB supported - Supports Intel® Optane™ DC Persistent Memory (DCPMM) - 1.2V modules: 2933/2666/2400/2133 MHz
- LAN: 2 x 10Gb/s BASE-T LAN ports - 2 x 1Gb/s LAN ports - 1 x 10/100/1000 management LAN
- Storage: 3 x SlimSAS for 12 x SATA III 6Gb/s ports - 2 x 7-pin SATA III 6Gb/s with SATA DOM supported
- Video: Integrated in Aspeed AST2500 - 2D Video Graphic Adapter with PCIe bus interface - 1920x1200@60Hz 32bpp, DDR4 SDRAM
- RAID: Intel® SATA RAID 0/1/10/5
- Expansion Slots: Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1 - Slot_5: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_1 - Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1 - Slot_3: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_0 - Slot_2: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0 - Slot_1: 1 x PCIe x8 (Gen3 x4 bus) slot, from PCH - 2 x M.2 slots: - M-key - PCIe Gen3 x4, from CPU_0 - Supports NGFF-2280/22110 cards - 2 x U.2 ports: - SlimSAS type - PCIe Gen3 x4, from CPU_1
- Internal I/O: 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors - 2 x SATA DOM power pin headers - 5 x SlimSAS connectors - 2 x 7-pin SATA connectors - 2 x M.2 slots - 2 x CPU fan headers - 5 x System fan headers - 1 x USB 3.0 header - 1 x COM_2 header - 1 x TPM header - 1 x VROC connector - 1 x Front panel header - 1 x HDD backplane board header - 1 x PMBus connector - 1 x IPMB connector - 1 x Clear CMOS jumper - 1 x BIOS recovery jumper - 1 x Case open header - 1 x Buzzer
- Rear I/O: 2 x USB 3.0 - 1 x VGA - 1 x COM (RJ45 type) - 4 x RJ45 - 1 x MLAN - 1 x ID button with LED
- OS Supported: Windows Server 2012 R2 with Update - Windows Server 2016 - Windows Server 2019 - Red Hat Enterprise Linux 6.9 (x64) or later - Red Hat Enterprise Linux 7.3 (x64) or later - Red Hat Enterprise Linux 8.0 (x64) or later - Red Hat Enterprise Linux 9.0 (x64) or later - SUSE Linux Enterprise Server 11 SP4 (x64) or later - SUSE Linux Enterprise Server 12 SP2 (x64) or later - SUSE Linux Enterprise Server 15 (x64) or later - Ubuntu 16.04.1 LTS (x64) or later - Ubuntu 18.04 LTS (x64) or later - Ubuntu 20.04 LTS (x64) or later - VMware ESXi 6.0 Update3 or later - VMware ESXi 6.5 or later - VMware ESXi 6.7 or later - VMware ESXi 7.0 or later - VMware ESXi 8.0 or later - Citrix Xenserver 7.1.0 CU2 or later - Citrix Xenserver 7.4.0 or later - Citrix Hypervisor 8.0.0 or later
- Board Management: Aspeed AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface: - Network settings - Network security settings - Hardware information - Users control - Services settings - IPMI settings - Sessions control - LDAP settings - Power control - Fan profiles - Voltages, fans and temperatures monitoring - System event log - Events management (platform events, trap settings, email settings) - Serial Over LAN - vKVM & vMedia (HTML5)
- PSU Connectors: 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors
- Operating Properties: Operating temperature: 10°C to 40°C - Operating humidity: 8-80% (non-condensing) - Non-operating temperature: -40°C to 60°C - Non-operating humidity: 20%-95% (non-condensing)
- Retail Packaging Content: 1 x MD71-HB0 - 1 x I/O shield - 1 x Quick start guide - 2 x SlimSAS for 8 x SATAIII 6Gb/s cables - 2 x Non-Fabric CPU carriers - Single Box dimensions: 409 x 355 x 78 mm - Carton dimensions: 729 x 415 x 432 mm
Aadona IRIS IAS 9508 DP 16GB RAM Rack Server
- Brand: Aadona
- Form Factor: 1U Rack Mountable Chassis
- Model: IAS-9508-DP
- Product: Aadona IAS-9508-DP 1U Rack Server
- CPU: 2 x Intel Xeon 4 Core 3.1 GHz
- Memory: 16GB (Expandable up to 64 GB, 16GB x 4) (customized as required)
- Drive Bays: 8 Hot-swap bays
- Network Interfaces: 2 x 1G Base-T + 2 x 10G Base-T LAN ports
- Hard Disk Drive: 480GB DWPD SSD x 2
- Expansion Slots : 1 PCI-E 3.0 x8 (in x16 slot); 1 PCI-E 3.0 x4 (in x8 slot); 1 PCI-E 3.0 x1
- Rear I/O: 2 x USB 2.0; 1 x VGA; 1 x RJ45 COM; 1 x ID button with LED
- OS Supported: Windows Server
- Dimension (D x W x H): 660mm x 430mm x 88mm
- Cooling Fan: 3 (80 x 25/38mm) Hot-Swap
- Power Supply: Redundant Power Supply 550 W
- Indicators: 1 x Power Status; 2 x LAN Activity; 1 x HDD Status; 1 x UID; 1 x System Alarm
- Front Control: 1 x Power On/Off; 1 x UID; 2 x USB 3.0
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 8%-80% (non-condensing)
- Non-operating Temperature: -40°C to 60°C
- Non-operating Humidity: 20%-95% (non-condensing)
Aadona IAS 9508 Intel Xeon 4 Core Rack Server
- Brand: Aadona
- Form Factor: 1U Rack Mountable Chassis
- Model: IAS-9508
- Product: Aadona IAS-9508 1U Rack Server
- CPU: Intel Xeon 4 Core 3.1 GHz
- Memory: 16GB (Expandable up to 64 GB, 16GB x 4) (customized as required)
- Drive Bays: 8 Hot-swap bays
- Network Interfaces: 2 x 1G Base-T + 2 x 10G Base-T LAN ports
- Hard Disk Drive: 480GB DWPD 1 SSD x 2
- Expansion Slots : 1 PCI-E 3.0 x8 (in x16 slot); 1 PCI-E 3.0 x4 (in x8 slot); 1 PCI-E 3.0 x1
- Rear I/O: 2 x USB 2.0; 1 x VGA; 1 x RJ45 COM; 1 x ID button with LED
- OS Supported: Windows Server
- Dimension (D x W x H): 660mm x 430mm x 88mm
- Cooling Fan: 3 (80 x 25/38mm) Hot-Swap
- Power Supply: Redundant Power Supply 550 W
- Indicators: 1 x Power Status; 2 x LAN Activity; 1 x HDD Status; 1 x UID; 1 x System Alarm
- Front Control: 1 x Power On/Off; 1 x UID; 2 x USB 3.0
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 8%-80% (non-condensing)
- Non-operating Temperature: -40°C to 60°C
- Non-operating Humidity: 20%-95% (non-condensing)

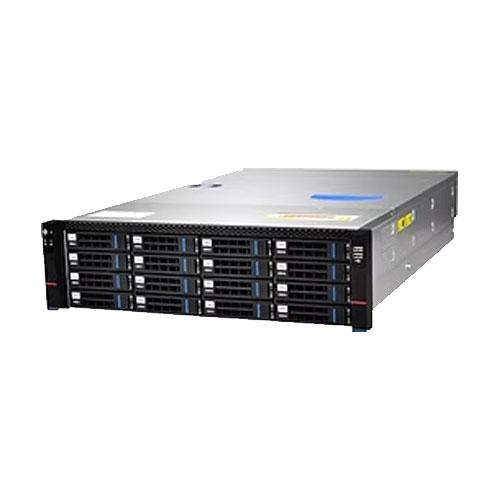

Aadona IAS 9516 16GB RAM 3U Rack Server
- Brand: Aadona
- Form Factor: 3U Rack Mountable Chassis
- Model: IAS-9516
- Product: Aadona IAS-9516 3U Rack Server
- CPU: Intel Xeon E5-2630 (6 core, 12 thread, base 2.30 Ghz, 15MB Cache)
- Memory: 16GB (Expandable up to 64 GB, 16GB x 4) (customized as required)
- Drive Bays: 16 Hot-swap bays
- Network Interfaces: 2 x 1G Base-T + 2 x 10G Base-T LAN ports
- Hard Disk Drive 480GB DWPD 1 SSD x 2
- Expansion Slots: 1 PCI-E 3.0 x8 (in x16 slot); 1 PCI-E 3.0 x4 (in x8 slot); 1 PCI-E 3.0 x1
- Rear I/O: 2 x USB 2.0: 1 x VGA: 1 x RJ45 COM: 1 x ID button with LED
- OS Supported: Windows Server
- Dimension (D x W x H) 670mm x 444mm x 177mm
- Cooling Fan: 3 (80 x 25/38mm) Hot-Swap
- Power Supply: Redundant Power Supply 800 W
- Indicators: 1 x Power Status; 2 x LAN Activity; 1 x HDD Status; 1 x UID; 1 x System Alarm
- Front Control: 1 x Power On/Off; 1 x UID; 2 x USB 3.0
- Operating Properties: Operating temperature: 0°C to 40°C
- Operating humidity: 8%-80% (non-condensing)
- Non-operating temperature: -40°C to 60°C
- Non-operating humidity: 20%-95% (non-condensing)
Aadona IAS MU71 SU0 SP VRM Rack Server
- Brand: Aadona
- Form Factor: 2U rack-mountable chassis
- Model: IAS-MU71-SU0-SP-VRM
- Product: Aadona IAS-MU71-SU0-SP-VRM 2U Rack Server
- CPU: 1 x Xeon Silver with heat sink (8-core, 2.1GHz)
- Memory: 32GB DDR4 ECC RDIMM'; 8 x DIMM slots (supports up to 128GB RDIMM modules)
- LAN: 2 x 1G LAN ports
- Internal Hard Disk Drive: 1TB DWPD 1 SATA SSD * 2
- Expansion Slots: 7 x PCIe Gen3 x16, x8, and x4 expansion slots
- Rear I/O: 4 x USB 3.0: 1 x VGA; 1 x RJ45 COM; 1 x ID button with LED
- M.2 Slots: 1 x M.2 slot with PCIe Gen3 x4 interface 1 x M-key (PCIe Gen3 x4 per slot)
- Power Supply: Single 500 W power supply
- Operating Properties: Operating temperature: 0°C to 40°C
- Operating humidity: 8%-80% (non-condensing)
- Non-operating temperature: -40°C to 60°C
- Non-operating humidity: 20%-95% (non-condensing)
Aadona IAS MU72 SU0 SP RPS 2U Server
- Brand: Aadona
- Form Factor: 2U rack-mountable chassis
- Model Name: IAS-MU72-SU0-SP-RPS
- Product: Aadona IAS-MU72-SU0-SP-RPS 2U Rack Server
- CPU: Xeon Gold 6326 (16-core, Base 2.9GHz, Turbo 3.5GHz)
- Memory: 512GB DDR4 ECC RDIMM
- LAN: 4 x 10G + 4 x 1G LAN ports
- Internal Hard Disk Drive: 960GB DWPD 1 SATA SSD * 2
- Expansion Slots: Up to 7 x PCIe Gen4 slots
- Rear I/O: 4 x USB 3.0; 1 x VGA: 1 x RJ45 COM: 1 x ID button with LED
- M.2 Slots: 1 x M.2, M-key, PCIe Gen3 x4
- Dimension: 400 x 435 x 90 mm (DxWxH)
- Cooling Fans: 3 x 6 cm front fans; 2 x 4 cm rear fans
- Power Supply: Redundant 500 W power supply
- Operating Properties: Operating temperature: 0°C to 40°C
- Operating humidity: 8%-80% (non-condensing)
- Non-operating temperature: -40°C to 60°C
- Non-operating humidity: 20%-95% (non-condensing)

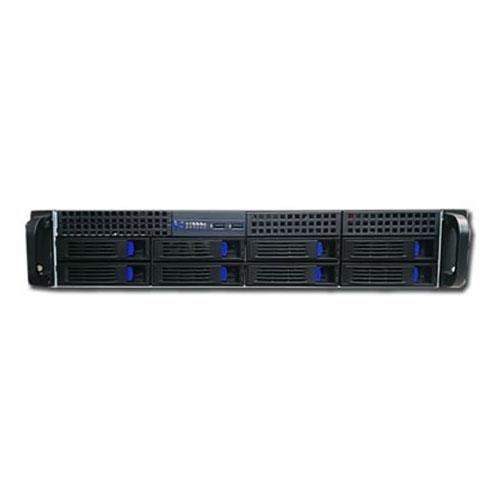

Aadona IAS MD720 HB HRD DP GC RPS 16GB RAM Rack Server
- Brand: Aadona
- Form Factor: 2U rack-mountable chassis
- Model: IAS-MD720-HB-HRD-DP-GC-RPS
- Product: Aadona IAS-MD720-HB-HRD-DP-GC-RPS 2U Rack Server
- CPU: 2 x Xeon Silver 4110 with Heat sink
- Operating System: Windows 10 Professional 64-bit Server Edition
- Memory: 16GB ECC RDIMM * 4 = 64GB RAM
- On Board Graphic: Basic Graphic Card * 1
- Network Interfaces: 4 x 1G Base-T LAN ports
- Hard Disk Drive: 512GB SSD * 2 and 2.4TB 10k RPM SAS HDD * 4
- RAID Controller: Hardware RAID card with 2 GB Cache, supporting RAID 0/1/5
- Expansion Slots 6 x PCIe Gen4 x16 expansion slots
- M.2 Slots: 2 x M.2 slots (M-key, PCIe Gen4 x4 per slot)
- Rear I/O: 2 x USB 3.0; 1 x VGA: 1 x RJ45 COM; 1 x ID button with LED
- Dimension (D x W x H): 650 x 435 x 90 mm
- Cooling Fan: 4 x 8 cm Hot-swappable fans
- Power Supply: Redundant power supply 550 W
- Indicator: 1 x Power Status: 2 x LAN Activity: 1 x HDD Status: 1 x UID: 1 x System Alarm
- Front Control: 1 x Power On/Off; 1 x UID; 2 x USB 3.0
- Security: TPM 2.0

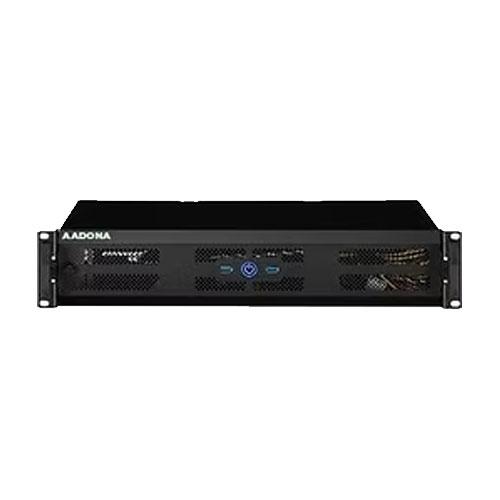

Aadona IAS SU0 VRM RPS 2U Server
- Brand: Aadona
- Model: IAS-SU0-VRM-RPS
- Form Factor: 2U rack-mountable chassis
- Product: Aadona IAS-SU0-VRM-RPS 2U Rack Server
- CPU: Xeon Silver 4110 (8-core, 2.1 GHz)
- CHIPSET: Intel® C621 Chipset
- Installed Memory: 16GB ECC RDIMM * 1
- Memory: 8 x DIMM slots; 6-channel memory architecture; Supports 1.2V DDR4 memory; RDIMM modules up to 128GB; LRDIMM modules up to 128GB Speeds: 2933/2666/2400/2133 MHz
- LAN: 2 x GbE LAN ports; 1 x 10/100/1000 management LAN
- Internal Hard Disk Drive: 480GB DWPD 1 SSD * 2
- Optical Drive: Slim DVDRW * 1
- Interface Type: Dual port NIC for iSCSI
- Drive Bay: 8 Bay
- Hard Disk Controller: Intel SATA RAID 0/1/10/5
- Expansion Slots: 1 x PCIe x16 (Gen3 x16 or x8 bus): 1 x PCIe x4 (Gen3 x4 bus): 1 x M.2 slot (M-key, PCIe Gen3 x4, supports NGFF-2242/2280 cards)
- Internal I/O: 1 x 24-pin ATX main power connector: 1 x 8-pin ATX 12V power connector: 2 x SlimSAS connectors; 1 x CPU fan header; 5 x System fan headers; 1 x USB 3.0 header; 1 x VROC connector; 1 x back panel connector; 1 x TPM header; 1 x Front panel header; 1 x Buzzer
- Rear I/O: 1 x COM: 1 x VGA: 2 x RJ45: 1 x MLAN: 2 x USB 3.2 Gen2: 4 x USB 3.0: 1 x ID switch
- Operating System Supported: Windows Server 2019 (x64): Windows Server 2016 (x64): Red Hat Enterprise Linux 7.3 (x64): Red Hat Enterprise Linux 6.9 (x64): SUSE Linux Enterprise Server 12.2 (x64): SUSE Linux Enterprise Server 11.2 (x64): Ubuntu 18.04.2 LTS (x64): Ubuntu 16.04.6 LTS (x64): VMware 6.5
- Board Management: Web interface
- Power Supply: Redundant power supply 550 W
- Operating Properties: Operating temperature: 0°C to 40°C
- Operating humidity: 8%-80% (non-condensing)
- Non-operating temperature: -40°C to 60°C
- Non-operating humidity: 20%-95% (non-condensing)

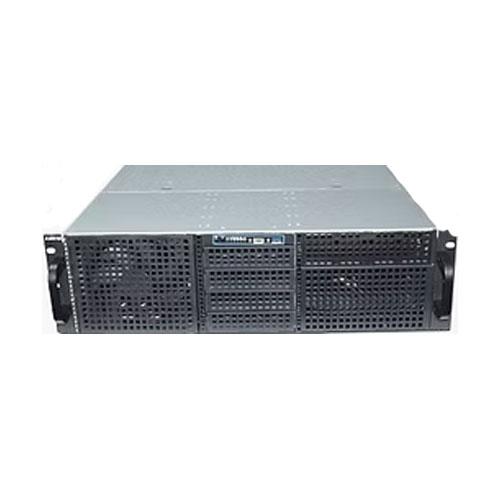

Aadona IAS MD710 HB RPS HWR 64G GPU 16GB RAM Rack Server
- Brand: Aadona
- Form Factor: 3U rack-mountable chassis
- Model: IAS-MD710-HB-RPS-HWR-64G-GPU
- Product: Aadona IAS-MD710-HB-RPS-HWR-64G-GPU 3U Rack Server
- CPU: Xeon Silver 4116 with Heat sink * 2 (12-core, Base 2.1 GHz, 16.5MB L3 cache)
- Memory: 16GB ECC RDIMM * 4 = 64GB RAM
- Graphics Card: RTX A4000 Graphics card * 2
- Network Interfaces: 2 x 1G and 2 x 10G Base-T LAN ports
- Hard Disk Drive: 960GB DWPD 1 Enterprise SATA SSD * 4 = 1920GB after RAID 6
- RAID Controller: RAID card with 1GB Cache and cables
- Expansion Slots: 6 x PCIe Gen3 x16, x8, and x4 expansion slots
- M.2 Slots: 2 x M.2 slots (M-key, PCIe Gen3 x4)
- Rear I/O: 2 x USB 3.0; 1 x VGA; 1 x RJ45 COM; 1 x ID button with LED
- Dimension (D x W x H): 650 x 435 x 132 mm
- Cooling Fan: 1 x 12 cm front fan; 3 x 12 cm middle fans; 2 x 6 cm rear fans
- Power Supply: Dual power supply 550 W
- Indicator: 1 x Power Status; 2 x LAN Activity; 1 x HDD Status; 1 x UID; 1 x System Alarm
- Front Control: 1 x Power On/Off; 1 x UID; 1 x USB 3.0; 1 x USB 2.0
- Operating System: Preloaded OS (As per requirement)
Aadona IAS P12RE SP RPS 32GB 1T1 Intel Xeon Processor Rack Server
- Brand: Aadona
- Form Factor: 2U rack-mountable chassis
- Model No: IAS-P12RE-SP-RPS-32GB-1T1
- Product: Aadona IAS-P12RE-SP-RPS-32GB-1T1 2U Rack Server
- CPU: Intel Xeon (latest) with Heat sink * 1 (Clock 3.4 GHz, 16 MB Cache)
- Memory: 16GB ECC UDIMM * 2 = 32GB RAM
- Optical Drive: External DVDRW
- LAN: 4 x 1G LAN ports
- Internal Hard Disk Drive: 1TB SATA SSD * 1
- Expansion Slots - Total Slots: 4
- Expansion Slot 1: PCI-E x8 (Gen3 X4 Link)
- Expansion Slot 2: PCI-E x8 (Gen3 X4 Link)
- Expansion Slot 4: PCI-E x8 (Gen4 X8 Link)
- Expansion Slot 6: PCI-E x16 (Gen4 X16 Link, switches to x8 if Slot 4 is occupied)
- Rear I/O: 2 x USB 3.2 Gen 2; 2 x USB 3.2 Gen 1; 1 x HDMI (usable with iGPU); 1 x VGA (from BMC); 2 x GbE LAN; 1 x Mgmt LAN; 1 x PS/2 KB/Mouse
- Cooling Fans: 3 x 6 cm front fans; 2 x 4 cm rear fans
- Dimension (D x W x H): 400 x 435 x 90 mm
- Power Supply: Redundant power supply 550 W
- Operating System: Preloaded OS (As per requirement)
-->
