BEST SELLING TERRAMASTER STORAGE PRICELIST
TerraMaster D5 Hybrid 5 Bay Storage
- Brand: TerraMaster
- Model No: TerraMaster D5 Hybrid DAS Storage
- Disk Slot Number: 2
- Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
- Maximum Internal Raw Capacity: 68 TB (22 TB drive x 2 + 8 TB drive x 3) (Capacity will vary along with the RAID type)
- RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1
- Hardware RAID: Yes
- USB: USB3.2 Type-C gen2 10Gbps
- Power Socket: DC IN 12V
- Reading Speed (max.): Read 565MB/s ( HDD*2_RAID0 ); Read 960MB/s ( SSD*2_RAID0 )
- Writing Speed (max.): Write 524MB/s ( HDD*2_RAID0); Write 956MB/s ( SSD*2_RAID0 )
- System fan: 80 mm x 80 mm x25mm (x 1)
- Fan mode: Smart
- Noise Level: 19.0 dB(A)
- Power Supply: 40 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 30 W(Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in read/write state ), 8.1 W (Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Windows OS, Mac OS, Linux
- Size: 222 x 119 x 154 mm
- Weight: 1.3 Kg
- Warranty: 2 years Warranty

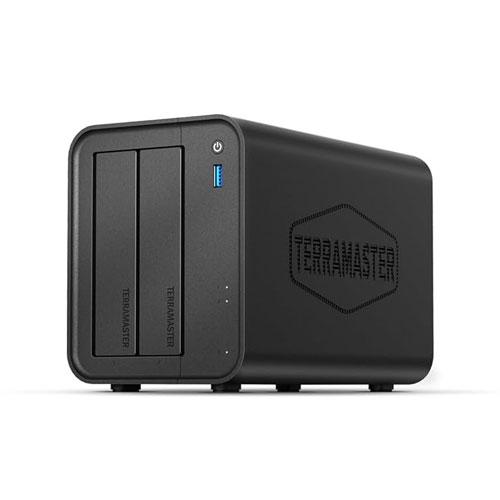

TerraMaster D2 320 USB RAID Enclosure
- Brand: TerraMaster
- Model No: TerraMaster D2 320 DAS Storage
- Disk Slot Number: 2
- Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
- Maximum Internal Raw Capacity: 44 TB (22 TB drive x 2) (Capacity will vary along with the RAID type)
- RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1
- Hardware RAID: Yes
- USB: USB3.2 Type-C gen2 10Gbps
- Power Socket: DC IN 12V
- Reading Speed (max.): Read?565MB/s ( SSD* 1 ); Read?1075MB/s ( SSD* 2 )
- Writing Speed (max.): Write?524MB/s ( SSD*1 ); Write?956MB/s ( SSD*2 )
- System fan: 80 mm x 80 mm x25mm (x 1)
- Fan mode: Smart
- Noise Level: 23.8 dB(A)
- Power Supply: 40 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 19.4 W(Fully loaded Seagate 22TB ST22000NM001E hard drive(s) in read/write state), 5.2 W (Fully loaded Seagate 22TB ST22000NM001E hard drive(s) in hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Windows OS?Mac OS?Linux
- Size: 222 x 119 x 154 mm
- Weight: 1.3 Kg
- Warranty: 2 years Warranty

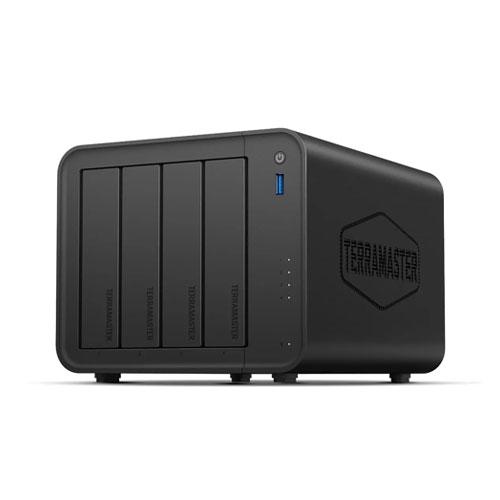

TerraMaster D4 320 4 Bay DAS Storage
- Brand: TerraMaster
- Model No: TerraMaster D4 320 DAS Storage
- Disk Slot Number: 4
- Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
- Maximum Internal Raw Capacity: 88 TB (22 TB drive x 4)
- RAIDs Supported: SINGLE DISK
- Hardware RAID: Yes
- USB: USB3.2 Type-C gen2 10Gbps
- Power Socket: DC IN 12V
- Reading Speed (max.): Read?560MB/s ( SSD* 1 ); Read?1016MB/s ( SSD* 4)
- Writing Speed (max.): Write?520MB/s ( SSD*1 ); Write?960MB/s ( SSD*4 )
- System fan: 120 x 120 x 25mm 1PCS
- Fan mode: Smart
- Noise Level: 21.0dB(A)
- Power Supply : 72 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 40.8 W(Access), 9.8 W (Hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Windows OS?Mac OS?Linux
- Size (H*W*D): 222 x 179 x 154 mm
- Weight: 1.9 Kg
- Warranty: 2 years Warranty
TerraMaster D8 Hybrid RAID Enclosure
- Brand: TerraMaster
- Model No: TerraMaster D8 Hybrid RAID Storage
- Disk Slot Number: 4
- Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- M.2 2280 NVMe Slot: 4(PCle3.0/4.0/5.0)
- File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
- Maximum Internal Raw Capacity: 120TB (22 TB drive x 4 + 8 TB drive x 4)
- RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1?Only HDD1 and HDD2 support RAID array creation?the rest operate in Single mode.?
- Hardware RAID: Yes
- USB: USB3.2 Type-C gen2 10Gbps
- Power Socket: DC IN 12V
- Reading Speed (max.): Read?560MB/s ( SSD* 1 ); Read?1016MB/s ( SSD* 4)
- Writing Speed (max.): Write?520MB/s ( SSD*1 ); Write?960MB/s ( SSD*4 )
- System fan: 120 x 120 x 25mm 1PCS
- Fan mode: Smart
- Noise Level: 21.0dB(A)
- Power Supply: 90 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 40.8 W(Access), 9.8 W (Hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Windows OS?Mac OS?Linux
- Size (H*W*D): 222 x 179 x 154 mm
- Weight: 1.9 Kg
- Warranty: 2 years Warranty
TerraMaster D4 SSD 4 Bay All Flash Storage
- Brand: TerraMaster
- Model No: TerraMaster D4 SSD DAS Storage
- Disk Slot Number: 4
- Compatible Disk Types: PCIe NVMe M.2 2280 SSD
- File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
- Maximum Internal Raw Capacity: 32 TB (8TB SSD * 4)
- RAIDs Supported: SINGLE DISK
- USB: USB4 40Gbps
- Reading Speed (max.): 3257 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1600MB/s (Samsung 990 Pro 4TB*1)
- Writing Speed (max.): 3192 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1500MB/s (Samsung 990 Pro 4TB*1)
- System fan: 50 x 50 x 10mm 2PCS
- Fan mode: Smart
- Noise Level: 19.0 dB(A)
- Power Supply: 24 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 Hz, Single Phase
- Power Consumption: 15.0 W (Fully loaded Seagate 2TB M.2 SSDs in read/write state), 6.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Mac OS?Windows 11(24H2 or later version)
- Size (H*W*D): 138 x 60 x 140 mm
- Weight: 392g
- Warranty: 2 years Warranty
TerraMaster U8 500 Plus Direct Attached Storage
- Brand: TerraMaster
- Model No: TerraMaster D1 SSD Plus DAS Storage
- Disk Slot Number: 1
- Compatible Disk Types: PCIe NVMe M.2 2280 SSD
- File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
- Maximum Internal Raw Capacity: 8 TB (8TB SSD * 1)
- RAIDs Supported: SINGLE DISK
- USB: USB4 40Gbps
- Reading Speed (max.): 3641 MB/s (Samsung 990 Pro 4TB M.2 SSD*1)
- Writing Speed (max.): 3498 MB/s (Samsung 990 Pro 4TB M.2 SSD*1)
- Noise Level: Noiseless
- Power Supply: USB 5V
- Power Consumption: 7.5 W (Built-in Samsung 990 Pro 4TB M.2 SSD in read/write state), 5.5 W (Built-in Samsung 990 Pro 4TB M.2 SSD in hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Mac OS?Windows 11(24H2 or later version)
- Size (H*W*D): 112.5 x 60.0 x 33.0 mm
- Weight: 246 g
- Warranty: 2 years Warranty
TerraMaster T12 423 12 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster T12 423 NAS Storage
- Processor Model: Intel Celeron N5095
- Processor Architecture: X.86 64-bit
- Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 8 GB DDR4 non-ECC SODIMM
- Pre-installed Memory module: 8 GB DDR4 non-ECC SODIMM (1x 8GB)
- Total Memory Slot Number: 2 (DDR4 SODIMM)
- Maximum Supported Memory: 32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM
- Disk Slot Number: 12
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 120TB (20TB x6)
- System Fan: 92 x 92 x 25mm 3PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 31.4 dB(A)
- Power Supply: 500W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 39.2W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state), 16.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
- Size (H*W*D): 334 x 163x 295 mm
- Weight: 10.3 kg
- Warranty: 2 years Warranty
TerraMaster T9 423 9 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster T6 423 NAS Storage
- Processor Model: Intel Celeron N5095
- Processor Architecture: X.86 64-bit
- Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 8 GB DDR4 non-ECC SODIMM
- Pre-installed Memory module: 8 GB DDR4 non-ECC SODIMM (1x 8GB)
- Total Memory Slot Number: 2 (DDR4 SODIMM)
- Maximum Supported Memory: 32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM
- Disk Slot Number: 9
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 180TB (20TB x9)
- System Fan: 80 x 80 x 25 mm 3PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 31.2 dB(A)
- Power Supply: 250W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 72W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state), 29 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
- Size (H*W*D): 334 x 135 x 295 mm
- Weight: 8.9 kg
- Warranty: 2 years Warranty
TerraMaster T6 423 6 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster T6 423 NAS Storage
- Processor Model: Intel Celeron N5095
- Processor Architecture: X.86 64-bit
- Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 4 GB DDR4 non-ECC SODIMM
- Pre-installed Memory module: 4 GB DDR4 non-ECC SODIMM (1x 4GB)
- Total Memory Slot Number: 2 (DDR4 SODIMM)
- Maximum Supported Memory: 32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM
- Disk Slot Number: 6
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 120TB (20TB x6)
- System Fan: 40 x 40 x 28mm 3PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 34.5 dB(A)
- Power Supply: 120W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 39.2W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state), 16.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
- Size (H*W*D): 226 x 130 x 218 mm
- Weight: 3.9 kg
- Warranty: 2 years Warranty
TerraMaster U4 423 4 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster U4 423 NAS Storage
- Processor Model: Intel Celeron N5095
- Processor Architecture: X.86 64-bit
- Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 4 GB DDR4 non-ECC SODIMM
- Pre-installed Memory module: 4 GB DDR4 non-ECC SODIMM (1x 4GB)
- Total Memory Slot Number: 2 (DDR4 SODIMM)
- Maximum Supported Memory: 32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM
- Disk Slot Number: 4
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 80TB (20TB x4)
- System Fan: 40 x 40 x 28mm 3PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 34.5 dB(A)
- Power Supply: 90W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 35.2W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state), 13.9 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
- Size (H*W*D): 45*440 *360 mm
- Weight: 6.8 kg
- Warranty: 2 years Warranty
TerraMaster F6 424 6 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster F8 SSD 8 Bay NAS Storage
- Processor Model: Intel N95
- Processor Architecture: X.86 64-bit
- Processor Frequency: 4-Core (Max burst up to 3.4 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 8 GB DDR5 non-ECC SODIMM
- Pre-installed Memory module: 8 GB DDR5 non-ECC SODIMM (1x 8 GB)
- Total Memory Slot Number: 1 (DDR5 SODIMM)
- Maximum Supported Memory: 32 GB DDR5 non-ECC SODIMM
- Disk Slot Number: 6
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 132 TB (22 TB x6) (Capacity may vary by RAID types)
- Internal Drive: Btrfs, EXT4
- External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
- RJ-45 2.5GbE Network Jack: 2
- USB3.2 Host Port: Type A *1 (10 Gbps) ; Type C *1 (10 Gbps)
- M.2 2280 NVMe Slot: 2 (PCIe 3.0 x1)
- System Fan: 92 x 92 x 25 mm 2PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 22.0 dB(A)
- Power Supply: 150 W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 43.0 W(Fully loaded WD RED WD221KFGX 22TB hard drive(s) in read/write state), 15.0 W (Fully loaded WD RED WD221KFGX 22TB hard drive(s) in hibernation)
- Size (H*W*D): 154x 240 x222 mm
- Weight: 2.7 Kg
- Warranty: 2 years Warranty
TerraMaster F8 SSD 8 Bay NAS Enclosure
- Brand: TerraMaster
- Model No: TerraMaster F8 SSD 8 Bay NAS Storage
- Processor Model: Intel N95
- Processor Architecture: X.86 64-bit
- Processor Frequency: Max burst up to 3.4 GHz
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 8 GB DDR5 non-ECC SODIMM
- Pre-installed Memory module: 8 GB DDR5 non-ECC SODIMM (1x 8 GB)
- Total Memory Slot Number: 1 (DDR5 SODIMM)
- Maximum Supported Memory: 32 GB DDR5 non-ECC SODIMM
- Maximum Internal Raw Storage Capacity: 64 TB (8 TB x8)
- Internal Drive: Btrfs, EXT4
- External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
- RJ-45 10GbE Network Jack: 1
- USB3.2 Host Port: 3(10Gbps)
- M.2 2280 NVMe Slot: 8(PCIe 3.0 x1?
- System Fan: 50 x 50 x 10mm 2PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 19.0 dB(A)
- Power Supply: 72 W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 45.0 W(Fully loaded Seagate 2TB M.2 SSDs in read/write state), 9.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation)
- Size (H*W*D): 177 x 60 x 140 mm
- Weight: 0.7 Kg
- Warranty: 2 years Warranty
TerraMaster D4 SSD NVMe Enclosure
- Brand: TerraMaster
- Model No: TerraMaster D4 SSD DAS Storage
- Disk Slot Number: 4
- Compatible Disk Types: PCIe NVMe M.2 2280 SSD
- File System: NTFS, APFS, Mac OS, FAT32, EXT4, exFAT
- Maximum Internal Raw Capacity: 32 TB (8TB SSD * 4)
- RAIDs Supported: SINGLE DISK
- USB: USB4 40Gbps
- Reading Speed (max.): 3257 MB/s
- Writing Speed (max.): 3192 MB/s
- System fan: 50 x 50 x 10mm 2PCS
- Fan mode: Smart
- Noise Level: 19.0 dB(A)
- Power Supply: 24 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 Hz, Single Phase
- Power Consumption: 15.0 W, 6.0 W
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Mac OS?Windows 11(24H2 or later version)
- Size (H*W*D): 138 x 60 x 140 mm
- Weight: 392 g
- Warranty: 2 years Warranty
TerraMaster F4 425 4 Bay Home NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster F4 425 NAS Storage
- Processor Model: Intel N5095
- Processor Architecture: x86 64-bit
- Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 4 GB DDR4 non-ECC SODIMM
- Pre-installed Memory Module: 4 GB DDR4 non-ECC SODIMM (1x 4GB)
- Total Memory Slot Number: 1 DDR4 SODIMM
- Maximum Supported Memory: 16GB DDR4 non-ECC SODIMM
- Disk Slot Number: 4
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 120 TB (30TB x4) (Capacity may vary by RAID types)
- Drive Hot Swap: Yes
- Internal Drive: Btrfs, EXT4
- External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
- RJ-45 5GbE Network Port: 1
- USB3.2 Host Port: 2 x 10 Gbps + 1 x 5 Gbps
- HDMI: 1 x HDMI
- System Fan: 120 x 120 x 25mm 1PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 21.0 dB(A) ?Using 2 SATA HDDs/SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m?
- Power Supply: 90 W
- Redundancy Power Supply: Null
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 33.0 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state), 13.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
- Size (H*W*D): 222 x 179 x 154 mm
- Weight: 2.1 Kg
- Warranty: 2 years Warranty
TerraMaster F2 425 2 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster F2 425 NAS Storage
- Processor Model: Intel N5095
- Processor Architecture: x86 64-bit
- Processor Frequency: Quad Core 2.0 GHz (Max burst up to 2.9 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 4 GB DDR4 non-ECC SODIMM
- Pre-installed Memory Module: 4 GB DDR4 non-ECC SODIMM (1x 4GB)
- Total Memory Slot Number: 1 DDR4 SODIMM
- Maximum Supported Memory: 16GB DDR4 non-ECC SODIMM
- Disk Slot Number: 2
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 60TB (30TB x2) (Capacity may vary by RAID types)
- Drive Hot Swap: Yes
- Internal Drive: Btrfs, EXT4
- External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
- RJ-45 5GbE Network Port: 1
- USB3.2 Host Port: 2 x 10 Gbps + 1 x 5 Gbps
- HDMI: 1 x HDMI
- System Fan: 80 x 80 x 25mm, 1PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m)
- Power Supply: 48 W
- Redundancy Power Supply: Null
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 22.0 W(fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state), 11.0 W(fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
- Size (H*W*D): 222 x 119 x 154 mm
- Weight: 1.5 Kg
- Warranty: 2 years Warranty
TerraMaster F4 SSD NAS Enclosure
- Brand: TerraMaster
- Model No: TerraMaster F4 SSD NAS Storage
- Processor Model: Intel N95
- Processor Architecture: x86 64-bit
- Processor Frequency: Max burst up to 3.4 GHz
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 8 GB DDR5 non-ECC SODIMM
- Pre-installed Memory Module: 8 GB DDR5 non-ECC SODIMM (1x 8 GB)
- Total Memory Slot Number: 1 × DDR5 SODIMM
- Maximum Supported Memory: 16 GB DDR5 non-ECC SODIMM
- Disk Slot Number: Null
- Compatible Drive types: Null
- Maximum Internal Raw Storage Capacity: 32 TB (8 TB x4) (Capacity may vary by RAID types)
- Drive Hot Swap: Null
- Internal Drive: Btrfs, EXT4
- External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
- RJ-45 5GbE Network Port: 1
- System Fan: 50 x 50 x 10mm 2PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m)
- Power Supply: 48 W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 32.0 W(Fully loaded Seagate 2TB M.2 SSDs in read/write state), 8.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation)
- USB3.2 Host Port: 3 x 10 Gbps?Type A x2 + Type C x1)
- HDMI: 1 x HDMI 2.b
- M.2 2280 NVMe Slot: 2(PCIe 3.0 x2?+2(PCIe 3.0 x1)
- Size (H*W*D): 138 x 60 x 140 mm
- Weight: 0.6 Kg
- Warranty: 2 years Warranty
-->
CLICK TO CALL
