BEST SELLING GRAPHTEC PLOTTER PRICELIST
Graphtec FC9000 160 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 160 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1626mm × 50m
- Cutting area of guaranteed accuracy (*1): 1607mm × 10m 894mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 24kg
- Maximum cross cut width : 1626mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 4 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 2224?1151?1232 mm
- Weight: 70 kg

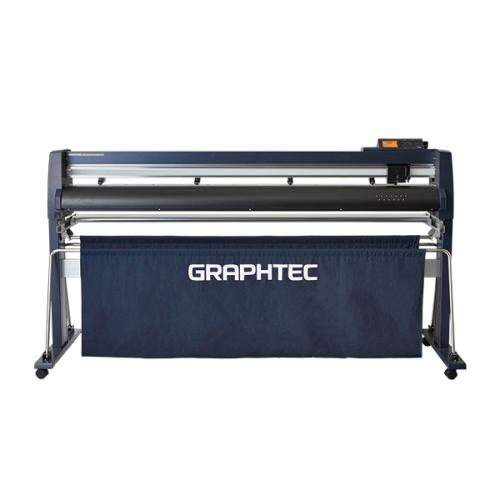

Graphtec FC9000 140 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 140 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1372mm × 50m
- Cutting area of guaranteed accuracy (*1): 1352mm × 10m 894mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 20kg
- Maximum cross cut width: 1372mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 4 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 1970?1151?1232 mm
- Weight: 64 kg

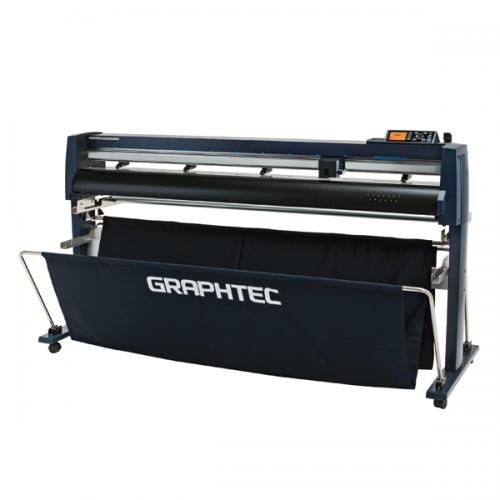

Graphtec FC9000 100 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 100 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 1067mm × 50m
- Cutting area of guaranteed accuracy (*1): 1047mm × 10m 762mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 16kg
- Maximum cross cut width: 1067mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 3 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment: 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 1665?1151?1232 mm
- Weight: 56 kg
Graphtec FC9000 75 Vinyl Cutting Plotter
- Brand: Graphtec
- Model No: FC9000 75 Cutting Plotter
- Configuration: Grit rolling type
- Drive method: Digital servo drive
- Max. cutting area (W x L) (*1): 762mm × 50m
- Cutting area of guaranteed accuracy (*1): 742mm × 15m
- Mountable media width (*2): Min. 50mm
- Mountable roll media diameter: 76 to 200mm (160mm when the optional paper flange (OPH-A21) is installed)
- Mountable roll media mass: 12kg
- Maximum cross cut width: 762mm
- Max. cutting speed: 1485mm/s at 45° direction
- Axial acceleration: Max. 39.2m/s2 at 45° direction
- Cutting force: Max. 5.88N (600gf)
- Minimum character size: Approx. 3 mm alphanumeric (varies depending on character font and media)
- Mechanical resolution: 0.005mm
- Repeatability (*1): Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
- Number of push rollers: 2 rollers
- Mountable number of tools: 1 tool (mountable 2 tools (option))
- Blade types: Supersteel
- Pen types: Oil-based ballpoint pen, Water-based fiber-tip pen
- Display: Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
- Interface: USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer memory: 2MB
- Power source: 100 V to 240 V AC, 50 / 60 Hz
- Power consumption: Max. 120 W
- Operating environment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- External dimensions (W × D × H): 1360?1151?1232 mm
- Weight: 49 kg
-->
