• Brand : Dell
• Model : PowerEdge FC640 Server Sled
• Form Factor : 1U half-width Modular Compute Sled, up to 4 FC640 per FX2 chassis
• Chassis : FX2
• Processor : Up to two 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
• Memory : 16 DDR4 DIMM slots, supports RDIMM / LRDIMM / AEP, up to 2933MT/s speeds, 2TB max mem ECC Registered DDR4
• Operating System : Canonical Ubuntu LTS, Citrix Hypervisor, Microsoft Windows Server LTSC with Hyper-V, Oracle Linux, Red Hat Enterprise Linux, SUSE Linux Enterprise Server[SK1], VMware vSphere
• Front Bay : Up to 2 x 2.5” SAS/SATA/NVMe (HDD/SSD), max 12.8TB
• Internal Controllers : PERC H330, H730p, HBA330
• Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB, Internal Dual SD Module, ESXi (only OS supported)
• Mobility : OpenManage Mobile
• Connections : Nagios Core and Nagios XI, MicroFocus
• I/O mezzanine cards : Access to 1 x PCIe 3.0 (x8) expansion slots
• Power Supplies : (FX2 chassis), 1600W Platinum, 2000W Platinum, 2400W Platinum, 1+1 redundant, redundancy alerting only (RAO), & 2+0 non-redundant configurations, Up to 8 hot plugs fans with full redundancy
• Network Options : 2 x 10GbE + 4 x 10GbE, 4 x 1GbE
• PCIe : See PowerEdge FX2 chassis specification
• Video Card : 1 x VGA controller integrated with iDRAC
• Height : 211.0mm (8.3)
• Width : 40.3mm (1.6)
• Depth : 535.8mm (21.1)
• Weight : 5.8kg (12.79lbs.)

• Brand : Dell
• Model : PowerEdge VRTX Chassis
• Form Factor : Tower or 5U rack enclosure
• Tower configuration : 48.4cm (19.1) H with system feet x 31.0cm (12.2) W with system feet opened x 73.0cm (28.7) D
• Weight (empty) = 31.7kg (69.7lb)
• Weight (maximum) = 74.8kg (164.9lb)
• Rack configuration : 21.9cm (8.6) H x 48.2cm (19.0) W x 73.0cm (28.7) D
• Weight (empty) = 24.7kg (54.5lb)
• Weight (maximum) = 68.7kg (151.5lb)
• Server node options : PowerEdge M520, M620, M630, M820 and M830 server nodes
• Drive bays and hard drives : Up to 12 x 3.5” NLSAS, SAS or SAS SSD hot-plug drives or up to 25 x 2.5” NLSAS, SAS or SAS SSD hot-plug drives, Optional FIPS 140-2 certified self-encrypting drives (SED), up to 25 x 2.5 NLSAS, SAS or SAS SSD
• Power supplies : Redundant power supply units support 2+2 (AC redundancy) and 3+1 (power supply redundancy) modes, US/Canada: 110/220V (typical), EU/China: 220-240V, Japan: 100V/220V, Other: Up to 240V
• Cooling : PowerEdge VRTX comes standard with 6 hot-pluggable, redundant fan modules and 4 blower modules based on Dell Energy Smart Technologies. The fans and blowers deliver low-power consumption, but also use next-generation fan technologies to ensure the lowest possible amount of fresh air is consumed to cool the enclosure.
• RAID controller : Single shared PERC8 with optional second redundant shared PERC8 available
• Integrated networking – ethernet : Internal 1GbE 8-port pass-through module, Internal 1GbE 24-port switch, Internal 10GbE switch
• I/O slots : 8 flexible PCIe slots: 3 full-height/full-length slots (150W) with double-wide card support (225W), 5 low-profile/half-length slots (25W)
• Rack Support : ReadyRails II sliding rails for 4-post racks with square, round, or threaded holes

• Brand : Dell
• Form Factor : Up to 4 independent hot-swappable, 2-socket C6420 sleds in a 2U C6400 chassis
• Model : PowerEdge C6420 Server
• Processor : Up to two Intel Xeon Scalable processors including integrated Omni-Path fabric processors with up to 28 cores per processor and up to 205W processors.
• Memory : 8 DIMM slots per socket with max of 1024GB with options for 16GB/32GB/64GB RDIMMS @ 2933MT/s, 8GB RDIMMs @2666MT/s, and 128 LRDIMMs @2666MT/s
• Operating System : Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• Chipset : Intel C620 Chipset SATA controller
• Front Bay : Up to 24 x 2.5" Direct Backplane configuration with up to 6 SAS/SATA drives per node, Up to 24 x 2.5" Expander Backplane configuration with up to 12 SAS/SATA drives per node and two nodes per chassis, Up to 24 x 2.5" NVMe Backplane configuration with up to 6 drives per node out of which two drives can be NVMe drive, Up to 12 x 3.5" Direct Backplane configuration with up to 3 SAS/SATA drives per node
• Internal Controllers : PERC H330, H730p, HBA330
• Internal Boot : Boot Optimized Storage Subsystem (BOSS), HW RAID 2 x M.2 SSDs 240GB or 480GB
• Mobility : OpenManage Mobile
• Power Supplies : 1600W AC Platinum, 2000W AC Platinum, 2400W AC Platinum, Hot plug power supplies with full redundancy and non-redundancy option, Cooling options: Air Cooling, Direct Liquid Cooling (DLC)
• Network Options : 1 x 1Gb Ethernet, 1 x 10Gb Ethernet, 1 x 25Gb Ethernet, 1 x 40Gb Ethernet, 1 x 100Gb Ethernet
• Rear Ports : 1 x Dedicated iDRAC micro-USB port, 2 x USB 3.0
• Integrations : OpenManage integrations: Microsoft System Center, VMware vCenter, BMC Software (available from BMC)
• Connections : Nagios Core and Nagios XI, Oracle Enterprise Manager, HPE Operations Manager i (OMi)
• PCIe : 1 x 16 PCIe Gen3 riser, 1 x 8 PCIe Gen3 Mezzanine, 1 x 16 PCIe Gen3 OCP Mezzanine, 1 x 16 PCIe Gen3 riser, 1 x Display port on the rear of the sled
• Video Card : 1 x VGA
• Height : 86.80mm (3.4 inches)
• Width : 448.00mm (17.6 inches)
• Depth : 790.00mm (31.1 inches)
• Weight : 43.60kg (96.2lbs.) 3.5” direct backplane chassis, 41.50kg (91.4lbs) 2.5” direct/expander/NVMe backplane chassis, 34.56xkg (76.2lbs) no backplane chassis, Dimensions do not include bezel

• Brand : Dell
• Form Factor : Up to 4 independent hot-swappable, 2-socket C6520 sleds in a 2U C6400 chassis
• Model : PowerEdge C6520 Server
• Processor : Up to two 3rd Generation Intel Xeon Scalable processors per node, with up to 40 cores per processor, Direct Contact Liquid Cooling (DCLC) option: Yes
• Memory : 16 DDR4 DIMM slots, supports RDIMM of 1 TB max or LRDIMM of 2 TB max, speeds up to 3200 MT/s, Supports registered ECC DDR4 DIMMs only
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi/vSAN CentOS, Windows Preinstallation Environment (WinPE) 64-bit drivers
• Chipset : Intel C620 series chipset
• Front Bay : Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) drives max 92.16 TB, Up to 24 x 2.5-inch SAS/SATA (HDD/SSD)/NVMe drives max 368.64 TB
• Internal Controllers : PERC H745, HBA345, S150, H345
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, uSD card
• Mobility : OpenManage Mobile
• Accelerators : Low-profile (Half-height) 75 W GPU
• Fans : Non-Hot plug fans
• Power Supplies : Dual hot-plug redundant 100 - 240 V AC Platinum (2600 W, 2400 W, 2000 W, 1600 W) Power supply units
• Network Options : 1 x 1 GbE LOM riser, 1 x OCP 3.0
• Rear Ports : 1 x iDRAC Direct port (Micro-AB USB), 1 x Mini-DisplayPort, 1 x iDRAC or NIC or RJ45 port, 1 x USB 3.0
• PCIe : 2 x PCIe x16 Gen4 Risers with support for SNAP I/O modules (Low-profile, Half-height, and Half-length), 1 x OCP 3.0 x16 Gen4 (for network controller), 1 x PCIe x8 Gen4 M.2 Riser (for M.2 Boot Device)
• Video Card : 1 x VGA
• Height : 40.1 mm (1.58 inches)
• Width : 174.4 mm (6.86 inches)
• Depth : 570.34 mm (22.45 inches)
• Weight : Max 45.6 kg (100.53 lbs.) for 12 x 3.5-inch drive

• Brand : Dell
• Form Factor : Up to 4 independent hot-swappable, 2-socket C6525 sleds in a 2U C6400 chassis
• Model : PowerEdge C6525 Server
• Processor : Up to two 3rd Gen AMD EPYC™ Processors per node configurations with up to 64 cores per processor and up to 280W (cTDP)
• Memory : Up to 16 x DDR4, RDIMM 2TB Max, LRDIMM 2TB Max, Bandwidth up to 3200 MT/S
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi/vSAN CentOS, Windows Preinstallation Environment (WinPE) 64-bit drivers
• Drive bays : 2.5” Direct Backplane configuration with up to 6 SAS/SATA drives per node, up to 24 per chassis, 2.5” NVMe Backplane configuration with up to 2 NVMe drives and 4 SAS/SATA drives per node, Up to 24 drives total per chassis, 3.5” Direct Backplane configuration with up to 3 SAS/SATA drives per node, up to 12 per chassis, Internal: uSD card | M.2 SATA BOSS 1.0
• Internal Controllers : PERC H745, HBA345, S150, H345
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, uSD card
• Mobility : OpenManage Mobile
• Embedded NIC : Single port 1GbE LOM
• Networking Options (NDC) : 1x OCP 3.0
• GPU options : 1x Single-Wide GPU
• Availability : Hot plug redundant Hard drives, Fans, PSUs
• Power Supplies : Dual Hot-plug redundant 1600W and 2400W AC Power Supply, Dual Hot-plug redundant 2000W AC/DC Mixmode Power
• Supply, Cooling options : Air Cooling, Direct Liquid Cooling (DLC)
• Network Options : Single port 1GbE LOM
• Rear Ports : 1 x iDRAC Direct micro-USB port, 1 x Mini-display port, 1 x iDRAC or NIC port, 1 x USB 3.0 port
• PCIe : 2 x PCIe x16 Gen4 Risers, 1 x OCP 3.0 x16 Gen4, 1 x PCIe x8 Gen3 M.2 Riser
• Height : 86.8mm (3.4 inches)
• Width : 448.0mm (17.6 inches)
• Depth : 790.0mm (31.1 inches)
• Weight : 45.53kg (100.3lbs) 3.5” direct backplane chassis, 41.5kg (91.4lbs) 2.5” direct/NVMe backplane chassis, 35.15kg (77.4lbs) no backplane chassis

• Brand : Dell
• Form Factor : 2U rack server
• Model : PowerEdge XR12 Rack Server
• Processor : One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
• Memory : Eight DDR4 DIMM slots, supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s, Up to four Intel Optane PMem 200 Series slots, 512 GB max, Supports registered ECC DDR4 DIMMs only
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, RedHat Enterprise Linux, RHEL Realtime, SUSE Linux Enterprise Server, VMware ESXi
• Chipset : Intel C620 series chipset
• Front Bay : Up to 6 x 2.5-inch SAS/SATA/NVMe SSDs max 92 TB
• Rear Bay : N/A
• Internal Controllers : PERC H755, PERC H345, HBA355i
• External Controllers : PERC H840, HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB 3.0
• Mobility : OpenManage Mobile
• Accelerators : Up to 2 double-width 300 W, or up to two single-width 70 W or 150 W
• Network Ports : 4 x 25 GbE SFP+ LOM
• Front Ports : 2 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC Direct (Micro-AB USB) port, Rear ports-N/A
• Rear Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, Rear ports-1 x USB 2.0, 1 x USB 3.0, 1 x iDRAC dedicated port, 1 x Serial, 1 x VGA
• Internal Ports : 1 x USB 3.0
• PCIe : 1 x PCIe LP Slot Gen4 (x8), up to 4 x PCIe FH Slots Gen 4 (x16/x16)
• Video Card : 1 x VGA
• Bezel : Optional bezel or security bezel
• Rear Accessed configuration : Height: 86.8 mm (3.41 inches), Width: 482.6 mm (19 inches), Depth: 400 mm (15.74 inches) Ear to rear wall, 477 mm (18.77 inches) with bezel, 463 mm (18.22 inches) without bezel
• Front Accessed configuration : Height: 86.8 mm (3.41 inches), Width: 482.6 mm (19 inches), Depth: 400 mm (15.74 inches) Ear to rear wall, 553 mm (21.76 inches) with bezel, 463 mm (18.22 inches) without bezel

• Brand : Dell
• Form Factor : 1U rack server
• Model : PowerEdge XR11 Rack Server
• Processor : One 3rd Generation Intel Xeon Scalable processor with up to 36 cores
• Memory : Eight DDR4 DIMM slots, supports RDIMM 512 GB max or LRDIMM 1 TB max, speeds up to 3200 MT/s, Up to four Intel Optane PMem 200 Series slots, 512 GB max, Supports registered ECC DDR4 DIMMs only
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, RedHat Enterprise Linux, RHEL Realtime, SUSE Linux Enterprise Server, VMware ESXi
• Chipset : Intel C620 series chipset
• Front Bay : Up to 4 x 2.5-inch SAS/SATA/NVMe (SSDs) max 61.44 TB
• Rear Bay : N/A
• Internal Controllers : PERC H755, PERC H345, HBA355i
• External Controllers : PERC H840, HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, USB 3.0
• Mobility : OpenManage Mobile
• Accelerators : Up to two single-width 70 W
• Power Supplies : 1400 W Platinum AC/240 HVDC, 1100 W DC/ -48-(-60) V, 1100 W Titanium Mixed Mode AC/100-240 V, DC/240 V, 800 W Platinum AC/240 HVDC, 800 W DC/-48 V, DC/(-40-(-72)), 700 W Titanium Mixed Mode HLAC AC/200-240 V, DC/240 V, Hot plug power supplies with full redundancy option, Six cold swap fans
• Network Ports : 4 x 25 GbE SFP+ LOM
• Front Ports : Rear Accessed Configuration-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, Front Accessed Configuration-1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial, 1 x VGA, 1 x iDRAC Direct (Micro-AB USB) port
• Rear Ports : Rear Accessed Configuration-1 x USB 2.0, 1 x USB 3.0, 1 x iDRAC dedicated port, 1 x Serial, 1 x VGA, Front Accessed Configuration-N/A
• Internal Ports : 1 x USB 3.0
• PCIe : 3 x PCIe Gen4 slots
• Video Card : 1 x VGA
• Bezel : Optional bezel or security bezel
• Height : Rear accessed configuration-42.8 mm (1.68 inches), Front accessed configuration-42.8 mm (1.68 inches)
• Width : Rear accessed configuration-482.6 mm (19 inches), Front accessed configuration-482.6 mm (19 inches)
• Depth : Rear accessed configuration-400 mm (15.74 inches) ear to rear wall, 477 mm (18.77 inches) with bezel, 463 mm (18.22 inches) without bezel, Front accessed configuration (no bezel support), 400 mm (15.74 inches) ear to rear wall-463 mm (18.22 inches) without bezel
• Weight : Rear accessed configuration-Max 10.7 kg (23.58 lbs.), Front accessed configuration-Max 10.7 kg (23.58 lbs.)
• Rack Support : Sliding, stab-in rails with optional CMA and SRB for 4-post racks with rack post distance of 470 - 750 mm. These rails also support optional CMA and SRB for 2-post racks, Sliding, stab-in rails for rugged transit case (MIL 901E certified in (Pelican Custom Rack 25-036329-01) with rack post distance of 425 - 558 mm.

• Brand : Dell
• Form Factor : 1U rack server
• Model : PowerEdge XR2 Rack Server
• Processor: Intel Up to 2x150W Intel Xeon Scalable processors or one 150W Intel Xeon Scalable processor
• Dimensions & Weight:
• Chassis width:434.00mm (17.08)
• Chassis depth:545.65mm (21.48) (2.5" HHD config)
• Chassis weight:7.8 kg (17.2)
• Form factor: Rack (1U)
• Memory: DIMM Speed:Up to 2667MT/s DDR4 DIMMs, Memory Type:RDIMMs/LRDIMMs, Memory Module Slots:16, Maximum RAM:Up to 2TB
• Hard Drive:Up to 8 x 2.5 hot-plug SAS, SATA SSD in classic chassis,Up to 4 x 2.5" hot-plug SAS, SATA SSD and up to 4 x 2.5" hot-plug NVMe drives in new High Performance Chassis
• Bezel:Optional OEM debranded or rebranded bezel to showcase your logo
• Power Supplies:Redundant hot swap 550W power supplies
• Storage Controllers:Internal controllers: PERC H330, PERC H730P, HBA330
• Network Controller:Integrated Broadcom 5720 2 x 1Gb LOM plus optional LOM Riser
• LOM Riser Options:Broadcom 5720 2x 1Gb,Broadcom57416 2 x 10Gb Base-T,Broadcom 57416 2 x 10Gb SFP+,Broadcom 2 x 25Gb SFP+
• I/O Expansion Slots:Up to 2 PCIe Gen3 x16 slots
• Front ports:1 Video , 1 eSATA, 1 USB 2.0,dedicated iDRAC Direct Micro-USB
• Rear ports:1 Video , 1 serial , 2 USB 3.0, dedicated iDRAC network port
• Video card:1 VGA
• Rack Support:Static Rails, optional Rugged Sliding Rails
• Accelerators:1 x NVIDIA T4 GPU Supported in High Performance Chassis

• Brand : Dell
• Model : PowerEdge XE8545 Server
• Processor : Two 3rd Generation AMD EPYC processors (280 W) with up to 64 cores per processor
• Memory : 32 x DDR4, Bandwidth up to 3200 MT/s
• Accelerators : 4 x NVIDIA A100 GPUs with NVIDIA NVLink, Options: 40 GB/400 W or 80 GB/500 W
• Front Storage : 10 x 2.5” Hot Plug SAS/SATA, Up to 8 x 2.5” NVMe
• Controllers : BOSS S1.5, H745
• I/O ports : 1 x PCIe Gen4 LP (x16), 1 x PCIe Gen4 FH (x16), 1 x PCIe Gen4 FH (x16) or 2 x PCIe Gen4 FH (x8)
• Thermal : Air Cooled Up to 35C for 400 W GPUs or 25C for 500 W GPUs
• Fans : 12 x Front Hot Plug Fans, 6 x Internal Fans (CPU)
• Embedded Management : iDRAC9, iDRAC Direct, Quick Sync 2.0
• Power Supplies : 4 x Hot-plug redundant 2400 W AC Power Supply
• Rack Height : 4U
• Front ports : 1 x USB 2.0 – iDRAC dedicated
• Rear ports : 1 x USB 3.0, 1 x USB 2.0
• Dimensions : Depth: 810 mm Width: 447 mm Height: 86.8 mm
• Rack Unit : 4U Rack Server
• Embedded NIC : 2x 1GbE LOM
• Networking Options : OCP x16 mezz 3.0

• Brand : Dell
• Model : PowerEdge XE2420 Server
• Processor : Two 2nd Generation Intel® Xeon® Scalable processors (max 150W Gold)
• Storage : Up to 2x 2.5” SATA/NVMe (no PERC/HBA) with Config 1A, Max 15.36TB or, Up to 4x 2.5” universal SAS/SATA/NVME with PERC/HBA with Config 2C, Max 61.44 TB or UP to 6x EDSFF E1.L SSD with Config 3A, Max 92.16TB
• Chipset : Intel C620 Series chipset
• Memory : 16x DDR4 RDIMM/LR-DIMM (12 DIMMs are balanced) up to 2993 MT/s
• Boot OS Drive : HW RAID BOSS w/ 2x M.2 drives, 240GB and 480GB
• Embedded / At-Server : iDRAC9; iDRAC Direct; iDRAC REST API with Redfish
• GPU/Flash PCI Cards : Up to 2x PCIe x16, Up to 300W passive FHFL cards (e.g. NVIDIA V100/s or NVIDIA RTX6000), or UP to 4x PCIe x8; 75W passive (e.g. NVIDIA T4), or Up to 2x FE1 storage expansion cards (up to 20x M.2 drives on each)
• Ports : 2 x 1GE LOM + OCP 2.0 Mezz (2 x 1GE or 2x 10GE SFP+ or 2 x 10GE BaseT), Video, 2 x USB 3.0, iDRAC Direct USB, serial, dedicated iDRAC network port
• Other IO Expansion : 1xOCP2 Type 1 x8 mezzanine card slot, 1x LP PCIe x8, Up to 2x PCIe x16 FHFL* or up to 4xPCIe x8 FHFL
• Security : TPM 1.2/2.0, TCM 2.0 (optional), Cryptographically signed firmware, Silicon Root of Trust, Secure Boot, System Erase
• Dimensions : 483.95mm x 444mm x 86.92mm (DxWxH)
• Mounting : Static rails
• Operating Temp : 5C to 40C
• Chassis : Cold aisle service. All cables and connectors are accessible from the cold aisle, Optional bezel with filtration and cable management
• Power : N or N+1 2000W AC reverse flow power supply, N or N+1 1100W DC reverse flow power supply

• Brand : Dell
• Form Factor : 2U rack server
• Model : PowerEdge R940XA Rack Server
• Socket : Four Socket Server
• Processor : Up to four 2nd Generation Intel Xeon Scalable processors, up to 28 cores each
• Memory : 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max, Up to 12 NVDIMM, 384GB Max
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• Front Bay : Up to 8x 2.5” SAS SATA (HDD/SSD) max 61.44TB, or up 24 x 2.5” SAS/SATA (HDD/SSD) max 184.32TB, or up to 32 SAS/SATA (HDD/SSD) with up to 4 NVME PCIe SSD max 245.76TB
• Internal Controllers : PERC H330, H730P, H740P, HBA330
• External Controllers : H840, 12 Gbps SAS HBA
• Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
• Mobility : OpenManage Mobile
• Power Supplies : Gold 1100W -48VDC, Platinum: 1100W, 1100W 240VDC2, 1600W, 2000W, 2400W, Hot plug power supplies with full redundancy option, 6 hot plugs fans with N +1 redundancy
• Network Options : 1x OCP x16 mezz 3.0
• Front Ports : 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x VGA. (Optional 1 x USB 3.0 only offered on the 8-drive configuration)
• Rear Ports : 1 x Dedicated iDRAC port, 1 x Serial, 2 x USB 3.0, 1 x VGA
• Internal Ports : 1 x USB 3.0
• PCIe : Up to 12 x Gen3 slots, (6x16 slots or 2x16 + 10x8 slots)
• Video Card : 2 x VGA
• Accelerator : Up to 4 doublewidth GPUs or up to 4 double-width or 8 single-width full-height FPGAs
• Bezel : Optional LCD bezel or security bezel
• Height : 174.3 mm (6.87 inches)
• Width : 441.16 mm (17.37 inches)
• Depth : 835.9mm (32.9 inches)
• Weight : 56.0kg (123.5lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : 2U Rack Server
• Model : PowerEdge R840 Rack Server
• Socket : Four Socket Server
• Processor : Up to four 2nd Generation Intel Xeon Scalable processors with up to 28 cores per processor
• Memory : 48 DDR4 DIMM slots, Supports RDIMM /LRDIMM, up to 2933MT/s, 6TB max, Up to 12 NVDIMM, 384GB Max
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
• Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
• Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
• Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• External Controllers : PERC H840, HBA355e
• Internal Boot : Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
• Mobility : OpenManage Mobile
• Power Supplies : Single, Hot-plug, Power Supply Non-Redundant (1+0), 800W, Mixed Mode, NAF
• Network Options : 1x OCP x16 mezz 3.0
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
• Video Card : 1 x VGA
• Fans : Standard Fan x5
• Accelerator : Up to 2 doublewidth GPUs or up to 2 full-height FPGAs3
• Bezel : Optional LCD bezel or security bezel
• Height : 86.8mm (3.4 inches)
• Width : 434.0mm (17.8 inches)
• Depth : 835.9mm (32.9 inches)
• Weight : 36.6kg (80.7lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : 2U Rack Server
• Model : PowerEdge R750XS Rack Server
• Socket : Two Socket Server
• Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
• Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
• Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
• Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• External Controllers : PERC H840, HBA355e
• Internal Boot : Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
• Mobility : OpenManage Mobile
• Power Supplies : Single, Hot-plug, Power Supply Non-Redundant (1+0), 800W, Mixed Mode, NAF
• Network Options : 1x OCP x16 mezz 3.0
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
• Video Card : 1 x VGA
• Fans : Standard Fan x5
• Bezel : PowerEdge 2U Standard Bezel
• Height : 86.8 mm (3.41 inches)
• Width : 482 mm (18.97 inches)
• Depth : 707.78 mm (27.85 inches)- without bezel, 721.62 mm (28.4 inches)- with bezel
• Weight : 24.8 kg
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : 2U Rack Server
• Model : PowerEdge R750XS Rack Server
• Socket : Two Socket Server
• Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
• Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU
• Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB
• Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
• External Controllers : PERC H840, HBA355e
• Internal Boot : Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
• Mobility : OpenManage Mobile
• Power Supplies : Single, Hot-plug, Power Supply Non-Redundant (1+0), 800W, Mixed Mode, NAF
• Network Options : 1x OCP x16 mezz 3.0
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
• Video Card : 1 x VGA
• Fans : Standard Fan x5
• Bezel : PowerEdge 2U Standard Bezel
• Height : 86.8 mm (3.41 inches)
• Width : 482 mm (18.97 inches)
• Depth : 707.78 mm (27.85 inches)- without bezel, 721.62 mm (28.4 inches)- with bezel
• Weight : 24.8 kg
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : 1U rack server
• Model : PowerEdge R650XS Rack Server
• Socket : Two Socket Server
• Processor : Intel Xeon Silver 4314 2.4G, 16C/32T, 10.4GT/s, 24M Cache, Turbo, HT (135W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
• Chassis : 2.5 Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU
• Front Bay : 0 drive bay, Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB
• Internal Controllers : PERC H355, H345, PERC H745, PERC H755, PERC H755N, HBA355I
• External Controllers : PERC H840, HBA355E
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or Internal USB
• Mobility : OpenManage Mobile
• Power Supplies : 600W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant, 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1100W DC/-48–(-60) V, 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant, 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant
• Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
• Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet, 1 x VGA
• PCIe : Up to 3 x PCIe Gen4 slots
• Internal Ports : 1 x USB 3.0 (optional)
• Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
• Video Card : 1 x VGA
• Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks), ReadyRails static rails for 4-post and 2-post racks, Sliding rails with optional strain relief bar (SRB)
• Bezel : Optional LCD bezel or security bezel
• Height : 86.8 mm (3.41 inches)
• Width : 482.0 mm (18.97 inches)
• Depth : 734.95 mm (28.92 inches) – without bezel, 748.79 mm (29.47 inches) – with bezel
• Weight : Max 18.62 kg (41.05 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : 2U rack server
• Model : PowerEdge R550 Rack Server
• Socket : Two Socket Server
• Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
• Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5 Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU
• Front Bay : Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68.8 TB
• Internal Controllers : PERC H745, HBA355I, H345, H755
• External Controllers : PERC H840, HBA355E
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Supplies : 1100 W DC/-48 - (60) V, 1100W Titanium 100–240 VAC/ 240 VDC, 800W Platinum 100–240 VAC/ 240 VDC, 700W Titanium 200–240 VAC/240 VDC, 600W Platinum 100–240 VAC/ 240 VDC , Hot plug power supplies with full redundancy option
• Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0 (optional)
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 2 x Ethernet (RJ-45), 1 x VGA, 1 x USB 3.0
• PCIe : Up to 4: 2 x Gen3 slots (1 x8; 1 x16), 2 x Gen4 slots (2 x16)
• Internal Ports : 1 x USB 3.0
• Slots : 3 x Gen 4 PCIe slots, 1 x Gen3 PCIe slot
• Video Card : 1 x VGA
• Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks), ReadyRails static rails for 4-post and 2-post racks, Sliding rails with optional strain relief bar (SRB)
• Bezel : Optional LCD bezel or security bezel
• Height : 86.8 mm (3.41 inches)
• Width : 482.0 mm (18.97 inches)
• Depth : 685.78 mm (27 inches) – without bezel, 721.69 mm (28.72 inches) – with bezel
• Weight : 24.8 kg (54.67 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : 2U Rack Server
• Model : PowerEdge R7515 Rack Server
• Socket : One Socket Server
• Processor : One 2nd or 3rd Generation AMD EPYC Processor with up to 64 cores
• Memory : Up to 3200MT/s
• Operating System : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware® ESXi
• Storage : SSD 480 GB (hot-swap) - SATA 6Gb/s - 2.5
• Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
• Front Bay : Up to 8 x 3.5” hot plug SATA/SAS (HDD), Up to 12 x 3.5” hot plug SAS/SATA (HDD), Up to 24 x 2.5” hot plug SATA/SAS/NVMe
• Rear Bay : Up to 2 x 3.5” hot plug SAS/SATA (HDD)
• Internal Controllers : PERC HBA330, H330, H730P, H740P
• External Controllers : H840, 12Gbps SAS HBA
• Internal Boot : Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SATA SSDs
• Mobility : OpenManage Mobile
• Power Supplies : 1600W Platinum
• Network Options : 2 x 1GbE, 2 x 10GbE BT, 2 x 10GbE SFP+, 2 x 25GbE SFP28
• Front Ports : 1 x Dedicated iDRAC direct micro-USB, 2 x USB 2.0, 1 x Video
• Rear Ports : 2 x 1GbE, 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video
• PCIe : Up to 4: 2 x Gen3 slots (1 x8; 1 x16), 2 x Gen4 slots (2 x16)
• Rack Support : ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
• Bezel : Optional LCD bezel or security bezel
• Height : 86.8mm (3.42)
• Width : 434.0mm (17.09)
• Depth : 647.1mm (25.48)
• Weight : 27.3 kg (60.19lb)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R450 Rack Server
• Socket : Two Socket Servers
• Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
• Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 2 CPU
• Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
• Rear Bay : N/A
• Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, HBA355i
• External Controllers : PERC H840, HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Supplies : 1100 W DC/-48 - (60) V, 1100W Titanium 100–240 VAC/ 240 VDC, 800W Platinum 100–240 VAC/ 240 VDC, 700W Titanium 200–240 VAC/240 VDC, 600W Platinum 100–240 VAC/ 240 VDC, Hot plug power supplies with full redundancy option
• Fans : Up to seven cold swap fans
• Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
• Front Ports : 1 x dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x Serial (optional), 1 x USB 3.0, 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0
• PCIe : 2 x PCIe Gen4 slots
• Rack Support : ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks., ReadyRails static rails for 4-post and 2-post racks.
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 42.8 mm (1.68 inches)
• Width : 482 mm (18.97 inches)
• Depth : For 4 x 3.5-inch configuration, 748.79 mm (29.48 inches) with bezel, 734.95 mm (28.93 inches) without bezel and For 8 x 2.5-inch configuration, 698.03 mm (27.48 inches) with bezel, 684.19 mm (26.93 inches) without bezel
• Weight : For 4 x 3.5-inch system - 18.62 kg (41.05 Pound.), For 8 x 2.5-inch system - 16.58 kg (36.55 Pound.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R450 Rack Server
• Socket : Two Socket Servers
• Processor : Intel Xeon Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
• Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA) 1 CPU
• Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB, Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
• Rear Bay : N/A
• Internal Controllers : PERC H345, PERC H355, PERC H745, PERC H755, HBA355i
• External Controllers : PERC H840, HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Supplies : 1100 W DC/-48 - (60) V, 1100W Titanium 100–240 VAC/ 240 VDC, 800W Platinum 100–240 VAC/ 240 VDC, 700W Titanium 200–240 VAC/240 VDC, 600W Platinum 100–240 VAC/ 240 VDC, Hot plug power supplies with full redundancy option
• Fans : Up to seven cold swap fans
• Network Options : 2 x 1 GbE LOM and 1 x OCP 3.0
• Front Ports : 1 x dedicated iDRAC Direct micro-USB, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x USB 2.0, 1 x Serial (optional), 1 x USB 3.0, 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0
• PCIe : 2 x PCIe Gen4 slots
• Rack Support : ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks., ReadyRails static rails for 4-post and 2-post racks.
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 42.8 mm (1.68 inches)
• Width : 482 mm (18.97 inches)
• Depth : For 4 x 3.5-inch configuration, 748.79 mm (29.48 inches) with bezel, 734.95 mm (28.93 inches) without bezel and For 8 x 2.5-inch configuration, 698.03 mm (27.48 inches) with bezel, 684.19 mm (26.93 inches) without bezel
• Weight : For 4 x 3.5-inch system - 18.62 kg (41.05 Pound.), For 8 x 2.5-inch system - 16.58 kg (36.55 Pound.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R760xs Rack Server
• Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
• Memory : 16GB RDIMM, 4800MT/s Single Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 2.5" Chassis with up to 16 Hard Drives (SAS/SATA) 2 CPU, PERC11
• Acccelerators : 2 x 75 W SW, LP
• Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
• Internal Controllers : PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• External Controllers : HBA355e
• Software RAID : S160
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs, USB
• Mobility : OpenManage Mobile
• Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W LVDC -48 — (-60) VDC, hot swap redundant, 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• Fans : Standard (STD) fans, High performance SLVR fans or High performance GOLD fans, Up to 6 hot swappable fans, Network Options : 2 x 1 GbE LOM
• Network Options : 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4), 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)
• Rack Support : ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks, ReadyRails static rails for 4-post and 2-post racks
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 86.80 mm (3.41 in.)
• Width : 482 mm (18.97 in)
• Depth : 707.78 mm (27.85 in) – without bezel, 721.62 mm (28.4 in) – with bezel
• Weight : Max 28.6 kg (63.0 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R760xs Rack Server
• Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
• Memory : 16GB RDIMM, 4800MT/s Single Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 2.5" Chassis with up to 16 Hard Drives (SAS/SATA) 1 CPU, PERC11
• Acccelerators : 2 x 75 W SW, LP
• Front Bay : 0 drive bay, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB, Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 121.6 TB, Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (HDD/SSD) max 244.48 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
• Internal Controllers : PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• External Controllers : HBA355e
• Software RAID : S160
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs, USB
• Mobility : OpenManage Mobile
• Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W LVDC -48 — (-60) VDC, hot swap redundant, 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant, 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• Fans : Standard (STD) fans, High performance SLVR fans or High performance GOLD fans, Up to 6 hot swappable fans, Network Options : 2 x 1 GbE LOM
• Network Options : 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 1 CPU configuration: Up to 2 PCIe slots (1 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4), 2 CPU configuration: Up to 4 PCIe slots (3 x16 Gen4, 1 x8 Gen4) or up to 4 PCIe slots (1 x16 Gen4, 2 x8 Gen5, 1 x8 Gen4) or up to 6 PCIe slots (3 x16 Gen4, 1 x8 Gen4, 2 x16 Gen5)
• Rack Support : ReadyRails™ II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks, Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks, ReadyRails static rails for 4-post and 2-post racks
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 86.80 mm (3.41 in.)
• Width : 482 mm (18.97 in)
• Depth : 707.78 mm (27.85 in) – without bezel, 721.62 mm (28.4 in) – with bezel
• Weight : Max 28.6 kg (63.0 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R250 Rack Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
• Memory : 16GB UDIMM, 3200MT/s, ECC
• Operating System : No Operating System
• Storage : 1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
• Raid : C20, No RAID with Embedded SATA for SATA HDDs or SATA SSDs (Mixed Drive Types Allowed)
• Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
• Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD), Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD), Max 80TB for 4HDD configuration, Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
• Internal Controllers : PERC H345, PERC H755, HBA355i
• External Controllers : HBA355e, 12 Gbps SAS Ext. HBA
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Supplies : 450 W Bronze 100-240 VAC, cabled, 450 W Platinum 100-240 VAC, cabled, 700 W Titanium 100-240 V AC, cabled, 700 W
• 240 V DC, cabled, Cabled power supplies
• Network Options : 2 x 1 GbE LOM
• Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 2 x PCIe Gen4 slots
• Rack Support : ReadyRails static rails for 4-post and 2-post racks.
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel
• Height : 42.8 mm (1.68 inch)
• Width : 482 mm (18.97 inch)
• Depth : 598.64 mm (23.56 inch) with bezel, 585 mm (23.02 inch) without bezel
• Weight : 12.48 kg (27.51 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R250 Rack Server
• Socket : One Socket Server
• Processor : Intel Pentium G6405T 3.5GHz, 4M Cache, 2C/4T, No Turbo (35W), 2666 MT/s
• Memory : 8GB UDIMM, 3200MT/s, ECC
• Operating System : No Operating System
• Storage : 1TB Hard Drive SATA 6Gbps 7.2K 512n 3.5in Cabled
• Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
• Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
• Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD), Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD), Max 80TB for 4HDD configuration, Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
• Internal Controllers : PERC H345, PERC H755, HBA355i
• External Controllers : HBA355e, 12 Gbps SAS Ext. HBA
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Supplies : 450 W Bronze 100-240 VAC, cabled, 450 W Platinum 100-240 VAC, cabled, 700 W Titanium 100-240 V AC, cabled, 700 W 240 V DC, cabled, Cabled power supplies
• Network Options : 2 x 1 GbE LOM
• Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 2 x PCIe Gen4 slots
• Rack Support : ReadyRails static rails for 4-post and 2-post racks.
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel
• Height : 42.8 mm (1.68 inch)
• Width : 482 mm (18.97 inch)
• Depth : 598.64 mm (23.56 inch) with bezel, 585 mm (23.02 inch) without bezel
• Weight : 12.48 kg (27.51 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R250 Rack Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
• Memory : 16GB UDIMM, 3200MT/s, ECC
• Operating System : Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
• Storage : 2TB 7.2K RPM NLSAS 12Gbps 512n 3.5in Hard Drive
• Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5" Chassis with up to x4 Hot Plug Hard Drives with Backplane
• Front Bay : Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD), Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD), Max 80TB for 4HDD configuration, Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD)
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
• Internal Controllers : PERC H345, PERC H755, HBA355i
• External Controllers : HBA355e, 12 Gbps SAS Ext. HBA
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Supplies : 450 W Bronze 100-240 VAC, cabled, 450 W Platinum 100-240 VAC, cabled, 700 W Titanium 100-240 V AC, cabled, 700 W 240 V DC, cabled, Cabled power supplies
• Network Options : 2 x 1 GbE LOM
• Front Ports : 1 x Dedicated iDRAC Direct micro-USB, 1 x USB 2.0
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 2 x PCIe Gen4 slots
• Rack Support : ReadyRails static rails for 4-post and 2-post racks.
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel
• Height : 42.8 mm (1.68 inch)
• Width : 482 mm (18.97 inch)
• Depth : 598.64 mm (23.56 inch) with bezel, 585 mm (23.02 inch) without bezel
• Weight : 12.48 kg (27.51 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R660XS Rack Server
• Processor : Intel Xeon Silver 4410Y 2G, 12C/24T, 16GT/s, 30M Cache, Turbo, HT (150W) DDR5-4000
• Memory : 16GB RDIMM, 4800MT/s Single Rank
• Operating System : No Operating System
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 2.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU, PERC 11
• Front Bay : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB, Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB, Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
• Rear Bay : Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB
• Internal Controllers : PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• External Controllers : HBA355e
• Software RAID : S160
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap), USB
• Mobility : OpenManage Mobile
• Power Supplies : 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant , 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant, 1100 W LVDC -48 — (-60) VDC, hot swap redundant, 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant , 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant, 600 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• fans : Standard (STD) fans, High performance SLVR fans or High performance GOLD fans, Up to 7 hot swappable fans
• Network Options : 2 x 1GbE LOM card (optional), 1 x OCP card 3.0 (optional)
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5), 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 42.8 mm (1.68 inches)
• Width : 19.45 Kg (55.33 pound)
• Depth : 712.95 mm (28.05 inches) without bezel, 748.79 mm (29.85 inches) with bezel
• Weight : Max 13.14 kg (28.96 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R350 Rack Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
• Memory : 8GB UDIMM, 3200MT/s, ECC
• Operating System : No Operating System
• Storage : 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD
• Raid : C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
• Chassis : 2.5" Chassis with up to 8 Hot Plug Hard Drives
• Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), Up to 8 x 2.5-inch SAS/SATA (HDD/SSD), Max 80TB for 4 HDD configurations
• Internal Controllers : PERC H345, PERC H745, HBA355i, PERC H345f, PERC H745f, HBA355f
• External Controllers : HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, Internal Dual SD Module or Internal USB
• Mobility : OpenManage Mobile
• Power Supplies : 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
• Network Options : 2 x 1GbE LOM
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 3 x PCIe Gen4 slots
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 42.8 mm (1.7 inches)
• Width : 482.0 mm (18.98 inches)
• Depth : 598.94 mm (23.58 inches) with bezel, 585.3 mm (23.04 inches) without bezel
• Weight : Max 13.14 kg (28.96 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)

• Brand : Dell
• Form Factor : Rack
• Model : PowerEdge R350 Rack Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
• Memory : 8GB UDIMM, 3200MT/s, ECC
• Operating System : No Operating System
• Storage : 1.2TB Hard Drive ISE SAS 12Gbps 10k 512n 2.5in Hot-Plug
• Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
• Chassis : 2.5" Chassis with up to 8 Hot Plug Hard Drives
• Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD), Up to 8 x 2.5-inch SAS/SATA (HDD/SSD), Max 80TB for 4 HDD configurations
• Internal Controllers : PERC H345, PERC H745, HBA355i, PERC H345f, PERC H745f, HBA355f
• External Controllers : HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, Internal Dual SD Module or Internal USB
• Mobility : OpenManage Mobile
• Power Supplies : 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
• Network Options : 2 x 1GbE LOM
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
• Rear Ports : 1 x USB 2.0, 1 x USB 3.0, 2 x Ethernet, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• PCIe : 3 x PCIe Gen4 slots
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 42.8 mm (1.7 inches)
• Width : 482.0 mm (18.98 inches)
• Depth : 598.94 mm (23.58 inches) with bezel, 585.3 mm (23.04 inches) without bezel
• Weight : Max 13.14 kg (28.96 lbs.)
• Dell Services : Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s)

• Brand : Dell
• Form Factor : Rack

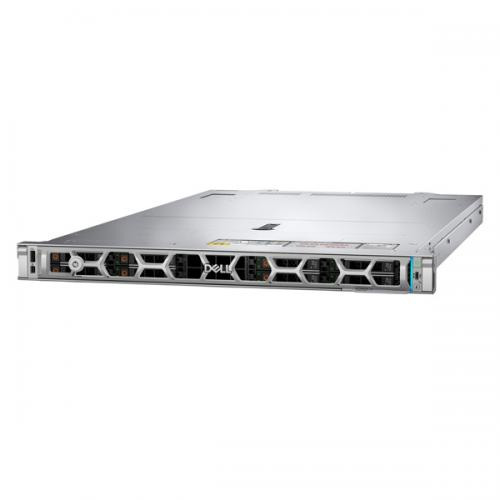

• Model : PowerEdge R660 Rack Server
• Form Factor : 1 U rack server
• Processor : Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores
• Memory : 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s, Supports registered ECC DDR5 DIMMs only
• Storage controllers : Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB, External HBAs (non-RAID): HBA355e, Software
• RAID: S160
• Front bays: Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB, Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB, Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB, Up to 16 x E3.S, (Gen5 x NVMe) max 204.8 TB
• Rear bays: Up to 2 x 2.5-inch, SAS/SATA/NVMe, max 30.72 TB, Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB
• Power Supplies : 1800W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant, 1400W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant, 1100W Titanium 100—240 VAC or 240 HVDC, hot swap with full redundant, 1100W LVDC -48 — -60 VDC, hot swap with full redundancy, 800W Platinum 100—240 VAC or 240 HVDC, hot swap with full redundant, 700 W Titanium 200—240 VAC or 240 HVDC, hot swap with full redundant
• Cooling Options : Air cooling, Optional Direct Liquid Cooling (DLC)
• Fans : Standard (STD) fans/High performance Gold (VHP) fans, Up to 4 sets (dual fan module) hot plug fans
• Dimensions : Height – 42.8 mm (1.68 inches), Width – 482 mm (18.97 inches), Depth – 822.88 mm (32.39 inches) with bezel, 809.04 mm (31.85 inches) without bezel
• Mobility : OpenManage Mobile
• Embedded NIC : 2 x 1 GbE LOM card (optional)
• Network options : 1 x OCP card 3.0 (optional)
• GPU Options : Up to 3 x 75 W SW
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
• Rear Ports : 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• 3 PCIe slots : Slot 1 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length, Slot 2 : 1 x16 Gen5 Full height, 3/4 length, Half length or 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length, Slot 3 : 1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length
• Dell Services : Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services : Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

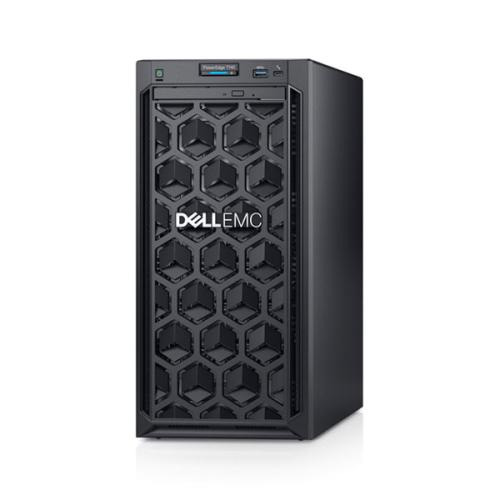

• Brand : Dell
• Form Factor : Tower
• Model : PowerEdge T150 8GB Tower Server
• Socket : One Socket Server
• Processor : Intel Pentium G6505 4.2GHz, 4M Cache, 2C/4T, No Turbo (58W), 2666 MT/s
• Memory : 8GB UDIMM, 3200MT/s, ECC
• Dimensions : Height: 360 mm (14.17 inches), Width: 175 mm (6.88 inches), Depth: 453.75 mm (17.86 inches) with bezel
• Storage controllers : Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150, Internal Boot: USB, Boot Optimized Storage
• Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, • External HBAs (non-RAID): HBA355e
• Drive bays : 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
• Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
• Internal Ports : 1 x USB 3.0
• Rear Ports : 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA
• Power supplies : 300W Bronze 100-240 VAC, cabled and 400W Platinum 100-240 VAC, cabled
• Fans : One cabled fan
• Operating System : No Operating System
• Embedded management : iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
• Bezel : Security bezel
• OpenManage Software : OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage SupportAssist plugin, OpenManage Update Manager plugin
• Mobility : OpenManage Mobile
• OpenManage Integrations : BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager
• OpenManage Connections : IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI
• Security : Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Embedded NIC : 2 x 1 GbE LOM
• PCIe : 4 PCIe slots: 1x16 Gen4 (x16 connector) full height, half length, 1x4 Gen4 (x8 connector) full height, half length, 1x4 Gen3 (x8 connector) full height, half length, 1x1 Gen3 (x1 connector) full height, half length
• Operating System and Hypervisors : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Tower
• Model : PowerEdge T150 16GB Tower Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2324G 3.1GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
• Memory : 16GB UDIMM, 3200MT/s, ECC
• Dimensions : Height: 360 mm (14.17 inches), Width: 175 mm (6.88 inches), Depth: 453.75 mm (17.86 inches) with bezel
• Storage controllers : Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150, Internal Boot: USB, Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, • External HBAs (non-RAID): HBA355e
• Drive bays : 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
• Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
• Internal Ports : 1 x USB 3.0
• Rear Ports : 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA
• Power supplies : 300W Bronze 100-240 VAC, cabled and 400W Platinum 100-240 VAC, cabled
• Fans : One cabled fan
• Operating System : Windows Server 2022 Standard,16CORE,FI,No Med,No CAL, Multi Language
• Embedded management : iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
• Bezel : Security bezel
• OpenManage Software : OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage SupportAssist plugin, OpenManage Update Manager plugin
• Mobility : OpenManage Mobile
• OpenManage Integrations : BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager
• OpenManage Connections : IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI
• Security : Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Embedded NIC : 2 x 1 GbE LOM
• PCIe : 4 PCIe slots: 1x16 Gen4 (x16 connector) full height, half length, 1x4 Gen4 (x8 connector) full height, half length, 1x4 Gen3 (x8 connector) full height, half length, 1x1 Gen3 (x1 connector) full height, half length
• Operating System and Hypervisors : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Tower
• Model : PowerEdge T550 Tower Server
• Socket : Two Socket Server
• Processor : Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
• Memory : 16GB RDIMM, 3200MT/s, Dual Rank
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
• Raid : C3, RAID 1 for 2 HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5" Chassis with up to 8 Hard Drives (SAS/SATA), 2 CPU
• Accelerators : Up to two double wide 300W NVIDIA A40 or five single wide 70W NVIDIA T4 accelerators
• Front Bays : Up to 8 x 2.5-inch SAS/SATA (HDD) max 120 TB, Up to 16 x 2.5-inch SAS/SATA (HDD) max 240 TB, Up to 24 x 2.5-inch SAS/SATA (HDD) max 360 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SAS) max 120 TB, Up to 8 x 3.5-inch SAS/SATA (HDD) + 8 x 2.5-inch, NVMe (SSD) max 240 TB
• Operating System : No Operating System
• Internal Controllers : PERC H345, PERC H355, PERC H755, PERC H755N, HBA355i
• External Controllers : PERC H840, HBA355e
• Software RAID : S150
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or USB
• Mobility : OpenManage Mobile
• Power Suppliers : 600W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 700W Titanium 200–240 VAC or 240 VDC, hot swap redundant, 800W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1100W DC/-48–(-60) V, 1100W Titanium 100–240 VAC or 240 VDC, hot swap redundant, 1400W Platinum 100–240 VAC or 240 VDC, hot swap redundant, 1800W Titanium 200–240 VAC or 240 VDC, hot swap redundant, 2400W Platinum 100–240 VAC or 240 VDC, hot swap redundant, Hot swap power supplies with full redundancy option
• Network Options : 2 x 1GbE LOM and OCP x16 3.0
• Front Ports : 1 x Dedicated iDRAC Direct micro-USB (optional), 1 x USB 2.0, 1 x USB 3.0
• Rear Ports : 1 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial (optional), 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• Rack support : System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
• Slots PCIe : 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slot, 3 x16 Gen4 (x16 connector) full height, half length, 1 x4 Gen3 (x8 connector) full height, half length, 2 x16 Gen4 (x16 connector) full height, full length (optional)
• Video Card : 1 x VGA
• Bezel : Optional security bezel
• Height : 459.0 mm (18.07 inches)
• Width : 200.0 mm (7.87 inches)
• Depth : 680.5 mm (26.79 inches) with bezel, 663.5 mm (26.12 inches) without bezel
• Weight : Max 44.48 kg (98.06 lbs.)
• Dell Services: Hardware Support : Basic Next Business Day 36 Months, 36 Month(s)
• Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Tower
• Model : PowerEdge T350 480GB Tower Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s
• Memory : 8GB UDIMM, 3200MT/s, ECC, 32GB UDIMM, 3200MT/s, ECC
• Storage : 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD
• Raid : C2, RAID 0 for HDDs or SSDs (Matching Type/Speed/Capacity)
• Chassis : 3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC, cable PSU
• Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
• Internal Controllers : PERC H755, PERC H345, HBA355i
• External Controllers : HBA355e
• Software RAID : S150
• Operating System : No Operating System
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or Internal USB 3.0
• Mobility : OpenManage Mobile
• Power Supplies : 450 W Bronze (cabled) AC/100 - 240 V, 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
• Network Options : 2 x 1 GbE LOM
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
• Rear Ports : 5 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x iDRAC dedicated port, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• Rack support : System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
• Slots PCIe : 2 x Gen 4 PCIe slots, 2 x Gen3 PCIe slots
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 369.5 mm (14.54 inches)
• Width : 175 mm (6.88 inches)
• Depth : 581.12 mm (22.87 inches) with bezel
• Weight : 25.34 kg (55.86 lbs.)
• Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 12 Month(s), Basic Next Business Day, 13 Month(s), ProSupport and 4Hr Mission Critical, 12 Month(s), NO WARRANTY UPGRADE SELECTED, 12 Month(s), ProSupport Plus and Next Business Day Onsite Service, 12 Month(s), ProSupport Plus and 4Hr Mission Critical, 12 Month(s)

• Brand : Dell
• Form Factor : Tower
• Model : PowerEdge T350 Tower Server
• Socket : One Socket Server
• Processor : Intel Xeon E-2314 2.8GHz, 8M Cache, 4C/4T, Turbo (65W), 3200 MT/s, Intel® Xeon® E-2334 3.4GHz, 8M Cache, 4C/8T, Turbo (65W), 3200 MT/s, Intel® Xeon® E-2356G 3.2GHz, 12M Cache, 6C/12T, Turbo (80W), 3200 MT/s
• Memory : 8GB UDIMM, 3200MT/s, ECC, 32GB UDIMM, 3200MT/s, ECC
• Storage : 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in with 3.5in HYB CARR Hot-Plug
• Raid : C1, No RAID for HDDs/SSDs (Mixed Drive Types Allowed)
• Chassis : 3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC, cable PSU
• Front Bays : Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB, Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
• Internal Controllers : PERC H755, PERC H345, HBA355i
• External Controllers : HBA355e
• Software RAID : S150
• Operating System : No Operating System
• Internal Boot : Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB, Internal Dual SD Module or Internal USB 3.0
• Mobility : OpenManage Mobile
• Power Supplies : 450 W Bronze (cabled) AC/100 - 240 V, 600 W Platinum AC/100 - 240 V, 600 W DC/240 V, 700 W Titanium AC/100 - 240 V, 700 W DC/240 V, Hot swap power supplies with full redundancy option
• Network Options : 2 x 1 GbE LOM
• Front Ports : 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
• Rear Ports : 5 x USB 2.0, 1 x USB 3.0, 1 x Serial, 1 x iDRAC dedicated port, 1 x VGA
• Internal Ports : 1 x USB 3.0 (optional)
• Rack support : System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.
• Slots PCIe : 2 x Gen 4 PCIe slots, 2 x Gen3 PCIe slots
• Video Card : 1 x VGA
• Bezel : Optional LCD bezel or security bezel
• Height : 369.5 mm (14.54 inches)
• Width : 175 mm (6.88 inches)
• Depth : 581.12 mm (22.87 inches) with bezel
• Weight : 25.34 kg (55.86 lbs.)
• Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Brand : Dell
• Form Factor : Tower
• Model : PowerEdge T150 Tower Server
• Socket : One Socket Server
• Processor : One Intel Xeon E-2300 series processor with up to 8 cores or one Intel Pentium processor with up to 2 cores
• Memory : Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s, Supports unregistered ECC DDR4 DIMMs only
• Dimensions : Height: 360 mm (14.17 inches), Width: 175 mm (6.88 inches), Depth: 453.75 mm (17.86 inches) with bezel
• Storage controllers : Internal controllers (RAID): PERC H755, PERC H345, HBA355i, S150, Internal Boot: USB, Boot Optimized Storage
• Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs, • External HBAs (non-RAID): HBA355e
• Drive bays : 4 x 3.5-inch cabled SAS/SATA (HDD/SSDs) max 30.72 TB
• Ports : Front Ports-1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 3.0
• Internal Ports : 1 x USB 3.0
• Rear Ports : 5 x USB 2.0, 1 x iDRAC ethernet port, 1 x USB 3.0, 1 x Serial port, 1 x VGA
• Power supplies : 300W Bronze 100-240 VAC, cabled and 400W Platinum 100-240 VAC, cabled
• Fans : One cabled fan
• Operating System : No Operating System
• Embedded management : iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
• Bezel : Security bezel
• OpenManage Software : OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage SupportAssist plugin, OpenManage
• Update Manager plugin
• Mobility : OpenManage Mobile
• OpenManage Integrations : BMC Truesight, Microsoft System Center, Red Hat Ansible Modules, VMware vCenter and vRealize Operations Manager
• OpenManage Connections : IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager IP Edition, Micro Focus Operations Manager, Nagios Core, Nagios XI
• Security : Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
• Embedded NIC : 2 x 1 GbE LOM
• PCIe : 4 PCIe slots: 1x16 Gen4 (x16 connector) full height, half length, 1x4 Gen4 (x8 connector) full height, half length, 1x4 Gen3 (x8 connector) full height, half length, 1x1 Gen3 (x1 connector) full height, half length
• Operating System and Hypervisors : Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
• Dell Services: Hardware Support : Basic Next Business Day 12 Months, 12 Month(s)
• Dell Services: Extended Service : ProSupport and Next Business Day Onsite Service, 36 Month(s)

• Form Factor: 2U Rack
• Processors: Up to 2x Intel Xeon Scalable Processor Family
• Processor Cache: Up to 38.5MB per core
• Processor Cores: Up to 28 cores per processor
• Memory: Fully expandable up to 3TB DDR4 2666 MT/s RDIMM and LRDIMM (24 DIMM Slots)
• Maximum Internal Storage: 8x 3.5" - Up to 128TB (NL-SAS/SATA) / 61.44TB (SAS) / 61.44TB (SSD), 8x 2.5" - Up to 16TB (NL-SAS/SATA) / 61.44TB (SAS) / 61.44TB (SSD), 16x 2.5" - Up to 32TB (NL-SAS/SATA) / 122.88TB (SAS) / 122.88TB (SSD)
• I/O Slots: 8 PCIe 3.0 slots
• Remote Management: iDRAC9 with Lifecycle Controller
• WARRANTY : 3 Years ProSupport Next Business Day Onsite

Highly Reliable. Customizable. Efficient

• Scales to meet business needs
• works with multiple generations of technology
• offers high availability
• securely protects vital information
• and maximizes uptime.
• Efficient: 14 standard compute node bays in a 10U chassis
• Customizable: compute or management nodes
• with up to 4 networking modules in rear
• High Reliability: N+N or N+1 redundant power
• a 3-phase power domain
• & a passive mid-plane

Features Highlights

• Outstanding flexibility and efficiency with choice of compute and networking
• No compromise design that can easily scale capabilities with business needs
• Designed for multiple generations of technology
• Integrated and easy to use management with advanced functions
• Scalable pay-as-you-grow flexible I/O offerings
• Highly resilient: no single point of failure to maintain high availability
• Designed to deliver a highly secure environment
• protecting vital information and maximizing uptime
• World-class service with three-year on-site support

Flexibility Efficiency

• To meet today’s complex and ever-changing business demands
• the Lenovo Flex System Enterprise Chassis provides a high-performance
• integrated infrastructure platform that supports a mix of compute and networking capabilities. The Flex System Enterprise Chassis has been designed and built specifically to provide the efficiency you need now
• along with the growth path necessary to protect your investment into the future.
• The Flex System Enterprise Chassis is the foundation of the Flex System offering
• which features 14 standard (half-width) Flex System form factor compute node bays in a 10U chassis that delivers high-performance connectivity for your integrated compute
• networking and management resources.

Intelligently designed for value

• Easily scale from two to four processors
• Large memory capacity
• Flexible storage configurations
• Advanced RAS features
• XClarity Management

Features Highlights

• The perfect balance of expandability and economics. Intelligently designed for value.
• Designed for reliability and uptime. The confidence to run anything.
• Engineered with the future in mind. Ready for tomorrow’s technologies.

Growth is inevitable

• The Lenovo ThinkSystem SR850 is built to deliver the performance and reliability you require today
• with the scalability and versatility you’ll need as you advance toward the “future-defined” data center.
• The flexible 2U SR850 can scale from two to four powerful Intel Xeon processor Scalable family CPUs
• with up to 233 percent more cores and 400 percent more memory than the previous-generation server*
• achieving up to 76 percent faster performance. Built for standard workloads like general business applications and server consolidation
• it can also accommodate high-growth areas such as databases and virtualization. The agile design of ThinkSystem SR850 provides rapid upgrades for processors and memory
• and its large
• flexible storage capacity helps you keep pace with data growth.

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1Ghz
• Cache : 11 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: AMD EPYC 7272 12C 120W
• GHz: 2.9GHz
• Cache : 64 MB
• MEMORY : 1x16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : AST2500 embedded management processor combined with X-clarity administrator
• Others : SR635/SR655 x8 PCIe Internal Riser, x16/x16 PCIe Riser1, 750W(230/115V) Platinum Hot-Swap PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Gold 5220 18C 125W
• GHz: 2.2GHz
• Cache : 24.75 MB
• MEMORY : 1x32GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : Thinksystem RAID 930-8i 2GB Flash PCIe Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Gold 5218 16C 125W
• GHz: 2.3GHz
• Cache : 22 MB
• MEMORY : 1x32GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : Thinksystem RAID 930-8i 2GB Flash PCIe Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Silver 4216 16C 100W
• GHz: 2.1Ghz
• Cache : 22 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Silver 4214 12C 85W
• GHz: 2.2GHz
• Cache : 16.5 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1Ghz
• Cache : 11MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 730-8i 1GB Cache PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 10Gb 2-port Base-T LOM, 2x 750W RPS
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• FORM FACTOR: Dual Socket RACK (2U)
• FAMILY:SR550
• PART No: 7X04SQVC00
• PROCESSOR: Intel Xeon Silver 4210 10c 85W
• GHz: 2.2Ghz
• Cache : 13.75 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Silver 4210 10c 85W
• GHz: 2.2Ghz
• Cache : 13.75 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 3.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Silver 4208 8C 85W
• GHz: 2.1Ghz
• Cache : 11 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 3.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Bronze 3204 6C 85W
• GHz: 1.9Ghz
• Cache : 8.25 MB
• MEMORY : 1 X 16GB
• HARD DRIVE: Open Bay 3.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : 2x 1G Ports , 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD

• PROCESSOR: Intel Xeon Silver 4210 10C 85W
• GHz: 2.1GHz
• Cache : 13.75 MB
• MEMORY : 16GB X 1
• HARD DRIVE: Open Bay 2.5" SATA/SAS 8-Bay Backplane
• RAID : ThinkSystem RAID 530-8i PCIe 12Gb Adapter
• MANAGEMENT : Lenovo XClarity Enterprise
• Others : ThinkSystem SR530/SR570/SR630 x8/x16 PCIe LP+LP Riser 1 Kit, 2x1G Ports, 1x750W PSU
• WARRANTY : 3Yr 24x7 4Hr Response + KYD
