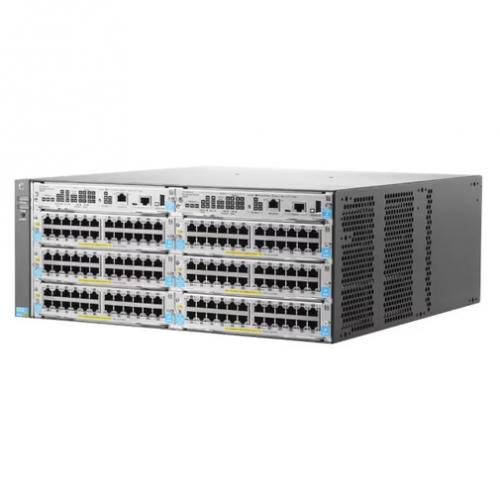

• Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
• HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
• HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
• Scalable line rate 40 GbE for wireless traffic aggregation.
• Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
• Ready for the software defined network with REST APIs and OpenFlow support.

Ports: Up to (12) open module slots, maximum. Supports a maximum of (288) 10/100/1000 ports or (288) SFP ports or (96) SFP+ ports or (96) HPE Smart Rate Multi-Gigabit or (24) 40 GbE ports, or a combination. Pre-configured models, some with PoE/PoE+, can support 10/100/1000 GbE, 10 GbE and 40GbE.Latency: 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps

Latency: < 1.5 µs

Memory and processor:
Depend on the model:
Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal.
Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal.
Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.

PoE capability:
PoE allocations supports multiple methods (automatic, IEEE 802.3af class, LLDP?MED, or user?specified) to allocate PoE power for more efficient energy savings on select models.

Management features:
HPE Aruba Networking Management Software
HPE Aruba Networking Central
HPE Intelligent Management Center Basic Software Platform (IMC)
Command-line interface
Web browser
Configuration menu
Out-of-band management (RJ-45 Ethernet)
Out-of-band management (serial RS-232C or micro USB)
SNMP manager

Warranty: Limited lifetime warranty.
