BEST SELLING SUPERMICRO SERVER PRICELIST

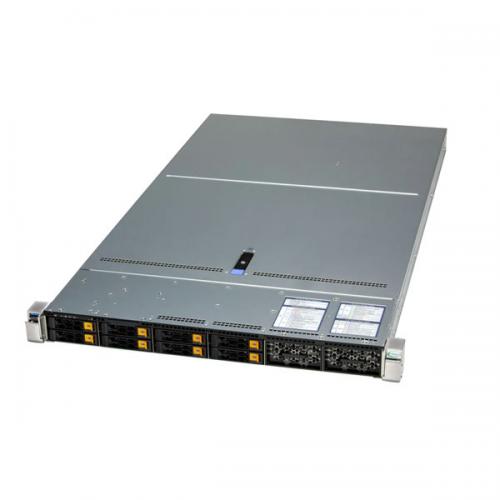

Supermicro AS 1126HS TN Dual Processor SuperServer
- Brand: Supermicro
- Model No: AS 1126HS TN Rack SuperServer
- Form Factor: 1U Rackmount Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66") Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31")
- Processor: Dual processor(s) AMD EPYC™ 9005/9004 Series Processors Up to 384C/768T
- System Memory: Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
- Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SATA* drive bays (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
- Expansion Slots: 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- On-Board Devices: Chipset: System on Chip Network Connectivity: Via AIOM IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Input / Output: LAN: LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear) 1 USB 3.0 port(front) Video: 1 VGA port TPM: 1 TPM Onboard/port 80
- System Cooling: Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) Air Shroud: 2 Air Shrouds
- Power Supply: 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
- Color: Silver
- Net Weight: 41.4 lbs (18.8 kg)
Supermicro Hyper SYS 122H TN Rackmount SuperServer
- Brand: Supermicro
- Model No: Hyper SYS 122H TN Rack SuperServer
- Form Factor: 1U Rackmount Enclosure: 438.4 x 43.6 x 743.38mm (17.3" x 1.71" x 29.27") Package: 604.8 x 203 x 950mm (23.81" x 7.99" x 37.4")
- Processor: Dual Socket E2 (LGA-4710) Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MBCache per CPU
- GPU: Up to 1 double-width or 3 single-width GPUs
- System Memory: Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only) Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
- Drive Bays Configuration: Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- Expansion Slots: 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- On-Board Devices: NVMe: NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required) Chipset: System on Chip Network Connectivity: Via AIOM
- Input / Output: LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear) 1 USB 3.0 port(front) Video: 1 VGA port
- System Cooling: Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) Air Shroud: 2 Air Shrouds Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
- Power Supply: 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
- Color: Silver
- Net Weight: 41 lbs (18.6 kg)
Supermicro Hyper SYS 122HA TN LCC Rackmount SuperServer
- Brand: Supermicro
- Model No: Hyper SYS 122HA TN LCC SuperServer
- Form Factor: 1U Rackmount Enclosure: 437 x 43 x 778.7mm (17.2" x 1.7" x 30.66") Package: 672 x 224 x 1100mm (26.46" x 8.82" x 43.31")
- Processor: Dual Socket BR (LGA-7529) Intel Xeon 6900 series processors with P-cores Up to 128C/256T; Up to 504MB Cache per CPU
- System Memory: Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
- Drive Bays Configuration: Default: Total 12 bays 12 front hot-swap 2.5" NVMe drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
- Expansion Slots: Default 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- On-Board Devices: NVMe: NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required) Chipset: System on Chip Network Connectivity: Via AIOM
- Input / Output: LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear) 1 USB 3.0 port(front) Video: 1 VGA port
- System Cooling: Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate
- Power Supply: 2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
- Color: Silver
- Net Weight: 19.2 lbs (8.7 kg)
