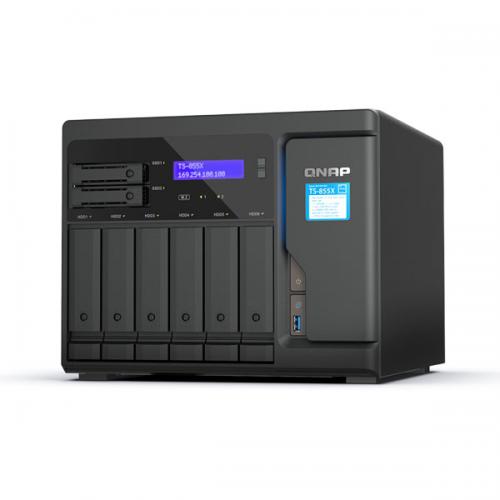

Qnap TS 855X 8 Bay NAS Enclosure
- Brand: Qnap
- Form Factor: Tower
- Model No: Qnap TS-855X-8G Network Attached Storage
- CPU: Intel Atom C5125 8-core processor, 2.8GHz
- CPU Architecture: 64-bit x86
- Floating Point Unit: Yes
- Encryption Engine: Yes(AES-NI)
- System Memory: 8 GB non-ECC UDIMM DDR4 (1 x 8 GB)
- Maximum Memory: 128 GB (4 x 32 GB)
- Memory Slot: 4 x U-DIMM DDR4, Support ECC memory
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 6 x 3.5-inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch bays: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives, 2.5-inch bays: 2.5-inch SATA solid state drives
- Hot-swappable: Yes
- M.2 Slot: 2 x M.2 2280 PCIe Gen 3 x4 slots
- SSD Cache Acceleration Support: Yes
- SR-IOV: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
- 10 Gigabit Ethernet Port: 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
- 25 Gigabit Ethernet Port: Optional via PCIe expansion card
- Wake on LAN (WOL): Yes Only the 2.5GbE port
- Jumbo Frame: Yes
- PCIe Slot: 2 Slot 1: PCIe Gen 3 x4, Slot 2: PCIe Gen 3 x4 (Card dimensions for PCIe slot 1?260 x 111.15 x 18.76 mm / 10.25 x 4.38 x 0.74 inches, Card dimensions for PCIe slot 2?150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches)
- USB 2.0 port: 1
- USB 3.2 Gen 1 port: 3
- LED Indicators: Power/Status, LAN, USB, HDD1-6, SSD 1-2, M.2 SSD 1-2
- Buttons: Power, Reset, USB Auto Copy
- Operating Temperature: 0 - 40°C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 250W PSU, 100~240V
- Power Consumption: Operating Mode, Typical: 86.96 W
- Fan: System fan: 2 x 80mm, 12VDC, CPU fan: 1 x 90mm, 12VDC
- Other Interfaces: Kensington security slot
- Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 2500
- Dimensions (HxWxD): 225 × 292.9 × 319.8 mm
- Weight (Net): 10.04 kg
- Warranty: 3 Years Onsite Warranty
