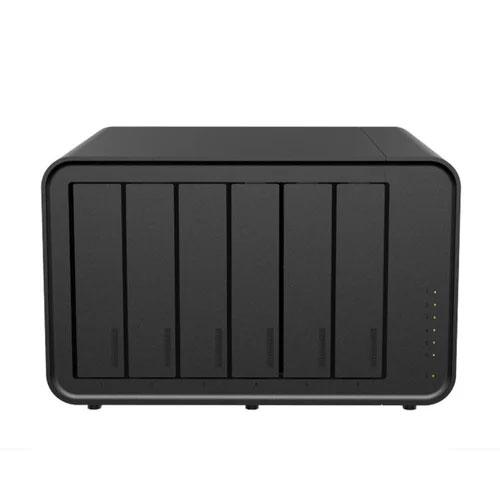

TerraMaster F6 424 6 Bay NAS Storage
- Brand: TerraMaster
- Model No: TerraMaster F8 SSD 8 Bay NAS Storage
- Processor Model: Intel N95
- Processor Architecture: X.86 64-bit
- Processor Frequency: 4-Core (Max burst up to 3.4 GHz)
- CPU Single-Core Score: Null
- Hardware Encryption Engine: Yes
- System Memory: 8 GB DDR5 non-ECC SODIMM
- Pre-installed Memory module: 8 GB DDR5 non-ECC SODIMM (1x 8 GB)
- Total Memory Slot Number: 1 (DDR5 SODIMM)
- Maximum Supported Memory: 32 GB DDR5 non-ECC SODIMM
- Disk Slot Number: 6
- Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Storage Capacity: 132 TB (22 TB x6) (Capacity may vary by RAID types)
- Internal Drive: Btrfs, EXT4
- External Drive: EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS
- RJ-45 2.5GbE Network Jack: 2
- USB3.2 Host Port: Type A *1 (10 Gbps) ; Type C *1 (10 Gbps)
- M.2 2280 NVMe Slot: 2 (PCIe 3.0 x1)
- System Fan: 92 x 92 x 25 mm 2PCS
- Fan Mode: Smart, High speed, Middle speed, Low speed
- Noise Level: 22.0 dB(A)
- Power Supply: 150 W
- AC Input Voltage: 100V - 240V AC
- Current Frequency: 50/60 Hz, Single frequency
- Power Consumption: 43.0 W(Fully loaded WD RED WD221KFGX 22TB hard drive(s) in read/write state), 15.0 W (Fully loaded WD RED WD221KFGX 22TB hard drive(s) in hibernation)
- Size (H*W*D): 154x 240 x222 mm
- Weight: 2.7 Kg
- Warranty: 2 years Warranty
