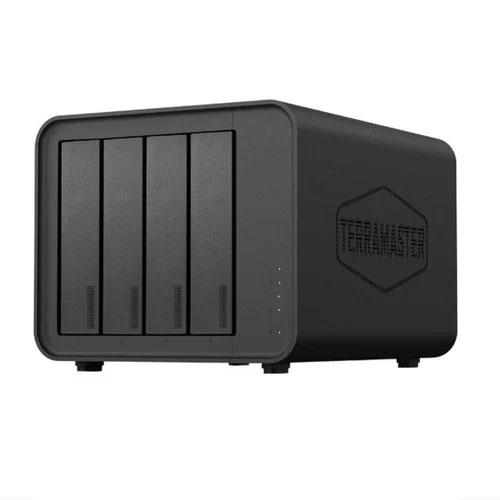

TerraMaster D8 Hybrid RAID Enclosure
- Brand: TerraMaster
- Model No: TerraMaster D8 Hybrid RAID Storage
- Disk Slot Number: 4
- Compatible Disk Types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- M.2 2280 NVMe Slot: 4(PCle3.0/4.0/5.0)
- File System: NTFS, APFS, Mac OS,FAT32,EXT4,exFAT
- Maximum Internal Raw Capacity: 120TB (22 TB drive x 4 + 8 TB drive x 4)
- RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1?Only HDD1 and HDD2 support RAID array creation?the rest operate in Single mode.?
- Hardware RAID: Yes
- USB: USB3.2 Type-C gen2 10Gbps
- Power Socket: DC IN 12V
- Reading Speed (max.): Read?560MB/s ( SSD* 1 ); Read?1016MB/s ( SSD* 4)
- Writing Speed (max.): Write?520MB/s ( SSD*1 ); Write?960MB/s ( SSD*4 )
- System fan: 120 x 120 x 25mm 1PCS
- Fan mode: Smart
- Noise Level: 21.0dB(A)
- Power Supply: 90 W
- AC Input Voltage: 100V to 240V AC
- Current Frequency: 50/60 HZ, Single Phase
- Power Consumption: 40.8 W(Access), 9.8 W (Hibernation)
- Working Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Storage Temperature: -20°C ~ 60°C (-5°F ~ 140°F)
- Relative Humidity: 5% ~ 95% RH
- Supported OS: Windows OS?Mac OS?Linux
- Size (H*W*D): 222 x 179 x 154 mm
- Weight: 1.9 Kg
- Warranty: 2 years Warranty
