BEST SELLING HUAWEI STORAGE PRICELIST
Huawei OceanStor Pacific 9920 Scale Out Storage
- Brand: Huawei
- Model No: Huawei OceanStor Pacific 9920 Storage
- System Architecture: Fully symmetric scale-out architecture
- Storage Access Protocol: NFS, SMB, POSIX, MPI-IO, HDFS, Amazon S3, and FTP
- Raw Capacity per Chassis: 23.04 TB ~ 1536TB
- Height per Chassis: 2 U
- Number of Nodes per Chassis: 1
- Max. Number of Main Storage Disks per Node: 25
- Primary Storage Disk Type: Palm-sized NVMe SSDs
- Number of Processors per Node: 2 x Kunpeng 920 processors
- Max. Memory per Node: 512 GB
- Number of System Disks per Node: 2 x 480 GB SATA SSDs
- Front-End Service Network Types: 25GE or 100GE TCP/IP, 100GE RoCE, 100Gb/s or 200Gb/s InfiniBand
- Storage Network Types: 100GE TCP/IP, 25GE or 100GE RoCE, 100Gb/s or 200Gb/s InfiniBand
- Data Redundancy Protection Mechanism: EC: N + M (M is 2, 3, or 4)
- Data Self-Healing: Automatic concurrent data reconstruction at 2 TB per hour
- Storage Management Software: DeviceManager and eService
- Chassis Dimensions (H x W x D): 86.1 mm x 447 mm x 830 mm
- Max. Weight per Chassis (with Disks): ? 35 kg
- Operating Temperature: 5°C to 35°C
- Operating Humidity: 8% RH to 90% RH (non-condensing)
- Warranty: 1 Year Warranty
Huawei OceanStor Pacific 9926 Scale Out Storage
- Brand: Huawei
- Model No: Huawei OceanStor Pacific 9926 Storage
- System Architecture: Fully symmetric scale-out architecture
- Capacity of Main Storage NVMe SSDs (TB): 15.36, 30.72, and 61.44
- Max. Raw Capacity per Chassis (TB): 552.96–2211.84
- Height per Chassis: 2 U
- Number of Nodes per Chassis: 1
- Max. Number of Main Storage Disks per Node: 36
- Number of Processors per Node: 2 x Kunpeng 920 processors
- Max. Memory per Node: 1,024 GB DDR5
- Number of System Disks per Node: 2 x 480 GB SSDs
- Front-End Service Network Types: 25GE, 100GE, or 200GE TCP/IP, 25GE, 100GE, or 200GE TCP/RoCE, 100 Gbit/s, 200 Gbit/s, or 400 Gbit/s InfiniBand
- Storage Interconnection Network Types: 25GE, 100GE, or 200GE TCP/IP, 25GE, 100GE, or 200GE TCP/RoCE, 100 Gbit/s, 200 Gbit/s, or 400 Gbit/s InfiniBand
- Data Redundancy Protection Mechanism: EC: N + M (M is 2, 3, or 4)
- Storage Access Protocols: File storage: NFS, SMB, DPC (POSIX and MPI-IO), and FTP, Object storage: Amazon S3
- Chassis Dimensions (H x W x D): 86.1 mm x 447 mm x 850 mm
- Max. Weight per Chassis (with Disks): 45 kg
- Operating Temperature: 5°C to 35°C
- Operating Humidity: 8% to 90% RH (non-condensing)
- Warranty: 1 Year Warranty
Huawei OceanStor Pacific 9928 Scale Out Storage
- Brand: Huawei
- Model No: Huawei OceanStor Pacific 9928 Storage
- System Architecture: Fully symmetric scale-out architecture
- Capacity of Main Storage NVMe SSDs (TB): 3.84, 7.68, 15.36, 30.72, and 61.44
- Max. Raw Capacity per Chassis (TB): 138.24–2211.84
- Height per Chassis: 2 U
- Number of Nodes per Chassis: 1
- Max. Number of Main Storage Disks per Node: 36
- Number of Processors per Node: 2 x Kunpeng 920 processors
- Max. Memory per Node: 1,024 GB DDR5
- Number of System Disks per Node: 2 x 480 GB SSDs
- Front-End Service Network Types: 25GE, 100GE, or 200GE TCP/IP, 25GE, 100GE, or 200GE TCP/RoCE, 100 Gbit/s, 200 Gbit/s, or 400 Gbit/s InfiniBand
- Storage Interconnection Network Types: 25GE, 100GE, or 200GE TCP/IP, 25GE, 100GE, or 200GE TCP/RoCE, 100 Gbit/s, 200 Gbit/s, or 400 Gbit/s InfiniBand
- Data Redundancy Protection Mechanism: EC: N + M (M is 2, 3, or 4), Multi-replica: 2 or 3 replicas
- Storage Access Protocols: Block storage: iSCSI, SCSI, and OpenStack Cinder, File storage: NFS, SMB, DPC (POSIX and MPI-IO), and FTP, Object storage: Amazon S3, HDFS storage: HDFS
- Chassis Dimensions (H x W x D): 86.1 mm x 447 mm x 850 mm
- Max. Weight per Chassis (with Disks): 45 kg
- Operating Temperature: 5°C to 35°C
- Operating Humidity: 8% to 90% RH (non-condensing)
- Warranty: 1 Year Warranty
Huawei OceanStor A800 Next Gen AI Storage
- Brand: Huawei
- Model No: Huawei OceanStor A800 AI Storage
- Enclosure form factor: Dedicated hardware, 8 U/2 nodes
- CPUs per node: 4 CPUs
- Node expansion: Scale out to 512 nodes in fully symmetric mode
- Max. number of SSDs per enclosure: 64 SSDs (controller enclosure with integrated SSDs)
- Fans per node: 10
- Memory per node: 1,024 GB
- Network types: 25/100 Gb/s ETH? 25/100/200 Gb/s RoCE?200 Gb/s IB
- Warranty: 1 Year Warranty
Huawei OceanStor A600 Next Gen AI Storage
- Brand: Huawei
- Model No: Huawei OceanStor A600 AI Storage
- Height of each controller enclosure: 2 U
- Nodes per controller enclosure: 2
- Max. number of SSDs per controller enclosure: 36
- Fans per node: 6
- Memory per node: 512 GB
- Network types: 25/100/200 Gbit/s Ethernet, 25/100/200 Gbit/s RoCE
- Warranty: 1 Year Warranty
Huawei OceanStor Dorado 3000 All Flash Storage
- Brand: Huawei
- Model No: Huawei OceanStor Dorado 3000 Storage
- Maximum Number of Controllers: 16
- Cache per Controller Enclosure: 128–256 GB
- Supported Interface Protocols: FC, FC-NVMe, iSCSI, NVMe over RoCE, NVMe over TCP, NFS, SMB, NFS over RDMA, and S3
- Front-End Port Types: 16/32/64 Gbps FC, 1/10/25/40/100 Gbps Ethernet, and 25/100 Gbps RoCE
- Back-End Port Types: SAS 3.0 and 100G RDMA
- Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure: 6
- Maximum Number of Front-End Ports: 32
- Supported SSDs: 960 GB/1.92 TB/3.84 TB/7.68 TB SAS SSD, 3.84/7.68/15.36/30.72 TB NVMe SSD, 3.84/7.68/15.36/30.72 TB NVMe SED
- Supported RAID Levels: RAID 5, RAID 6, RAID 10, and RAID-TP
- Value-Added Features: SmartDedupe, SmartCompression, SmartVirtualization, SmartQoS (SAN, NAS, and S3), SmartThin, SmartQuota (NAS), SmartMobility*, SmartMigration (SAN and NAS), HyperSnap (SAN, NAS, and S3), HyperClone (SAN, NAS, and S3), HyperCDP (SAN, NAS, and S3), HyperReplication (SAN and NAS), HyperMetro (SAN and NAS), HyperLock (NAS)
- Storage Management Software: DeviceManager, UltraPath, NFS+, DME, DME IQ, and OceanStor BCManager
- Warranty: 1 Year Warranty

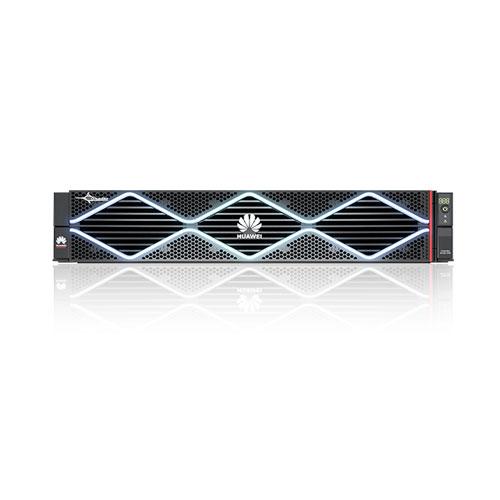

Huawei OceanStor Dorado 6000 All Flash Storage
- Brand: Huawei
- Model No: Huawei OceanStor Dorado 6000 Storage
- Maximum Number of Controllers: 32
- Cache per Controller Enclosure: 1024–2048 GB
- Supported Interface Protocols: FC, FC-NVMe, iSCSI, NVMe over RoCE, NVMe over TCP, NFS, SMB, NFS over RDMA, and S3
- Front-End Port Types: 16/32/64 Gbps FC, 1/10/25/40/100 Gbps Ethernet, and 25/100 Gbps RoCE
- Back-End Port Types: SAS 3.0 and 100G RDMA
- Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure: 12
- Maximum Number of Front-End Ports: 48
- Supported SSDs: 960 GB/1.92 TB/3.84 TB/7.68 TB SAS SSD, 3.84/7.68/15.36/30.72 TB NVMe SSD, 3.84/7.68/15.36/30.72 TB NVMe SED
- Supported RAID Levels: RAID 5, RAID 6, RAID 10*, and RAID-TP (tolerates simultaneous failure of 3 SSDs)
- Value-Added Features: HyperSnap (SAN, NAS, and S3), HyperClone (SAN, NAS, and S3), HyperCDP (SAN, NAS, and S3), HyperReplication (SAN and NAS), HyperMetro (SAN and NAS), HyperMetro-Inner (SAN and NAS), HyperLock (NAS), HyperEncryption, HyperDetect (SAN and NAS)*, HyperLink (SAN and NAS), CloudBackup (NAS)*, CloudVxLAN (NAS)
- Storage Management Software: DeviceManager, UltraPath, NFS+, DME, DME IQ, and OceanStor BCManager
- Warranty: 1 Year Warranty

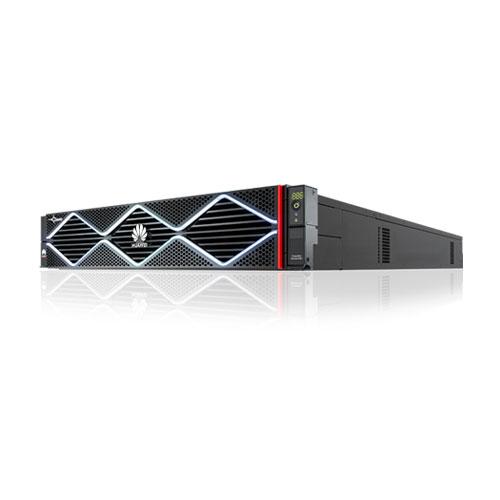

Huawei OceanStor Dorado 5000 All Flash Storage
- Brand: Huawei
- Model No: Huawei OceanStor Dorado 5000 Storage
- Maximum Number of Controllers: 32
- Cache per Controller Enclosure: 256–768 GB
- Supported Interface Protocols: FC, FC-NVMe, iSCSI, NVMe over RoCE, NVMe over TCP, NFS, SMB, NFS over RDMA, and S3
- Front-End Port Types: 16/32/64 Gbps FC, 1/10/25/40/100 Gbps Ethernet, and 25/100 Gbps RoCE
- Back-End Port Types: SAS 3.0 and 100G RDMA
- Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure: 12
- Maximum Number of Front-End Ports: 48
- Supported SSDs: 960 GB/1.92 TB/3.84 TB/7.68 TB SAS SSD, 3.84/7.68/15.36/30.72 TB NVMe SSD, 3.84/7.68/15.36/30.72 TB NVMe SED
- Supported RAID Levels: RAID 5, RAID 6, RAID 10*, and RAID-TP (tolerates simultaneous failure of 3 SSDs)
- Value-Added Features: SmartDedup, SmartCompression, SmartVirtualization, SmartQoS (SAN, NAS, and S3), SmartThin, SmartQuota (NAS), SmartMulti-Tenant (SAN, NAS, and S3), SmartMigration (SAN and NAS), SmartMobility*, SmartMove (NAS)
- Storage Management Software: DeviceManager, UltraPath, NFS+, DME, DME IQ, and OceanStor BCManager
- Warranty: 1 Year Warranty
Huawei New Gen OceanStor Dorado 18000 All Flash Storage
- Brand: Huawei
- Model No: Huawei New Gen OceanStor Dorado 18000 Storage
- Maximum Number of Controllers: 128
- Cache per Controller Enclosure: 2–6 TB
- Supported Interface Protocols: FC, FC-NVMe, iSCSI, NVMe over RoCE, NVMe over TCP, NFS, SMB, NFS over RDMA, and S3
- Front-End Port Types: 16/32/64 Gbps FC, 1/10/25/40/100 Gbps Ethernet, and 25/100 Gbps RoCE
- Back-End Port Types: 100G RDMA
- Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure: 28
- Maximum Number of Front-End Ports: 96
- Supported SSDs: 3.84/7.68/15.36/30.72 TB NVMe SSD, 3.84/7.68/15.36/30.72 TB NVMe SED
- Supported RAID Levels: RAID 5, RAID 6, RAID 10*, and RAID-TP (tolerates simultaneous failure of 3 SSDs)
- Value-Added Features: HyperSnap (SAN, NAS, and S3), HyperClone (SAN, NAS, and S3), HyperCDP (SAN, NAS, and S3), HyperReplication (SAN and NAS), HyperMetro (SAN and NAS), HyperMetro-Inner (SAN and NAS), HyperLock (NAS), HyperEncryption, HyperDetect (SAN and NAS)*, HyperLink (SAN and NAS), CloudBackup (NAS)*, CloudVxLAN (NAS)
- Storage Management Software: DeviceManager, UltraPath, NFS+, DME, DME IQ, and OceanStor BCManager
- Warranty: 1 Year Warranty

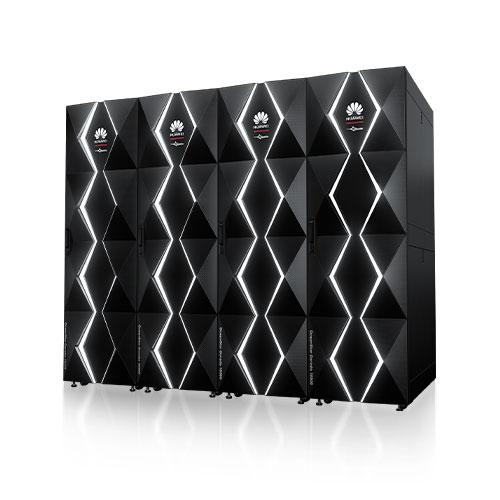

Huawei New Gen OceanStor Dorado 8000 All Flash Storage
- Brand: Huawei
- Model No: Huawei New Gen OceanStor Dorado 8000 Storage
- Maximum Number of Controllers: 64
- Cache per Controller Enclosure: 1–4 TB
- Supported Interface Protocols: FC, FC-NVMe, iSCSI, NVMe over RoCE, NVMe over TCP, NFS, SMB, NFS over RDMA, and S3
- Front-End Port Types: 16/32/64 Gbps FC, 1/10/25/40/100 Gbps Ethernet, and 25/100 Gbps RoCE
- Back-End Port Types: 100G RDMA
- Maximum Number of Hot-Swappable I/O Modules per Controller Enclosure: 28
- Maximum Number of Front-End Ports: 96
- Supported SSDs: 3.84/7.68/15.36/30.72 TB NVMe SSD, 3.84/7.68/15.36/30.72 TB NVMe SED
- Supported RAID Levels: RAID 5, RAID 6, RAID 10*, and RAID-TP (tolerates simultaneous failure of 3 SSDs)
- Value-Added Features: SmartDedup, SmartCompression, SmartVirtualization, SmartQoS (SAN, NAS, and S3), SmartThin, SmartQuota (NAS), SmartMulti-Tenant (SAN, NAS, and S3), SmartMigration (SAN and NAS), SmartMobility*, SmartMove (NAS)
- Storage Management Software: DeviceManager, UltraPath, NFS+, DME, DME IQ, and OceanStor BCManager
- Warranty: 1 Year Warranty
-->
