BEST SELLING EXATRON SERVER PRICELIST
Exatron Rx135 3AM32 10S Rack Server
- Brand: Exatron
- Model No: Exatron Rx135 3AM32 10S Server
- Rack Height (Processor count): 1U (2S)
- Processor: AMD EPYC 7002 or 7003 Series, Up to 96 cores, up to 280W TDP
- Chipset: Integrated
- Co-Processor (GPU): NA
- Processor interconnect: AMD Infinity Fabric
- Memory: Upto 8TB | DDR4 | 3200M | 32 slots(Up to 12TB 3DS ECC RDIMM/LRDIMM)
- Hard Drives: 10x Front Bay 3.5" hot plug SATA/SAS /NVMe Drive Bays
- Storage options: 1x Slim SAS/SATA HD 8-port connectors, 2x M.2 NVMe/SATA connectors
- RAID Controller: On Board RAID SATA RAID,0,1,5, Optional, yes
- PCIe slots: 2x PCIe Gen4 x16 FHHL, 1x PCIe Gen4 x16 LPHL
- Integrated LAN IPMI: Yes, 1x Management port
- Redundant Power Supply: Optional, yes
- Power Supply: 1000W, 1100W, 1300W, 1600W,
- Fans: 40mm | 7 fans
- USB ports: 2x RIO USB 3.0, 2x FIO USB 2.0, 1x Int USB 2.0
- Integrated IO: 1x RIO RJ45 1G MGMT, 2x RIO RJ45 @10G, 1x RIO VGA DB-15, 1x Int DH10 serial port
- Supported Operating Systems: Windows Server 2019, RHEL 7/8/9, ESXi 7.0, ESXi 6.7 U3, Hypervisor 8.1, Ubuntu 20.04LTS, SLES 15SP3, SLES 12SP5, SLES 15 SP2, Oracle Linux 7.8
- Certification: CE, WEEE, ROHS,BIS, EPR
- Warranty: 3 Years Warranty

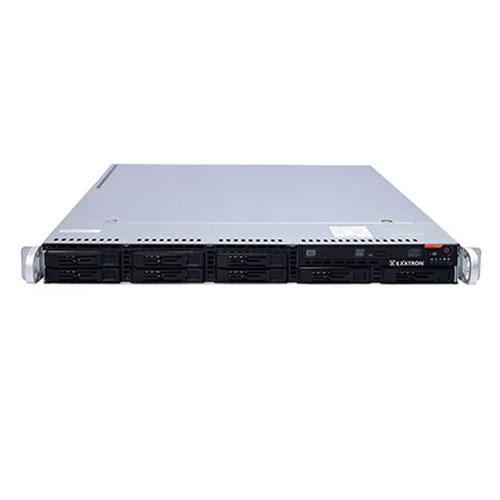

Exatron Rx120 3i16 10SN Rack Server
- Brand: Exatron
- Model No: Exatron Rx120 3i16 10SN Server
- Form Factor: 1U Rack Server
- Dimensions (WxDxH): 438 x 678.7 x 44.4
- Processor: 3rd Gen Intel Xeon Scalable Processors (Ice Lake), Supports CPU TDP up to 270W, Use over 165W CPU, please contact Exatron Technical Support for more info/details about optimized CPUs and specialized system, CPU Interconnection: QPI Speeds 11.2 GT/s, Socket Type: Socket P+ (LGA-4189)
- Memory: 16 x DIMM slots support: DDR4 3200/2933MHz RDIMM/LRDIMM, up to 1024GB RDIMM DRx4 (16Gb), Intel® Optane™ DC Persistent Memory (Barlow Pass) support
- Storage: External: 1U 10x2.5” hot swap (PCIe 5.0 U.2 NVMe), SAS /SATA/NVMe x 2.5” hot swap (5x PCIe Gen4 Slimline connectors), Internal: 2 x M.2/M-Key/22110/2280 (PCIe Gen3)
- Drive Bays: 10 bay 2.5” hot swap (5x PCIe Gen4 Slimline connectors)
- GPU Options: NA
- PCIe: CPU0: 2 x PCIe Gen4 x16 slots (HHHL; one with FH I/O bracket) + 1 x OCP V3.0
- Embedded NIC: 1 x GbE RJ45 dedicated BMC management
- Network options: 1x X16 OCP/3xPCIe
- NIC Ports: NA
- Power Supplies: 750W/1100W 1+1 Redundant power supply 80+ Platinum
- Cooling Options: Air Cooled
- Fans: 6 x 40x56mm easy swap fans, 1 x 40x28mm fan
- Software add-ons: NA
- Bezel options: Optional
- Rear I/O: LAN: 1 x GbE RJ45, 1 x GbE RJ45 dedicated to BMC management
- USB: 2 x USB 3.0 Type A, Video Output: 1 x external DB-15 VGA port, Serial Port: 1 x external COM port phone jack
- Front I/O: Power Button, Reset button, UID, 2 x USB 3.2 Gen1, Power status, Drive activity, LAN activity, System alert, System ID
- Security options: TPM2.0
- Operating System and Hypervisors: Microsoft Windows Server 2019/2022, Redhat Linux 9.2,8.8.8.7, ubuntu 20.04LTS,22.04LTS
- OEM-ready version available: From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information
- Operating conditions: Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF), Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF), Storage operating humidity: 5%~95% non-condensing
- Warranty: 3 Years Warranty
Exatron Rx230 ST GPU Rack Server
- Brand: Exatron
- Model No: Exatron Rx230 ST GPU Server
- Form Factor: 3U Rack Mount
- Category: GPU Server
- Chipset: C624 Intel chipset
- Processor: Dual Scalable Intel 1st and 2nd Gen Processors up 24 Core and 165 TDP Supports (Cascade and Sky lake processors).
- RAM: 16DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 8 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- GPU: Dual A40 Nvidia GPU / RTX 8000 GPU Support FHFL.
- Storage: RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots with VROC support/Cache Drive Convertable.
- Other Features: 800 Watts to 1200 Watts to 1+1 N Hot swap Dual PSU, 2x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, Intel® Virtualization Technology for Directed I/O (VT-d), RAID Controller with 1/2/4/8/ GB Cache, Intel® Trusted Execution Technology TPM2.0, Dual 10Gbps Integrated LAN PORT, Remote Management (Intel RMM Lite4), IPMI 2.0 & Redfish, KVM Remote media Support
- Certifications: Microsoft Certified Platform, VMware Certified Platform
- Compatibilities: VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty

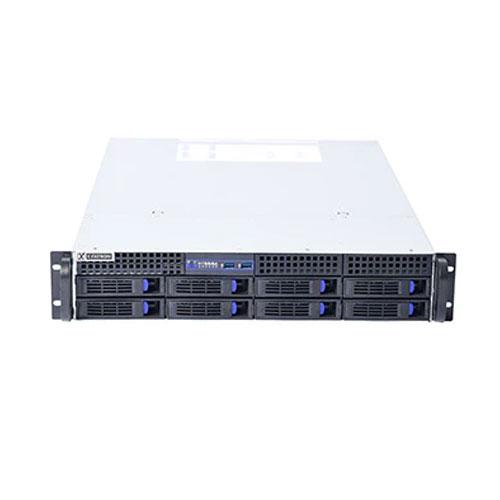

Exatron Rx220 STQT4 Quantum Rack Server
- Brand: Exatron
- Model No: Exatron Rx220 STQT4 Quantum Server
- Form Factor: 2U Rack Mount
- Category: Quantum Storage Server
- Chipset: C621 Intel chipset.
- Processor: Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
- RAM: 12DIMM Slots. Scales from 8GB to 768GB & 2133 to 2933Mts. 6 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- GPU: Dual RTX A8000/A6000 GPU Support FHFL.
- Storage: 720TB Total Storage Capacity. RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots for OS drives.
- Other Features: 800 Watts to 1200 Watts to 1+1 N Hot swap Dual PSU, 4 x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, RAID Controller with 1/2/4/8/ GB Cache, Intel® Trusted Execution Technology TPM2.0, 1x 1Gbps Integrated LAN PORT, IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Quantum Verified Platform.
- Compatibilities: Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty

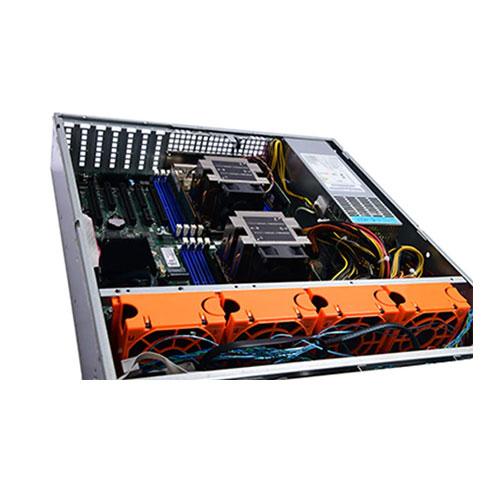

Exatron Rx220 STQT3 Quantum Rack Server
- Brand: Exatron
- Model No: Exatron Rx220 STQT3 Server
- Form Factor: 2U Rack Mount
- Category: Quantum Storage Server
- Chipset: C621 Intel chipset
- Processor: Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
- RAM: 12DIMM Slots. Scales from 8GB to 768GB & 2133 to 2933Mts. 6 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- GPU: Dual RTX A8000/A6000 GPU Support FHFL
- Storage: 480TB Total Storage Capacity. RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots for OS drives.
- Other Features: 800 Watts to 1200 Watts to 1+1 N Hot swap Dual PSU, 4 x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, RAID Controller with 1/2/4/8/ GB Cache, Intel® Trusted Execution Technology TPM2.0, 1x 1Gbps Integrated LAN PORT, IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Quantum Verified Platform
- Compatibilities: Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty

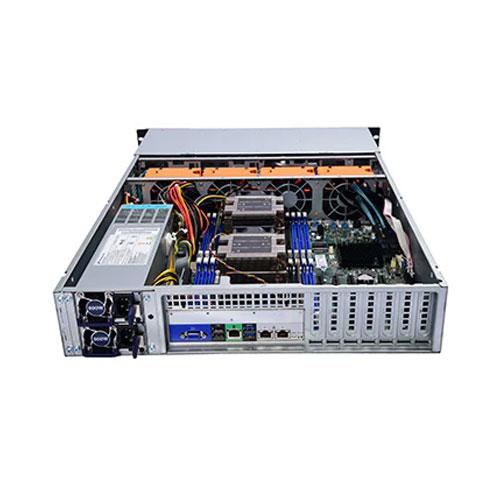

Exatron Rx220 WF Rack Server
- Brand: Exatron
- Model No: Exatron Rx220 WF Server
- Form Factor: 2U Rack Mount
- Category: Windows Application Server
- Chipset: C621 Intel chipset.
- Processor: Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
- RAM: 24DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 6 DIMM Controllers with 4 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- Storage: RAID 0/1/10/5/50/6 SATA Controllers. Upto 24 HDD/SSD slots (2.5"/3.5"). 2XM.2 slots with VROC support/Cache Drive Convertable.
- Other Features: 1100 Watts to 1+1 N Hot swap Dual PSU, 2x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, Intel® Virtualization Technology for Directed I/O (VT-d), RAID Controller with 1/2/4/8/ GB Cache, Intel® Trusted Execution Technology TPM2.0, OCP Network Support, RAID Mezzanine Slot Support, Dual 10Gbps Integrated LAN PORT, Remote Management (Intel RMM Lite4), IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Microsoft Certified Platform, VMware Certified Platform
- Compatibilities: VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty
Exatron Rx120 WF Rack Server
- Brand: Exatron
- Model No: Exatron Rx120 WF Server
- Form Factor: 1U Rack Mount
- Chipset: C624 Intel chipset
- Processor: Dual Scalable Intel 1st and 2nd Gen Processors up 24 Core and 165 TDP Supports (Cascade and Sky lake processors)
- RAM: 24DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 6 DIMM Controllers with 4 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- Storage: RAID 0/1/5 SATA Controllers. Upto 8 HDD/SSD slots (2.5"/3.5"). 2XM.2 slots with VROC support/Cache Drive Convertable
- Other Features: 1100 Watts to 1+1 N Hot swap Dual PSU, 2x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, Intel® Virtualization Technology for Directed I/O (VT-d), Intel® Trusted Execution Technology TPM2.0, OCP Network Support, RAID Mezzanine Slot Support, Dual 10Gbps Integrated LAN PORT, Remote Management (Intel RMM Lite4), IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Microsoft Certified Platform, VMware Certified Platform
- Compatibilities: VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty
Exatron Rx110 WF0 Rack Server
- Brand: Exatron
- Model No: Exatron Rx110 WF0 Server
- Form Factor: 1U Rack Mount
- Category: Virtualization Server
- Chipset: C624 Intel chipset.
- Processor: Dual Scalable Intel 1st and 2nd Gen Processors up 24 Core and 165 TDP Supports (Cascade and Sky lake processors).
- RAM: 24DIMM Slots. Scales from 8GB to 2.4TB & 2133 to 2933Mts. 6 DIMM Controllers with 4 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- Storage: RAID 0/1/5 SATA Controllers. Upto 8 HDD/SSD slots (2.5"/3.5"). 2XM.2 slots with VROC support/Cache Drive Convertable.
- Other Features: 1100 Watts to 1+1 N Hot swap Dual PSU, 2x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, Intel® Virtualization Technology for Directed I/O (VT-d), Intel® Trusted Execution Technology TPM2.0, Dual 10Gbps Integrated LAN PORT, OCP Network Support, RAID Mezzanine Slot Support, Remote Management (Intel RMM Lite4), IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Microsoft Certified Platform, VMware Certified Platform
- Compatibilities: VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty

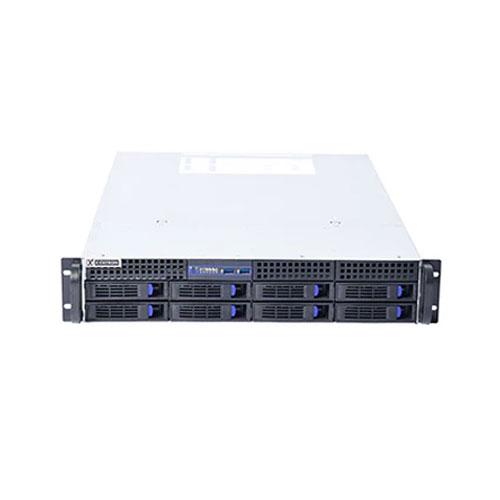

Exatron Rx220 STQT2 Quantum Rack Server
- Brand: Exatron
- Model No: Exatron Rx220 STQT2 Quantum Server
- Form Factor: 2U Rack Mount
- Chipset: C621 Intel chipset
- Processor: Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
- RAM: 12DIMM Slots. Scales from 8GB to 768GB & 2133 to 2933Mts. 6 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- GPU: Dual RTX A8000/A6000 GPU Support FHFL
- Storage: 240TB Total Storage Capacity. RAID 0/1/10/5/50/6 SATA Controllers. Up to 12 HDD/SSD slots (3.5"). 2XM.2 slots for OS drives.
- Other Features: 800 Watts to 1200 Watts to 1+1 N Hot swap Dual PSU, 4 x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, RAID Controller with 1/2/4/8/ GB Cache, Intel® Trusted Execution Technology TPM2.0, 1x 1Gbps Integrated LAN PORT, IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Quantum Verified Platform
- Compatibilities: Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty

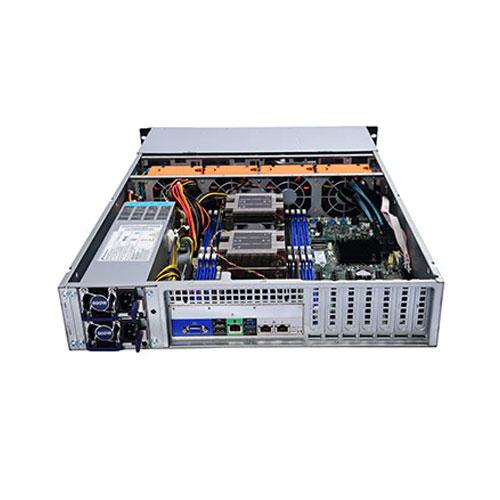

Exatron Rx220 ST Microsoft Rack Server
- Brand: Exatron
- Model No: Exatron Rx220 ST Microsoft Server
- Form Factor: 2U Rack Mount
- Chipset: C621 Intel chipset
- Processor: Dual Scalable Intel 1st and 2nd Gen (Cascade & Skylake), up to 24 Cores. 165TDP.
- RAM: 12DIMM Slots. Scales from 8GB to 768GB & 2133 to 2933Mts. 6 DIMM Controllers with 2 Channels each. DDR4 ECC RDIMM/LRDIMM Memory.
- Storage: RAID 0/1/10/5/50/6 SATA Controllers. Upto 12 HDD/SSD slots (3.5"). 2XM.2 slots.
- Other Features: 800 Watts to 1200 Watts to 1+1 N Hot swap Dual PSU, 4 x16 3.0 or 4x8 3.0 PCIe Slots with raiser Support, RAID Controller with 1/2/4/8/ GB Cache, Intel® Trusted Execution Technology TPM2.0, 1x 1Gbps Integrated LAN PORT, IPMI 2.0 & Redfish, KVM Remote media Support, DVD R/w Optional
- Certifications: Microsoft Certified Platform, VMware Certified Platform
- Compatibilities: VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu*
- Warranty: 3 Years Warranty
-->
