BEST SELLING ZYXEL SWITCH PRICELIST

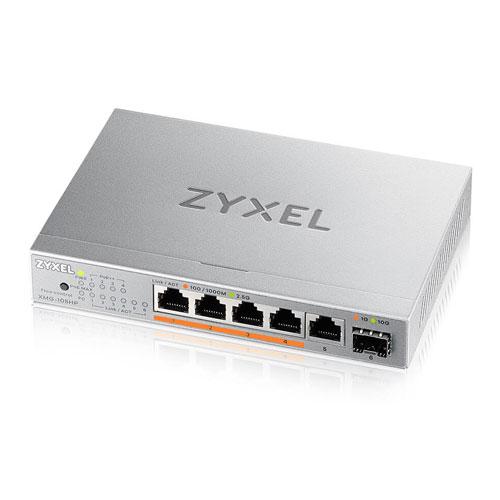

Zyxel XMG 105 Desktop Switch
- Brand: Zyxel
- Model: Zyxel XMG 105 Switch
- Total port count: 6
- 2.5GBASE-T: 5
- 1G SFP/10G SFP+: 1
- IEEE 802.3bt (PoE++, 60 W): No
- Total PoE budget (watts): No
- Switching capacity (Gbps): 45
- Forwarding rate (Mpps): 33.5
- Packet buffer (byte): 1 MB
- MAC address table: 4 K
- Jumbo frame (byte): 12 K
- Input: 100 - 240 V AC, 50/60 Hz
- Power supply: External
- Max. power consumption (watts): 9.12
- Min. power consumption (watts): 1.56
- Fanless: Yes
- Dimensions(WxDxH)(mm/in.): 160 x 110 x 26/6.30 x 4.33 x 1.02
- Weight(kg/lb.): 0.451/0.99

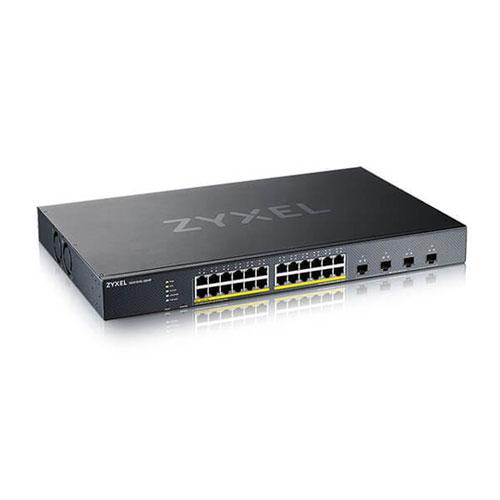

Zyxel XGS1935 52HP Smart Managed Switch
- Brand: Zyxel
- Model: Zyxel XGS1935 52HP Switch
- Total port count: 52
- 100/1000 Mbps: 48
- 10 Gigabit SFP+: 4
- IEEE 802.3at (PoE+): 48
- Total PoE budget (watts): 375
- Switching capacity (Gbps): 176
- Forwarding rate (Mpps): 130.9
- Packet buffer (byte): 1.5 M
- MAC address table: 16 K
- Jumbo frame (byte): 9 K
- L3 forwarding table: Max. 512 IPv4 entries; Max. 512 IPv6 entries
- Routing table: 32
- VLAN routing: Yes
- IP interface (IPv4/IPv6): 32/32
- Flash/RAM: 32 MB/512 MB
- Input: 100 to 240 V AC, 50/60 Hz
- Max. power consumption (watts): 470.1
- Min. power consumption (watts): 32.2
- Dimensions(WxDxH)(mm/in.): 440 x 270 x 43/17.32 x 10.63 x 1.69
- Weight(kg/lb.): 4.1/9.04
- Included accessories: Power cord, Rack mounting kit

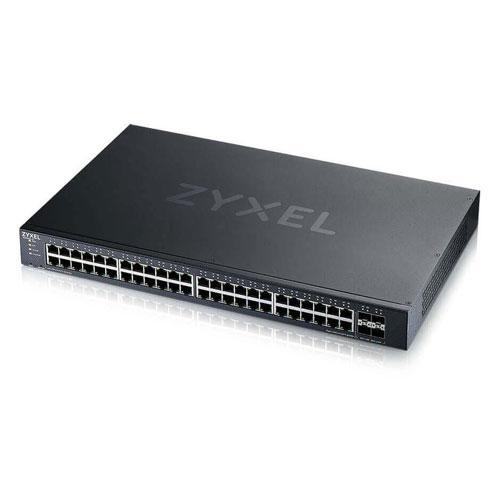

Zyxel XGS1935 52 Port Switch
- Brand: Zyxel
- Model: Zyxel XGS1935 52 Switch
- Total port count: 52
- 100/1000 Mbps: 48
- 10 Gigabit SFP+: 4
- IEEE 802.3at (PoE+): No
- Total PoE budget (watts): No
- Switching capacity (Gbps): 176
- Forwarding rate (Mpps): 130.9
- Packet buffer (byte): 1.5 M
- MAC address table: 16 K
- Jumbo frame (byte): 9 K
- L3 forwarding table: Max. 512 IPv4 entries; Max. 512 IPv6 entries
- Routing table: 32
- VLAN routing: Yes
- IP interface (IPv4/IPv6): 32/32
- Flash/RAM: 32 MB/512 MB
- Input: 100 to 240 V AC, 50/60 Hz
- Max. power consumption (watts): 45.6
- Min. power consumption (watts): 24.7
- Dimensions(WxDxH)(mm/in.): 440 x 270 x 43/17.32 x 10.63 x 1.69
- Weight(kg/lb.): 3.7/8.16
- Included accessories: Power cord, Rack mounting kit

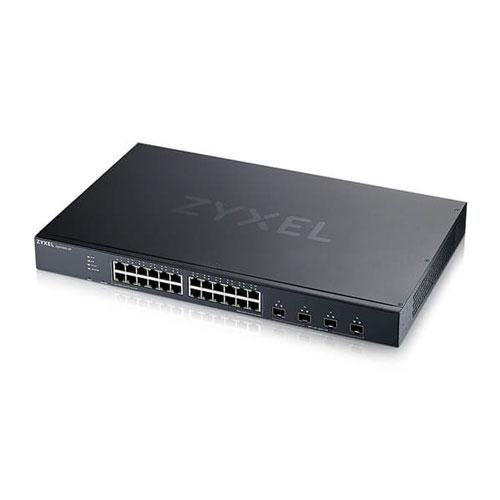

Zyxel XGS1935 28HP Smart Network Switch
- Brand: Zyxel
- Model: Zyxel XGS1935 28HP Switch
- Total port count: 28
- 100/1000 Mbps: 24
- 10 Gigabit SFP+: 4
- IEEE 802.3at (PoE+): 24
- Total PoE budget (watts): 375
- Switching capacity (Gbps): 128
- Forwarding rate (Mpps): 95.2
- Packet buffer (byte): 1.5 M
- MAC address table: 16 K
- Jumbo frame (byte): 9 K
- L3 forwarding table: Max. 512 IPv4 entries; Max. 512 IPv6 entries
- Routing table: 32
- VLAN routing: Yes
- IP interface (IPv4/IPv6): 32/32
- Flash/RAM: 32 MB/512 MB
- Input: 100 to 240 V AC, 50/60 Hz
- Max. power consumption (watts): 452.6
- Min. power consumption (watts): 15.9
- Dimensions(WxDxH)(mm/in.): 440 x 270 x 43/17.32 x 10.63 x 1.69
- Weight(kg/lb.): 3.6/7.94

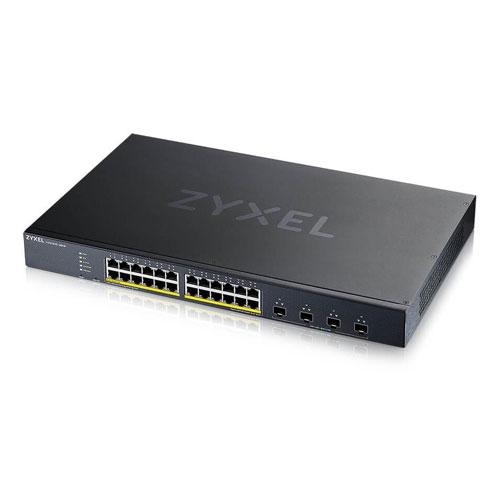

Zyxel XGS1935 28 Smart Network Switch
- Brand: Zyxel
- Model: Zyxel XGS1935 28 Switch
- Total port count: 28
- 100/1000 Mbps: 24
- 10 Gigabit SFP+: 4
- IEEE 802.3at (PoE+): No
- Total PoE budget (watts): No
- Switching capacity (Gbps): 128
- Forwarding rate (Mpps): 95.2
- Packet buffer (byte): 1.5 M
- MAC address table: 16 K
- Jumbo frame (byte): 9 K
- L3 forwarding table: Max. 512 IPv4 entries; Max. 512 IPv6 entries
- Routing table: 32
- VLAN routing: Yes
- IP interface (IPv4/IPv6): 32/32
- Flash/RAM: 32 MB/512 MB
- Input: 100 to 240 V AC, 50/60 Hz
- Max. power consumption (watts): 23.2
- Min. power consumption (watts): 11.5
- Dimensions(WxDxH)(mm/in.): 440 x 270 x 43/17.32 x 10.63 x 1.69
- Weight(kg/lb.): 3.1/6.83

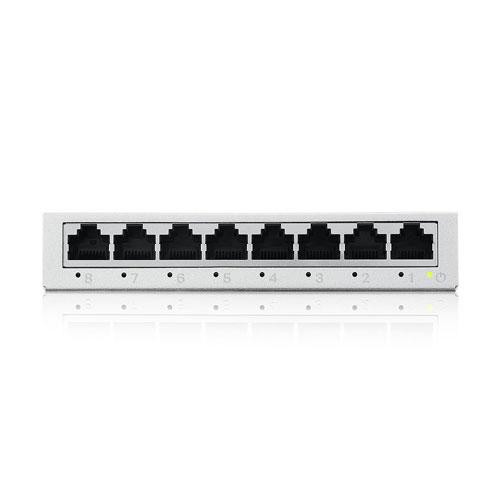

Zyxel GS 108B v5 Unmanaged Switch
- Brand: Zyxel
- Model: Zyxel GS 108B v5 Switch
- Total port count: 8
- 100/1000 Mbps: 8
- Switching capacity (Gbps): 16
- Forwarding rate (Mpps): 11.5
- Packet buffer (byte): 192KB
- MAC address table: 4K
- Jumbo frame (byte): 9KB
- Adapter AC input: 100 - 240V AC, 50/60Hz
- Adapter DC output: 5V 1A
- Power supply: External
- Max. power consumption (watts): 4.82
- Min. power consumption (watts): 0.57
- DC jack size (mm/in.): 5.5 x 2.1/0.22 x 0.08
- Dimensions(WxDxH)(mm/in.): 126 x 51.8 x 24/4.96 x 2.04 x 0.94
- Weight(kg/lb.): 0.176/0.39

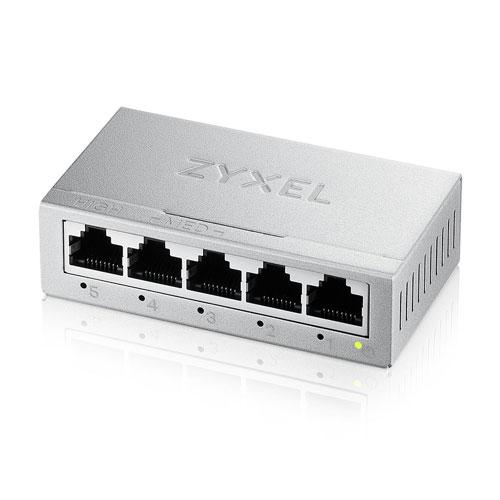

Zyxel GS 105B v5 Unmanaged Switch
- Brand: Zyxel
- Model: Zyxel GS 105B v5 Switch
- Total port count: 5
- 100/1000 Mbps: 5
- Switching capacity (Gbps): 10
- Forwarding rate (Mpps): 7.4
- Packet buffer (byte): 128KB
- MAC address table: 2K
- Jumbo frame (byte): 9KB
- Adapter AC input: 100 - 240V AC, 50/60Hz
- Adapter DC output: 5V 1A
- Power supply: External
- Max. power consumption (watts): 2.99
- Min. power consumption (watts): 0.44
- DC jack size (mm/in.): 5.5 x 2.1/0.22 x 0.08
- Dimensions(WxDxH)(mm/in.): 82.5 x 46.8 x 24/3.25 x 1.84 x 0.94
- Weight(kg/lb.): 0.11/0.24

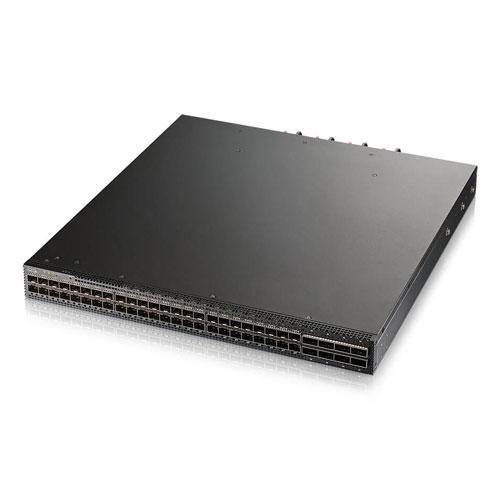

Zyxel CX4800 56F L3 Aggregation Fiber Switch
- Brand: Zyxel
- Model: Zyxel CX4800 56F Switch
- Total port count: 56
- 10G/25G SFP28 ports: 48
- 100G QSFP28 ports: 8
- Management port: 100/1000BASE-T RJ-45 port for out-of-band IP management
- Console: RJ-45
- USB: 2*
- Switching capacity (Tbps): 4.0
- Forwarding rate (Bpps): 2.0
- Packet buffer (byte): 32MB
- MAC address table: 32K
- Jumbo frame (byte): 9K
- L3 forwarding table: Max. 8K IPv4 entries; Max. 4K IPv6 entries
- Routing table: Max. 12K IPv4 entries; Max. 1K IPv6 entries
- VLAN routing: Yes
- IP interface: 256
- Flash/RAM: 64MB/8GB
- Input: Dual hot-swappable AC/DC power supply modules
- Min. power consumption (watts) Without any port connection: 89.6
- Max. power consumption (watts) All ports full load with PoE: 323.0
- Modular fan: Up to 4 field-replaceable, hot-swappable fans
- Dimensions (WxDxH)(mm/in.): 440 x 489 x 45/17.32 x 19.25 x 1.77
- Weight (kg/lb.): 8.62/7.5
Zyxel GS1200 10v3 Smart Gigabit Switch
- Brand: Zyxel
- Model: Zyxel GS1200 10v3 Switch
- Total port count: 10
- 10M/100M/1G (RJ-45): 8
- Gigabit SFP: 2
- PoE ports: No
- Total PoE budget (watts): No
- IEEE 802.3at (PoE+): No
- Switching capacity (Gbps): 20
- Forwarding rate (Mpps): 14.88
- Packet buffer (byte): 192 KB
- MAC address table: 4 K
- Jumbo frame (byte): 15 KB
- Input: 100 - 240 V AC, 50/60 Hz
- Power supply: External
- Min. power consumption (watts) Without any port connection: 0.939
- Max. power consumption (watts) All ports full load without PoE: 4.165
- MMax. power consumption (watts) All ports full load with PoE: No
- Dimensions(WxDxH)(mm/in.): 193 x 85 x 26/7.6 x 3.35 x 1.02
- Weight(kg/lb.): 0.338/0.75

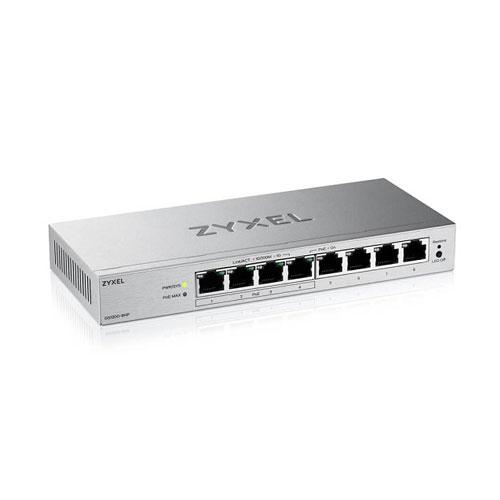

Zyxel GS1200 8HPv3 Web Managed Switch
- Brand: Zyxel
- Model: Zyxel GS1200 8HPv3 Switch
- Total port count: 8
- 10M/100M/1G (RJ-45): 8
- Gigabit SFP: No
- PoE ports: 4
- Total PoE budget (watts): 68
- IEEE 802.3at (PoE+): Yes
- Switching capacity (Gbps): 16
- Forwarding rate (Mpps): 11.9
- Packet buffer (byte): 192 KB
- MAC address table: 4 K
- Jumbo frame (byte): 15 KB
- Input: 100 - 240 V AC, 50/60 Hz
- Power supply: External
- Min. power consumption (watts) Without any port connection: 1.54
- Max. power consumption (watts) All ports full load without PoE: 4.7
- MMax. power consumption (watts) All ports full load with PoE: 81.27
- Dimensions(WxDxH)(mm/in.): 193 x 85 x 26/7.6 x 3.35 x 1.02
- Weight(kg/lb.): 0.337/0.74

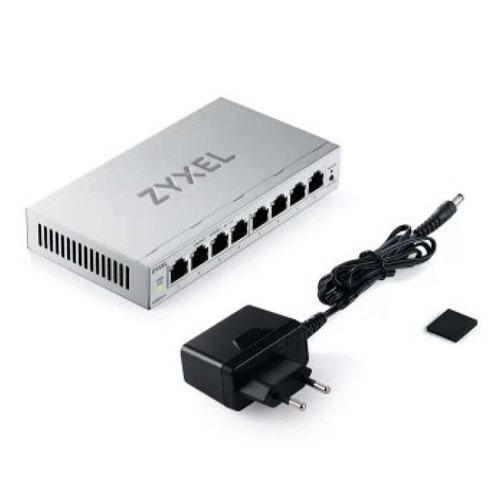

Zyxel GS1200 8v3 Web Managed Switch
- Brand: Zyxel
- Model: Zyxel GS1200 8v3 Switch
- Total port count: 5
- 10M/100M/1G (RJ-45): 5
- Gigabit SFP: No
- PoE ports: 4
- Total PoE budget (watts): 68
- IEEE 802.3at (PoE+): Yes
- Switching capacity (Gbps): 10
- Forwarding rate (Mpps): 7.44
- Packet buffer (byte): 192 KB
- MAC address table: 4 K
- Jumbo frame (byte): 15 KB
- Input: 100 - 240 V AC, 50/60 Hz
- Power supply: External
- Min. power consumption (watts) Without any port connection: 1.779
- Max. power consumption (watts) All ports full load without PoE: 4.153
- MMax. power consumption (watts) All ports full load with PoE: 81.126
- Dimensions(WxDxH)(mm/in.): 155 x 85 x 26/6.1 x 3.35 x 1.02
- Weight(kg/lb.): 0.274/0.6

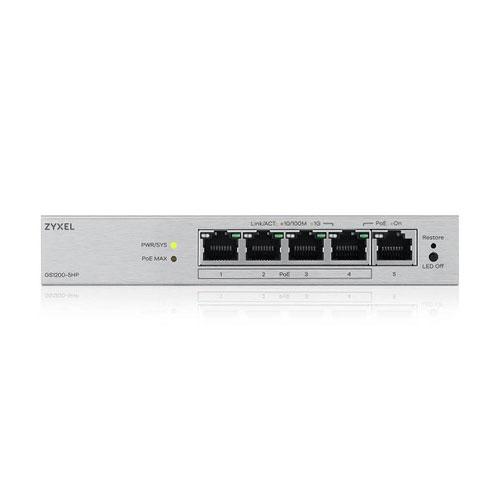

Zyxel GS1200 5HPv3 Network Switch
- Brand: Zyxel
- Model: Zyxel GS1200 5HPv3 Switch
- Total port count: 5
- 10M/100M/1G (RJ-45): 5
- Gigabit SFP: No
- PoE ports: 4
- Total PoE budget (watts): 68
- IEEE 802.3at (PoE+): Yes
- Switching capacity (Gbps): 10
- Forwarding rate (Mpps): 7.44
- Packet buffer (byte): 192 KB
- MAC address table: 4 K
- Jumbo frame (byte): 15 KB
- Input: 100 - 240 V AC, 50/60 Hz
- Power supply: External
- Min. power consumption (watts) Without any port connection: 1.779
- Max. power consumption (watts) All ports full load without PoE: 4.153
- MMax. power consumption (watts) All ports full load with PoE: 81.126
- Dimensions(WxDxH)(mm/in.): 155 x 85 x 26/6.1 x 3.35 x 1.02

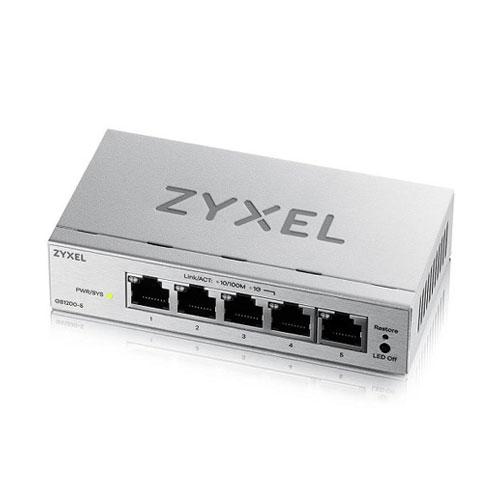

Zyxel GS1200 5v3 Web Managed Switch
- Brand: Zyxel
- Model: Zyxel GS1200 5v3 Switch
- Total port count: 5
- 10M/100M/1G (RJ-45): 5
- Gigabit SFP: NO
- PoE ports: NO
- Total PoE budget (watts): NO
- IEEE 802.3at (PoE+): NO
- Switching capacity (Gbps): 10
- Forwarding rate (Mpps): 7.44
- Packet buffer (byte): 192 KB
- MAC address table: 4 K
- Jumbo frame (byte): 15 KB
- Input: 100 - 240 V AC, 50/60 Hz
- Power supply: External
- Min. power consumption (watts) Without any port connection: 0.722
- Max. power consumption (watts) All ports full load without PoE: 2.718
- MMax. power consumption (watts) All ports full load with PoE: No
- Dimensions(WxDxH)(mm/in.): 121 x 75 x 26/4.76 x 2.95 x 1.02
- Weight(kg/lb.): 0.172/0.38
Zyxel XMG2230 52HP Multi Gig PoE Switch
- Brand: Zyxel
- Model: Zyxel XMG2230 52HP Switch
- Total port count: 52
- 10M/100M/1G (RJ-45): 32
- 100M/1G/2.5G Ethernet (RJ-45): 16
- 10 Gigabit SFP+: 4
- PoE ports: 48
- Total PoE budget (watts): Internal AC input: 960, External DC input: 2,400
- IEEE 802.3at (PoE+): Yes, Port 1 ~ Port 16
- IEEE 802.3bt PoE++ (60W): Yes, Port 17 ~ Port 32 (100M/1G), Port 33 ~ Port 48 (100M/1G/2.5G)
- Switching capacity (Gbps): 224
- Forwarding rate (Mpps): 166.6
- Packet buffer (byte): 2MB
- MAC address table: 32K
- Jumbo frame (byte): 12KB
- L3 forwarding table (IPv4/IPv6): Max. 2K IPv4 entries; Max. 2K IPv6 entries
- Routing table: 64
- VLAN routing: Yes
- IP interface (IPv4/IPv6): 32/32
- Flash/RAM: 64MB/1GB
- Input: 100-240V AC, 50/60Hz, 50-57V DC
- Min. power consumption (watts) Without any port connection: AC: 37.5/DC: 32
- Max. power consumption (watts) All ports full load without PoE: AC: 72.4/DC: 55.5
- Max. power consumption (watts) All ports full load with PoE: AC: 1187.9/DC: 2525
- Dimensions(WxDxH)(mm/in.): 441 x 330 x 44/17.36 x 12.99 x 1.73
- Weight(kg/lb.): 5.03/11.09
- Included accessories: Power cord, Rack mounting kit

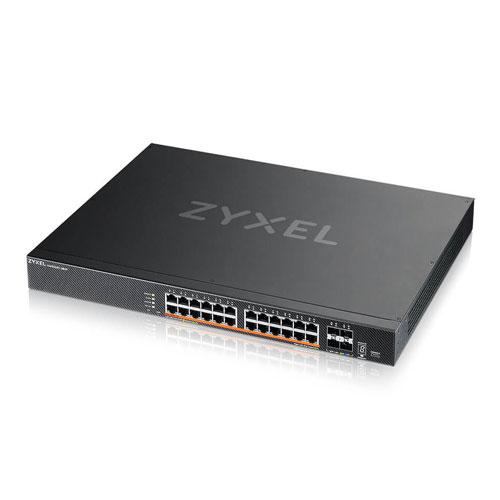

Zyxel XMG2230 28HP Access Switch
- Brand: Zyxel
- Model: Zyxel XMG2230 28HP Switch
- Total port count: 28
- 10M/100M/1G (RJ-45): No
- 100M/1G/2.5G Ethernet (RJ-45): 24
- 10 Gigabit SFP+: 4
- PoE ports: 24
- Total PoE budget (watts): Internal AC input: 700, External DC input: 1,440
- IEEE 802.3bt PoE++ (60W): Yes, Port 1 ~ Port 24 (100M/1G/2.5G)
- Switching capacity (Gbps): 200
- Forwarding rate (Mpps): 148.8
- Packet buffer (byte): 2MB
- MAC address table: 32K
- Jumbo frame (byte): 12KB
- L3 forwarding table (IPv4/IPv6): Max. 2K IPv4 entries, Max. 2K IPv6 entries
- Routing table: 64
- VLAN routing: Yes
- IP interface (IPv4/IPv6): 32/32
- Flash/RAM: 64MB/1GB
- Input: 100-240V AC, 50/60Hz, 50-57V DC
- Min. power consumption (watts) Without any port connection: AC: 32.6/DC: 25.5
- Max. power consumption (watts) All ports full load without PoE: AC: 64.7/DC: 51.5
- Max. power consumption (watts) All ports full load with PoE: AC: 842.3/DC: 1519.1
- Dimensions(WxDxH)(mm/in.): 441 x 330 x 44/17.36 x 12.99 x 1.73
- Weight(kg/lb.): 4.53/9.99
- Included accessories: Power cord, Rack mounting kit
-->
CLICK TO CALL
