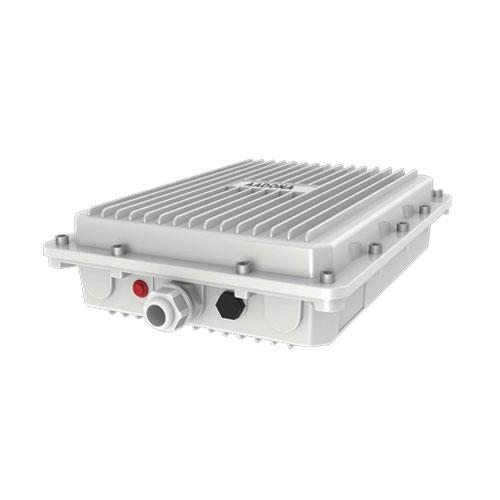

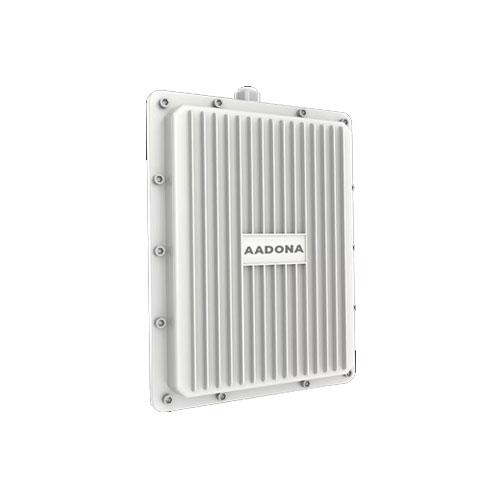

Aadona AXO 3600 Wireless Access Point
- Brand: Aadona
- Product: Aadona AXO-3600 Access Point
- Model Name: AXO-3600
- Product Series: APOLLO
- Standard 802.11ac: Yes
- Standard Wi-Fi 6: Yes
- Standard MIMO technology: Yes
- Throughput: 3600 Mbps:
- Frequency Radio 2.4GHz: 802.11 b/g/n/ac/ax (max rate: 1182 Mbps)
- Frequency Radio 5GHz: 802.11 a/n/ac/ax (max rate: 2475 Mbps)
- MIMO 4x4: Yes
- MIMO: Yes
- Spatial streams: 4
- Concurrent Users: 512
- Housing Type: IP67
- Power Budget: 1000 mW, 20 dBm
- Physical Interface: 10/100 /1000Mbps RJ45 WAN Port: 1
- Physical Interface: 10/100 / 1000Mbps RJ45 LAN Port: 1
- Reset button: 1
- Antenna Connector: 6 Female N-type connectors for External antenna support
- Standalone Mode: Yes
- Hardware Controller: Yes
- Cloud Controller: Yes
- Operation Modes:
- Wireless AP: Yes
- Gateway: Yes
- WISP: Yes
- Repeater: NA
- SSID: SSID for 2.4GHz: 4, SSID for 5GHz: 8
- IPv4: Yes
- Watchdog: Yes
- IP Address Setting: Static or DHCP allocation
- Configuration: Web Interface (HTTP); Local management and Firmware upgrade; Remote Management through controller
- Supported Operating Systems: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
- RF specifications Modulation: OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM <br> DSSS = DBPSK, DQPSK, CCK
- PPM: ±20ppm
- 2.4GHz EVM: 802.11b: ?-10 dB; 802.11g: ?-25 dB; 802.11n: ?-28dB
- 5GHz EVM: 802.11a: ?-25 dB; 802.11n: ?-28 dB; 802.11ac: ?-32 dB
- Operating Temperature: -2050 °C
- Storage Temperature: -4070 °C
- Humidity: 10%~90% non-condensing
- Mounting Wall or Pole mount preferred
- Device Dimensions 198mm X 198mm X 28mm
- Weight: 4 Kgs
- Power input: 802.3at 48V PoE; <30W
- Warranty: 3 Year Warranty
