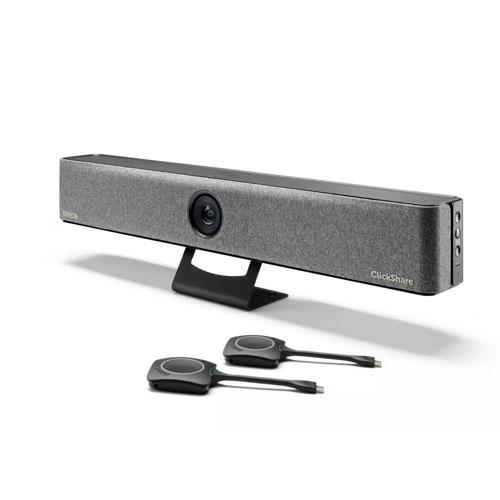

Barco ClickShare Bar Pro All In One Video Bar
- Brand: Barco
- Model No: Barco ClickShare Bar Pro Video Conferencing
- Operating system: Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App)
- System requirements: For a smooth experience with Microsoft Teams or Zoom, Minimum: Intel i3 dual-core processor or AMD Ryzen 7 / 8GB RAM / OS: Windows 10 latest build or Mac OS Mojave latest build, Recommended: Intel i5 4-core processor or AMD Ryzen 9 / 8GB RAM / OS: Windows 11 latest build or Mac OS latest build
- Video outputs: 4K UHD (3840*2160) @ 30Hz. or 2x 1080p @ 30Hz. HDMI™ 1.4b or 1.4b or USB-C DP ALT mode (DisplayPort 1.2)
- Video inputs: 4k UHD (3840*2160) @30Hz.USB-C DP ALT mode (DisplayPort 1.2)
- Camera: 4K, 1080p, 720p at 30fps, 3x zoom/ePTZ, 120?FOV
- Camera AI: Group framing, speaker framing and tracking and composition mode with up to 4 people
- Audio output: 2x 10W full duplex and stereo speakers, 8 Ohms impedance
- Audio pickup: 6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range: max. 13ft/4 meters
- ClickShare Buttons: 2
- ClickShare App: Desktop & Mobile
- Native protocols: Airplay, Google Cast, Miracast
- Maximum sources simultaneously on screen: 2
- Noise Level: Fanless
- Authentication protocol: WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
- Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
- Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Bar
- Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries in network integration mode)
- Connections: 1x USB-C 3.1 (DP) to screen,1x USB-C 3.1 (DP) video input, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)
- Temperature range: Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)
- Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing
- Anti-theft system: Kensington lock (back and bottom)
- Certifications: FCC/CE
- Touch screen support & Interactivity: Yes
- Wireless conferencing: via App or Button
- Local view: Yes
- Network connection: LAN & WiFi
- Management and reporting: Yes
- Power consumption: Operational: 5-20W, 65W Max
- Power supply: Standard 110/220 V AC plug or USB-C (back)
- Dimensions (HxWxD): 98 mm x 640 mm x 101 mm
- Weight: 2500 gram
- Warranty: 1 year standard. 5 years coverage upon registering via SmartCare
