Up to two 2nd Generation Intel Xeon Scalable processors with up to 22 cores per processor

Canonical Ubuntu LTS

Citrix Hypervisor

Microsoft Windows Server LTSC with Hyper-V

Oracle Linux

Red Hat Enterprise Linux

Bezel :
Optional security bezel

Height : 86.8mm (3.4”)

Width : 448.0mm (17.6”)

Depth : 810.0mm (31.9")

Weight : 40.0kg (88.2lbs)

DIMM Speed : Up to 2666MT/s

Memory Type :RDIMM

Memory Module Slots : 16 DDR4 RDIMM slots, Supports registered ECC DDR4 DIMMs only

Maximum RAM : RDIMM 1TB

Internal Controllers : PERC H730P, H330, HBA330

External Controllers : 12 Gbps SAS HBA

Software RAID : S140



Boot Optimized Storage Subsystem (BOSS):

HWRAID 2 x M.2 SSDs 240GB or 480GB

Internal Dual SD Module

Front Bays:

Up to 24 x 3.5” SAS/ SATA (HDD) max 384TB

Up to 16 x 3.5” SAS/SATA (HDD) plus up to 8 x 2.5” SAS/SATA (SSD) max 317.44TB*

Up to 2 x 3.5” SAS/ SATA (HDD) max 32TB

Up to 2 x 2.5” SAS/SATA (SSD) drives max 15.36TB*

750W Platinum

750W 240VDC Platinum

1100W Platinum

1100W 380VDC Platinum

Hot plug power supplies with full redundancy option

Up to 6 hot plugs fans with N +1 redundancy

Network Options:

2 x 1GbE BaseT LOM

2 x 1Gb BaseT

2 x 10GbE SFP+

2 x 10GbE BaseT

2 x 25GbE SFP+

2 x 16Gb Fibre Channel

1 x Dedicated iDRAC direct micro-USB

1 x USB 3.0

1 x iDRAC dedicated LAN

1 x Serial

2 x USB 3.0

1 x VGA

1 x USB 3.0

PCIe : Up 5 PCIe slots (3 x16 + 2 x4)

1 x VGA

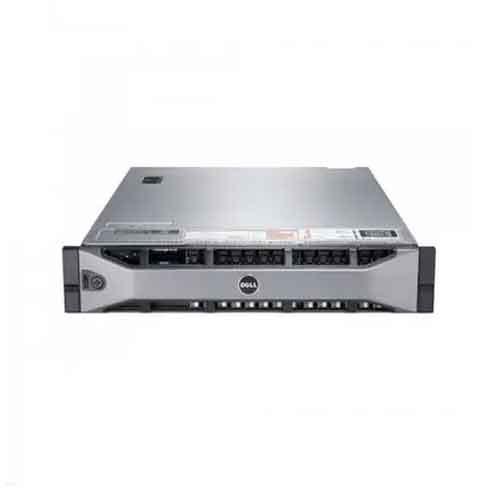

2U Rack Server

ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks)
