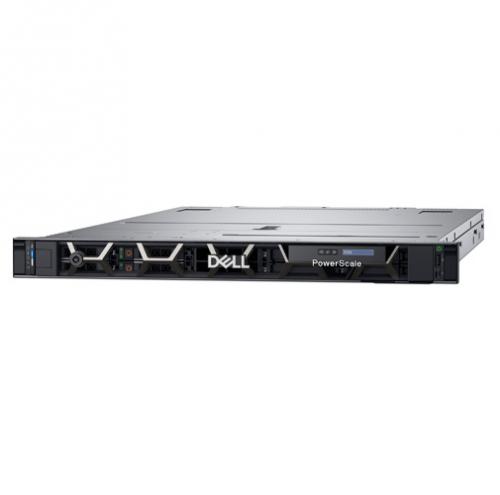

Dell PowerScale F210 NAS Storage
- Brand: Dell
- Raw node capacity:7.7 TB - 61 TB
- Nodes per cluster:3 up to 252
- Raw cluster capacity:23 TB to 15 PB
- Memory:128 GB
- Storage type:NVMe SSD (TLC, QLC)
- SSD drives per node:4
- Processor: 2 Intel Xeon CPUs, 2GHz/10C
- Functional: All-flash, all-NVMe NAS, Scale-out storage
- Memory: 128 GB DRAM DDR5 ECC
- Base enclosure: 1U Form Factor, 4x2.5” NVMe SSD drives
- Expansion Capacity: Scale-out architecture, Distributed fully symmetric clustered architecture that combines modular storage with OneFS operating system in a single volume, single namespace, and single filesystem.
- Expansion enclosures: Minimum cluster size: 3 nodes, Maximum cluster size: 252 nodes
- Front End Networking (per node): Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28), Dual port 100G NIC supporting 40G or 100G connections
- Infrastructure Networking (per node): Dual port 25G NIC supporting 10G or 25G connections (SFP+/SFP28), Dual port 100G NIC supporting 40G or 100G connections (QSFP+/QSFP28)
- Software: OneFS 9.2.1 or later. Upgrades are non-disruptive, PowerScale OneFS distributed file system creates a cluster with a single file system and
- Base unit: 1U Form Factor
- Height: 42.8 mm / 1.68 in.
- Width: 482 mm / 18.97 in.
- Depth: 822.88 mm / 32.39 in. (with bezel)
- Weight: 20.3 kg / 44.8 lb
- Power: 800 W, Dual redundant power supplies
- Max Power consumption: (200-240V per node), 25°C – 286 Watts, 35°C – 309 Watts
- Typical Thermal rating: 25°C – 975 BTU/hr, 35°C – 1054 BTU/hr
