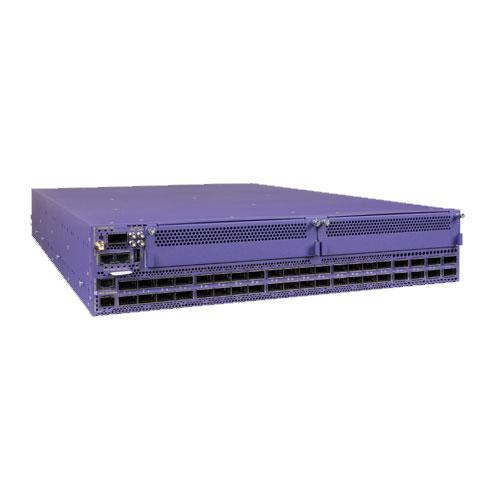

Extreme Networks 7830 VIM 16CE Ethernet Switch
- Brand: Extreme
- Model No: 7830-VIM-16CE
- Product: 7830-VIM-16CE 16 Port Rack Mountable Switch
- Port Quantity: 16 x 100Gb QSFP28 Modular VIM; 100Gb ports can be channelized as 4 x 10Gb/25Gb SFP+ ports or 1 x 40Gb QSFP+ ports; All ports MACsec capable
- Performance Line rate: 25.6 Tbps Switching Capacity (12.8Tbps Ingress, 12.8Tbps Egress)
- CPU/Memory: Intel 8 core CPU @2.2Ghz
- RAM 16GB DDR4 ECC memory
- Storage: 128GB SSD memory
- Packet Buffers: 80MB
- Fan Tray: 4 fan modules, N+1 redundant; Front-Back and Back-Front airflow options
- Power Supplies: Modular 2400W AC power supply (up to 2 PSUs); Modular 2400W DC power supply (up to 2 PSUs); Front-Back and Back-Front airflow options
- Chassis Dimensions:41.40mm (H) x 279.91mm (D) x 190.25mm (W
- Chassis Weight: 1.91 kg
