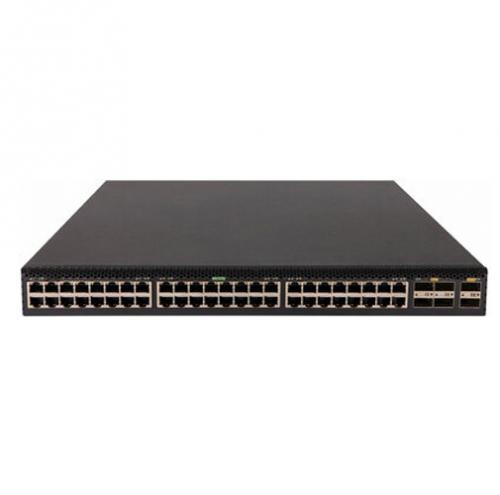

HPE Networking Comware 5550 HI Switch
- Brand: HPE
- Improved hardware specification and scale: faster CPU, increased memory, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast and MPLS LSP scale.
- Diverse I/O options and upgraded uplinks: Flexible I/O 36 and 48 port copper, fiber and combo GE ports downlink, and expanded uplink ports 8x25G and 2x100G via the expansion model.
- Enhanced security with all ports MacSec AES-256.
- L3 multicast support.
- High Densify PoE++: up to 48 port 90W PoE++/port.
- Support containerizaton for application hosting
- Power consumption:
- Idle: Single AC: 29 - 54W, Dual AC: 36-66W; Single DC: 34-35W; dual DC: 39 - 41W, selected models
- Full load: Single AC: 90 - 1705W, Dual AC: 96-3201W; Single DC: 90-135W; dual DC: 95-140W, selected models
- Input voltage:AC: 90V to 290V, and DC: -36V to -72V on selected models
- Latency:GE: < 5 µs, 10GE: < 3 µs, 40GE: <1.2µs
- Routing capabilities:MAC table: 128K IPv4/IPv6 routes: 266K/133K ARP table: 80K ACL (Ingress/Egress): 4864/512
- Switching capacity:696 Gbps - 744 Gbps
- Stacking capabilities:9 member IRF
- Throughput:518 Mpps - 554 Mpps
- Memory and processor:CPU: ARM 2GHz Quard core, 4GB SDRAM, 4GB Flash, 8M Packet buffer
- Ports:48x 100/1000Base-X SFP ports; or 32x 10/100/1000Base-T ports and 4x 1G/10GBase-X SFP+ ports; or 48x 10/100/1000Base-T ports; or 32x 10/100/1000Base-T PoE++ ports and 4x 1G/10GBase-X SFP+ ports; or 48x 10/100/1000Base-T PoE++ ports Plus 4x 10G/25GBase-X SFP28 ports, selected models
- Management features:IMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC Web GUI
- Warranty:Limited lifetime warranty. See the warranty duration guide.
