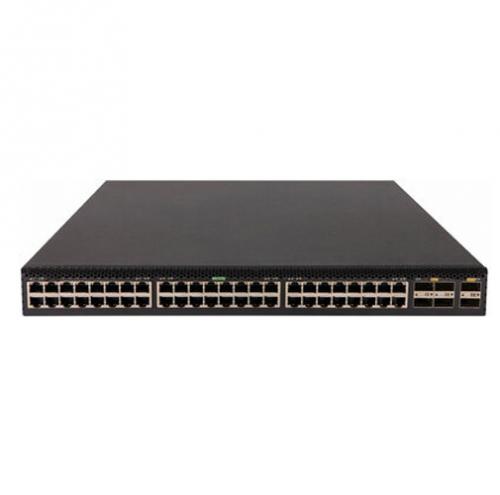

HPE Networking Comware 5901AF Switch
- Brand: HPE
- High-density, high-performance Top-of-Rack (ToR) switch that bridges the gap between legacy and modern networks with 48 x 10/100/1000Mbps RJ-45 ports, 4 x 1/10 SFP+ ports, and 2 x 40 QFSP+ ports.
- HPE Intelligent Resilient Fabric (IRF) technology provides greater resilience and scalability.
- Cut-through with low-latency and varying wire speed performance.
- Rich feature sets with IPv4 and IPv6 support Layer 2, Layer 3, and QoS /ACL features.
- OpenFlow and NETCONF for automating manual tasks and improving service delivery.
- Dual, redundant hot-pluggable power supplies with reversible airflow help reduce power consumption.
- Power consumption:Up to 175W, depending on the model
- Heat dissipation:UP to 597 BTU/hr, depending on the model
- Input voltage:-48 to -60 VDC, depending on the model
- Ports:(48) 10/100/1000, 1000/10000 SFP+, or 1/10GbE RJ-45 ports
- (4) QSFP+ 40-GbE ports, maximum
- (4) additional 1000/10000 SFP+ ports on selected models
- Latency:<1.2µs refer to QuickSpecs for model details
- Routing/switching capacity:336Gbps
- Switching capacity:336Gbps
- Stacking capabilities:IRF 9 switches
- Throughput:250Mpps
- Maximum, depending on model and configuration
- Memory and processor:512 MB flash
- Packet buffer size: 9 MB
- 2 GB SDRAM
- Management features:IMC - Intelligent Management Center
- Command-line interface
- Out-of-band management
- SNMP manager
- Telnet
- FTP
- Warranty:Limited Lifetime Warranty
