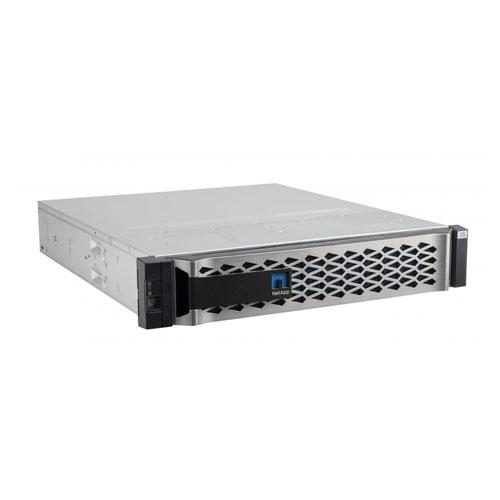

NetApp ASA A250 All Flash Block Storage
- Brand: NetApp
- Model No: NetApp ASA A250 All Flash SAN Storage
- Maximum scale-out: 2–12 nodes(6 HA pairs)
- Maximum SSDs(NVMe): 288
- Raw capacity (per HA pair): Up to 1.1PB
- Maximum effective capacity: 26PB
- Controller form factor: 2U; 24 internal SSD slots
- Power consumption(median): 491W
- PCIe expansion slots: 4
- FC target ports(32Gb autoranging): 16
- FC target ports(16Gb autoranging): n/a
- FCoE target ports, UTA2: n/a
- 100GbE ports(40GbE autoranging): 8
- 25GbE ports(10GbE autoranging): 16
- 10GbE ports: n/a
- 10GBASE-T(1GbE autoranging): 4
- 12Gb/6Gb SAS ports: n/a
- Storage networking supported: NVMe/TCP, NVMe/FC, FC, iSCSI
- Shelves and media: NS224 (2U, 24 drives, SFF NVMe); DS224C (2U, 24 drives, 2.5” SFF); DS2246 (2U, 24 drives, 2.5”, SFF)
- Host/client OS supported: Windows Server, Linux, Oracle Solaris, AIX, HP-UX, VMware
