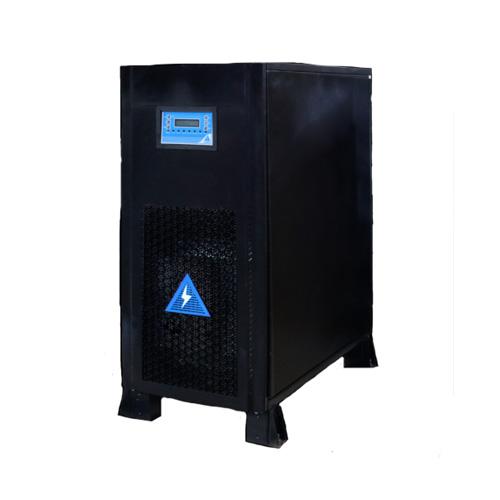

Numax Online Nx310 10KVA 120KVA UPS System
- MODEL: Nx3310 Nx3315 Nx3320 Nx3330 Nx3340 Nx3360 Nx3380 Nx3100 Nx3120
- Capacity: 10 kVA /9 kW , 15 kVA /13.5 kW , 20 kVA /18 kW , 30 kVA /27 kW , 40 KVA /36 kW 60 kVA /54 kW , 80 kVA /72 kW , 100 KVA /90 kW , 120 kVA /108 kW
- INPUT:
- Input wiring: Three-phase five-wire (3Ø + N + PE)
- Rated voltage: 380/400/415 Vac
- Voltage range: 285-475 V
- Rated Frequency: 50 Hz
- Frequency range: (50) ± 5 Hz
- Power factor: 0.95 (with Filter)
- Delayed start of rectifier: 10 s (1300 settable)
- Bypass voltage range: ± 20% (settable)
- OUTPUT:
- Output wiring: Three-phase five-wire (3 + N + PE)
- Rated voltage: 380/400/415 Vac
- Output Voltage regulation: ± 1%
- Waveform: Sinusoidal
- Power factor: 0.8
- Voltage distortion (THDv): 1% (linear load); 5% (non-linear load)
- Crest Factor: 3:1
- Overload: 105%~110% for 60 min, 105%~110% for 20 secs
- Output Frequency regulation: 50 Hz ± 0.1% Hz in battery mode
- BATTERIES:
- DC Voltage: Lead acid battery: 360 Vdc Lithium iron phosphate battery: 384 Vdc
- Number of battery: Lead Acid battery: 12 V x 30 pcs (support 28~32 pcs) Lead Acid battery: 2 V x 180 pcs (support 168-192 pcs) Lithium iron phosphate battery: 3.2 V x 120 pcs (support 112/120 pcs)
- Charging current: Charging rate (settable) x battery capacity (settable) x number of battery groups (settable)
- SYSTEM:
- Efficiency: In Line mode: Max. 95%
- Protections: Short-circuit, overload, over temperature, battery low voltage, over voltage, under voltage and fan failure
- Communications: RS232/RS485 / dry contacts (standard), SNMP (optional)
- EMI: EN62040-2
- EMS: IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4-(EFT) IEC61000-4-5 (surge)
