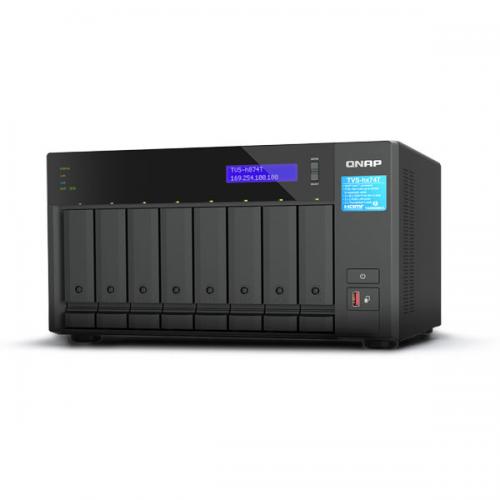

Qnap TVS h874T i7 32G High Speed NAS Storage
- Brand: Qnap
- Form Factor: Tower
- Model No: Qnap TVS-h874T-i7-32G Network Attached Storage
- CPU: Intel Core i7 12-core (8P+4E) /20-thread Processor
- CPU Architecture: 64-bit x86
- Graphic Processors: Intel® UHD Graphics 770
- Floating Point Unit: Yes
- Encryption Engine: Yes (AES-NI)
- Hardware-accelerated Transcoding: Yes
- System Memory: 32 GB SODIMM DDR4 (2 x 16 GB)
- Maximum Memory: 64 GB ( 2 x 32 GB)
- Memory Slot: 2 x SODIMM DDR4
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch bays:, 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable: (Not supported M.2 SSD)
- M.2 Slot: 2 x M.2 2280 PCIe Gen 4 x4 slots
- SSD Cache Acceleration Support: Yes
- GPU pass-through: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
- 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
- 10 Gigabit Ethernet Port: Optional via PCIe expansion card
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- Thunderbolt Port: 2 (Thunderbolt 4)
- PCIe Slot: 2, Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4
- USB 3.2 Gen 2 (10Gbps) Port: 1 x Type-C USB 3.2 Gen 2 10Gbps, 2 x Type-A USB 3.2 Gen 2 10Gbps
- HDMI Output: 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
- LED Indicators: HDD 1-8, Status, LAN, USB port, M.2 port
- LCD Display/ Button: Yes
- Buttons: Power, Reset, USB Copy
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 350W (PWR-PSU-350W-DT01), 100-240V
- Power Consumption: Disk Standby Mode: 62.668 W
- Power Consumption: Operating Mode, Typical: 104.35 W
- Fan: System fan: 2 x 120mm, 12VDC, CPU fan: 1 x 60mm, 12VDC
- Max. Number of Concurrent Connections (CIFS)- with Max. Memory: 3500
- Dimensions (HxWxD): 180.2 × 329.3 × 279.6 mm
- Weight (Net): 7.34 kg
- Warranty: 3 Years Onsite Warranty
