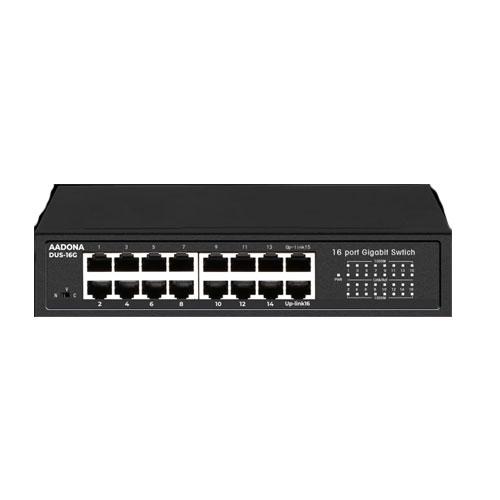

Aadona DUS 16G Non PoE Network Switch
- Brand: Aadona
- Product: DIANA DUS-16G 16 Port Unmanaged Non POE Switch
- Model Name: DUS-16G
- Port: 16 Port 10/100/1000M Unmanaged Switch
- Product Family: Diana:
- 10M/100M/1000M RJ45 Port: 16
- 10M/100M/1000 Uplink RJ45 Port: NA
- 10M/100M/1000M SFP Uplink Port: NA
- Total Ports: 16
- Switching Bandwidth: 56 Gbps
- Packet Forwarding: 14.44 Mpps
- Exchange Mechanism: Store & Forward
- System Buffer: 2.5M
- MAC Address: 4K
- Jumbo Frames: 9K
- DIP Switch: N:(standard normal); V:(port isolation); C:(Flow Control mode)
- Port Based Isolation: Yes:
- Operating Temperature: -10-55?
- Operating Humidity: 10%?90% RH Non-condensing
- Storage Temperature: -40??75?
- Storage Humidity: 5%?90% RH Non-condensing
- FAN Less: Yes:
- AC Input: Internal Power Supply AC input 100240V 5060Hz 1A
- Power Consumption: ?15W
- IEEE 802.3X: Yes
- IEEE 802.3i 10BASE-TX: Yes
- IEEE 802.3u 100BASE-TX: Yes
- IEEE 802.3x Flow control: Yes:
- Normal Mode: Up to 100 meters
- Ethernet 10Mbps half-duplex: Yes
- Fast Ethernet 100Mbps half-duplex: Yes
- Gigabit Ethernet 1000Mbps half-duplex: Yes
- Gigabit Ethernet 2000Mbps full-duplex: Yes:
- 10Base-T: Pair 2 Category 3(cat 3) and above UTP/STP(?250m)
- 100Base-TX: Pair 2 Category 5(cat 5) and above UTP/STP(?150m)
- 1000Base-TX: Pair 2 Category 6 and above UTP/STP(?150m)
- Lightning Protection: 3KV 8/20us; IP30
- Product Dimensions (H) x (W) x (D) mm: 210mm105mm45mm
- Weight: 0.6kg
- Warranty: 2 Year + 1 Year Extended Warranty (Max 3 Year)
