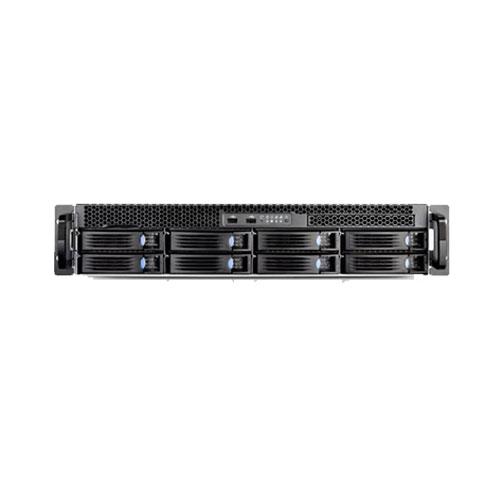

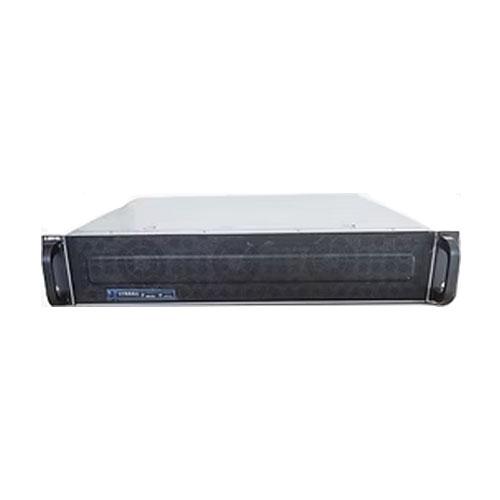

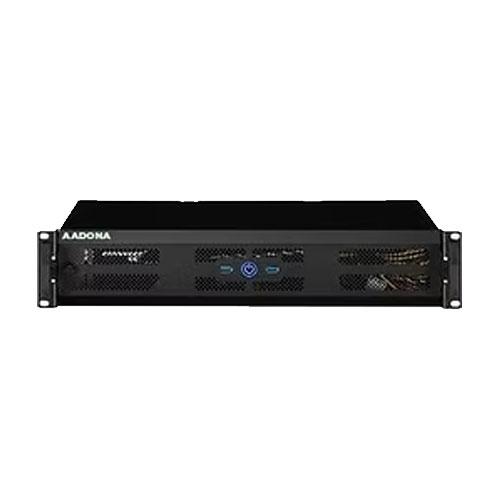

Aadona IRIS IAS IX64 P70 VRM Intel Xeon Processor Server
- Brand: Aadona
- Form Factor: Rack
- Model: IRIS-IAS-IX64-P70-VRM
- Product: Aadona IRIS IAS IX64 P70 VRM Rack Server
- CPU: 2nd Gen. Intel Xeon Scalable and Intel Xeon Scalable Processors Dual processor, LGA 3647
- Chipset: Intel C622 Chipset
- Memory: 16 x DIMM slots - DDR4 memory supported only - 6-channel memory architecture - RDIMM modules up to 128GB supported - LRDIMM modules up to 128GB supported - Supports Intel® Optane™ DC Persistent Memory (DCPMM) - 1.2V modules: 2933/2666/2400/2133 MHz
- LAN: 2 x 10Gb/s BASE-T LAN ports - 2 x 1Gb/s LAN ports - 1 x 10/100/1000 management LAN
- Storage: 3 x SlimSAS for 12 x SATA III 6Gb/s ports - 2 x 7-pin SATA III 6Gb/s with SATA DOM supported
- Video: Integrated in Aspeed AST2500 - 2D Video Graphic Adapter with PCIe bus interface - 1920x1200@60Hz 32bpp, DDR4 SDRAM
- RAID: Intel® SATA RAID 0/1/10/5
- Expansion Slots: Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1 - Slot_5: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_1 - Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_1 - Slot_3: 1 x PCIe x8 (Gen3 x8 bus) slot, from CPU_0 - Slot_2: 1 x PCIe x16 (Gen3 x16 bus) slot, from CPU_0 - Slot_1: 1 x PCIe x8 (Gen3 x4 bus) slot, from PCH - 2 x M.2 slots: - M-key - PCIe Gen3 x4, from CPU_0 - Supports NGFF-2280/22110 cards - 2 x U.2 ports: - SlimSAS type - PCIe Gen3 x4, from CPU_1
- Internal I/O: 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors - 2 x SATA DOM power pin headers - 5 x SlimSAS connectors - 2 x 7-pin SATA connectors - 2 x M.2 slots - 2 x CPU fan headers - 5 x System fan headers - 1 x USB 3.0 header - 1 x COM_2 header - 1 x TPM header - 1 x VROC connector - 1 x Front panel header - 1 x HDD backplane board header - 1 x PMBus connector - 1 x IPMB connector - 1 x Clear CMOS jumper - 1 x BIOS recovery jumper - 1 x Case open header - 1 x Buzzer
- Rear I/O: 2 x USB 3.0 - 1 x VGA - 1 x COM (RJ45 type) - 4 x RJ45 - 1 x MLAN - 1 x ID button with LED
- OS Supported: Windows Server 2012 R2 with Update - Windows Server 2016 - Windows Server 2019 - Red Hat Enterprise Linux 6.9 (x64) or later - Red Hat Enterprise Linux 7.3 (x64) or later - Red Hat Enterprise Linux 8.0 (x64) or later - Red Hat Enterprise Linux 9.0 (x64) or later - SUSE Linux Enterprise Server 11 SP4 (x64) or later - SUSE Linux Enterprise Server 12 SP2 (x64) or later - SUSE Linux Enterprise Server 15 (x64) or later - Ubuntu 16.04.1 LTS (x64) or later - Ubuntu 18.04 LTS (x64) or later - Ubuntu 20.04 LTS (x64) or later - VMware ESXi 6.0 Update3 or later - VMware ESXi 6.5 or later - VMware ESXi 6.7 or later - VMware ESXi 7.0 or later - VMware ESXi 8.0 or later - Citrix Xenserver 7.1.0 CU2 or later - Citrix Xenserver 7.4.0 or later - Citrix Hypervisor 8.0.0 or later
- Board Management: Aspeed AST2500 management controller Avocent® MergePoint IPMI 2.0 web interface: - Network settings - Network security settings - Hardware information - Users control - Services settings - IPMI settings - Sessions control - LDAP settings - Power control - Fan profiles - Voltages, fans and temperatures monitoring - System event log - Events management (platform events, trap settings, email settings) - Serial Over LAN - vKVM & vMedia (HTML5)
- PSU Connectors: 1 x 24-pin ATX main power connector - 2 x 8-pin ATX 12V power connectors
- Operating Properties: Operating temperature: 10°C to 40°C - Operating humidity: 8-80% (non-condensing) - Non-operating temperature: -40°C to 60°C - Non-operating humidity: 20%-95% (non-condensing)
- Retail Packaging Content: 1 x MD71-HB0 - 1 x I/O shield - 1 x Quick start guide - 2 x SlimSAS for 8 x SATAIII 6Gb/s cables - 2 x Non-Fabric CPU carriers - Single Box dimensions: 409 x 355 x 78 mm - Carton dimensions: 729 x 415 x 432 mm
