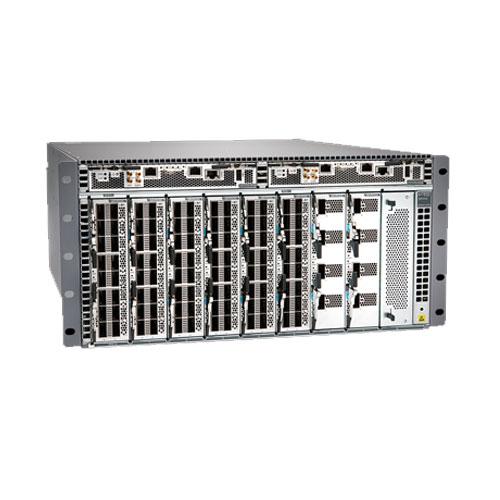

Juniper QFX5700 PoE Switch
- Brand: Juniper
- Product: QFX5700 Network Switch
- Form factor: Modular 5 U
- Switching capacity: 25.6 Tbps
- Port densities(10/25/40/50/100/400GbE); 32x400GbE; 64x200GbE; 128x100GbE; 144x50/40/25/10GbE
- Power consumption: Redundant (N+N) hot-pluggable AC/ DC power supplies (2n)
- Maximum power draw: 3338 W
- Typical power draw: 2722 W
- Buffer capacity: 132 MB
- MAC addresses: 160,000
- IPv4 unicast/multicast routes: 1.24 million
- IPv6 unicast/multicast routes: 610,000
- Number of VLANs: 4091
- ARP entries: 32,000 (tunnel mode); 64,000 (non-tunnel mode)
- Latency: 630 ns
- Overlay Management and Protocols: Contrail Networking, EVPN-VXLAN
- Dimensions (W x H x D): 19.0 in x 8.74 in (5RU) x 32 in (48.2 x 22.2 x 81.5 cm)
