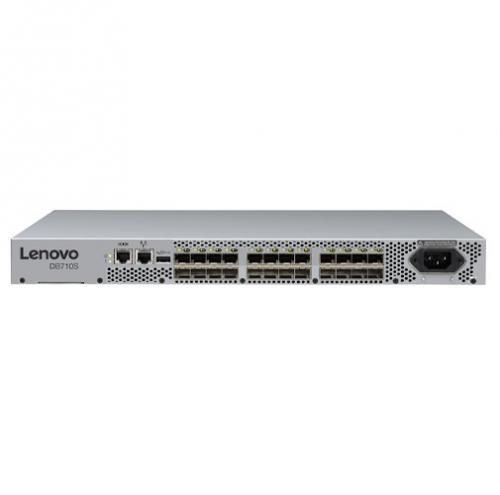

Lenovo ThinkSystem DB710S 24 Port Network Switch
- Brand: Lenovo
- Model No: Lenovo ThinkSystem DB710S Fibre Channel Switch
- Machine type:7DHN (Lifetime warranty)
- Fibre Channel Ports: Switch mode (default): 24 ports 64G SFP+ ports, each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports, 8-port base configuration: additional ports are enabled with two 8-port SFP+ PODs (Ports on Demand), scaling the switch from 8 ports to 24 ports.
- Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports.
- Scalability:Full-fabric architecture with a maximum of 239 switches
- Fibre Channel: 8.5GB/s line speed, full duplex, 14.025Gb/s line speed, full duplex, 28.05Gb/s line speed, full duplex, 57.8Gb/s line speed, full duplex, Auto-sensing of 8, 16, 32, and 64G port speeds
- Port types: F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports, Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
- Media types: 64G FC SFP+ LC connector: SWL, LWL. Auto negotiates to 64, 32, 16G, 32G FC SFP+ LC connector: SWL, LWL, ELWL. Auto negotiates to 32, 16, 8G, All Brocade transceivers are PC/UPC compatible
- Management: Brocade Advanced Web Tools; Brocade SANnav Management Portal and SANnav Global View; Command Line Interface (CLI); HTTP/HTTPS; RESTful API; SNMP v1/v3 (FE MIB, FC Management MIB); SSH
- Operating Environment:Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 85% (non-condensing)
- Power Supply: Base switch includes a single, fixed power supply with four integrated system cooling fans
- Service and support:Optional service upgrades are available through Lenovo Services: 9x5 next business day onsite response, 24x7 2-hour or 4-hour onsite response, 24x7 6-hour or 24-hour committed service repair, up to 5 years of warranty coverage, 1-year or 2-year post-warranty extensions, and Basic Hardware Installation Services.
- Dimensions: Width: 42.88 cm (16.88 in.), Height: 4.29 cm (1.69 in.), Depth: 30.66 cm (12.07 in.)
