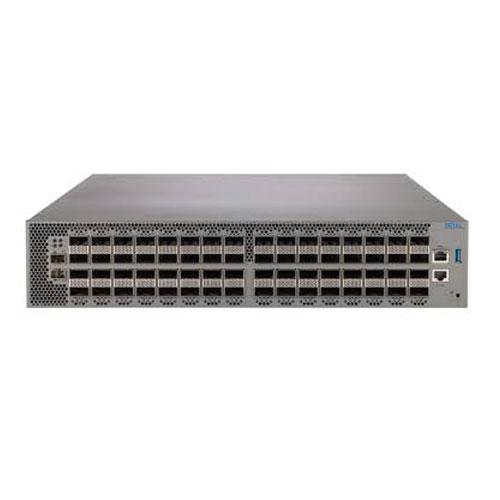

Nokia 7220 IXR H5 32D Switches
- Brand: Nokia
- Model No: Nokia 7220 IXR H5 32D Switch
- System throughput Full duplex(FD): 25.6 Tb/s
- Connectors: 32 x 800G QSFP-DD, 2 x 10GE SFP+
- Optical breakouts: 8 x 100G, 2 x 400G, 4 x 100G, 4 x 200G, 2 x 100G, 2 x 50G
- 800GE: 32
- 400GE: 64
- 200GE: 128
- 100GE: 144
- 50GE: 64
- 10GE: 2
- Management ports: 1 x 1000BASE-T
- USB ports: 1 x USB3.0
- Console port: 1 x RJ45
- Processor: 8-core x86 with dual boot SPI
- Memory: 32G DDR5
- Memory buffer size: 165.2 MB
- Storage: 32G iSLC
- Power: 1+1 redundant
- AC: 200V to 240V, 2400 W AC
- DC: -48V / -60V, 2400 W DC
- Hot-swappable fan modules: Yes
- Hot-swappable power supplies: Yes
- Fan modules: 7 Front-to-back
- Discrete Trusted Platform Module (TPM 2.0): Yes
- Normal operating temperature range: 0°C to +40°C (32°F to +104°F)
- Shipping and storage temperature: -40°C to +70°C (-40°F to +158°F)
- Normal humidity: 5% to 95%, non-condensing
- Dimensions Height: 4.35 cm (1.75 in); 1 RU, Width: 43.85 cm (17.26 in), Depth: 65 cm (25.5 in)
- Weight: 16.37 kg (36.09 lb)
- Warranty: 1 Year Warranty
