Brand: Supermicro

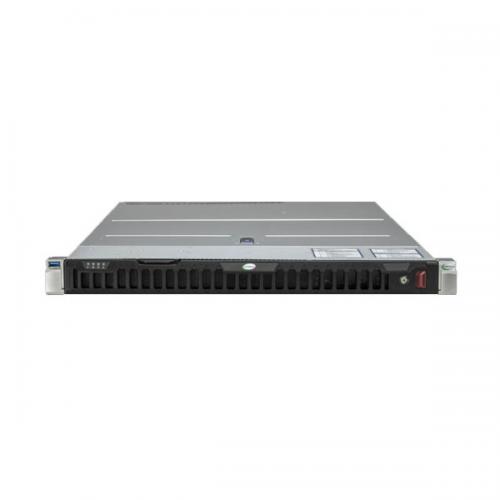

Model No: Hyper Super SYS 120H TNR Server

Form Factor: 1U Rackmount Enclosure: 437 x 43 x 747mm (17.2" x 1.7" x 29.4") Package: 605 x 206 x 1032mm (23.8" x 8.1" x 40.6")

Processor: Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU

GPU: Up to 2 double-width GPUs

System Memory: Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 Supports Intel Optane persistent memory 200 series

Drive Bays Configuration: Default: Total 8 bays

Expansion Slots: Default 1 PCIe 4.0 x16 FHHL slot 2 PCIe 4.0 x16 FH/10.5"L slots 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)

System Cooling: Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) Air Shroud: 2 Air Shrouds

Power Supply: 2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimensions and Weight: Weight: Gross Weight: 49 lbs (22.2 kg
