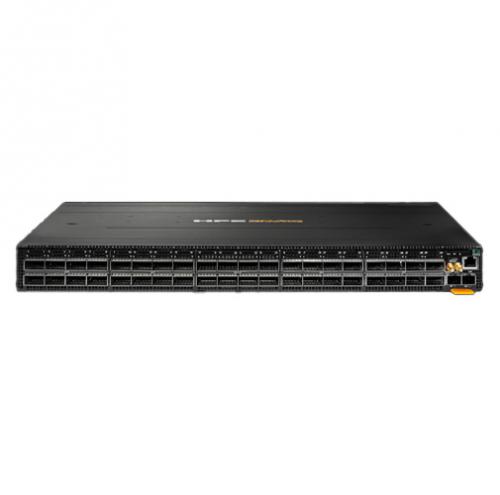

HPE Aruba Networking CX 9300 Ethernet Switch
- Brand: HPE
- Features: 25.6Tbps, 1U fixed configuration supporting 32 ports of 100/400GbE. Designed to provide flexible, cost-effective, high-density 10-400GbE for servers, storage, and intra-fabric connectivity.
- Protects enterprises’ investment as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint.
- Support large data center pods connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
- Support large data center pods and increased density by connecting up to 6,000 x 25G servers or up to 2,000 x 100G servers.
- HPE Aruba Networking Fabric Composer greatly simplifies the automation, orchestration, and end-end visibility of the network fabric underlay and virtualized overlay.
- Introducing new HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front and Front-to-Back Bundles along with new compatible transceivers and power supply options.
- Power consumption:Max: 600W or 615W, Idle: 210W or 221W depending on the model
- Heat dissipation:4,435 BTU/hr (Max)
- Input voltage:100-127 / 220-240 VAC 220-240V required to support 8-32 port production configuration
- Ports:SNMP
- RJ-45 serial
- RJ-45 OOBM Ethernet Port
- Micro USB
- Routing capabilities:Static (IPv4/IPv6); RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; EVPN-VXLAN
- Switching capacity:25.6Tbps
- Throughput:5Bpps
- Memory and processor:32GB RAM, 1.7GHz Processor,128GB m.2 SSD, 4GB mSATA, 128MB SPI Flash, 16GB x2 SODIMM
- Power supply name:Includes 2 FB Power Supplies (R8Z97A) with no additional open Power Supply slots, warning: 200-225VAC use only
- Operating temperature:32°F to 113°F (0°C to 45°C) Max
- Management features:SNMP; RJ-45 console Port; Micro USB console port
- Weight:11.85 kg (26.12 lb)
- Dimensions:4.35 x 43.84 x 59 cm (1.71 x 17.26 x 23.23 in)
- Warranty:Limited lifetime warranty. See the warranty duration.
