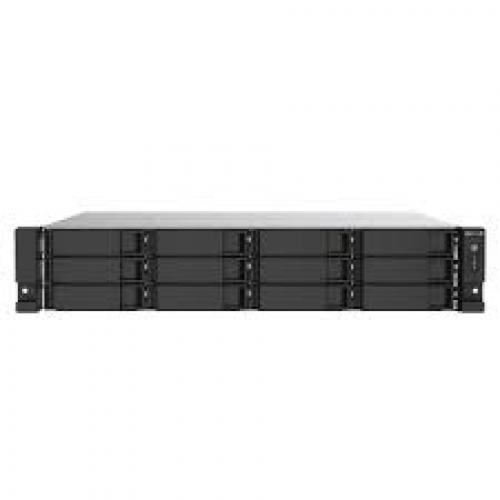

Qnap TS h1677AXU RP 16 Bay NAS Storage
- Brand: Qnap
- Model No: Qnap TS h1677AXU RP 16 Bay NAS Storage
- CPU: AMD Ryzen 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
- CPU Architecture: 64-bit x86
- Graphic Processors: AMD Radeon™ Graphics
- Floating Point Unit: Yes
- Encryption Engine: (AES-NI)
- Hardware-accelerated Transcoding: Yes
- System Memory: 32 GB UDIMM DDR5 (1x 32 GB)
- Maximum Memory: 192 GB (4 x 48 GB)
- Memory Slot: 4 x UDIMM DDR5, Support optional ECC memory
- Flash Memory: 5GB (Dual boot OS protection)
- Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
- Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
- Hot-swappable: (Not supported M.2 SSD)
- M.2 Slot: 2 x M.2 2280 PCIe Gen 5 x2 slots
- SSD Cache Acceleration Support: Yes
- GPU pass-through: Yes
- 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 2 (2.5G/1G/100M/10M)
- 10 Gigabit Ethernet Port: 2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
- Wake on LAN (WOL): Yes
- Jumbo Frame: Yes
- PCIe Slot: 3 Slot 1: Gen 4 x 4, Slot 2: Gen 4 x 8 or Gen 4 x 4*, Slot 3: Gen 4 x 4
- USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A USB 3.2 Gen 2 10Gbps
- Form Factor: 3U Rackmount
- LED Indicators: Power Status, HDD 1-16, M.2 SSD 1-2, Status, LAN, storage expansion port status
- Buttons: Power, Reset
- Dimensions (HxWxD): 131.3 × 482.2 × 550.8 mm
- Weight (Net): 15.64 kg
- Operating Temperature: 0 - 40 °C (32°F - 104°F)
- Storage Temperature: -20 - 70°C (-4°F - 158°F)
- Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
- Power Supply Unit: 550W(x2), 100-240V
- Power Consumption: Disk Standby Mode: 99.99 W
- Power Consumption: Operating Mode, Typical: 349.96 W
- Fan: System fan: 3 x 60mm, 12VDC
- Max. Number of Concurrent Connections (CIFS) - with Max. Memory 5000
- Warranty: 5 Years Warranty
