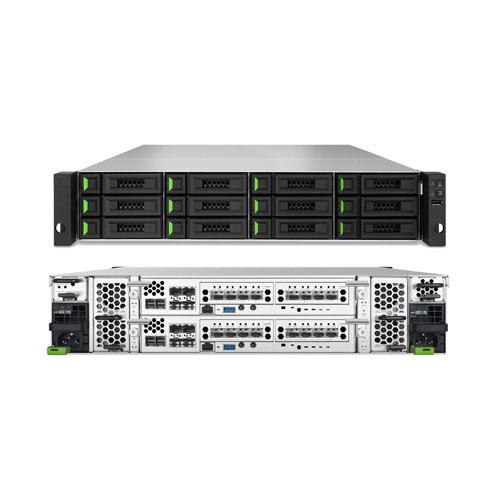

Qsan XF3212D NVMe SSD Block Storage
- Brand: QSAN
- Part No: XF3212D
- Model No: Qsan XF3212D All Flash Storage
- Architecture: Dual-active controller
- Processor: Intel Xeon 4-core x 2
- Memory: 16 GB DDR4 RDIMM
- Total Memory Slots: 8
- Total Expandable: 512 GB
- Drive Bays: 3.5" Slot x 12
- Drive Type: 2.5" dual-port U.2 NVMe SSD
- Drive Interface: U.2 NVMe (PCIe Gen 4)
- Maximum Internal Capacity: 368 TB
- PCIe Expansion: (Gen 3x8 Slot) x 4
- USB Port: 1 (front) / 2 (rear)
- RAID: 0/1/3/5/6/10/50/60/5EE/6EE/50EE/60EE
- Data Protection: Snapshot, Asynchronous, Synchronous (option)
- Security: SSL/SSH/iSCSI CHAP/ISE & SED
- Protocols: iSCSI, FCP, NVMe-oF
- Management: Web UI, RESTful API, S.E.S., LCM
- Power Supply: 850 W x 2 (80 Plus Platinum)
- System fan: 4 pcs
- Dimensions: 88 x 438 x 515 mm
- Weight: 16.3 kg
- Warranty: 3 years Warranty
