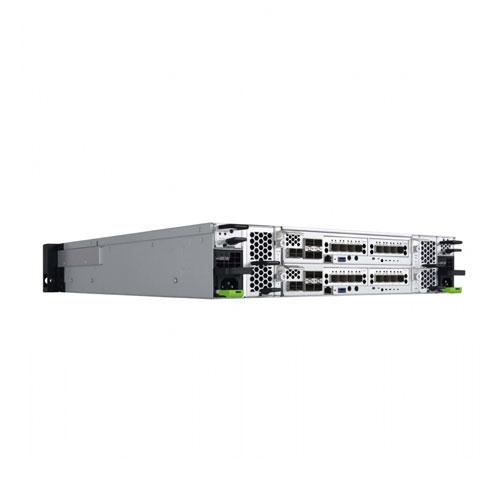

QSAN XS5326 2U Hybrid Storage
- Brand: QSAN
- Model No: QSAN XS5326 Network Attached Storage
- Architecture: XS5326D: Dual-active controller, XS5326S: Single-upgradeable controller
- Storage OS: XEVO 2
- Processor: Intel Xeon 64-bit 4-core (8-core processor models are also available)
- Memory Module Pre-installed: 16 GB DDR4 ECC DIMM (per controller)
- Total Memory Slots: 4 (per controller)
- Memory Expandable: up to 256 GB (per controller)
- Drive Bays: 2.5" Slot x 26
- Maximum Drive Bays with Expansion Unit: 546
- Compatible Drive Type: 2.5" SAS, NL-SAS, SED HDD, 2.5" SATA(*) HDD, 2.5" SAS, SATA(*), SED SSD
- Drive Interface: SAS 12 Gb/s, SATA 6 Gb/s(*)
- Maximum Internal Raw Capacity: 798 TB (calculate 30.72 TB SSD)
- Maximum Raw Capacity with Expansion Units: 16,773 TB (calculate 30.72 TB SSD)
- Hot Swappable Drive: Yes
- PCIe Expansion: (Gen 3x8 Slot) x 2
- 1 GbE RJ45 LAN Port: 1 (onboard management port per controller)
- 10 GbE SFP+ LAN Port: 4 (onboard per controller) / 4 (option)
- 10 GbE RJ45 LAN Port: 2 (option) / 4 (option)
- 25 GbE SFP28 LAN Port: 2 (option) / 4 (option)
- 16 Gb SFP+ Fibre Channel: 2 (option) / 4 (option)
- 32 Gb SFP28 Fibre Channel: 2 (option)
- 12 Gb/s SAS Wide Port: 2 (onboard per controller)
- USB Port: 1 (front) / 2 (rear)
- Others: Console Port x 1, Service Port (UPS) x 1
- Memory Protection: Cache-to-Flash (Supercapacitor Module + Flash Module) (option)
- System Fan: 4 pcs
- Power Supply Unit: 850 W x 2 (80 PLUS Platinum)
- Power Consumption: 429 W
- Dimension (H x W x D) (mm): 88 x 438 x 491 mm
- Weight: 16.3 kg
- Warranty: 3 Years Warranty
